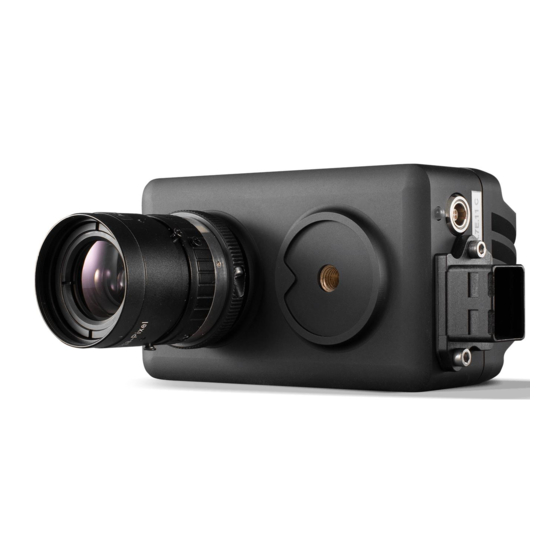

DS-CAM 600
TECHNICAL REFERENCE MANUAL
DS-CAM 600 V20-1






Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-CAM 600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DEWESOFT DS-CAM 600

  • Page 1: Table Of Contents

      DS-CAM 600  TECHNICAL REFERENCE MANUAL  DS-CAM 600 V20-1            1 ...
  • Page 2: Table Of Contents

    8.2. General Safety Instructions 24  8.2.1. Environmental Considerations 25  8.2.2. Product End-of-Life Handling 25  8.2.3. System and Components Recycling 25  8.2.4. General safety and hazard warnings for all Dewesoft systems 25  9. Documentation Version 28  DS-CAM 600 V20-1 2/27   ...
  • Page 3 It gives you important information about the subject.  Please read carefully!    Hint   It gives you a hint or provides additional information about a subject.      Example   Gives you an example of a specific subject.        DS-CAM 600 V20-1 3/27   ...
  • Page 4: Key Features

    The benefits are: high speed data transfer rates up to 1GBit/s (based on 1000Base-T) connectible to every  standard GigE Ethernet port and cable lengths up to 100m.  Dewesoft uses Smartek GigE SDK for communication with cameras that support GigE Vision standard.   Important  ...
  • Page 5: Technical Data

    Lens mount  C-mount (1'' 32G thread)  Connectors  Gigabit Ethernet: RH45  CE  EN55022, class A  EN61000-4-2  EN61000-4-3  EN61000-4-4  EN61000-4-6  FCC Part 15, class A RoHS  Conformoty  GigE Vision 1.2  Power specifications    Supply voltage  Power-over-Ethernet (42-57V)  DS-CAM 600 V20-1 5/27   ...
  • Page 6 DS-CAM 600  TECHNICAL REFERENCE MANUAL      Power-over-Ethernet  ✔   Power consumption  6 W      Illustration 1: Mechanical Drawing  DS-CAM 600 V20-1 6/27   ...
  • Page 7: Connections

    Note that pins 3 and 4 are used for clocking the camera. Pins 1 and 2 are reserved for synching multiple  DEWESoft instruments!  4.2.2. SIRIUS connection example  In this picture you see a typical SIRIUS device consisting of a S-Box unit (integrated PC) on bottom and  one SIRIUS slice on top (from rear side).   DS-CAM 600 V20-1 7/27   ...
  • Page 8: Connecting To Existing Dewetron Systems

    DEWETRON instruments must not have DI-ISO option (isolated inputs/outputs)! In this case  ● clocking is not possible, only free-run (the CLK pin is not available on the connector).  Free-run operation (without clocking) is easy, just connect the camera over PoE injector to the GigE LAN  port.  DS-CAM 600 V20-1 8/27   ...
  • Page 9 Connect EXT_CLK1 (pin 17) to CLK of the Lemo 00 connector of the camera (pin 3).   ● Connect DGND (pin 37) to GND of the Lemo 00 connector (pin 4)  ● Set the pin EXT_CLK1 to “Video” in DEWESoft hardware setup  ●   Illustration 5: DEWETRON Orion-1622-100 DSUB 37 pinout ...
  • Page 10: Resolutions / Framerates

    DS-CAM 600  TECHNICAL REFERENCE MANUAL        Illustration 6: Clockout setup of EXT_CLK1 pin in DEWESoft    4.3. Resolutions / Framerates    Sensor type  CMV2000  Active pixels  2048 x 1088    STANDARD RESOLUTIONS  Resolution  Active pixels  MAX. FRAME RATE ...
  • Page 11 Results (FPS) should be considered only as approximate MAX values. It depends on the system  performance (CPU, JPEG compression, harddisk). We recommend to test cameras with your  setup at about 0.8*max_FPS and higher to find where corrupted image, frame lost or buffer  overrun will occur.      DS-CAM 600 V20-1 11/27   ...
  • Page 12: Installation

    5.1. Installation – in DEWESoft X  For DEWESoft X all the drivers come with the Fullinstaller, if you select the option “GigE camera driver”  during installation. To check if the drivers are installed, go to Settings → Hardware setup → Video and see ...
  • Page 13: Step-By-Step Instruction

    Note that “Filter Driver” filters out all packets that are not GigE on hardware level, so the  camera will work much faster than without the filter.    Illustration 8: Installed Smartek GigE Vision Filter Driver.  2. Connect camera to PC via Ethernet cable and PoE Power Injector in between.   DS-CAM 600 V20-1 13/27   ...
  • Page 14 5. Copy and replace your existing DEWESoft.exe with the one downloaded.   6. Start DEWESoft and go to Settings > Hardware setup > Analog. For triggered mode (DEWESoft is  clocking the camera), check if your device (such as DEWE-43 for example) is set to Standalone or Master: ...
  • Page 15 Illustration 11: DEWESoft: Hardware setup > Video: finds GigE camera(s).  “File types for storing” should be set to “DVI” which is uncompressed DEWESoft video format. The CPU  will not have enough power to additionally do the “live” compression. Depending on the measurement ...
  • Page 16 This is done with the “USB Firmware Upgrade Tool” from  http://www.dewesoft.com/download/section/1​ . Also the Firmware  File can be downloaded there. Close DEWESoft, start the Upgrade Tool, select “DEWESoft USB”  interface and firmware file and Start. After finished, it is very important to unplug power and USB ...
  • Page 17 DS-CAM 600  TECHNICAL REFERENCE MANUAL        Illustration 14: DEWESoft: Video settings  The shutter bar determines the light exposure duration (brightness).  ● If the light is too dark, use the gain bar to increase brightness by software.   ● The JPEG quality is inversely to the compression. 80% means good quality, low compression. ...
  • Page 18: Faq

    Is the Trigger/Sync cable connected?  ● Try decreasing the Shutter value  ● Check in hardware setup if the DEWESoft USB device is set to Master or Standalone  ● Disable Trigger in hardware setup and check if it’s working in free-run mode (cable problem?)  ●...
  • Page 19 If you manually change the IP address, please use the same subnet as the computer, example:   PC: 192.168.1.100, Subnet 255.255.255.0   Camera: 192.168.1.101, Subnet 255.255.255.0  The IP is ok, if the cameras are found with a red mark (see Illustration above), close GigEVisionClient and  start DEWESoft.  DS-CAM 600 V20-1 19/27   ...
  • Page 20 Then start the GigEVisionClient from C:\Program Files\Smartek\GigEVisionSDK\bin\Win64   Cameras not working in DEWESoft  If you followed the step-by-step installation procedure, but still the camera is not working in DEWESoft,  you can try to copy the used dlls manually:   Copy the 32-bit dlls from  ...
  • Page 21: Reference List

    -> right-mouse-click on LAN connection -> Properties -> Configure -> Advanced  -> Jumbo Frame -> set to highest value (e.g. 9kB MTU))  Also an overloaded DEWESoft setup (many displays, e.g. high resolution FFT instruments) will  ● take system power. Try at first only with camera video instruments. ...
  • Page 22: Warranty Information

      7.2. Support  Dewesoft has a team of people ready to assist you if you have any questions or any technical difficulties  regarding the system. For any support please contact your local distributor first or Dewesoft directly.   ...
  • Page 23: Printing History

    When used in text representing the company, product or  technology name, the ® sign is not used. The Dewesoft triangle logo is a registered trademark but the ®  sign is not used in the visual representation of the triangle logo. ...
  • Page 24: Environmental Considerations

      This symbol indicates that this system complies with the European Union’s requirements  according to Directive 2002/96/EC on waste electrical and electronic equipment (WEEE).  Please find further information about recycling on the Dewesoft web site  www.dewesoft.com    Restriction of Hazardous Substances ...
  • Page 25 REMOVE POWER and do not use the product until the safe  operation can be verified by service-trained personnel. If necessary, return the product to  Dewesoft sales and service office for service and repair to ensure that safety features are  maintained. ...
  • Page 26 Devices and systems according to IEC 61508 or IEC 61511 which are considered as “operationally  well-tried”, are excluded from the scope of IEC 61326-3-1.    Fire-alarm and safety-alarm systems, intended for the protection of buildings, are excluded from the  scope of IEC 61326-3-1.        DS-CAM 600 V20-1 26/27   ...
  • Page 27: Documentation Version

    DS-CAM 600  TECHNICAL REFERENCE MANUAL      9. Documentation Version  Revision number: 85   Last modified: Sat 23 Feb 2013, 14:43    Doc-Version  Date [dd.mm.yy]  Notes  1.0.0  23.02.13  initial revision    DS-CAM 600 V20-1 27/27   ...
