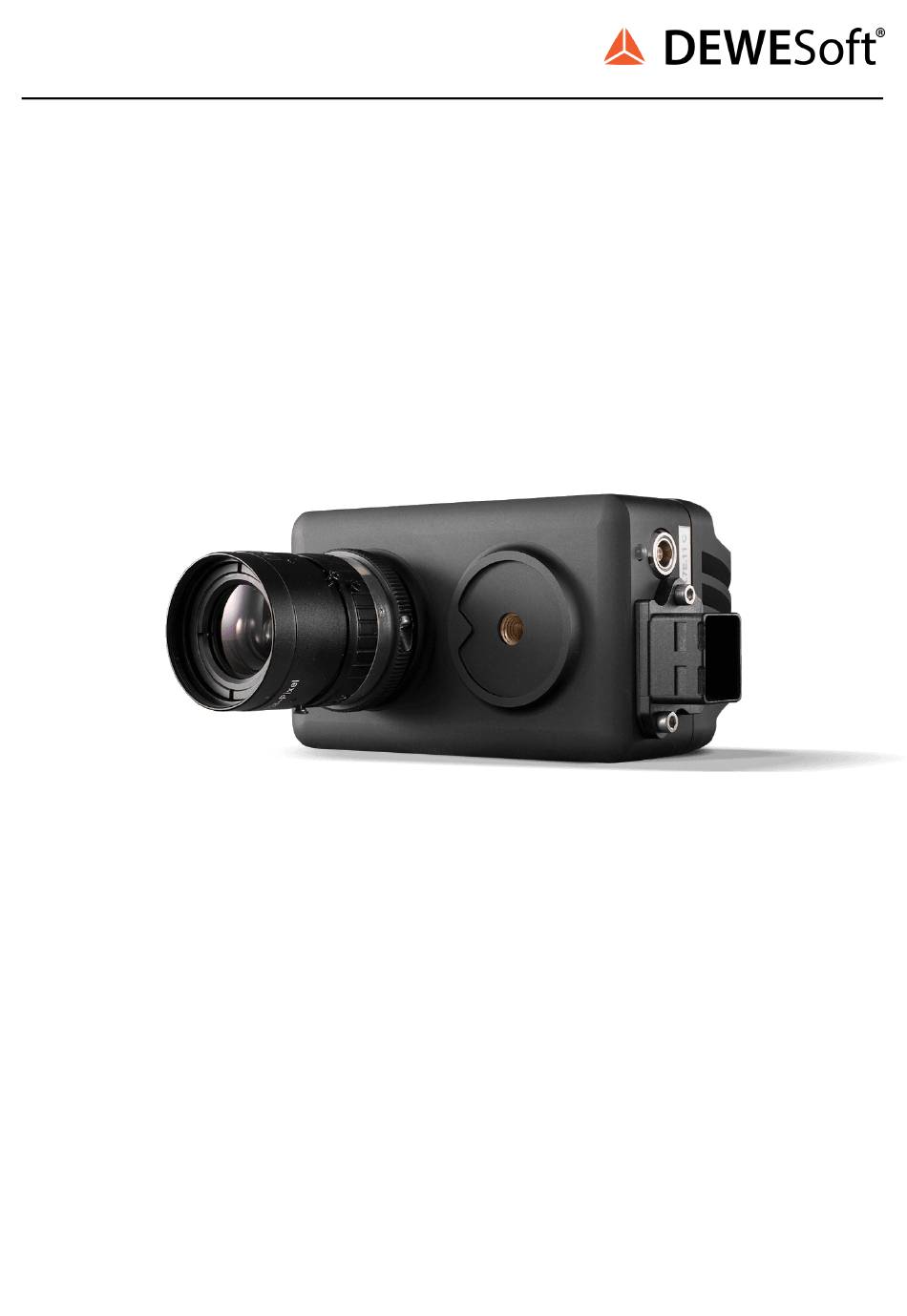

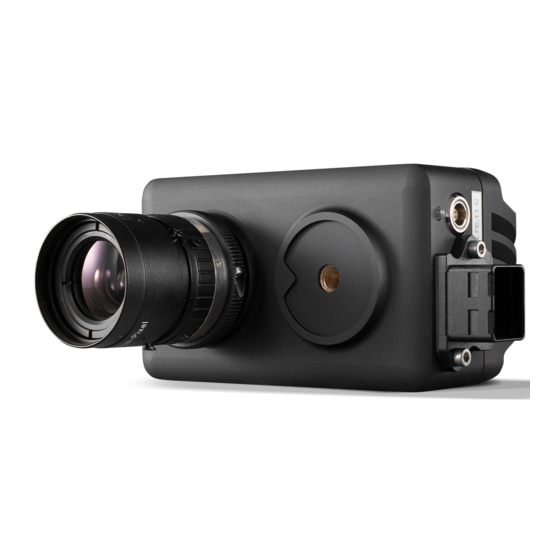

DS-CAM 600
TECHNICAL REFERENCE MANUAL
DS-CAM 600 V21-1







Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-CAM 600 and is the answer not in the manual?

Questions and answers

Summary of Contents for DEWESOFT DS-CAM 600

  • Page 1   DS-CAM 600  TECHNICAL REFERENCE MANUAL  DS-CAM 600 V21-1              1 ...
  • Page 2: Table Of Contents

    DS-CAM-600  TECHNICAL REFERENCE MANUAL      1. Table of contents  1. Table of contents 2  2. About this document 4  2.1. Legend 4  3. Key features 5  3.1. System Requirements 5  4. Technical data 6  4.1. Specification 6  4.2. Scope of supply 8 ...
  • Page 3 DS-CAM-600  TECHNICAL REFERENCE MANUAL      8.2.4. General safety and hazard warnings for all Dewesoft systems 28  9. Documentation Version 31      DS-CAM-600 V21-1 3/31   ...
  • Page 4: About This Document

    DS-CAM-600  TECHNICAL REFERENCE MANUAL      2. About this document    2.1. Legend    The following symbols and formats will be used throughout the document.      Important   It gives you important information about the subject.  Please read carefully!   ...
  • Page 5: Key Features

    3.1. System Requirements   1 Gigabit-Ethernet port  ● High-performance PC (Core i5 CPU or better recommended, 4 GB RAM and high performance  ● SSD storage disc)   DewesoftX®  ● The latest OptoStream SDK  ● Dewesoft GigE driver (cdv)  ●   DS-CAM-600 V21-1 5/31   ...
  • Page 6: Technical Data

    DS-CAM-600  TECHNICAL REFERENCE MANUAL      4. Technical data   4.1. Specification  DS-CAM-600 Color option Color ✓ Monochrome ✓ Color waterproof ✓ Optical specifications Image sensor CMOSIS CMV2000 2E5M1PP Sensor type CMOS Resolution Up to Full HD 1920x1080 333 FPS @ 2048x1088  600 FPS @ 640x480 Sensor size 2/3'' (12.7 mm diagonal)
  • Page 7 DS-CAM-600  TECHNICAL REFERENCE MANUAL      Power specifications Supply voltage Power-over-Ethernet (42-57V) Power-over-Ethernet ✓ Power consumption       Illustration 1: Technical drawing of DS-CAM-600  DS-CAM-600 V21-1 7/31   ...
  • Page 8: Scope Of Supply

    DS-CAM-600  TECHNICAL REFERENCE MANUAL          Illustration 2: L holder for camera mounting.  4.2. Scope of supply  4.2.1. DS-CAM-600 camera versions  The table below describes different variations of DS-CAM-600    Type  Usage  DS-CAM-600c  Color  DS-CAM-600cw  Color waterproof  DS-CAM-600m  Monochrome  ...
  • Page 9: Ds-Cam-600 Accessories

    DS-CAM-600  TECHNICAL REFERENCE MANUAL      4.2.2. DS-CAM-600 Accessories    Type  Usage  LENS-AZURE-1614MM  Azure 1614MM C-MOUNT lens  L holder for perpendicular camera mounting  MOUNT-VERTICAL  with 1x 1/4-20 UNC thread  CABLE-L00B4m-L00B4m-3m  Sync cable for camera synchronization  CABLE-UTP-CAT.6-1M  RJ45 CAT 6 cable, for data transfer to PC  Ethernet cable for PoE and data.
  • Page 10: Sirius® Connection Example

    Hint   Pin 3 and pin 4 are used for clocking the camera. Pins 1 and 2 are reserved for synching  multiple Dewesoft instruments!    4.3.2. SIRIUS® connection example  The picture below shows a typical camera connection with SIRIUS® (the top slice) and SIRIUS-SBOX (the ...
  • Page 11: Krypton® Connection Example

    DS-CAM-600  TECHNICAL REFERENCE MANUAL      The second cable (L00B4m-L00B4m-xM) provides the trigger. It is connected to the SYNC port of the  SIRIUS® slice and IO connector on the DS-CAM-600. With this connection the camera frames will be in  perfect sync with the analog data acquired by DewesoftX®.  Hint  ...
  • Page 12 Illustration 5: KRYPTON® 3xSTG with Sync Junction and Krypton CPU on top, connected to the DS-CAM-600 (PoE injector in    between)   Hint   Even if the camera is connected, synching to other Dewesoft devices is still possible, because there  are different pins used on the Sync-Connector for triggering/synching (see also IO connector  pinout).       ...
  • Page 13: Resolutions / Framerates

    DS-CAM-600  TECHNICAL REFERENCE MANUAL      4.4. Resolutions / Framerates  Sensor type  CMV2000  Active pixels  2048 x 1088    STANDARD RESOLUTIONS  Resolution  Active pixels  MAX. FRAME RATE  Full frame 2.2M  2048 x 1088  333 FPS  2K  2048 x 1080  336 FPS  HD 1080 ...
  • Page 14: Installation

    “GigE” is visible. If not, execute the full installer again, choose the Modify option and enable  the checkbox of GigE camera.       Illustration 6: Installation  The last DewesoftX® full installer can be downloaded here:  https://download.dewesoft.com/list/dewesoftx    DS-CAM-600 V21-1 14/31   ...
  • Page 15: Manual Installation

    It includes the latest OptoStream SDK and Dewesoft driver for GigE Vision.  ● DewesoftX®  Available from ​ ttps://download.dewesoft.com/list/dewesoftx   ● Hint   You need to be logged into the Dewesoft website to download the latest development  versions of DewesoftX®.  DS-CAM-600 V21-1 15/31   ...
  • Page 16: Step-By-Step Instruction

    DS-CAM-600  TECHNICAL REFERENCE MANUAL      5.2.2. Step-by-step instruction  1st step: Install OptoMotive_OptoStreamSDK   Note that you must be an administrator, not just a user with admin rights! Restart the PC after  installation is complete. After reboot be sure that “OptoStream GEM Filter Driver” is installed (picture 1)  under Local area Connection Properties. ...
  • Page 17   Avoid using OptoStreamViewer and DewesoftX® in parallel.     4th step  To enable the camera in DewesoftX® copy the file “GigECamera.cdv” into the Dewesoft Addons folder,  usually located in “C:\DewesoftX\Bin64\Addons64\GigeCam”.    5th step   Run the "Dewesoft DCOM Registration” to register the plugin. ...
  • Page 18 DS-CAM-600  TECHNICAL REFERENCE MANUAL        6th step   Start DewesoftX® and go to Options → Settings → Analog. For triggered mode (DewesoftX® is clocking  the camera), check if your device (such as DEWE-43 for example) is set to Automatic or Clock/Trigger:   ...
  • Page 19 Go to Ch. Setup, click the Video tab, click the Unused button to enable the video channel.    Illustration 14: DewesoftX® Channel setup → add Video  Hint  Ensure the firmware version of Dewesoft hardware is up to date, otherwise follow the  instructions of how to do it in the ​ U pdating firmware​ article.  ...
  • Page 20 DS-CAM-600  TECHNICAL REFERENCE MANUAL      9th step  Enter the channel setup. By now, already a picture should be shown.     Illustration 15: DewesoftX® video channel setup  The shutter bar determines the light exposure duration (brightness).  ● If the light is too dark, use the gain bar to increase brightness by software.   ●...
  • Page 21: Troubleshooting Guide

    DS-CAM-600  TECHNICAL REFERENCE MANUAL      Use the “Advanced Setup”, if you want to change specific parameters of the camera, such as the  ● custom resolution and AOI, area of interest, for instance.  Hint  If you change the frame rate, after typing the value, the input field gets a yellow color; confirm  the value by pressing the Enter key. ...
  • Page 22 DS-CAM-600  TECHNICAL REFERENCE MANUAL      Further troubleshooting, most probably the computer and the camera are not in the same subnet.    Illustration 16: IP address problem    Important   You should avoid using OptoStreamViewer and DewesoftX® in parallel. If the cameras are  found, close DewesoftX®...
  • Page 23 C:\Program Files\OptoMotive\OptoStreamSDKbin\Win32   and   C:\Program Files\OptoMotive\OptoStreamSDK\GenICam_v2_4\bin\Win32_i86   to   Dewesoft’s Addons folder.  Then restart DewesoftX®.  Performance improvements (e.g. in case of frames lost or buffer overrun)   A loss of a few frames during a measurement is normal, due to collisions on the Ethernet network.  ...
  • Page 24 DS-CAM-600  TECHNICAL REFERENCE MANUAL      For this camera, the best quality can be achieved by using a powerful CPU.   ● Try to decrease the JPEG compression (e.g. from 80 down to 50%)   ● Use the Windows resource monitor (can be found in Task manager) to check for bottlenecks.  ●...
  • Page 25: Reference List

    DS-CAM-600  TECHNICAL REFERENCE MANUAL      6.1. Reference list   (a) Velociraptor HS: ​ ttps://www.optomotive.com/category/velociraptor-hs   (b) SIRIUS® Technical manual:  https://download.dewesoft.com/download-file/dewesoft-sirius-manual-enpdf                     DS-CAM-600 V21-1 25/31   ...
  • Page 26: Warranty Information

      7.2. Support  Dewesoft has a team of people ready to assist you if you have any questions or any technical difficulties  regarding the system. For any support please contact your local distributor first or Dewesoft directly.   ...
  • Page 27: Printing History

    When used in text representing the company, product or  technology name, the ® sign is not used. The Dewesoft triangle logo is a registered trademark but the ®  sign is not used in the visual representation of the triangle logo. ...
  • Page 28: Environmental Considerations

      This symbol indicates that this system complies with the European Union’s requirements  according to Directive 2002/96/EC on waste electrical and electronic equipment (WEEE).  Please find further information about recycling on the Dewesoft web site  www.dewesoft.com    Restriction of Hazardous Substances ...
  • Page 29 REMOVE POWER and do not use the product until the safe  operation can be verified by service-trained personnel. If necessary, return the product to  Dewesoft sales and service office for service and repair to ensure that safety features are  maintained. ...
  • Page 30 DS-CAM-600  TECHNICAL REFERENCE MANUAL      Avoid operation in the immediate vicinity of high magnetic or electromagnetic fields,  ● transmitting antennas or high-frequency generators, for exact values please refer to enclosed  specifications.  Use measurement leads or measurement accessories aligned with the specification of the  ●...
  • Page 31 DS-CAM-600  TECHNICAL REFERENCE MANUAL      9. Documentation Version  Doc-Version  Date [dd.mm.yyyy]  Notes  1.0.0  23.02.2013  Initial revision  V20-1  23.9.2020  New template and new screenshots.   V20-2  12.10.2020  SDK versions is changed to OptoStream SDK  V21-1  11.1.2021  Temporarily deleted chapter    DS-CAM-600 V21-1 31/31 ...
