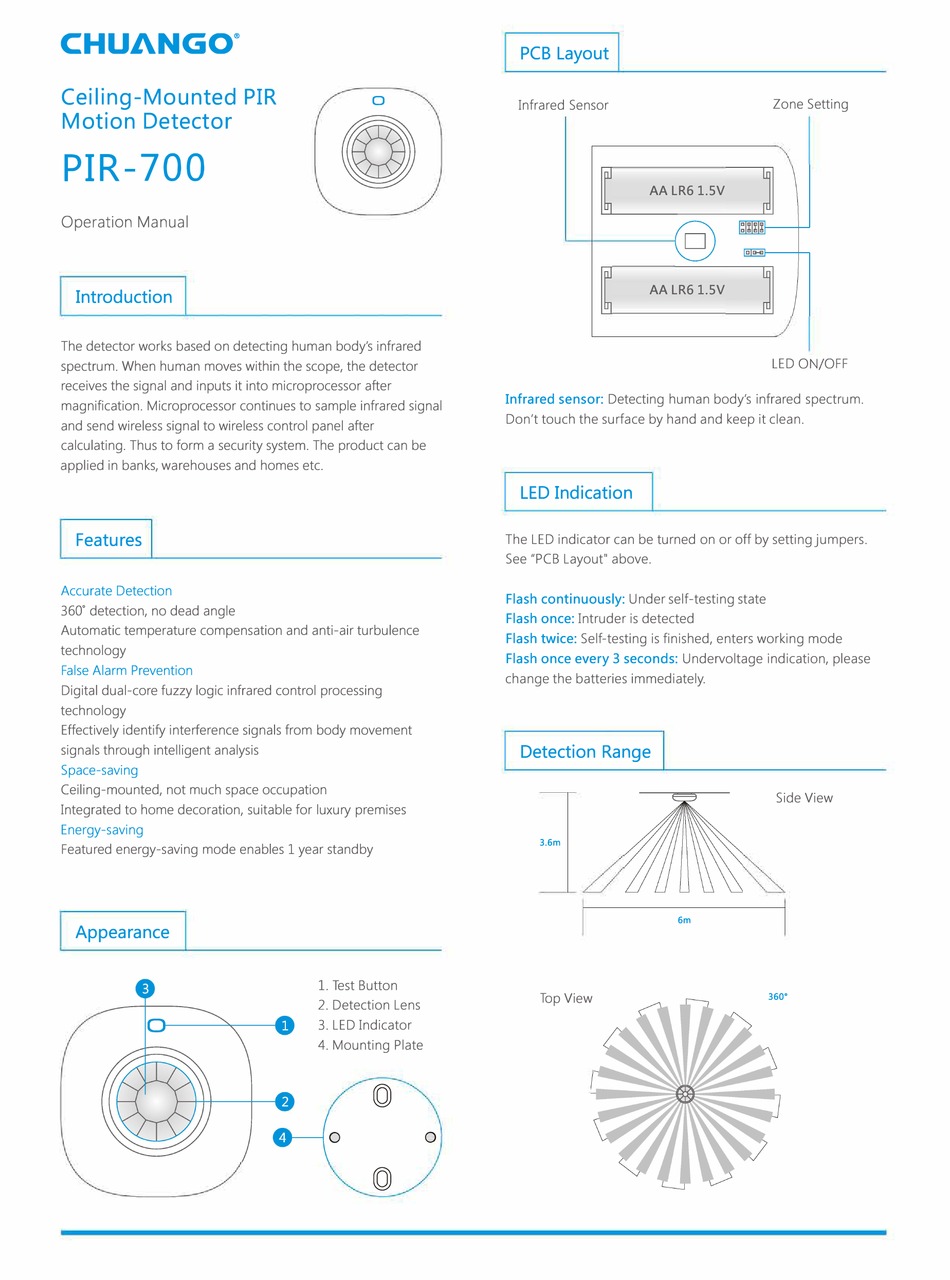

CHUANGO
Ceiling-Mounted PIR
Motion Detector
PIR- 700
Operation Manual
Introduction
The detector works based on detecting human body's infrared
spectrum. When human moves within the scope, the detector
receives the signal and inputs it into microprocessor after
magnification. Microprocessor continues to sample infrared signal
and send wireless signal to wireless control panel after
calculating. Thus to form a security system. The product can be
applied in banks, warehouses and homes etc.
Features
Accurate Detection
360' detection, no dead angle
Automatic temperature compensation and anti-air turbulence
technology
False Alarm Prevention
Digital dual-core fuzzy logic infrared control processing
technology
Effectively identify interference signals from body movement
signals through intelligent analysis
Space-saving
Ceiling-mounted, not much space occupation
Integrated to home decoration, suitable for luxury premises
Energy-saving
Featured energy-saving mode enables 1 year standby
Appearance
0
1. Test Button
2. Detection Lens
3. LED Indicator
4. Mounting Plate
(Q)
0
(Q)
PCB Layout
Infrared Sensor
AA LR61.5V
AA LR61.5V
Detecting human body's infrared spectrum.
Infrared sensor:
Don' t touch the surface by hand and keep it clean.
LED Indication
The LED indicator can be turned on or off by setting jumpers.
See "PCB Layout" above.
Flash continuously:
Under self-testing state
Flash once:
Intruder is detected
Flash twice:
Self-testing is finished, enters working mode
Flash once every 3 seconds:
Undervoltage indication, please
change the batteries immediately.
Detection Range
3.6m
6m
Top View
Zone Setting
LED ON/OFF
Side View
360"
Advertisement
Related Manuals for Chuango PIR-700
Summary of Contents for Chuango PIR-700
- Page 1 ® CHUANGO PCB Layout Ceiling-Mounted PIR Zone Setting Infrared Sensor Motion Detector PIR- 700 AA LR61.5V Operation Manual AA LR61.5V Introduction The detector works based on detecting human body's infrared LED ON/OFF spectrum. When human moves within the scope, the detector receives the signal and inputs it into microprocessor after Detecting human body's infrared spectrum.
- Page 2 Usage Testing (Walk Test) Remove the battery activation strip to activate batteries. It will After installation, power on the detector. After self-testing for 1 enter working mode after one-minute's self-testing. minute, press the test button, walk in the scope by crossing the infrared spectrum (see below diagram), and watch the LED indicator to make sure it is working.
