- Page 1 MANUFACTURERS OF SPECIALIST TEST EQUIPMENT PST-100 Operating Instructions English Version Please read carefully before use...
-
Page 3: Table Of Contents
PST-100 Contents Page General Description Technical Specification Unpacking Safety precautions and symbols PST-100 Earth Terminal Symbol definitions – IEC61010:2010 Calculating the test voltage SP-02-74 test voltage formula Operation Setting the Output Voltage Applications Insulation Testing Gas Discharge Lamp Testing Ozone Production... -
Page 4: General Description

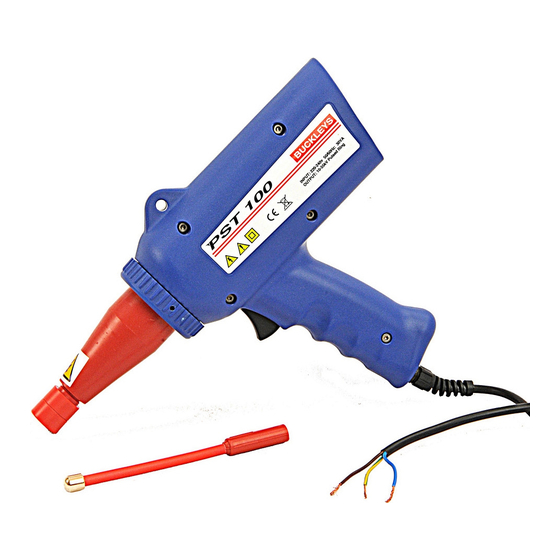

Instruction Manual General Description The PST-100 high voltage spark tester is a lightweight, hand held, spark- test pistol. The PST-100 is primarily used for detecting pinholes or flaws in electrically non-conductive coatings, linings, membranes, pipe wraps and other plastic coated metals. -
Page 5: Technical Specification
PST-100 Technical Specification Operating temperature range: 0 to +30°C Storage temperature range: -10 to +40°C Supply voltage: 6000-0002, 6000-0006, 6000-0014 220/240V AC 6000-0003, 6000-0007, 6000-0015 105/120V AC Supply frequency: 50 to 60 Hz Max power consumption: 30VA Output voltage: 10kV to 55kV... -
Page 6: Unpacking
Instruction Manual Unpacking Remove the PST-100 from its packaging and check for damage. If any part is damaged, the carrier and supplier should be notified immediately. All packing material should be kept for inspection. The PST-100 should not be used. - Page 7 PST-100 The PST-100 Spark Tester is intended to generate a high voltage discharge, it is only to be used by responsible and authorised personnel that have read and understood this manual. The probe must NEVER be directed at the body.
-
Page 8: Pst-100 Earth Terminal
PST-100. This arrangement also aids suppression of possible EMC interference. Therefore when conducting an electrical safety test (Portable Appliance Test) to the PST-100 it should be considered a class 2 appliance and tested accordingly. Symbol definitions – IEC61010:2010 Functional Earth (ground) Terminal... -
Page 9: Calculating The Test Voltage
PST-100 Below is a pictorial representation of the PST-100, detailing the functional earth terminal arrangement. Output adjustment pot Switch 1 L fuse HT terminal Control electronics Nose N fuse Switch 2 cone Y capacitors PST-100 functional earth terminal arrangement Calculating the test voltage The test voltage needs to be high enough to locate a fault but not so high as to cause one. -
Page 10: Sp-02-74 Test Voltage Formula
Instruction Manual SP-02-74 test voltage formula Test Voltage = 1250 x √ T coating Where T is the coating thickness in mils (0.001”). coating Alternatively Test Voltage = 250 x √ T coating Where T is the coating thickness in microns (0.001mm). coating After the test voltage is calculated it is necessary to check that the voltage is not so high as to damage the material. -
Page 11: Operation
Screw the flexible probe electrode into the red end of the PST-100. Set the output control knob on the rear fully anti-clockwise. Connect the plug to the mains supply socket. -
Page 12: Applications
150mm. Gas Discharge Lamp Testing The PST-100 can be used to excite gas discharge lamps to confirm that the vacuum has not been lost. The lamp/tube should not be fitted, as the high voltage could contact the fitting and be passed into the wiring, which may damage other equipment connected to that wiring. -
Page 13: Electromagnetic Compatibility
PST-100 Electromagnetic compatibility Electromagnetic Emissions European Union Directive 2014/30/EU Before operating this equipment it is essential that the following risk assessment be taken. As this equipment will produce an electromagnetic emission when actually arcing down through a fault to earth, a risk assessment of the area in which the unit will be used should be carried out. - Page 14 Again, you should remember neighbouring works. The PST-100 has been designed with EMC in mind and therefore all leads are of optimum length. If longer leads are used then they could transmit similar to aerials and cause interference.
-
Page 15: Maintenance
The PST-100 has been designed to be maintenance free, however the PST-100 should be inspected regularly, checking for damage to the unit. If any damage is found, the PST-100 must not be used, and should be returned to the manufacturer for repair. -
Page 16: Ec Declaration Of Conformity
Instruction Manual EC Declaration of conformity Buckleys (UVRAL) Ltd As manufacturer of the apparatus listed, declare that the product: PST-100 High Voltage Spark Tester Is manufactured in conformity with the following directives: 2014/30/EU 2014/35/EU Authorised by: J P Hoveman CEO, Buckleys (UVRAL) Ltd. -
Page 17: Contact Details
PST-100 Contact details Manufacturer Buckleys (UVRAL) Ltd Address: Buckleys House Unit G, Concept Court Shearway Business Park Shearway Road Folkestone Kent CT19 4RG, UK Tel: +44 (0)1303 278888 Fax: +44 (0)1303 274331 Website: www.buckleysinternational.com Distributor details... -
Page 18: Product Registration
Instruction Manual Product registration Thank you for choosing a Buckleys product, we are sure it will provide you with many years of reliable service. Please register this product via Buckleys’ website and download the Warranty Registration Certificate. Register your product in 5 minutes... - Page 19 PST-100...
- Page 20 5830-0012 PST-100/IM/ENG/V.6/19...
