Summary of Contents for Leclerc Looms VOYAGEUR

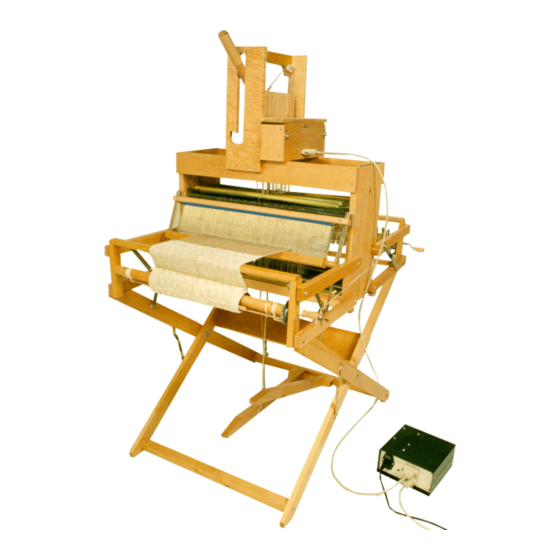

- Page 1 VOYAGEUR 16 SHAFT COMPUTER-DOBBY 2120-1624 D:\LECLERC\INST\VOYAGEUR\VOY16AN.FRP...
- Page 2 The Loom shIpplng container includes the following: LOOM ASSEMBLED AND FOLD 16 SHAFT FRAMES AND 32 HEDDLE SUPPORTS SHAFT SELECTOR SOLENOID UNIT STAND ASSEMBLED AND FOLD (2 TREADLES) Page 1...
- Page 3 INTERFACE BOX WITH CONNECTING CABLES 2 CRANK HANDLES 1000 INSERTED EYE HEDDLES (OR TEXSLOV) 2 SQUARE HEAD SCREWDRIVERS ( black, red) 1 BOAT SHUTTLE 1 REED HOOK 6141-0000 (10 5/8") 1 REED SS 12 DT. 2 METAL LEASE STICKS 2 METAL WARP RODS 2 SOFT WOOD BOARD (with black mark) 10x 18"...
- Page 4 1 LOOP CORD 47" FOR TREADLE CONTROL 1 METAL WIRE/CHAIN 43" FOR TREADLE CONTROL 2 MACHINE SCREWS ¼"X1¼" 4 MACHINE SCREWS ¼" X 3/4" 2 CARRIAGE SCREWS 1/4" X 1 3/4" with washers and nuts 8 ROUND HEAD SCREWS #8 - 1¼" 2 PLASTIC WASHERS FOR STAND BRACKETS Page 3...
- Page 5 Lay the loom on its back. Insert heddles in the heddle supports. Insert heddle supports in the shaft frame. Slide from the buttom of the loom each shaft frame . (Heddles support top and buttom slide inside side loom grooves) To make it nicer insert shaft frame so the twist in the top part is always on same side.
- Page 6 Friction brake; Friction brake system on this loom have a brake lever, a loop so tension can be adjust easily, a spring, a brake circle and a brake drum. To advance the cloth, lift the lever and turn the front beam.
- Page 7 Affix stand brackets with the 4 machine screws ¼” x ¾" and 4 white plastic washer (between bracket and wood) Page 6...
- Page 8 Install the shaft selector in place using 4 round head screws #8 - 1¼" Make sure to screw in the pre-drill holes.
- Page 9 Make connection of the loop cord between the knife and the handle outside screw at black mark. Pass hole of black mark around the screw. The cord will probably have to be adjust Screw later. If this cord is too tight, the action of the handle will be too hard.
- Page 10 When all shaft frames are connected to the correspondant hammer, remove the soft wood (black mark) board from under the shaft frame. All loop cord should be now under tension (weight of the shaft frame) and loop cord should pass outside of the gold metal rod.
- Page 11 Install metal wire joining the screw hook of right treadle and screw hook at the back of the handle. Chain end’s goes to the treadle screw hook. Cable from the treadle have to pass between shaft frame 2 and shaft frame 3, then pass in front of the forward inside pulley to go to the handle hook.
- Page 12 Install loop cord joining the screw hook of left treadle and hook under the knife, threading it between shaft frames. Adjust length so knife gets to the low position when the left treadle is depressed. Make sure that loop cord in the knife hook does not catch hammer when knife raise.
- Page 13 LOOM CONNECTION You should now have: 1 loom with shaft selector installed 1 Solenoid unit 1 Interface Unit (black box) 2 Connection cables Remove the cover of the solenoid unit. (Picture here shows the unit installed on the loom but not yet attached) Install the solenoid unit using 4 round head screws #8, 1¼"...
-
Page 14: Starting The Unit
STARTING THE UNIT BEFORE YOU START SOFTWARE AND AFTER ALL CABLE ARE CONNECTED, PUT THE SWITCH OF THE BLACK BOX ON. LEAVE IT OPEN UNTILL YOU CLOSE SOFTWARE. MAKE SURE THE KNIFE IS IN DOWN POSITION. (HANDLE IN TOP POSITION) TO CHANGE ANY CONNECTION, PUT THE SWITCH OFF. - Page 15 KNIFE ACTION The knife, as illustrated in the photograph, catches any fingers that have been pushed forward by the solenoid. It is VERY IMPORTANT that the knife is in the lower position before you start weaving (first selection) Knife When you raise the knife with the front handle or the left treadle, the magnet (see page 7 picture), Knife hook which is glued to the back of the knife, passes in...
- Page 16 Adjust the height of the beater so the yarn just touch the shuttle race. Pull Push Loosen Loosen The beater has been adjusted here before shipping, but; if the batten doesn't touch the two bumpers equally, loosen the bolts of the batten sley and batten handtree and exert pressure on the batten centering it in its proper place.
- Page 17 DEALER OR LECLERC FOR ANY QUESTIONS. We at Leclerc encourage Weaver feedback on this and all our products. Please send your comments to Leclerc Loom Co. HAPPY WEAVING LECLERC LOOMS P.O. BOX 4 1972 SIMONEAU PLESSISVILLE QC. CANADA G6L 2Y6 819-362-7207 Fax: 819-362-2045 email: leclerc@leclerclooms.com...
