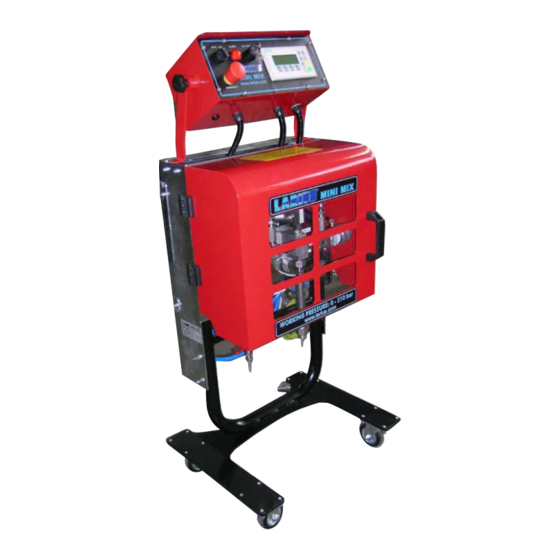

Larius Mini Mix
ITALIANO
Ediz. 010 - 09/2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mini Mix and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Larius Mini Mix

Summary of Contents for Larius Mini Mix

  • Page 1 Larius Mini Mix ITALIANO Ediz. 010 - 09/2015...
  • Page 2 Due to a constant product improvement programme, the factory reserves the right to modify technical details mentioned in this manual without prior notice.

  • Page 3: Table Of Contents

    WE ADVISE THE USE OF THIS EQUIPMENT ONLY BY PROFESSIONAL OPERATORS. ONLY USE THIS MACHINE FOR USAGE SPECIFICALLY MENTIONED IN THIS MANUAL. Thank you for choosing a LARIUS S.R.L. product. As well as the product purchased, you will receive a range of support services enabling you to achieve the results desired, quickly and professionally.

  • Page 4: Warnings

    LARIUS MINI MIX WARNINGS The table below provides the meaning of the symbols used in this manual in relation to using, earthing, operating, maintaining, and repairing of this equipment. Read this operator’s manual carefully before using the equipment. An improper use of this machine can cause injuries to people or things.

  • Page 5: Aworking Principle

    If, on the other hand, the product to be used is solvent-based, the relative circuit must be cleaned using a solvent. LARIUS srl SHALL BEAR NO RESPONSIBILITY FOR ANY EVENTUAL DAMAGES DERIVING FROM THE USE OF WASH FLUIDS INCOMPATIBLE WITH PRODUCTS AND/OR...

  • Page 6: Btechnical Data

    LARIUS MINI MIX TECHNICAL DATA LARIUS MINI-MIX Bi-component water-soluble paints – bi-component Varnish compatibility solvent paints Mixing ratio % in volume min. 1: 1 max 20: 1 Maximum capacity of mixed product (*) 8 L per minute Max working pressure...

  • Page 7: Cdescription Of The Equipment

    LARIUS MINI MIX DESCRIPTION OF THE EQUIPMENT POS. Description POS. Description Electronic management panel 0-250 bar mixing head Electro-pneumatic unit Air pressure regulation Visual alarm device located on the control panel Regulator filter Ediz. 010 - 09/2015 www.larius.eu...

  • Page 8: Dtransport And Unpacking

    • BEFORE USING THE TOOL, ENSURE THERE ARE NOT DAMAGED In case of damage, call immediately LARIUS and the PARTS AND THE MACHINE CAN WORK PROPERLY. Shipping Agent. All the notices about possible damage or anomalies •...

  • Page 9: Fsetting-Up

    LARIUS MINI MIX BETWEEN PUMP, FLEXIBLE HOSE AND SPRAY GUN BEFORE • MAKE SURE YOU KNOW HOW TO SHUT OFF THE USING THE EQUIPMENT. EQUIPMENT IF NECESSARY. INEXPERIENCED USERS SHOULD BE TRAINED TO SAFELY AND PROPERLY USE • ALWAYS USE THE FLEXIBLE HOSE SUPPLIED WITH STANDARD THE MACHINE BEFORE OPERATING IT.

  • Page 10: Check On Power Supply

    LARIUS MINI-MIX equipment is fitted with an additional external earth cable that is connected to the stem on the pump unit be means of a specific clamp (F6), in order to protect the operator against any risk of static or electric shock.

  • Page 11: Connecting The Equipment To The Pneumatic Line

    LARIUS MINI MIX To avoid electric shock when disassembling or checking the elec- tronic equipment, wait 5 minutes after having disconnected the power supply cable, so that the electricity stored in the condensers while working can be dissipated. Also check the condition of the earth cable to avoid any risk of shock.

  • Page 12: Preparing The Products

    LARIUS MINI MIX WORKING • During the wash cycle, hold the spray-gun (F11) over a container (F12) and keep the trigger pulled. TURNING THE MACHINE ON Connect the machine up to the current and then to the air line (supply at 7bar).
  • Page 13 LARIUS MINI MIX Check the circuit’s internal pressure by checking the values indi- Before painting, spray the product into a container (G5) or into cated on the two displays (G3) located above the flowmeters (G4). a part of the cab (G6) dedicated to purging, while keeping the Make sure that the values are equal, within a certain tolerance spray-gun at a constant distance from the surface (500-700mm).

  • Page 14: Procedure For Checking Component Dosage

    LARIUS MINI MIX PROCEDURE FOR CHECKING COMPONENT The mixing blocks (G7) have been designed to allow the operator using the LARIUS MINI MIX to check that the mix ratio of the DOSAGE two components is correct. The operator must perform the following procedure in order to...

  • Page 15: Operating Panel

    LARIUS MINI MIX OPERATING PANEL The system will not allow an alarm to be reset if the situation which caused the alarm has not been resolved. The operating panel is connected to the system and is used for: Some alarms are automatically reset once the situation which caused the alarm has been resolved.

  • Page 16: Istart-Up Procedures

    LARIUS MINI MIX START-UP PROCEDURES Before activating any functions in manual mode, the operator must make sure that the workplace The system has two operating modes: is free of obstacles in order to avoid damage to people, property and/or parts of the machine.

  • Page 17: Total Shutdown Of The Control Panel

    LARIUS MINI MIX The valves are defined as follows: When the automatic cycle is active, the program controls the sequence of the valves for the two components and doses them - Ev A: component A electrovalve based on the requested ratio and based on the “impulse count - Ev B: component B electrovalve frequency”...

  • Page 18: Jdescription Of The Panel's Functions

    LARIUS MINI MIX DESCRIPTION OF THE GENERAL SETTINGS SCREEN (1) PANEL’S FUNCTIONS SIEMENS SIMATIC PANEL The OP73 panel is used by the operator to view and modify system process variables. General settings This interface allows the operator to configure some of the...
  • Page 19 LARIUS MINI MIX A/B RATIO: CONTROL SETTINGS SCREEN (1) The volumetric mixing ratio with which product A and catalyser B are dosed in order to obtain a proper mixture. SIEMENS SIMATIC PANEL In order to access the second part of the screen, press the...
  • Page 20 LARIUS MINI MIX CONTROL SETTING SCREEN (3) LANGUAGE SIEMENS SIMATIC PANEL Language Push F3 to change language HELP Actual language English + / - SHIFT ENTER Press the F3 key you can set the menu panel. In order to access the second part of the screen, press the + / - arrow button on the control panel.
  • Page 21 LARIUS MINI MIX ALARMS PAGE SIEMENS SIMATIC PANEL SIEMENS SIMATIC PANEL ALARMS Alarm material out of ratio HELP ALARMS Notice text ... notice HELP + / - text ..notice + / - SHIFT ENTER SHIFT ENTER - Alarm out material ratio: Indicates that the ratio has exceeded the set range of cycles number.

  • Page 22: Kmaintenance

    LARIUS MINI MIX MAINTENANCE • Turn the switch to MAN (M2). CLEANING AFTER WORK ACTIVITIES Make sure that the machine is not pressurised before performing any operations which require MAN / AUT the closure or the connection of any machine component (filter checks, seal closure, etc.).

  • Page 23: Periodic Maintenance (Weekly)

    Should one or both components need to be changed, the tear. whole LARIUS MINI MIX system must first be properly washed, starting from the two supply pumps. The washing fluid must be suctioned from the pumps and allowed to circulate throughout the whole system.

  • Page 24: Spare Parts

    SPARE PARTS SPARE PARTS Air line components Control box Complete machine page 27 page 25 page 23 Protective door page 24 Spare air tank page 28 page 29 Regulator+Filter page 26 Mixing unit Accessories page 30 page 33 Carriage base Flow meter page 32 page 31...

  • Page 25: Lcomplete Machine Ref.24000/27001

    LARIUS MINI MIX COMPLETE MACHINE REF.24000/24001 WARNING: Always indicate code and quantity for each part required. WALL VERSION REF. N°24000 CARRIAGE-MOUNTED VERSION REF. N°24001 Pos. Code Description Q.ty Pos. Code Description Q.ty 24020 24040 Machine panel Carriage 24140 Control box...

  • Page 26: Mprotective Door Ref.24180

    LARIUS MINI MIX PROTECTIVE DOOR REF.24180 WARNING: Always indicate code and quantity for each part required. Pos. Code Description Q.ty Pos. Code Description Q.ty 24181 Protective door 24183 Hinge 24182 Pannel 6136 Screw 95063 Washers 24185 Warning label 8042 Self-tightening nut...

  • Page 27: Ncontrol Box Ref.24140

    LARIUS MINI MIX CONTROL BOX REF.24140 WARNING: Always indicate code and quantity for each part required. Pos. Code Description Q.ty Pos. Code Description Q.ty 24141 Control box 8042 Self-tightening nut 24142 RH side for control box 4255 Knob 91062 Screw...

  • Page 28: Oregulator+Filter Ref.24160

    LARIUS MINI MIX REGULATOR+FILTER REF.24160 WARNING: Always indicate code and quantity for each part required. Pos. Code Description Q.ty Pos. Code Description Q.ty 91107 Filter/Regulator 91102 M-F 3/8 elbow 96259 Pressure gauge 510088 Tube diameter 8 air attachment 10103 Air attachment...

  • Page 29: Pair Line Components Ref.24200

    LARIUS MINI MIX AIR LINE COMPONENTS REF.24200 WARNING: Always indicate code and quantity for each part required. PARTICULAR FOR N°1 ELECTROVALVE 23304 DENOMINATIONS N° PZ. COIL 23308 CONNECTOR 23309 Pos. Code Description Q.ty Pos. Code Description Q.ty 3344 Air regulator...

  • Page 30: Qspare Air Tank Ref.23545

    LARIUS MINI MIX SPARE AIR TANK REF.23545 WARNING: Always indicate code and quantity for each part required. Pos. Code Description Q.ty Pos. Code Description Q.ty 8063 1/4 rotating connector 9902 1/4 check valve 5356 1/2-1/4 reduction 95158 23546 Tank 1L...
  • Page 31 LARIUS MINI MIX Ediz. 010 - 09/2015 www.larius.eu...
  • Page 32 LARIUS MINI MIX SPRAY GUN LA 95 REF. 23340/4 WARNING: Always indicate code and quantity for each part required. Ediz. 010 - 09/2015 www.larius.eu...
  • Page 33 LARIUS MINI MIX Spray gun ref. 23340/4 Components for material A/B gun on Larius Mini Mix Ref.23340/3 Code Description Q.ty Pos. Pos. Code Description Q.ty 23341 Housing 1/4 Gasket 18/22 33012 23342/1 Piston 3103 1/4-1/4 CIL-CIL Adapter 23343 Rear spray gun stopper...

  • Page 34: Smixing Unit Ref.24100

    LARIUS MINI MIX MIXING UNIT REF.24100 WARNING: Always indicate code and quantity for each part required. Ediz. 010 - 09/2015 www.larius.eu...
  • Page 35 LARIUS MINI MIX Pos. Code Description Q.ty Pos. Code Description Q.ty 23321 Mixer 4108 23323 Support plate 3637 Self-tightening nut 23340/4 37177 Mixer for guns Screw 23161 Rotating connector 98328 1/4 Ball valve 23402 3/8-1/4 CON-CON Adapter 3110 1/4-1/4 CON-CIL Adapter...

  • Page 36: Tflow Meter Ref.24060

    LARIUS MINI MIX FLOW METER REF.24060 WARNING: Always indicate code and quantity for each part required. Pos. Code Description Q.ty Pos. Code Description Q.ty 23401 Flow meter 6147 1/4-3/8 CIL-CON. Adapter 33010 23134 3/8 Gasket Collar connection 23383 1/4 CON-CON Adapter...

  • Page 37: Ucarriage Base Ref.24040

    LARIUS MINI MIX CARRIAGE BASE REF.24040 WARNING: Always indicate code and quantity for each part required. Pos. Code Description Q.ty Pos. Code Description Q.ty 24041 Carriage 32004 Screw 22087 Front wheels 34008 Screw 22087/1 Rear wheels 95229 96753 Washers Ediz. 010 - 09/2015...

  • Page 38: Vaccessories

    LARIUS MINI MIX ACCESSORIES Art. 11131: L91X 1/4" Art. 11250: AT 250 1/4" Art. 11130: L91X M16X1,5 Art. 11200: AT 250 M16X1,5 AUTOMATIC AIRLESS SPRAY-GUN LA95 LOW PRESSURE SPRAY-GUN MA98L Code 11700 Code 11300 MANUAL AIR ASSISTED AIRLESS SPRAY-GUN 07...
  • Page 39 LARIUS MINI MIX STAR 2001 SERIES SPRAY-GUN (MANUAL AND AUTOMATIC) Art. 11000: AT 300 M16x1,5 Art. 11090: AT 300 1/4" OUTPUT FOR TWO GUNS FILTER Code 95218: MESH 30M PISTON GUNSTOCK FILTERS Code 95219: MESH 60M Code 11039: Green (30M) - Code 11038: White (60M)
  • Page 40 LARIUS MINI MIX LOW PRESSURE STAINLESS STEEL PRESSURE GAUGE HIGH PRESSURE STAINLESS STEEL PRESSURE GAUGE Code 150/1 Code 150: 1/4" 2K CARRIAGE WITHOUT PUMPS Code 23539: KIT FOR COMPONENT DOSAGE CONTROL Code 23140: GUN EXTENSION Art. 153: cm 30 -Art. 153: cm 40 Art.
  • Page 41 LARIUS MINI MIX Nozzles code 07-20 19-60 29-80 07-40 21-20 31-40 09-20 21-40 31-60 09-40 21-60 31-80 23-20 33-40 11-20 FAST-CLEAN 11-40 23-40 33-60 13-20 23-60 33-80 13-40 25-20 39-40 13-60 25-40 39-60 15-20 25-60 39-80 15-40 27-20 43-40 27-40...

  • Page 42: Carriage For High Pressure With Material Suction (Ghibli 30:1)

    LARIUS MINI MIX ASSEMBLY DRAWING OF THE CARRIAGE FOR HIGH PRESSURE WITH MATERIAL SUCTION RIF. 23540 (WITH SUCTION) RIF. 23550 (WITH GRAVITY TANK) GHIBLI 30:1 Pos. Code Description Q.ty Pos. Code Description Q.ty 23539 23563 2K Carriage Filter with pressure gauge 96056 Ghibli 30:1 div.

  • Page 43: Carriage For Low Pressure With Material Suction (Larius 2)

    LARIUS MINI MIX ASSEMBLY DRAWING OF THE CARRIAGE FOR LOW PRESSURE WITH MATERIAL SUCTION RIF. 23551 (WITH SUCTION) RIF. 23541 (WITH GRAVITY TANK) LARIUS 2 Pos. Description Q.ty Code Q.ty 23539 2K Carriage 10103 3/8 Bayonet attachment 8000K Larius 2 with regulators...

  • Page 44: Carriage For Low Pressure With Material Suction (Vega 5:1)

    LARIUS MINI MIX ASSEMBLY DRAWING OF THE CARRIAGE FOR LOW PRESSURE WITH MATERIAL SUCTION RIF. 23543 (WITH SUCTION) RIF. 2354 (WITH GRAVITY TANK) VEGA 5:1 Code Pos. Code Description Q.ty 23539 2K Carriage 23563 Filter with pressure gauge 91363 Vega 5:1...

  • Page 45: Filter For Carriage 2K Ref.23563

    LARIUS MINI MIX ASSEMBLY DRAWING OF THE FILTER FOR CARRIAGE 2K REF.23563 Pos. Code Description Q.ty Pos. Code Description Q.ty Fitting wih pressure gauge 23383 1/4-1/4 CON Adaptor 98384 98325 Filter tank Ball valve 96202 Filter sieve spring 98383 1/4 Adaptor...
