Kiwi Camping Savanna 4 Ezi-Up Pitching Instructions

PITCHING INSTRUCTIONS
Your tent includes:
18 x pegs
4 x ropes
1 set poles (19mm x 0.7mm and 16mm x 0.7mm)
2 x solid side walls
1. Select a dry, level site and
clear the ground of any sharp
objects. Remove the shelter
from its carry bag, untie
fabric ties and unroll the
shelter.
2. Unfold the legs and roof
poles so they are lying flat on
the ground.
3. Extend the roof poles
ensuring the pole is straight
until it locks into place.
Complete this on all four roof
poles.
4. Stand the shelter up onto
legs, unroll the webbing
straps from the corners and
connect to the side release
buckles on the corresponding
corners. This stops the
corners from 'splaying' out.

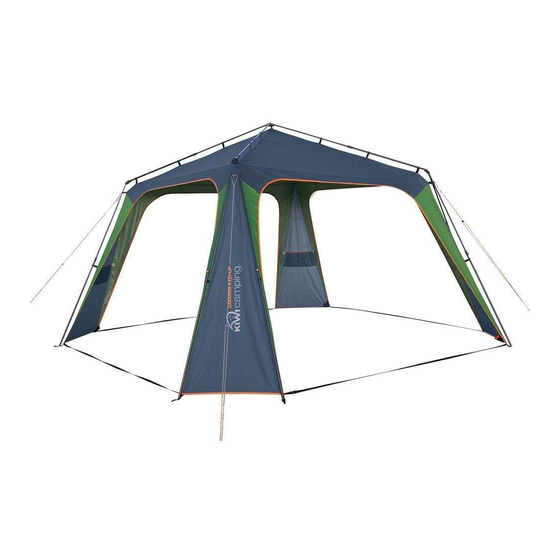

SAVANNA 4 EZI-UP
SHELTER
Model No. KC074-530
5. Extend the leg poles,
working from the front of
the shelter to the back,
adjusting the shelter to sit
square. Ensure that the
pole locks into place.
6. Step back and check
the shelter is square and
sitting correctly. Peg out
the pegging points on the
four corners, using 2 pegs
per corner.
7. Peg out the guy ropes at a
45 degree angle following
angle of the roof poles.
8. Remember this is a temporary shelter, not a structure, so always
check it in windy conditions and do not leave it unattended.
REVERSE THE PROCEDURE TO LOWER THE SHELTER
