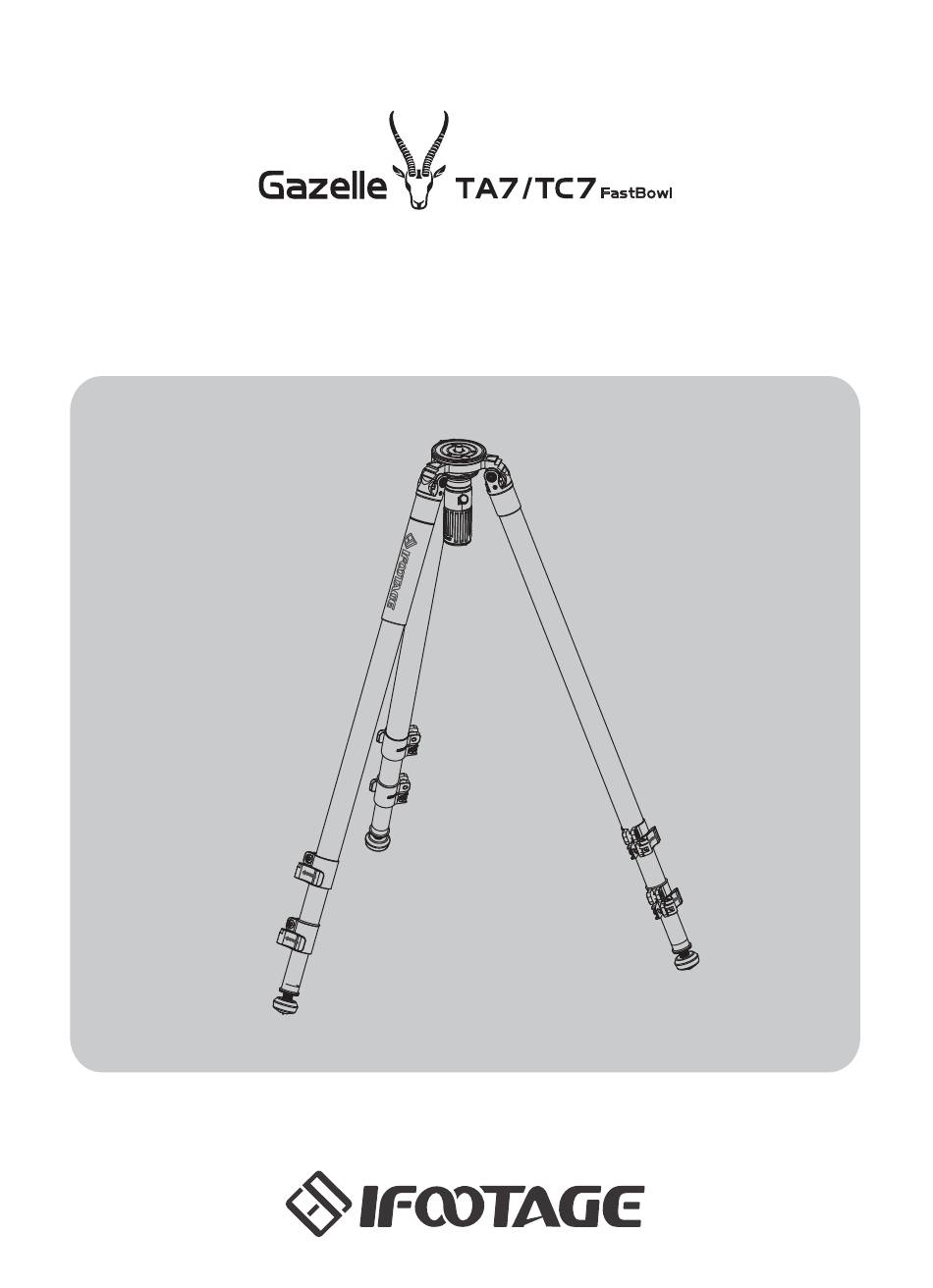

- Page 1 Gazelle Tripod Instruction Manual DK0911001...
-
Page 2: Table Of Contents
CATALOGUE FEATURES LIST OF ITEMS TECHNICAL INFORMATION COMPONENT INFORMATION USER GUIDE USING THE QUICK RELEASE BALL HEAD HANDLE HEAD CONNECTION ANGLE OF ADJUSTMENT FOR LEGS LOW ANGLE USAGE USING THE FOOT PADS AND SPIKES LEG EXTENSION MAINTENANCE... -
Page 3: Features
FEATURES Easy to operate unique, patented ball head quick release system. Simple to use, robust buckle leg locking system. A combination of high quality, superior grade carbon fiber and aluminium magnesium alloy materials provide increased strength, rigidity and durability. Lightweight and highly portable, this tripod will fit into a 26" wide suitcase. In the box Tripod Carry bag... -
Page 4: Component Information
COMPONENT DESCRIPTION 3/8''screw 75bowl head leg lock system button ball head quick release button ball head quick release handle buckle buckle housing foot pad foot spike... -
Page 5: User Guide
USER GUIDE Using the ball head quick release handle To release ball head, turn handle ① rotation anti-clockwise Press release button on handle and pull down To re-attach, press the release button and push handle up towards ball head Release button and rotate handle clockwise to lock... -
Page 6: Head Connection
USER GUIDE Head connection Top fastening screw Unscrew the lock mechanism to remove hemisphere base. Attach the hemisphere base to the flat video head and tighten 3/8'' screw. Tighten the three top fastening screws. Mount the unit onto tripod and adjust the ball head so that it is horizontal, using the spirit level. -
Page 7: Angle Of Adjustment For Legs
USER GUIDE Angle of adjustment for legs 77° 77° 55° 22° Push the leg lock system button located at the top of the leg “up”. Raise the leg which will automatically lock into one of three preset position/angles. Each leg will lock automatically at the following angles: 77°,55° or 22°. -
Page 8: Low Angle Usage
USER GUIDE Low angle usage For low angle usage, retract all three legs and adjust to 77° angle setting. -
Page 9: Using The Foot Pads And Spikes
USER GUIDE Using the foot pads and spikes Muddy terrain Uneven terrain Slippery or wet surfaces Rotate each rubber footpad to reveal the foot spike and turn in opposite direction to enclose the foot spike. The dual option of foot pads and spikes allows you to use the tripod in a variety of locations and conditions. -
Page 10: Leg Extension
*Notice: The camera head is not included with this product and is used for illustrative purposes only. *iFootage Company reserves the right to change the specifications of the hardware and software in the manual at any time without prior notice... - Page 12 This will not affect your legal rights.
