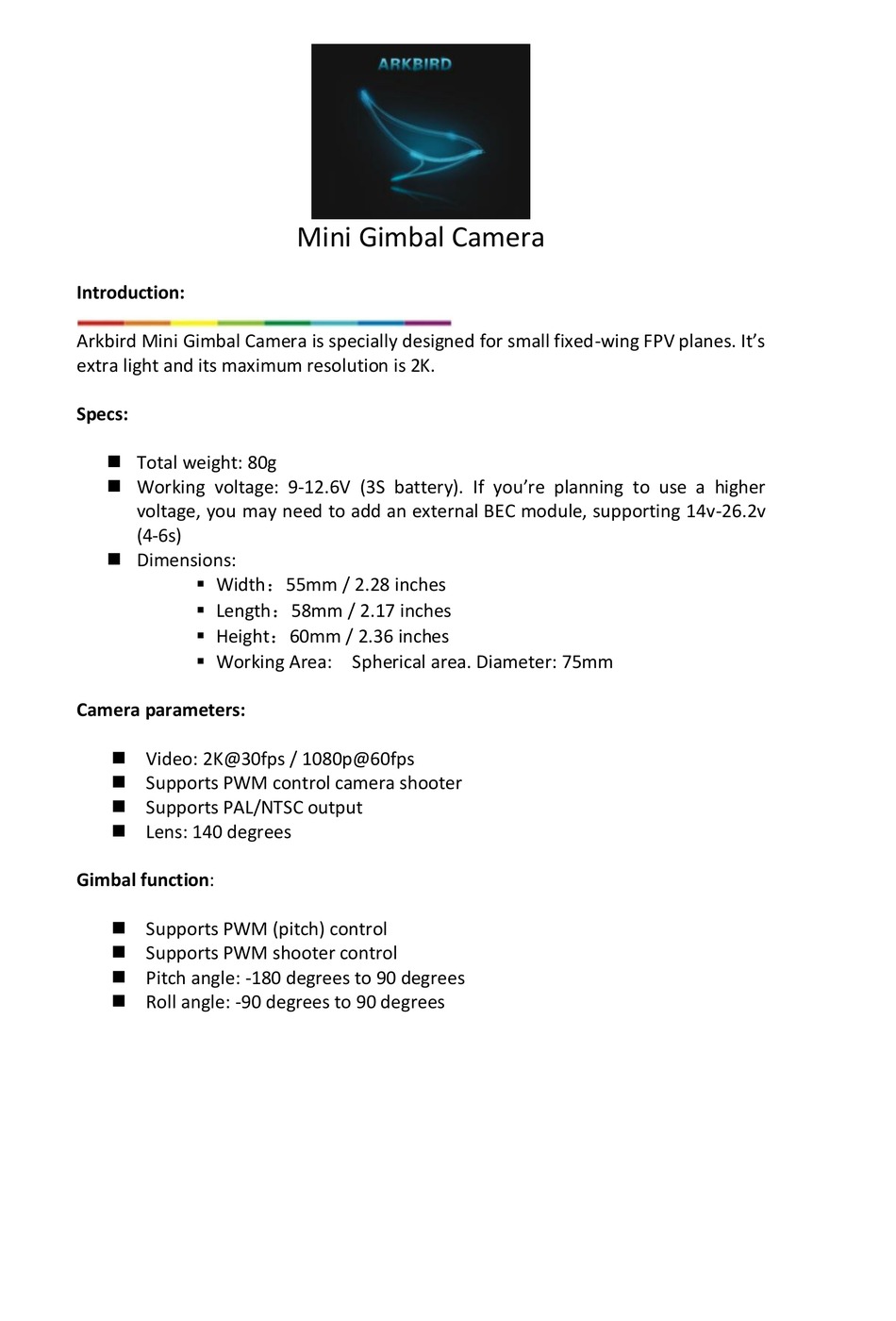

Introduction:

Arkbird Mini Gimbal Camera is specially designed for small fixed-wing FPV planes. It's
extra light and its maximum resolution is 2K.

Specs:

 Total weight: 80g
 Working voltage: 9-12.6V (3S battery). If you're planning to use a higher
voltage, you may need to add an external BEC module, supporting 14v-26.2v
(4-6s)
 Dimensions:
 Width：55mm / 2.28 inches
 Length：58mm / 2.17 inches
 Height：60mm / 2.36 inches
 Working Area: Spherical area. Diameter: 75mm

Camera parameters:

 Video: 2K@30fps / 1080p@60fps
 Supports PWM control camera shooter
 Supports PAL/NTSC output
 Lens: 140 degrees

Gimbal function:

 Supports PWM (pitch) control
 Supports PWM shooter control
 Pitch angle: -180 degrees to 90 degrees
 Roll angle: -90 degrees to 90 degrees
Mini Gimbal Camera

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mini Gimbal Camera and is the answer not in the manual?

Questions and answers

Related Manuals for Arkbird Mini Gimbal Camera

Summary of Contents for Arkbird Mini Gimbal Camera

  • Page 1 Mini Gimbal Camera Introduction: Arkbird Mini Gimbal Camera is specially designed for small fixed-wing FPV planes. It’s extra light and its maximum resolution is 2K. Specs:  Total weight: 80g  Working voltage: 9-12.6V (3S battery). If you’re planning to use a higher voltage, you may need to add an external BEC module, supporting 14v-26.2v...
  • Page 2 Details:  REC → Video button  MODE → Function button  LED → Status  TF Card Slot → At the back of the camera The port behind the camera is: Power , Video , PWM , Ground (This port supports 7-26V, you can use 2S-6S battery (only for camera!)) Usage：...
  • Page 3 PWM control function: First, please connect the PWM signal line with ground wire to the channels which are controlled by the three-positions switch of your radio receiver. When switched to the center position, the camera will be on STAND-BY. One end of the 3 position switch will be record video, the other one end will be take a picture .
  • Page 4 PWM Shooter Control: The blue line will be used to control camera pitch angle and neutral position. Please level the camera, when your pitch control channel is 5% or more, the camera will be up, and when it is -5%, the camera will be down. Calibration: Step 1: Disconnect the gimbal.
