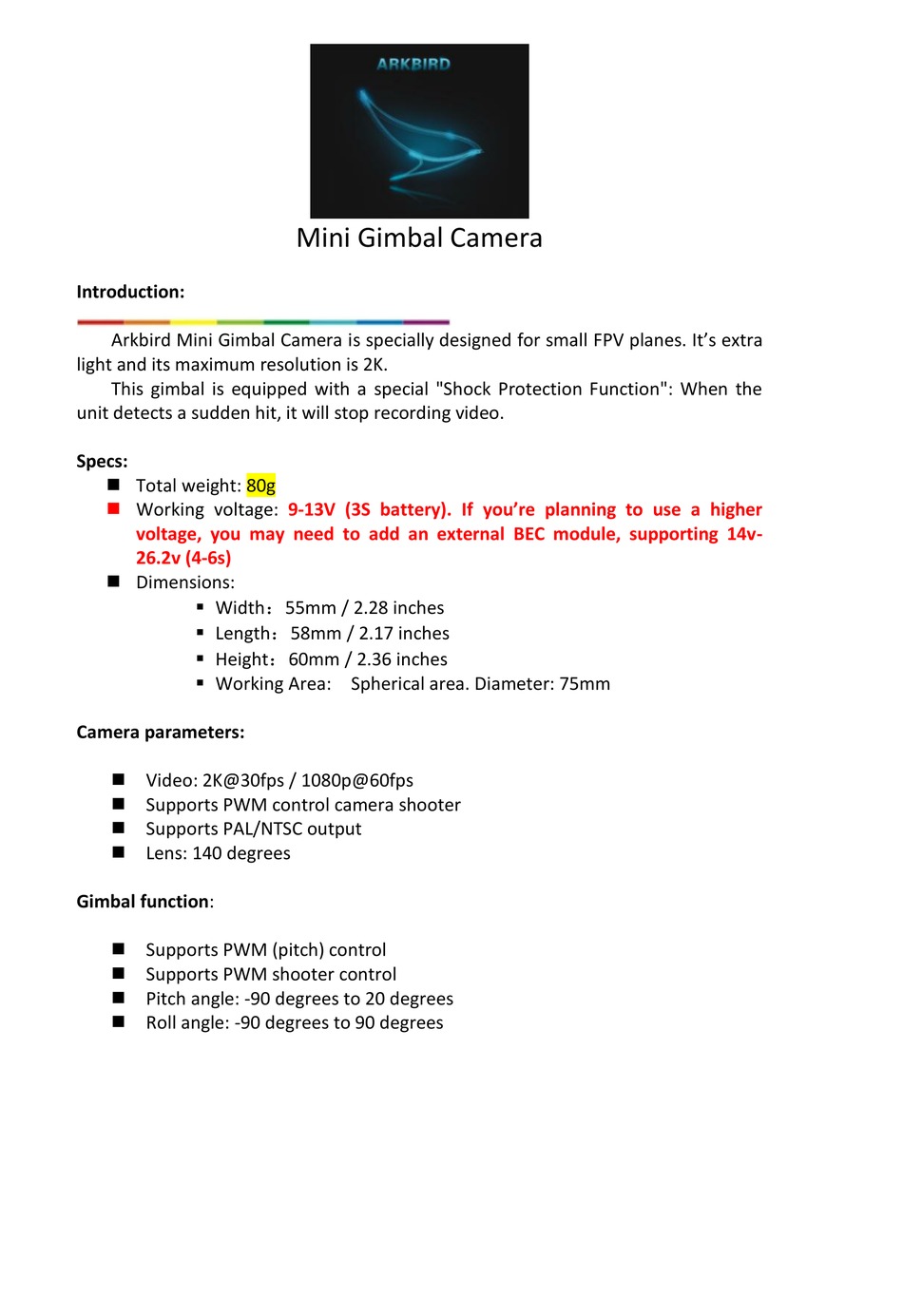

Introduction:

Arkbird Mini Gimbal Camera is specially designed for small FPV planes. It's extra
light and its maximum resolution is 2K.
This gimbal is equipped with a special "Shock Protection Function": When the
unit detects a sudden hit, it will stop recording video.

Specs:

 Total weight: 80g
Working voltage:
voltage, you may need to add an external BEC module, supporting 14v-
26.2v (4-6s)
 Dimensions:
 Width：55mm / 2.28 inches
 Length：58mm / 2.17 inches
 Height：60mm / 2.36 inches
 Working Area: Spherical area. Diameter: 75mm

Camera parameters:

 Video: 2K@30fps / 1080p@60fps
 Supports PWM control camera shooter
 Supports PAL/NTSC output
 Lens: 140 degrees

Gimbal function:

 Supports PWM (pitch) control
 Supports PWM shooter control
 Pitch angle: -90 degrees to 20 degrees
 Roll angle: -90 degrees to 90 degrees
Mini Gimbal Camera
9-13V (3S battery). If you're planning to use a higher

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mini Gimbal Camera and is the answer not in the manual?

Questions and answers

Related Manuals for Arkbird Mini Gimbal Camera

Summary of Contents for Arkbird Mini Gimbal Camera

  • Page 1 Mini Gimbal Camera Introduction: Arkbird Mini Gimbal Camera is specially designed for small FPV planes. It’s extra light and its maximum resolution is 2K. This gimbal is equipped with a special "Shock Protection Function": When the unit detects a sudden hit, it will stop recording video.
  • Page 2 Details:  REC → Video button  MODE → Function button  LED → Status, at the middle of the REC and MODE keys  TF Card Slot → At the back of the camera Video size is 3Mb/second @2K, One 64G card is recommended, Max video recording time are 6 hours.
  • Page 3 PWM control function: The gimbal can use PWM channels (control signal of the servo) to control the pitch angle of the gimbal and the camera recording start and stop function; First, please connect the PWM signal line with ground wire to the channels which are controlled by the three-positions switch of your radio receiver.
  • Page 4 (2) The blue line is used to control the camera's pitch angle, neutral position. Camera level. When the rudder is positive (> 5%), the camera tilts up, and when the rudder is negative (<-5%), the camera tilts down. Gimbal Level Calibration: The gimbal calibration can be used when the tilt does not return to the center, or not used for a long time(eg.1 month).
  • Page 5 Gimbal reverse-install: At first,remark the screw hole on the top of motor, then unload the four screws, rotate the aluminum sheet 180 degrees at the back of motor, then re-install it while keeping the motor and the top screw hole position static. By the same way, the gimbal can be side-installed.
