PRESIDENT ANDY AM/FM Service Manual
  1. Manuals
  2. Brands
  3. PRESIDENT Manuals
  4. Transceiver
  5. ANDY AM/FM
  6. Service manual

PRESIDENT ANDY AM/FM Service Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

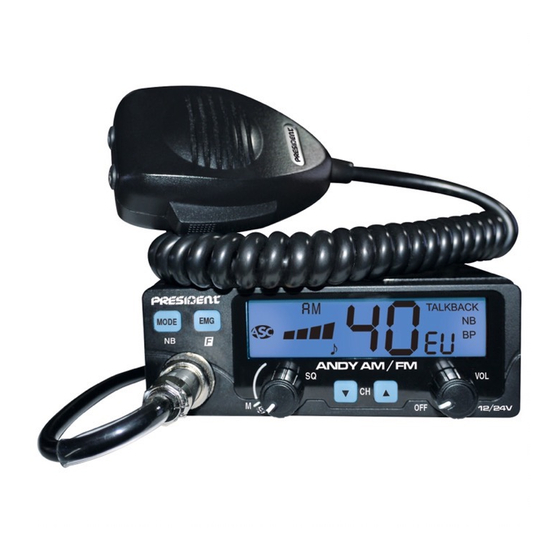

ANDY AM/FM
12/24
SERVICE MANUAL
