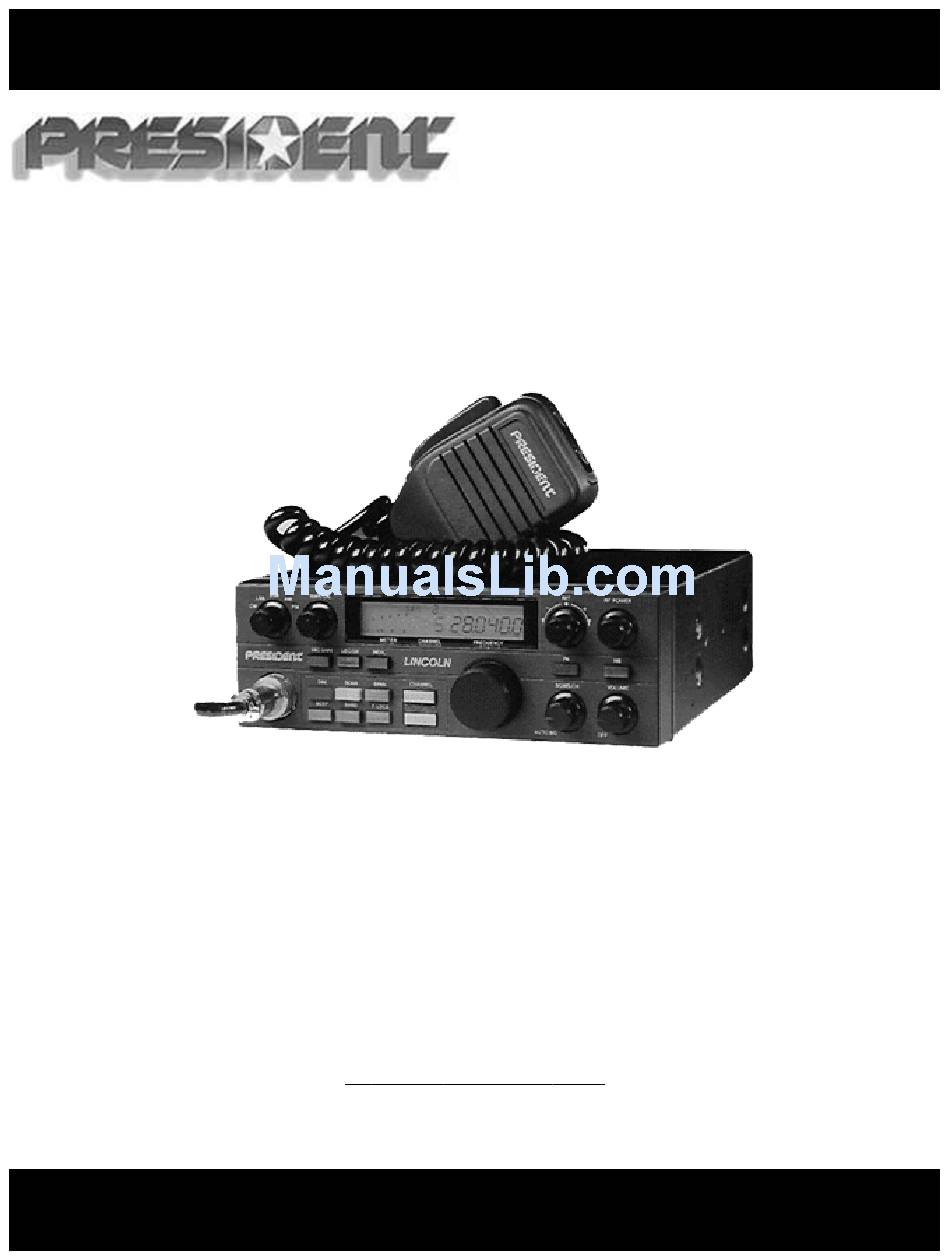

- Page 1 DOC’S RADIO REPAIR HR2510 / HR2600 / LINCOLN 10 Meter Amateur Transceiver C H I P S W I T C H OWNERS MANUAL Revised August 28th, 2000 http://hr2510.freeservers.com/ - 1 -...
-
Page 2: Table Of Contents
Table of Contents FIRST TIME INSTALL / POWER UP ............3 ENABLE/DISABLE FUNCTIONS ............4 PROGRAM MODE ................. 5 MEMORY CHANNEL TEMPORARY LOCKOUT ........6 SCAN LIMITS ON/OFF ................7 SPLIT FREQUENCY OPERATIONS ON/OFF ........8 OPERATING IN SPLIT FREQUENCY MODE ........9 SPLIT FREQUENCY POLARITY CHANGE ......... -
Page 3: First Time Install / Power Up
‘forget’ what you have programmed into it. If this should happen, your radio will display ‘HR2510’ and you will need to re-program it just as you did when the chip was first installed. Also, a severe electrical disturbance may cause your radio’s memory to become ‘con-... -
Page 4: Enable/Disable Functions
ENABLE/DISABLE FUNCTIONS While the HR2510 / HR2600 / LINCOLN is in OPERATE MODE, you can enable or disable any of the radio’s major functions from the front panel. Some of these functions are not operational in specific “BANDS.” The display segment before the frequency readout indicates which function is enabled. -
Page 5: Program Mode
PROGRAM MODE This function enables you to program the new CHIPSWITCH features on the HR2510 / HR2600 / LINCOLN. Step 1. Press the F.lock button in. Step 2. Press the Meter (INDICATOR for the LINCOLN) and Channel up buttons simultaneously The radio notifies you that you are in PROGRAM MODE with “... -
Page 6: Memory Channel Temporary Lockout
MEMORY CHANNEL TEMPORARY LOCKOUT This enables you to temporarily lockout any user-programmed frequency(s) for SCAN and SEEK functions. To enable or disable this toggle function: Step 1. Assuming frequencies were programmed into any memory group, go to any MEMORY BAND (Band 1, 2 or 3) where you wish to scan or seek. -
Page 7: Scan Limits On/Off
SCAN LIMITS ON/OFF This toggle function allows you to enable or disable the SCAN and SEEK frequency limits for Band 0. If this toggle function is enabled, and a lower and an upper frequency limit is programmed in FEATURE 3 and 4, the radio will scan or seek only between these frequencies. -
Page 8: Split Frequency Operations On/Off
SPLIT FREQUENCY OPERATIONS ON/OFF This toggle function allows you to transmit on one frequency while receiving on another. The Split Frequency feature is only available in Band 0. To enable and use this function: Step 1. Go into PROGRAM MODE Step 2. -
Page 9: Operating In Split Frequency Mode
OPERATING IN SPLIT FREQUENCY MODE To use this function reliably, the two parties involved in the QSO must be versed on operating split channels. Two users are mentioned in the explanation below, OPERATOR A and OPERATOR B, to better understand the procedures. Step 1. -
Page 10: Split Frequency Polarity Change
SPLIT FREQUENCY POLARITY CHANGE The SPLIT FREQUENCY POLARITY is initially programmed in the PROGRAM MODE. In some instances, you may wish to change polarity without having to go into Program mode. To use this feature: Step 1. Press F.lock button in. Step 2. -
Page 11: Priority Channel On/Off
PRIORITY CHANNEL ON/OFF **REQUIRES ADDITIONAL HARDWARE When enabled, this function allows you to continuously moni- tor one frequency while operating on another. To enable this function: Step 1. Go into PROGRAM MODE. Step 2. Enter a frequency in FEATURE 44. Step 3. -
Page 12: Priority Channel Check & Lock
PRIORITY CHANNEL CHECK & LOCK FEATURE 45 allows you to select PRIORITY CHANNEL functionality. If you choose a value between 0 and 3, the priority channel selected in FEATURE 44 will be checked and the radio “beeps” to notify you of any activity on that channel. This feature only notifies you of activity on the priority channel. -
Page 13: Master Reset
MASTER RESET Step 1. Power off the radio. Step 2. Press the F.lock button in. Step 3. Press and hold the SCAN and METER (INDICATOR for the LINCOLN) and turn the radio on all at the same time. This FUNCTION erases all user programmed values and installs the factory default values. -
Page 14: Using Split Channel With Priority Channel Function
with PRIORITY CHANNEL FUNCTION USING SPLIT CHANNEL If both the SPLIT FREQUENCY OPERATIONS and PRIORITY CHANNEL functions are enabled, the SPLIT FREQUENCY OFFSET CHANGE function is disabled because the same set of keys is used to enable the PRIORITY CHANNEL function. With the squelch closed, the SPLIT FREQUENCY OPERATIONS will function as it should. -
Page 15: Operate Mode
Memory group 3 Citizens' Band *Note: This is not a Citizens Band radio, although the HR2510 / HR2600 / Lincoln amateur transceivers will transmit in this band it is a violation of US Federal Law to do so unless you’ve adjusted your radio to comply with FCC Regulations for transmit power and modulation. -
Page 16: Frequency Band (0)
FREQUENCY BAND (0 This is the entire tuning range of the HR2510 / HR2600 / LINCOLN. Some user defined functions in PROGRAM MODE are available only on this band (i.e., SCAN/SEEK LIMITS, SPLIT FREQUENCY OPERATION). The radio’s Channel UP/ DN and the Microphone UP/DN buttons control any frequency change as selected in the PROGRAM MODE features 8 and 9. -
Page 17: Memory Group 3 (3)
MEMORY GROUP 3 (3) This is the third group of memory channels and is operationally identical to MEMORY GROUP 1 (1) and MEMORY GROUP 2 (2) EXCEPT this band operates on a PLUS (+) 100 KHZ REPEATER OFFSET if this option is chosen in the PROGRAM MODE. -
Page 18: Program Mode
Step 2. Press the CHANNEL UP and METER buttons simultaneously. When the HR2510 / HR2600 / LINCOLN goes into PROGRAM MODE you are notified by “4 - beeps” and the BAND indicator will display a “P” indicating the radio is in PROGRAM MODE. In this mode, the METER display (RF, MOD, ^, SWR) will be blank. -
Page 19: Programming
3 = 3 seconds *default continues on your 4 = 4 seconds HR2510 / HR2600 / 5 = 5 seconds LINCOLN 6 = 6 seconds 7 = 7 seconds **NOTE: SCAN/SEEK by these limits is only functional in Band 0. If no values are entered in feature 3 and feature 4, the radio’s lowest and highest operational limits are used as defaults during SCAN / SEEK. -
Page 20: Programming (Continued)
PROGRAMMING (continued) FEATURE NAME DESCRIPTION VALUE Seek hold time When in seek mode, 0 = .5 seconds the delay from when 1 = 1 second *default the radio begins 2 = 2 seconds receiving a signal and 3 = 3 seconds the seek sequence 4 = 4 seconds continues... -
Page 21: Programming (Continued)
TX time out When enabled, the 0 = Disabled *default timer starts as soon as 1 = 25 seconds the HR2510 / HR2600 / 2 = 42 seconds LINCOLN starts 3 = 58 seconds transmitting and counts 4 = 75 seconds... -
Page 22: Programming (Continued)
GENERAL PROGRAMMING NOTES: *default = The first time the CHIPSWITCH is installed on the HR2510 / HR2600 / LINCOLN, these are the values that will be displayed upon entering PROGRAM MODE. Any frequency type feature may be erased in program mode by pressing the BAND button with the F.Lock button out. -
Page 23: Serial Number Display
SERIAL NUMBER DISPLAY To display the SERIAL NUMBER of the CHIPSWITCH IC, perform the following: Step 1. Prepare to enter PROGRAM MODE. Hold the microphone in one hand and prepare the other hand to press the buttons necessar y to enter the PROGRAM mode. -
Page 24: Error Messages
ERROR MESSAGES If the HR2510 / HR2600 / LINCOLN detects an error with any of the programmed data, or during OPERATE MODE, an ER- ROR CODE will be displayed on the frequency display. The format of the ERROR CODE is as follows: “Err X”... -
Page 25: Manufacturer Information
Since Derrell retired, the main point of contact for installations and availability of the CHIPSWITCH IC is Tom Bridge. You can contact Tom Bridge at: Internet: http://hr2510.freeservers.com/ Phone: (716) 893-2505 Monday - Friday 9AM - 5PM Eastern Time. Postal Mailing Address: Doc’s Radio Repair...
