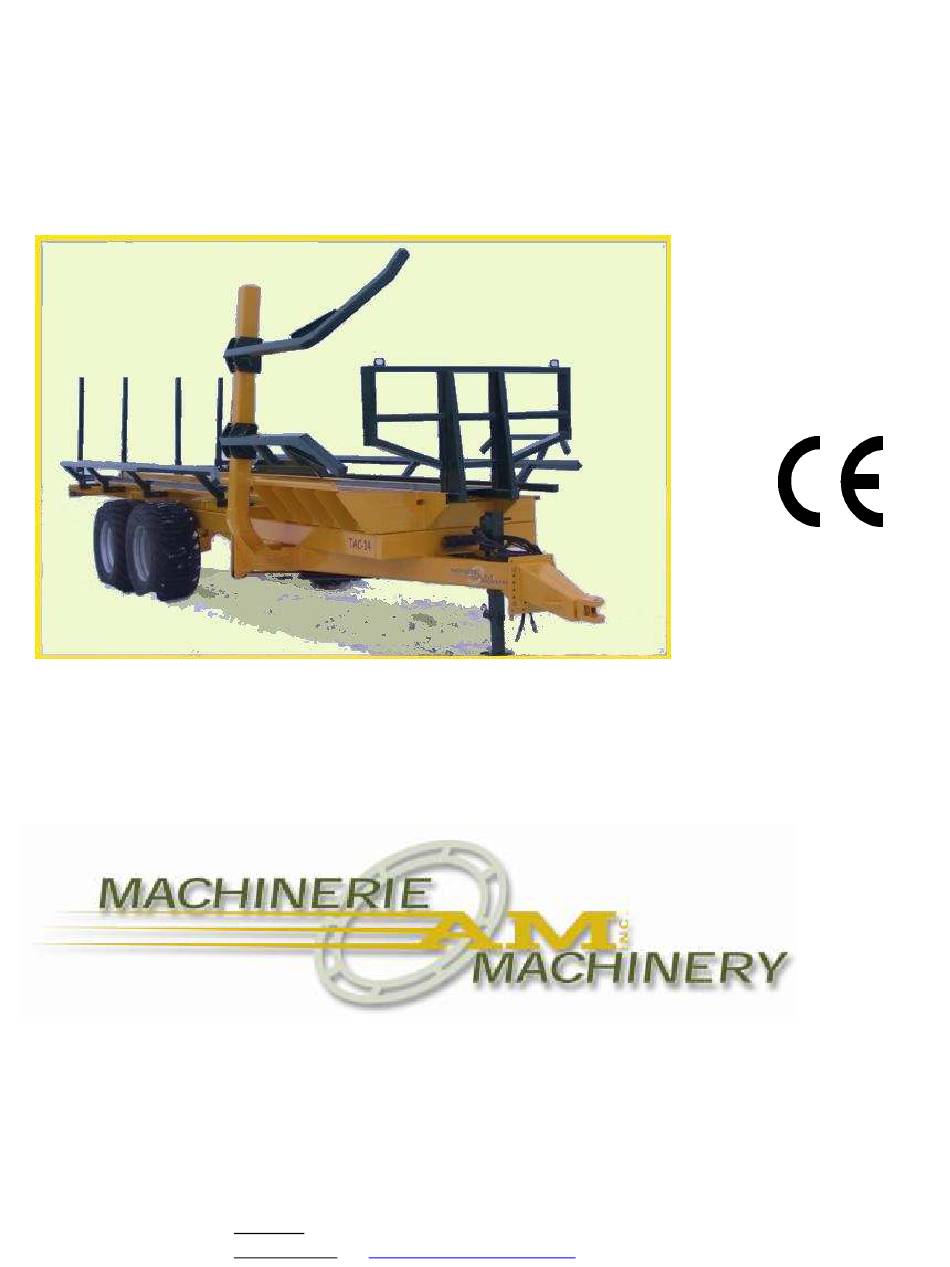

AUTO-CHARGEUSE
TAC-14 TAC-20
Self load trailer
OPERATOR'S
MANUAL
MANUFACTURED IN CANADA BY :
9, Rue des Industries
L'Islet (Québec) G0R 1X0 CANADA
Customer's French Service: (418) 247-5626
Customer's English Service: (418) 247-7709
Télécopieur : (418) 247 3600
Courriel :
service@ammachinery.com
Site Internet :
www.ammachinery.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AM Machinery TAC-14
Summary of Contents for AM Machinery TAC-14
- Page 1 AUTO-CHARGEUSE TAC-14 TAC-20 Self load trailer OPERATOR’S MANUAL MANUFACTURED IN CANADA BY : 9, Rue des Industries L’Islet (Québec) G0R 1X0 CANADA Customer’s French Service: (418) 247-5626 Customer’s English Service: (418) 247-7709 Télécopieur : (418) 247 3600 Courriel : service@ammachinery.com Site Internet : www.ammachinery.com...
- Page 2 January 1st 14...
-
Page 3: Table Of Contents
TABLE OF CONTENT TAC-14, TAC-20Twelve Months Warranty Warranty coverage Exclusion Disclaimer of consequential damage Warranty registration Safety Guide Lines General information Lighting and marking Safety sign care Preparing to load General start instructions Adjustments 9-11 Operation TAC-14 , TAC-20 Maintenance Storage Révision janvier 2014... -
Page 4: Tac-14, Tac-20Twelve Months Warranty
TAC-14, TAC-20 Twelve Months Warranty* Congratulations ! You are now the proud owner of the best Self Loader on the market, the TAC-14 or TAC-20. We are convinced that you will enjoy the trouble free experience of working with the TAC. -
Page 5: Warranty Registration
Warranty Registration Must be completed and returned to A.M. Machinery within 10 days of ownership to validated warranty. MODEL : ______________________ SERIAL No. :_____________________________ DATE OF PURCHASE : __________________________________________________ Dealer Information Name ____________________________________ Address ____________________________________ City ____________________________________ State _________________Zip Code ___________ Country ____________________________________ Telephone _________________... - Page 6 to instructions involving your personal safety and the safety of others. Failure to follow these instructions can result in injury or death. These symbol means : ATTENTION ! BECOME ALERT ! YOUR SAFETY IS INVOLVED Important Signal Words DANGER : indicates an imminently hazardous situation that, if not avoids, will result in death or serious injury.
-
Page 7: General Information
Replaced parts that displayed a safety sign should also display the current sign. Safety signs are available form your Dealer Parts Department or Distributor or directly from AM Machinery. Serial Number You will find the serial number in the front of the TAC, on the frame. - Page 8 GETTING STARTED 1)The recommended oil flow is from 15 to18 US gal./min. 2) Lubricate all grease fittings with good quality, multi-purpose grease. 3) Adjust the tire pressure as recommended by the manufacturer. 4)Install all hoses and adapters to suit your standard equipment. 5) Couple the auto-loader to the tractor and connect the hydraulic hoses, as indicated.
-
Page 9: Adjustments
ADJUSTEMENTS Loading arm Fig 1. Adjust position opening loading According to recommendations (FIG. 1). The dimensions given Are for reference only and may vary depending on the size Of the ball, its weight and hardness. Fig 2. Adjust the valve (fig 3.) by turning the plate, thus to avoid that the loading arm does not interfere with the upper frame for unloading. - Page 10 Sidewalls adjustement Adjust the sidewalls to the shape and size of the Balls (Figure 3). This adjustment is to prevent balls rolling from one side to the other during transport. Fig 4 Flange ring adjustment Adjust the attachment flange ring to keep Machine at level.
- Page 11 Rear bale support adjustment Nuts should be places outward the bale row Misplaced nut Wheels adjustments Tighten the bolts after 5 hours of operation Tension “ 225 psi or 155.15 N/cm2” January 1st 14...
- Page 12 When the first balle arrive at the rear support, a switch activates the light on the front right to indicate the bale has reached the rear balle support. Blue = pusher Yellow = arm Greem = dump January 1st 14...
-
Page 13: Operation
OPERATION Keep in mind that the auto loader is designed and made to rotate balls and load without stoping , the path followed will be the same as that of a bale press . When you are ready for the first ball Lower the loading arm a few inches Above the ground , do slowly to get used to , Align the machine so that the outer corner... - Page 14 Maintenance The round bale self-loader is designed to 5) Check the tightness of all nuts once a year. save energy, time and money, take care of it, If necessary, tighten according to the table. protect your investment 1) Wipe out the grease with a clean cloth 6) Check the tightness of the wheel nuts after before performing lubrication, to avoid the first 5 hours of use and then every 50...
-
Page 15: Storage
STORAGE 1) Store your self loader in a cool and dry storage 4) Clean the round bale self loader location 2) Install wooden blocks under the axles so 5 Check all parts of the auto-loader. Repair or that the tires are not in contact with the replace worn, bent or broken pieces.
