Vocera B3000 Quick Reference Manual

Call Waiting

If you hear the Call Waiting tone while you are on a call,
it means another party is trying to call you. You can look
at the Badge display to see who is calling.
• To take the call: Press the Call button. The first
call is put on hold and the second call is connected.
To end the second call and return to the original call,
press the Call button again.
• To refuse the call: Press the Hold/DND button.

Charging the Battery

The following steps show a single-bay charger, but
you may also use an eight-bay charger. There are two
indicator lights on the charger, blue for capacity, which
decreases over time, and green/red for charge status.
1. Use your thumb to press
the battery latch and lift it up,
and then remove the battery.
2. Insert the battery into the
charger, label facing back,
and press down on the battery
until you see the blue light turn
on. After a second, the green
light will begin to blink.
Note: If the blue light remains
on and is steady, the battery
is beyond its useful life. If so,
replace it.
3. When the green light stops
blinking and is steady, the
battery is fully charged.
Remove it from the charger.
4. Slide the pegs at the top of the
battery into the two holes in
the Badge's battery compartment
and press down gently to seat
the battery in the Badge.

Badge Features

Top View
Hold/DND Button
Indicator Light
Attachment Anchor Point
Front View Back View
Call Button
Microphones
Microphones
Badge
Headset Jack
Display
Battery
Up/Down Button*
Select Button
Battery Latch
Up/Down Button*
Speaker
*Up and Down depend on screen orientation
Badge Display Symbols
Unread Text Message
Signal Strength
DND Mode

Flipping the Screen

Press Select to show the menu, press either Up or Down
to navigate to Settings, press Select, navigate to Flip
Screen, and press Select.

Badge Indicators

Green blink: Power is on, DND mode is off.
Amber blink: Power and DND mode are on.
©2014 The Vocera logo is a trademark of Vocera Communications, Inc. Vocera
Vocera Communications, Inc. registered in the United States and other jurisdictions. All other
trademarks are the property of their respective owners. VOC_7416_QRG_072814_v1
Attachment
Anchor Points

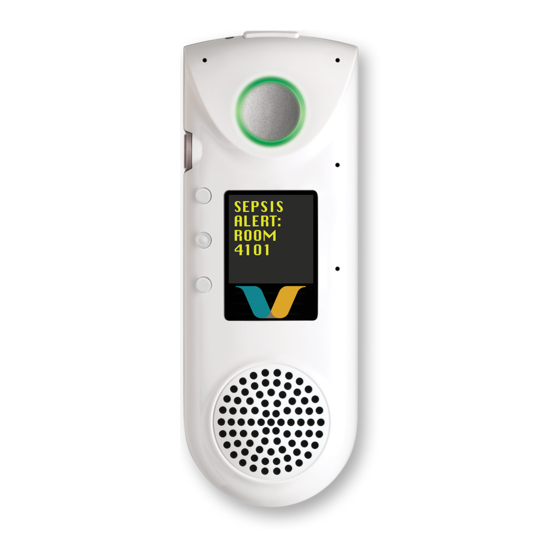

Vocera B3000
Communication Badge
Quick Reference Guide
Unplayed Voice Message
Battery Level
Status Message Area
Speakerphone Mode
Headset Mode
Handset Mode
® is a trademark of
