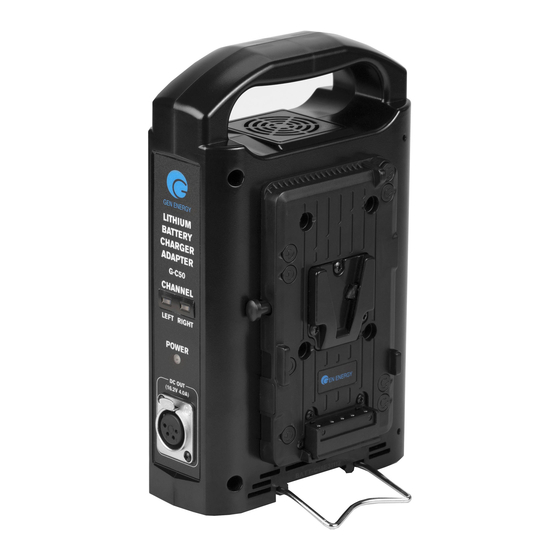

GEN ENERGY G-C50 Quick Manual

2CH SIMULTANEOUS CHARGER 2CH SIMULTANEOUS CHARGER
for Li-ion Batteries
Features Features
* Very stable charger with our own customized PCB and program. * Very stable charger with our own customized PCB and program.
* 2ch simultaneous charger. * 2ch simultaneous charger.
* Easy to use. * Easy to use.
* Very stong v mount plates guarantee long life time. * Very stong v mount plates guarantee long life time.
* 1 year warranty * 1 year warranty
02
INSTRUCTIONS FOR SAFTY
1. Risk of electric shock. Do not remove cover, no user serviceable parts inside the product. 1. Risk of electric shock. Do not remove cover, no user serviceable parts inside the product.
2. Protect the product from water, moisture and dust. 2. Protect the product from water, moisture and dust.
3. The presence of electricity near water can be dangerous. 3. The presence of electricity near water can be dangerous.
4. Use only with recommended batteries. 4. Use only with recommended batteries.
5. A standard three-pin AC plug must be used and earth pole must be connected to the earth line. 5. A standard three-pin AC plug must be used and earth pole must be connected to the earth line.
6. During charging, the temperature of the charger will rise, this is normal, not a malfunction. 6. During charging, the temperature of the charger will rise, this is normal, not a malfunction.
7. A short between + and - on charger pins may cause fire, electrical shock or other incidents. 7. A short between + and - on charger pins may cause fire, electrical shock or other incidents.
1. Slots and openings are intended for ventilation purposes to ensure reliable operation 1. Slots and openings are intended for ventilation purposes to ensure reliable operation
of the product and protect it from overheating. of the product and protect it from overheating.
2. Do not block or cover any slots and openings. 2. Do not block or cover any slots and openings.
3. Indoor use only. To reduce the risk of fire or electric shock, do not expose 3. Indoor use only. To reduce the risk of fire or electric shock, do not expose
this charger to rain or moisture. this charger to rain or moisture.
03
Warranty
This product is covered by 1 year unconditional warranty on all parts. This product is covered by 1 year unconditional warranty on all parts.
For warranty issues or if you have any additional questions, For warranty issues or if you have any additional questions,
please contact the vendor you purchased from. please contact the vendor you purchased from.
G-C50
WARNING! WARNING!
CAUTION! CAUTION!
01
QUICK GUIDE
Switch on the main power on the rear side. Switch on the main power on the rear side.
1) Red light : Being charged 1) Red light : Being charged
2) Green light : Fully charged 2) Green light : Fully charged
3) Orange light : 90% charged 3) Orange light : 90% charged
DC out : Available while being charged DC out : Available while being charged
*
When you use it, its RED light turns to Green : 16.2V 4A When you use it, its RED light turns to Green : 16.2V 4A
* Errors Errors
Power indicator turns red and orange alternatively. Power indicator turns red and orange alternatively.
Power indicator turns orange and green alternatively. Power indicator turns orange and green alternatively.
Power indicator turns green suddenly. Power indicator turns green suddenly.
Please contact your dealer immediately for maintenance. Please contact your dealer immediately for maintenance.
04
SPECIFICATION
Model
Channel
Charging current
AC in
Weight
Dimension
Operating temp.
Batteries
Charging time
DC out
05
Dimension
223.5
G-C50
2ch simultaneous charger
2.6A DC 16.8V
AC 90V~240V/47Hz~63Hz
1 kg
231 x 141x 60.5mm
-10 ~ +45 °C recommended
4S
290Wh : 9 H
195Wh : 6 H 30M
160Wh : 5 H 30M
98Wh : 3 H 40M
16.2V 4A
101.4
For more information, www.genenergy.co.kr
GEN ENERGY
