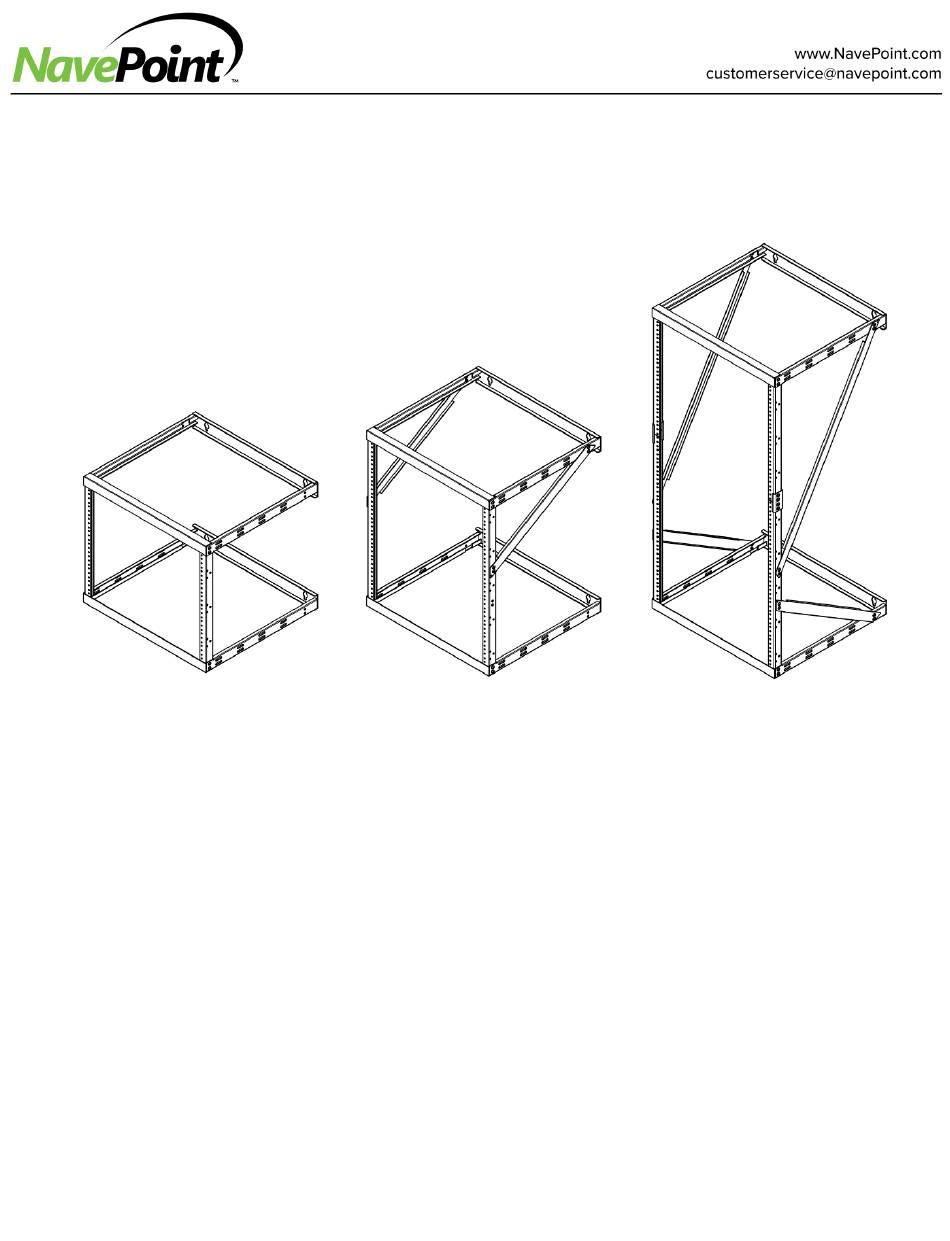

OWNER'S MANUAL: Adjustable Height Wall Rack
Keep this information for further reference.
Thank you for purchasing a NavePoint product.
Please examine the product for any damaged parts. If any part is damaged or missing, contact NavePoint for assistance. Do not attempt to install or
use product if it has been damaged. This product contains small items that could be a choking hazard – keep these items away from children.
During installation, lay product contents on cardboard or other protective surface to avoid any damage.
Do not use with equipment that is heavier than the indicated weight capacity for this product. This product is designed to be installed indoors on
wood stud walls, solid concrete walls or brick walls. Make sure that the supporting surface will safely support the weight of the equipment and all
attached hardware and components. It is recommended that installation be performed by a qualified installer. NavePoint cannot be held
responsible for damage to equipment or personal injury resulting from improper use or installation of product.
Maintenance: Check that the product is secure and safe to use at regular intervals (at least every three months).
Limitations of Liability: In no event will NavePoint, LLC. be liable for any damages, whether direct or indirect, special, punitive, incidental or
consequential damages (including, but not limited to, lost profits or revenue, loss of use, lost business opportunities or loss of goodwill) or for the
costs of procuring substitute products, arising out of or in connection with the use of the product, whether such liability arises from any claim
based upon contract, warranty, tort (including negligence), product liability or otherwise, whether or not seller has been advised of the possibility
of such loss or damage. In no event will seller's total cumulative liability, from all causes of action and all theories of liability, exceed the total
amounts actually paid to seller by customer under the order that gives rise to any liability hereunder.
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Adjustable Height Wall Rack Series and is the answer not in the manual?

Questions and answers

Summary of Contents for NavePoint Adjustable Height Wall Rack Series

  • Page 1 Thank you for purchasing a NavePoint product. Please examine the product for any damaged parts. If any part is damaged or missing, contact NavePoint for assistance. Do not attempt to install or use product if it has been damaged. This product contains small items that could be a choking hazard – keep these items away from children.
  • Page 2 Long Vertical Mounting Rail (2) Left/Right Short Support Beam (2) Left/Right Long Support Beam (2) Mounting Rail Tie Plates (2) M5 x 10 mm Hex Head Screws (32) 12-24 Mounting Screws (24) Anchors (4) Hex Wrench (1) Zip Ties (8) www.NavePoint.com customerservice@navepoint.com...
  • Page 3 (F) and four of the M5 x 10 mm Hex Head Screws (G), connect one set of the Short Vertical Mounting Rails (B) to the Long Vertical Mounting Rails (C) using Hex Wrench (J). Repeat this step for the other set of vertical rails. www.NavePoint.com customerservice@navepoint.com...
  • Page 4 Attach the Right and Left Short Support Beams (D) to the frame by securing 8 of the M5 x 10 mm Hex Head Screws (G) to Vertical Mounting Rails and to the Bottom Panel Frame (A) using Hex Wrench (J). www.NavePoint.com customerservice@navepoint.com...
  • Page 5 Frame (A) has a front panel without wall-mounting holes Insert and connect the Top Panel Frame (A) onto the Long Vertical Mounting Rails (C) with 2 of the M5 x 10 mm Hex Head Screws (G) on each side using Hex Wrench (J). www.NavePoint.com customerservice@navepoint.com...
  • Page 6 Attach the Right and Left Short Support Beams (D) to the frame by securing 8 of the M5 x 10 mm Hex Head Screws (G) to Long Vertical Mounting Rails (C) and to the Bottom Panel Frame (A) using Hex Wrench (J). www.NavePoint.com customerservice@navepoint.com...
  • Page 7 Frame (A) has a front panel without wall-mounting holes Insert and connect the Top Panel Frame (A) onto the Short Vertical Mounting Rails (B) with 2 of the M5 x 10 mm Hex Head Screws (G) on each side using Hex Wrench (J). www.NavePoint.com customerservice@navepoint.com...

This manual is also suitable for:

Adjustable height wall 22u rackAdjustable height wall 12u rackAdjustable height wall 8u rack
