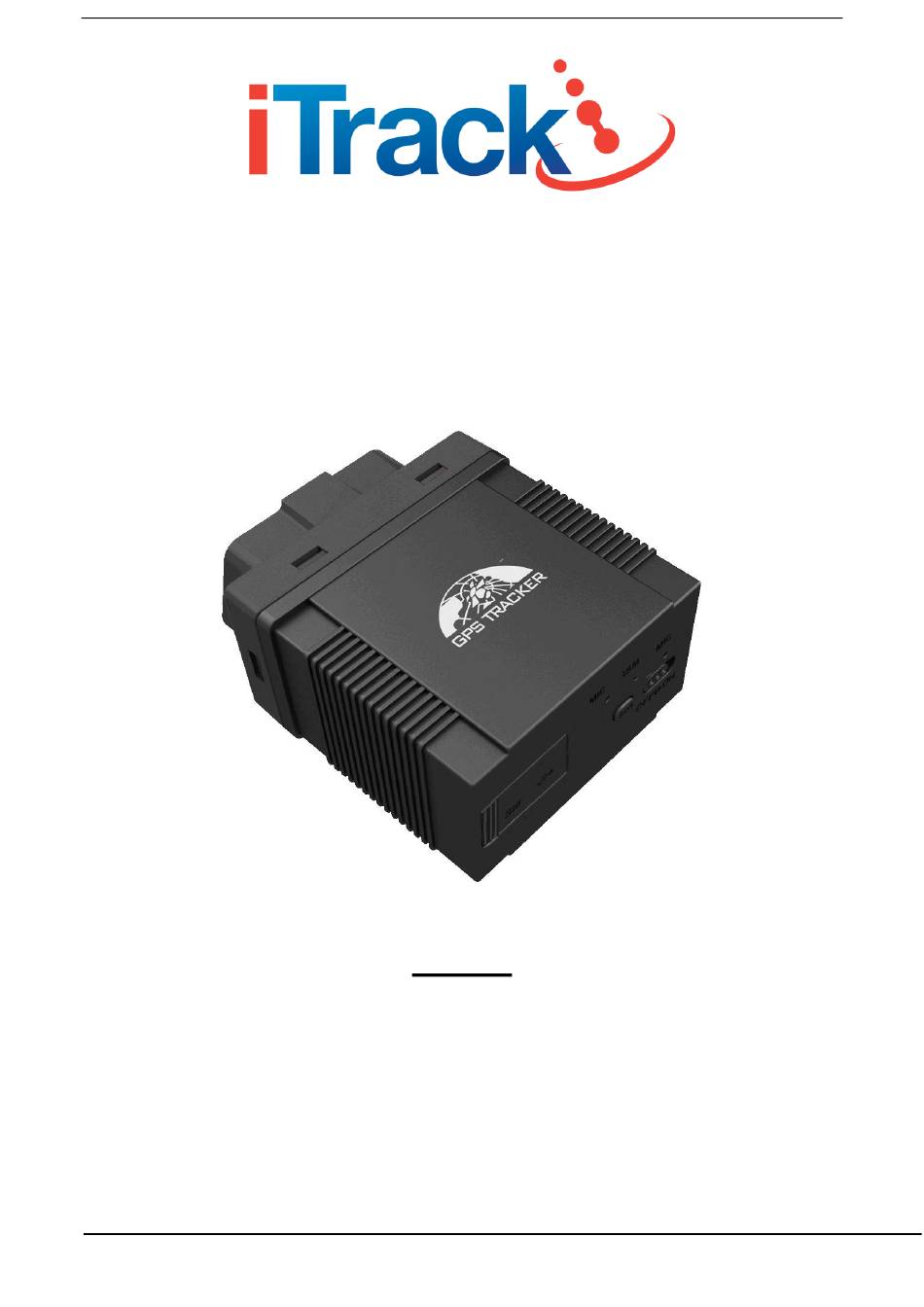

OBD GPS TRACKER (GPS306)
USER MANUAL
Preface
Thank you for purchasing the iTrack OBD (GPS306) GPS tracker. This manual shows how to operate the device
smoothly and correctly. Please make sure to read this manual carefully before using this product. Please note that
the specification and information are subject to changes without prior notice in this manual.
Any change will be integrated in the latest release. The manufacturer assumes no responsibility for any errors or
omissions in this document.
www.itrackgpstrackers.com
1
Advertisement
Table of Contents
Related Manuals for iTrack GPS306
Summary of Contents for iTrack GPS306
- Page 1 USER MANUAL Preface Thank you for purchasing the iTrack OBD (GPS306) GPS tracker. This manual shows how to operate the device smoothly and correctly. Please make sure to read this manual carefully before using this product. Please note that the specification and information are subject to changes without prior notice in this manual.
-
Page 2: Table Of Contents
ARDWARE 6.29. GPRS S ..............................15 ETTING 6.30. USB ........................16 ONFIGURE PARAMETERS BY INSTRUCTIONS FOR ITRACK LIVE GPS TRACKING PLATFORM ..............17 7.1........................17 NSTRUCTIONS FOR WEB PLATFORM CAUTIONS ................................19 FAULTS & THE SOLUTIONS ..........................20 www.itrackgpstrackers.com... -
Page 3: Introduction
1. Introduction This product is based on WCDMA / GSM / GPRS network and GPS satellite positioning system and has a built-in WCDMA/GSM and GPS antenna. Simply insert into the car OBDII interface directly to read the data from the car computer. You can locate and manage the vehicle remotely via SMS or GPRS. The device is easy to install with no wiring required. -
Page 4: Specification
5. Specification Content Specification 64.5mm × 50mm × 27mm Weight Network WCDMA/GSM/GPRS WCDMA (3G): 2100/1900/850Mhz Band GSM (2G): 850/900/1800/1900Mhz GPS Sensitivity -159dBm GPS Accuracy Cold status 30s GPS Start Time Warm status 11s Hot status 1s Backup Battery Chargeable 3.7V 200mAh Polymer Li-Battery Storage Temp. -
Page 5: Sim Card Installation
Support vehicle models: Model Model Model Mercedes-Benz Audi Land Rover Buick Chevrolet Ford Honda Toyota Volkswagen Hyundai SSANG YONG Citroen Mazda Subaru Roewe Peugeot Chery Cadillac JINBEI Haima Skoda Nissan Geely Dongfeng MITSUBISHI Porsche Suzuki Soueast Isuzu Acura Volvo 6.2. SIM CARD Installation SIM Card: Open the cover with SIM Card symbol and insert the SIM card as the picture shows (chip... -
Page 6: Wcdma/Gsm/Gps Led Indicator
6.4. WCDMA/GSM/GPS LED Indicator ⚫ Green LED indicator on solid: No WCDMA/GSM network signals. ⚫ Green LED indicator flashes fast (one time each second): WCDMA/GSM Network signal is normal and tracker is working in WCDMA/GSM mode. ⚫ Green LED indicator flashes slowly (one time each three second): Tracker is working in GPRS mode. ⚫... -
Page 7: Request For Obd Data By Sms
6.8.3. Alternatively you can call the tracker 10 times continuously and get its position, then it will save the cell phone number as the authorised number automatically. It will reply “add master ok”. Delete authorisation: Send SMS “noadmin+password+space+authorised number” to delete the authorised 6.8.4. -
Page 8: Notification Of Vehicle Fault
tank ok! " The default fuel tank volume is 60 liters. 6.11. Notification of Vehicle Fault When there is a vehicle malfunction and the vehicle malfunction indicator light is on, the diagnostic fault code will be automatically sent to the authorised number. If in GPRS mode, the device will report to the tracking server every time the vehicle starts and only one notification in SMS mode. -
Page 9: Auto Track Continuously
6.15. Auto Track Continuously 6.15.1. Track with time intervals for a limited number of times Send SMS command “fix030s005n+password” to the GPS tracker, it will report the latitude & longitude at intervals of 30 seconds for 5 times. (s:second, m:minute, h:hour). This command must be set in 3 digits (numbers) and the maximum value is 255. -
Page 10: Location Based Service (Lbs) / Cell-Id Locating
6.15.6. GPS drift suppression 8.5.6.1 This function is deactivated by default. To activate send the SMS command "suppress+password" to the tracker. It will reply" suppress drift ok". The GPS data stops updating if the vehicle is not driving (ACC is OFF) and the latitude and longitude doesn’t change. GPS data updates automatically when vehicle begins to move again. -
Page 11: Data Load
6.18. Data Load The positions during the time of WCDMA/GSM signal loss will be sent to the server automatically when WCDMA/GSM signals recover. 6.19. Decide how many times of alarm message For alarm messages sent in a cycle, you can decide how many times the alarm is sent via SMS. Send SMS “xtime+password+005”... - Page 12 6.21.5.2. Set up: When the unit stays immobile in a place for 3-10 minutes, the user can send SMS “stockade+password+space+latitude,longitude;latitude,longitude”to unit to set the restricted area. In the event of a breach, it will send the SMS “stockade!+ latitude & longitude” to the authorised numbers. Attention: The first latitude &...
-
Page 13: Set Up Arm/Disarm By Sms
6.21.8.2. To cancel: Send SMS command “nospeed+password” to deactivate the overspeed alarm. Attention: The recommended speed should be not less than 30km/h as below that rate the accuracy will be effected by GPS drift etc. 6.21. Set up arm/disarm by SMS 6.21.1. -
Page 14: Orward The Third Parties Message
6.23.2. No Sleep Mode Send the SMS command “sleep+password+space+off” to tracker and it will reply “sleep off ok”. The tracker won’t sleep and the WCDMA/GSM, GPS modules keep working. This mode is the default mode. e.g. sleep123456 off. 6.24. Forward the third parties’ message 6.24.1. -
Page 15: Terminal (Local) Time Setting
6.27. Terminal (local) Time Setting Send the SMS command “time+space+zone+password+space+time zone” to the tracker to change the time zone. For example: Send SMS “time zone123456 0” to set the time zone for the UK (0 = GMT). When the clocks go forward in the summer you would send the SMS command: “time zone123456 1” to set the time zone to +1. -
Page 16: Configure Parameters By Usb
6.30. Configure parameters by USB Connect the tracker to a computer with the optional USB cable and open the memory of the tracker. Find the initial configuration file and open it with notepad. Then operate according to the instructions and save it, copy back to memory to overwrite it and it will take effect immediately. -
Page 17: Instructions For Itrack Live Gps Tracking Platform
GPRS reception. GPRS settings must be configured before the tracker will show online (see section 5.19). You will now be able to use the iTrack Live GPS Tracking Platform and all of its features. www.itrackgpstrackers.com... - Page 18 You can change the user settings by clicking the icon shown below: IOS &Android mobile APP If you have a smart phone or tablet you can download the iOS/Android App from the App store. Please search for ‘iTrack Live’ to find the App. See image below of App icon: www.itrackgpstrackers.com...
-
Page 19: Cautions
8. Cautions Please comply with these instructions to extend the unit life: 1. Keep the unit dry. Any liquid, i.e. rain, moisture, may destroy or damage the inside circuitry. 2. Don’t use & store the unit in dusty places. 3. Don’t put the unit in overheated or overcooled places. 4. -
Page 20: Faults & The Solutions
9. Faults & the Solutions Faults Possible reason Solution Device not inserted in OBD port Make sure device is fully inserted No power correctly in vehicle OBD port. SIM is not inserted correctly Make sure SIM is properly inserted and ‘clicks’ in to place. No GSM signal SIM card not activated Try another SIM card...
