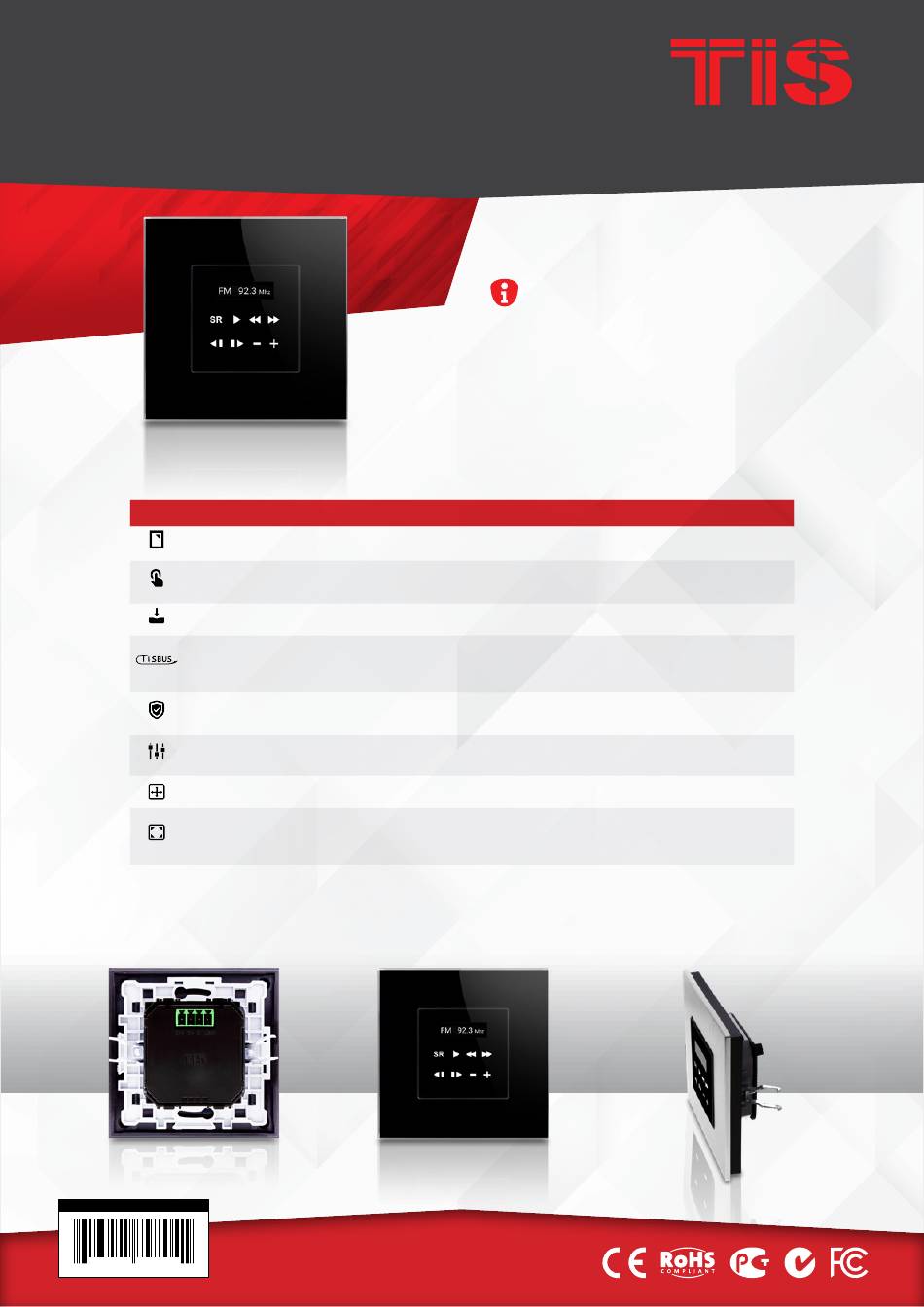

TIS TERRE Series Installation Manual

iNSTALLATioN MANuAL
Terre Audio Touch KeypAd
Model: TER-AUD
OLED
Touch
Input
TIS Bus
Protection
Operating and display
elements
Dimensions
Housing
BArcode (upc-A)
6 58921 79804 1
A touch button music player that supports the TIS
Audio Player and shows tracks, reminders, and
alerts on its 1" OLED screen.
P R O D U C T S P E C I F I C AT I O N S
Size
Active area
Touch Type
Temp sensor
Number of devices on 1 line
Bus voltage
Current consumption
touch buttons
Backlight
Width × length × height
Materials
Internal Parts color
IP rating
Automation Made Easy
producT iNForMATioN
0.9"
1.5"
Capacitive
Resistive Temp Sensor
Max. 64
12-32 V DC
<20 mA / 24 V DC
Reverse Polarity Protection
ESD Protection
8 touch buttons for audio control ...
Backlight indicators
45mm × 25mm × 45mm
PC anti fire / Glass in front
Black & gray
IP 50
