Installation and Operation Manual
Manual P/N 5900254 — Manual Revision A — September 2020
Models:
• DLR-6
• DLR-6P
⚠
DANGER
Low-Rise Scissor Lift
entire
Read the
product. Failure to follow the instructions and safety precautions in
this manual can result in serious injury or death. Make sure all other
operators also read this manual. Keep the manual near the product
for future reference. By proceeding with setup and operation,
you agree that you fully understand the contents of this
manual and assume full responsibility for product use .
contents of this manual
1645 Lemonwood Dr.
Santa Paula, CA, 93060 USA
Telephone: (877) 432-6627
Dannmar.com

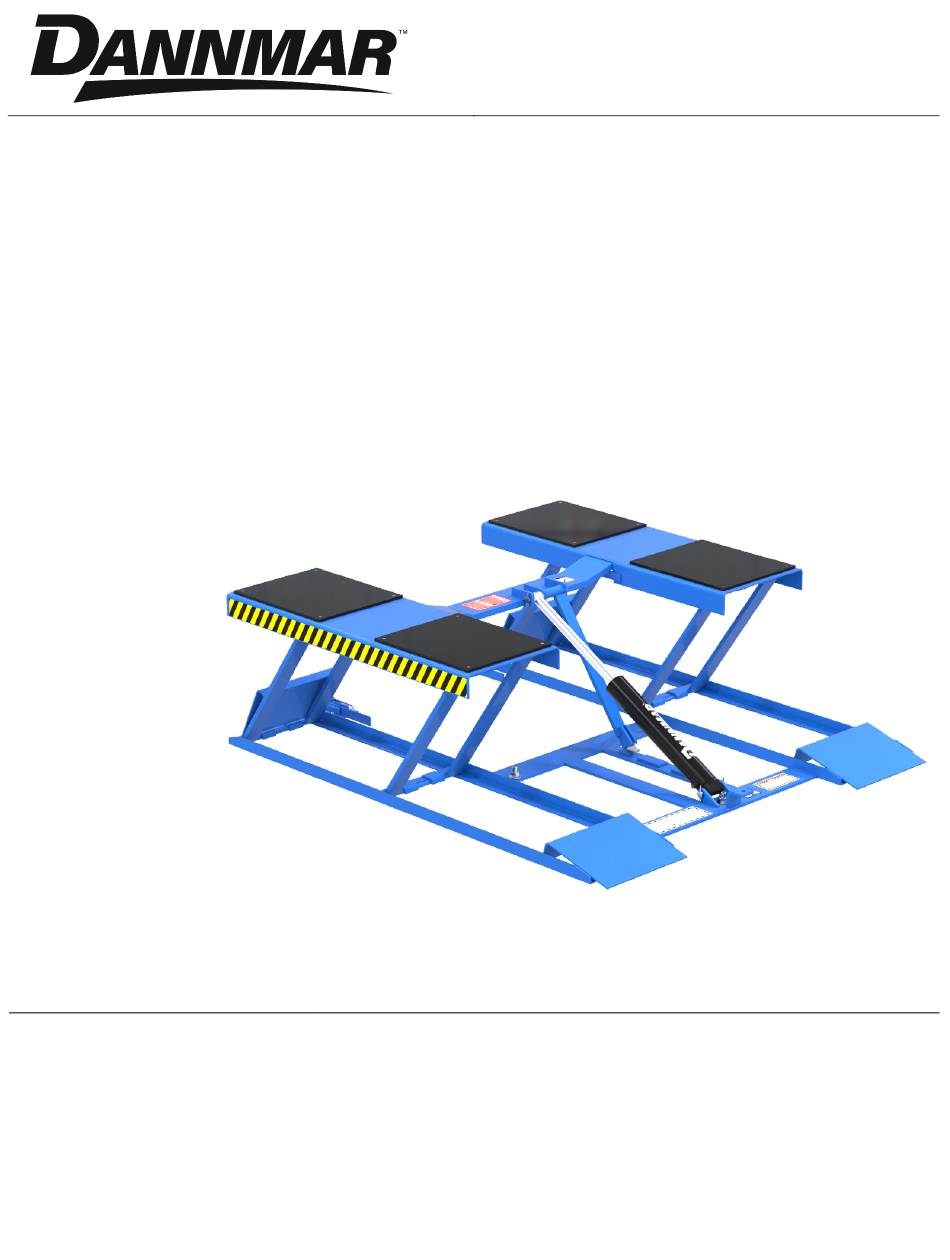

DLR-6P shown.
before
using this

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DLR-6 and is the answer not in the manual?

Questions and answers

Related Manuals for Dannmar DLR-6

Summary of Contents for Dannmar DLR-6

  • Page 1 Santa Paula, CA, 93060 USA Telephone: (877) 432-6627 Dannmar.com Low-Rise Scissor Lift Installation and Operation Manual Manual P/N 5900254 — Manual Revision A — September 2020 Models: • DLR-6 • DLR-6P DLR-6P shown. ⚠ entire before contents of this manual...
  • Page 2 BendPak is not responsible for typographical errors in this manual. Warranty. The Dannmar warranty is more than a commitment to you: it is also a commitment to the value of your new product. Contact your nearest Dannmar dealer or visit the Dannmar website.

  • Page 3: Table Of Contents

    ALI Store Introduction This Manual describes the following Dannmar Lifts: • DLR-6. Low-rise, frame-engaging scissor Lift that supports Vehicles up to 6,000 lbs (2,722 kg). • DLR-6P. Low-rise, portable, frame-engaging scissor Lift that supports Vehicles up to 6,000 lbs (2,722 kg).

  • Page 4: Safety Considerations

    Modifications to the equipment without prior, written permission from BendPak Inc. • Injury or death caused by modifying, disabling, overriding, or removing safety features. • Damage to the equipment from external influences. • Incorrect operation of the equipment. DLR-6/6P Low-Rise Scissor Lifts P/N 5900254 — Rev. A — September 2020...

  • Page 5: Components

    Hinged Ramps. Allows Vehicles to drive on to and off of the Platforms. • Base. The bottom of the Lift. Has the holes for the Anchor Bolts for the DLR-6. • Hydraulic Cylinder. Pushes the Platforms up to raise a Vehicle, down to lower a Vehicle.

  • Page 6: Specifications

    ~35 seconds Power Unit 115 VAC*, 50/60 Hz, 1 Ph * Power Unit comes configured for 115 VAC; is reconfigurable to 230 VAC. Specifications subject to change without notice. DLR-6/6P Low-Rise Scissor Lifts P/N 5900254 — Rev. A — September 2020...

  • Page 7: Installation Checklist

    ☐ 6. Unpack and locate the Lift. ☐ 7. Assemble the Portable Stand (DLR-6 only). ☐ 8. Attach the Power Unit to the Portable Stand (DLR-6 only). ☐ 9. Assemble the Tow Cart (DLR-6 only). ☐ 10. Raise the Platforms Off the Base (DLR-6 only).

  • Page 8: Installation

    Installation This section describes how to install your DLR-6/6P. Perform the steps in the order listed. ⚠ DANGER Be very careful when setting up, operating, maintaining, or repairing this equipment; failure to do so could result in property damage, product damage, injury, or (in very rare cases) death.
  • Page 9 Lift. • Hose Cover. The DLR-6 comes with a Hose Cover that you can anchor to the ground; it is 54 in / 1,372 mm long. If you plan to use the Hose Cover, make sure to leave enough room between the Power Unit and the Lift.
  • Page 10 Instead, the geometry of the scissor arms moves the Platforms up at an angle (called longitudinal shift), towards the Hinged Ramp end of the Lift. The amount of longitudinal shift for the DLR-6 and the DLR-6P is approximately 14 in / 356 mm.
  • Page 11 Using an appropriate lifting device (Shop Crane or Forklift, for example), move the Lift off of the bottom of the shipping container and to its permanent location (in the case of the DLR-6) or its starting location (in the case of the DLR-6P).
  • Page 12 Do not connect the Power Unit to the Hydraulic System or power source at this point of the installation; those connections will be made later. Not drawn to scale. Not all components shown. DLR-6/6P Low-Rise Scissor Lifts P/N 5900254 — Rev. A — September 2020...
  • Page 13 Raise the Platforms Off the Base You need to raise the Platforms off the Base to access two of the three Anchor Bolt holes (Anchoring for DLR-6 only). Be sure to leave the Lift engaged on a Safety Lock when you raise it.
  • Page 14 For example: • 4.75 in / 120 mm Anchor Bolts are stamped with a G. • 6.3 in / 160 mm Anchor Bolts are stamped with a J. DLR-6/6P Low-Rise Scissor Lifts P/N 5900254 — Rev. A — September 2020...
  • Page 15 The Lift has three holes in the Base for anchoring it. Anchoring provides stability for the Lift. before once the Lift is Give a lot of thought to where you want the DLR-6 anchoring it: anchored, it is extremely difficult to move...
  • Page 16 Wrenching the Nut forces the wedge up, pushing out the Expansion Sleeve and pressing it tightly against the Concrete. Important: use an impact wrench to torque the Anchor Bolts. DLR-6/6P Low-Rise Scissor Lifts P/N 5900254 — Rev. A — September 2020...
  • Page 17 Anchor the Power Unit Stand (DLR-6 only) The DLR-6 comes with a Power Unit Stand to hold the supplied Power Unit; it can be on either side of must the Lift. The Power Unit Stand be anchored. Not necessarily to scale. Not all components shown.
  • Page 18 6. Repeat Steps 3 through 5 for the other Wheel Assembly. 7. Use an appropriate tool to securely tighten all of the Nuts and then lower the Hinged Ramp end of the Lift back down to the ground. DLR-6/6P Low-Rise Scissor Lifts P/N 5900254 — Rev. A — September 2020...
  • Page 19 Lift a few times using low-viscosity flushing liquid to push out debris trapped in the system; make sure the flushing liquid is compatible with the working fluid. DLR-6/6P Low-Rise Scissor Lifts P/N 5900254 — Rev. A — September 2020...
  • Page 20 The Hydraulic Hose connects the Power Unit to the Hydraulic Cylinder on the Lift. Connecting the Hydraulic Hose is slightly different for each model, those procedures are described here. The following drawing shows the Hydraulic connections for the DLR-6. Drawing not to scale. Some components not shown.
  • Page 21 1. Remove the Shipping Plug from one of the two Hydraulic Power Out ports on the Power Unit. The Hydraulic Power Ports are commonly labeled P1/P2 on the Power Unit. 2. For the DLR-6, attach the 06 ORB connector of the Elbow Hydraulic Fitting (06 ORB – 04 JIC) to the Hydraulic Power Out Port.
  • Page 22 You can also take off the Electrical Panel Cover (around the Raise button); wiring information is on the inside of the Cover. 3. Plug the Power Cord in to a grounded 230 VAC outlet. DLR-6/6P Low-Rise Scissor Lifts P/N 5900254 — Rev. A — September 2020...
  • Page 23 If the Power Cord still has a 115 VAC plug, then the supplied Power Unit was successfully before converted to 230 VAC operation. Contact the Electrician or your Supervisor proceeding. 3. Plug the 230 VAC plug into a grounded 230 VAC outlet. DLR-6/6P Low-Rise Scissor Lifts P/N 5900254 — Rev. A — September 2020...
  • Page 24 If the Vehicle is stable and balanced, lower the Lift back to the ground and start over. If the Vehicle stable and balanced, it is safe to raise further. DLR-6/6P Low-Rise Scissor Lifts P/N 5900254 — Rev. A — September 2020...
  • Page 25 Make sure that the Safety Locks are cleared and free. • Leave the Manual with the Owner/Operator so that it is available for anyone who needs to read it. DLR-6/6P Low-Rise Scissor Lifts P/N 5900254 — Rev. A — September 2020...

  • Page 26: Operation

    Check the Lift. Check the Lift for any missing, heavily worn, or damaged parts. Do not operate the Lift if you find any issues; instead, take it out of service, then contact your dealer, email support@dannmar.com, visit dannmar.com/support, or call (877) 432-6627. •...
  • Page 27 Vehicle, damage the Lift, or injure or kill anyone under the Vehicle. 13. On the Power Unit, press and hold the Raise button. 14. Watch the Vehicle and the Platforms as they rise. DLR-6/6P Low-Rise Scissor Lifts P/N 5900254 — Rev. A — September 2020...
  • Page 28 3. Press and hold the Lowering Handle. 4. Release the Lowering Handle when the Lift is fully lowered. 5. Remove the Lifting Arms and then carefully drive the Vehicle off the Lift. DLR-6/6P Low-Rise Scissor Lifts P/N 5900254 — Rev. A — September 2020...

  • Page 29: Maintenance

    ⚠ Do not operate your Lift if you find issues; instead, take the Lift out of service, WARNING: then contact your dealer, visit dannmar.com/support, email support@dannmar.com or call (877) 432-6627. DLR-6/6P Low-Rise Scissor Lifts P/N 5900254 — Rev. A — September 2020...

  • Page 30: Troubleshooting

    Hydraulic Fluid could be leaking out, lowering the Platforms). Only leave the Lift either fully lowered or engaged on a Safety Lock. If you continue to have problems with your Lift, contact your dealer, visit dannmar.com/support, email support@dannmar.com, or call (877) 432-6627.

  • Page 31: Wiring Diagram

    Use a floor jack to raise the Vehicle from four to six inches, giving enough room to get upward force started. • Use lifting equipment to raise the Vehicle off the Platforms. If you are still unable to raise your Vehicle, contact Dannmar Technical Support for assistance. Wiring Diagrams ⚠ must be...

  • Page 32: Labels

    Labels DLR-6/6P Low-Rise Scissor Lifts P/N 5900254 — Rev. A — September 2020...
  • Page 33 DLR-6/6P Low-Rise Scissor Lifts P/N 5900254 — Rev. A — September 2020...

  • Page 34: Parts Diagrams

    Parts Diagrams DLR-6/6P Low-Rise Scissor Lifts P/N 5900254 — Rev. A — September 2020...
  • Page 35 DLR-6/6P Low-Rise Scissor Lifts P/N 5900254 — Rev. A — September 2020...
  • Page 36 DLR-6/6P Low-Rise Scissor Lifts P/N 5900254 — Rev. A — September 2020...
  • Page 37 DLR-6/6P Low-Rise Scissor Lifts P/N 5900254 — Rev. A — September 2020...
  • Page 38 DLR-6/6P Low-Rise Scissor Lifts P/N 5900254 — Rev. A — September 2020...

  • Page 39: Ali Store

    The ALI Store is your trusted source for workplace safety! Visit today and get the training and materials you need to work safely: http://www.autolift.org/ali-store/. DLR-6/6P Low-Rise Scissor Lifts P/N 5900254 — Rev. A — September 2020...
  • Page 40 1645 Lemonwood Drive Santa Paula, CA 93060 USA Copyright © 2020 by BendPak Inc. All rights reserved. dannmar.com...
