FX6 Motorcycle Headset
User Manual
Email:
liveconn@qq.com
TEL: +8618922871406

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FX6 and is the answer not in the manual?

Questions and answers

Related Manuals for FODSPORTS FX6

Summary of Contents for FODSPORTS FX6

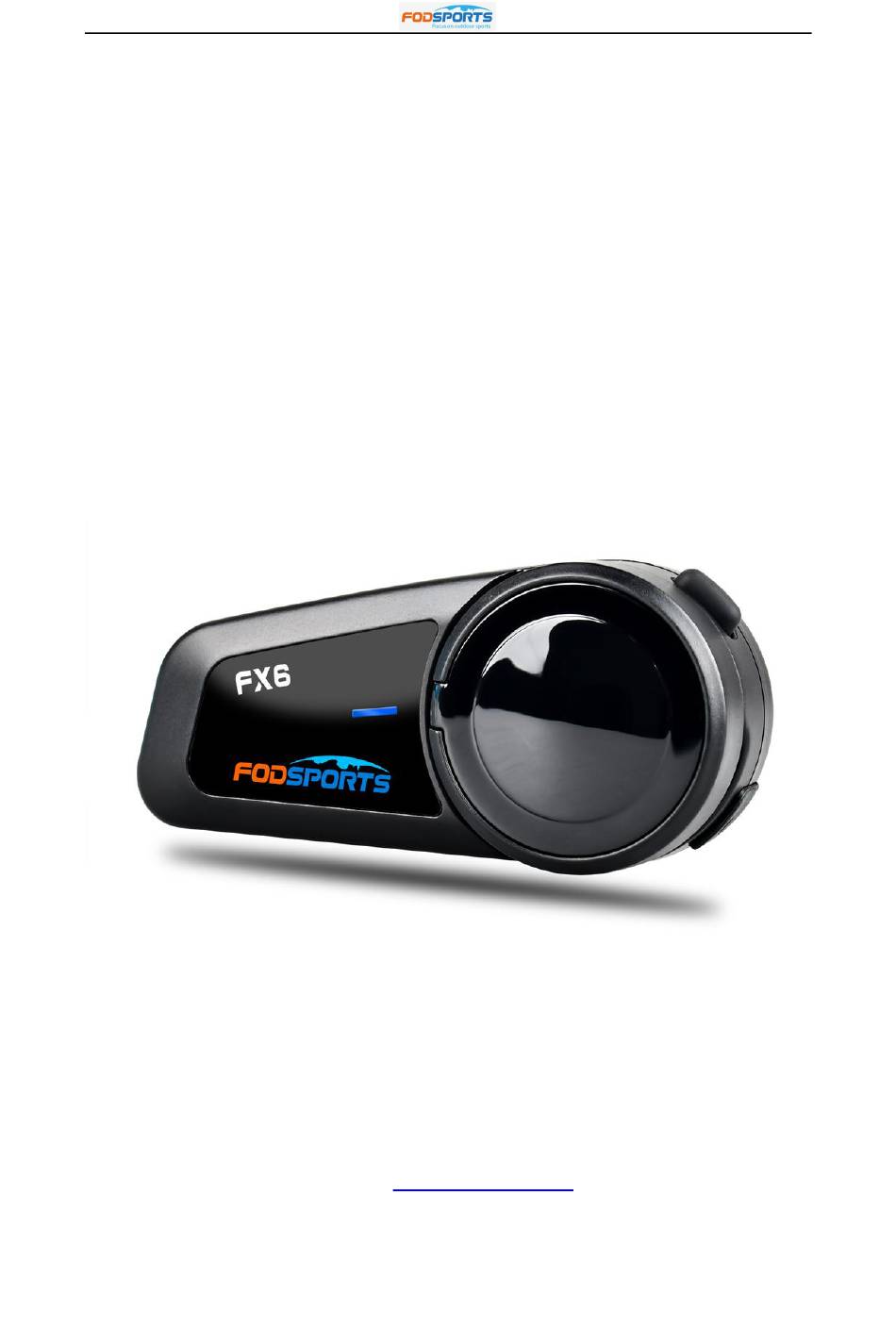

  • Page 1 FX6 Motorcycle Headset User Manual Email: liveconn@qq.com TEL: +8618922871406...

  • Page 2: Table Of Contents

    6.3 Knob..........................9 7. Bluetooth Status Indication and Prompt................9 8. Pairing Methods.........................10 8.1 Two ways for FX6 to enter pairing status............10 8.2 Pairing with the Non-Fodsports FX6 Bluetooth device ........10 8.3 Pairing with Mobile, GPS and MP3..............11 8.4 Pairing between two FX6..................11 8.5 Group Intercom Settings..................

  • Page 3: Packing List

    1. Packing List 1. Bluetooth Device 2. Microphone & Ear Speakers 3. Clamp 4. Velcro Clamp 5. Manual 6. Headphone Velcro 7. USB Cable 8. Screw Driver 9. Two-way Radio Control Cable (Optional)

  • Page 4: Function Introduction

    2. Function Introduction 1. Fleet communication 2. Connect to any Bluetooth headset 3. Simultaneous connection of multiple devices 4. Operating range 1000 meters 5. Connected with 2 mobile phones 6. Stereo music A2DP 7. Voice dial 8. Voice prompt 9. Usable during recharging 10.

  • Page 5: Installation Step

    3. Installation Step 3.1 Fixed by clamp 1. Loosen the screws on the back of clamp with the provided screw driver. 2. Open the lining of helmet, insert the clamp in the proper position on the left of helmet and fasten the screw. 3.

  • Page 6: Fixed By Velcro Sticker

    match the microphone with the mouth position, and tidy up the cable and lining. 7. Insert the plug into the headset socket and the installation is finished. 3.2 Fixed by VELCRO sticker 1. Slide the back track of the device into the clamping track. 2.

  • Page 7: Product Introduction

    5. Product Introduction 1. On/Off Button 2. Multi-function Button 3. Charger Socket 4. Headset Socket 5. Knob 6. Indicator Light 7. Clamp 8. Ear Speakers 9. Headset Plug...

  • Page 8: Button Operation Introduction

    6.1 On/Off Button Turn on ( When the headset is off, press and hold it for 3 seconds. There is a “Welcome to FODSPORTS Bluetooth Communication System” sound prompt, the blue light will be on for 1 second.) Turn off ( When the headset is on, press and hold it for 5 seconds. There is a “Power Off”...

  • Page 9: Multi-Function Button

    6.2 Multi-function Button Pairing ( When the headset is on, press and hold it for 6 seconds. There is a “Pairing” sound prompt, blue and red lights flash alternately.) Answering a call ( When there is coming call, click it once to pick up or take no action, the headset will pick it up automatically, you will hear “Dong Dong”...

  • Page 10: Knob

    6.3 Knob Turn up the volume ( On a call, intercom, playing music or FM, turn the knob clockwise and hold it to increase volume until it reaches the level you want. A “toot” prompt will be heard when it reaches Max volume.) Turn down the volume ( On a call, intercom, playing music or FM, turn the knob counterclockwise and hold it to decrease volume until it reaches the level you want.

  • Page 11: Pairing Methods

    8.2 Pairing with the Non-Fodsports FX6 Bluetooth device Step 1: Place the FX6 and the device within 1 meter’s visible range. Step 2: Set the Non-FX6 Bluetooth device into paring status. Step 3: Follow step (8.1.2), FX6 enters pairing status.

  • Page 12: Pairing With Mobile, Gps And Mp3

    Step 1: Ensure both FX6 are off and within 1 meter visible range. Step 2: Follow step (8.1.1), both FX6 are in pairing status. Step 3: Short press the multi-function button or on/ off button on either FX6 to search the other one, you will hear “intercom connected” when successfully paired.

  • Page 13: Group Intercom Settings

    8.5 Group Intercom Settings Note: For group intercom, the first and last FX6 CAN NOT be paired. Step 1: Clear the pairing record between A and F Press and hold the on/off buttons of A and F for 6 seconds until you hear sound prompt “power off ”, then hold them for another 3 seconds.

  • Page 14: Simultaneous Connection Of Multiple Devices

    8.6 Simultaneous connection of multiple devices Note: FX6 CAN NOT pair with two non-FX6 devices at the same time. Note: Please DO NOT pair FX6 with mobile phone before you pair it with Bluetooth headset, otherwise, it may cause intercom communication error. It...

  • Page 15: Priority Of Functions

    * The working distance will be deviated for the influence of environment and climate 11. Matters Need Attention 1. The Bluetooth name is “FODSPORTS FX6”. 2. The appropriate storage temperature for this device is between -20℃ and 60℃. Please do not store it in environment with too high or too low temperatures, otherwise the service life will be affected.

  • Page 16: After-Sale Service

    12. After-Sale Service For any quality problem or missing accessories, especially pairing problem between 2 or more FX6 headsets, please feel free to contact us at email: liveconn@qq.com . We're always here ready to help, will reply to you in 12...
