/// USER MANUAL

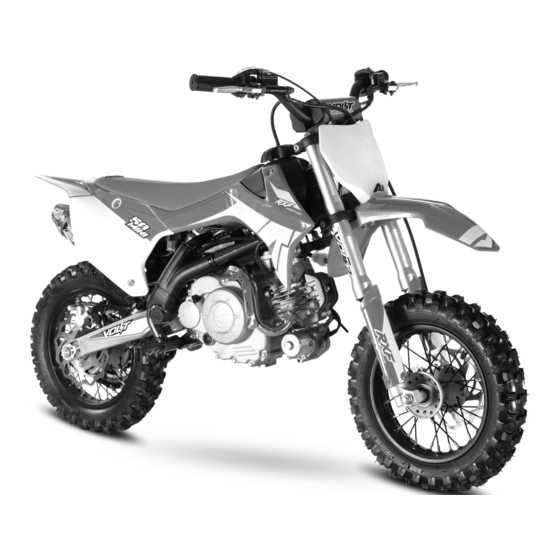

MINI RXF 55

Advertisement

Table of Contents
loading

Related Manuals for Apollo RXF MINI 55

Summary of Contents for Apollo RXF MINI 55

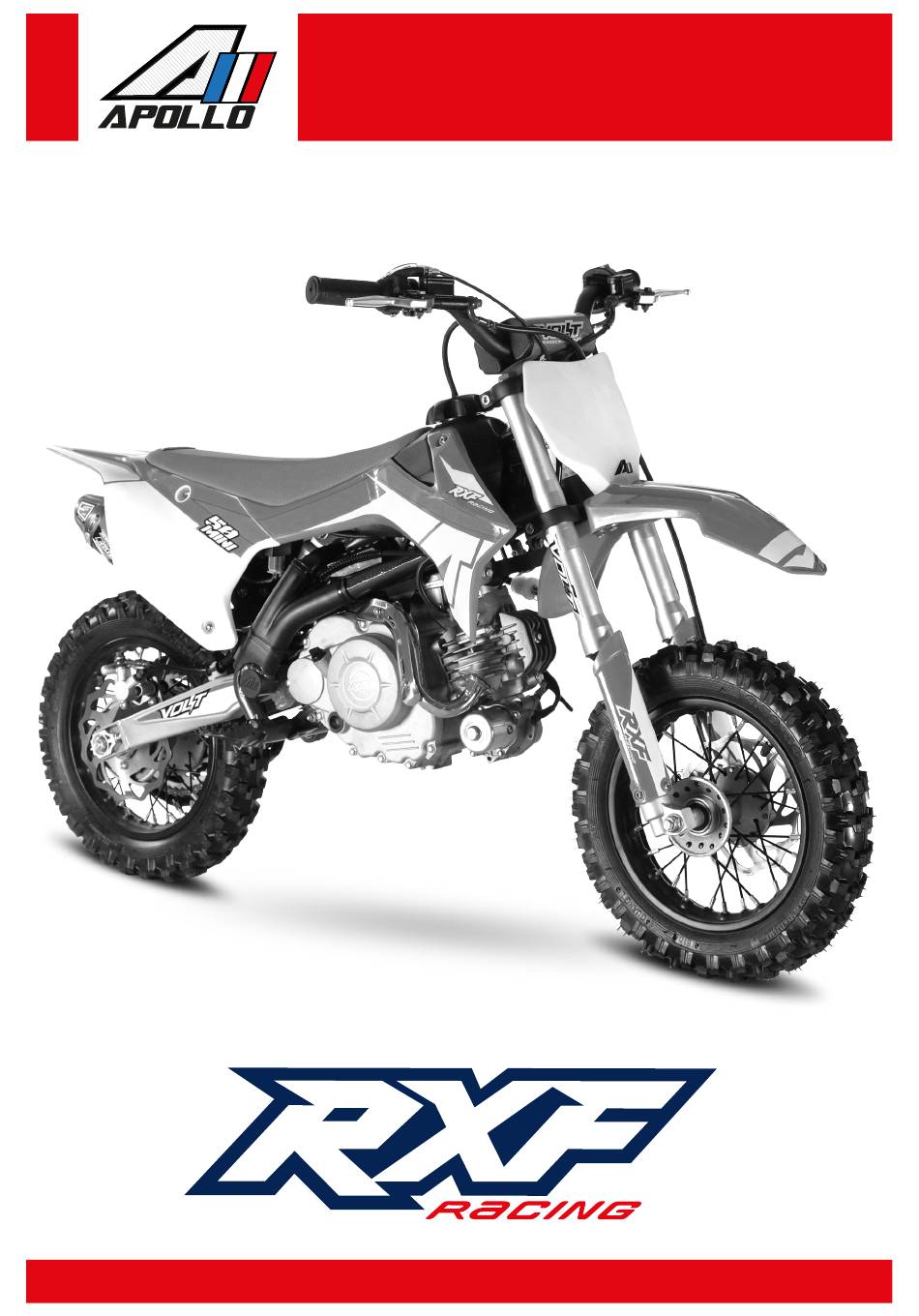

  • Page 1 /// USER MANUAL MINI RXF 55...
  • Page 2 THIS MANUAL SHOULD STAY WITH THIS VEHICLE IF IT IS SOLD. EC DECLARATION OF CONFORMITY conforming to Directive 2006/42/EC We, Zhejiang Apollo Motorcycle Manufacturer Co. Ltd Jinyan hill Industrial Area, Quanxi Town, Wuyi City, Zhejiang Province, China declare in sole responsibility, that the product...
  • Page 3 To maintain these high standards, it is important that you and your Apollo dealer pay close attention to the re- commended maintenance schedules and operating instructions contained within this manual.
  • Page 4 Your motorcycle is equipped with an adjustable speed limiter and a power reduction plate. Apollo recommends that all beginners start off with the speed limiter adjusting screw turned in and the power reduction plate installed in the exhaust manifold to limit the power available while they learn.
  • Page 5 // REGISTRATION Congratulations on your decision to purchase a Apollo motorcycle. You are now the owner of a state-of-the-art sports motorcycle that will give you and your child enormous pleasure if you service and maintain it accordingly. We hope you enjoy your new vehicle! Enter the serial numbers of your vehicle below.
  • Page 6 All work marked with this symbol requires specialist knowledge and technical understanding. In the interest of the safety of your child, have these jobs performed in an authorized Apollo workshop. There, your motorcycle will be optimally cared for by specially trained experts using the specialist tools required.

  • Page 7: Table Of Contents

    (p.19) 10.1 REMOVING THE FRONT WHEEL (p.49) 2.7 LOADING (p.20) 10.2 INSTALLING THE FRONT WHEEL (p.49) 2.8 GENUINE APOLLO ACCESSORIES (p.20) 10.3 REMOVING THE REAR WHEEL (p.50) 2.9 AFTERMARKET PARTS, ACCESSORIES, AND MODI- 10.4 INSTALLING THE REAR WHEEL (p.51) FICATIONS (p.20)
  • Page 8 // TABLE OF CONTENTS 12. ENGINE (p.75) 12.1 CHECKING THE PLAY OF THE THROTTLE CABLE (p.68) 12.2 ADJUSTING THE PLAY IN THE THROTTLE CABLE (p.68) 12.3 CARBURETOR – IDLE (p.69) 12.4 CARBURETOR - ADJUSTING IDLE SPEED (p.69) 12.5 CHECKING THE ENGINE OIL LEVEL (p.70) 12.6 CHANGING THE ENGINE OIL AND OIL FILTER, CLEANING THE OIL SCREENS (p.70)

  • Page 9: Location Of Important Labels

    Read and understand all of the labels on your vehicle. They contain important in-formation for safe and proper operation of your vehicle. Never remove any labels from your vehicle. If a label becomes difficult to read or comes off, a replacement label is available from your Apollo dealer. 1.1 Canada...
  • Page 10 ATTENTION ! Ceci est un tuyau de mise à l’air. Il faut couper le lien en plastique avant de démarrer le moteur. Ce tuyau ne doit jamais être bouché. This is an engine vent tube. Please cut the plastic cable when the first ride and keep the vent tube clear off.

  • Page 11: Europe

    Engine ******* Date ***************** Zhejiang Apollo Motorcycle Manufacturer CO. Ltd Jinyan hill Industrial Are. Quanxi Town, Wuyi City, ZHejiang Province. China This is an engine vent tube. Please cut the plastic cable when the first ride and keep the vent tube clear off.
  • Page 12 100 kPa 100 kPa 1.00 kgf/cm2 1.00 kgf/cm2 15 psi 15 psi Details p.14...

  • Page 13: Oceania And South Africa

    ***************** This is an engine vent tube. Please cut the plastic cable when the first ride and keep Zhejiang Apollo Motorcycle Manufacturer CO. Ltd Jinyan hill Industrial Are. Quanxi Town, Wuyi City, ZHejiang Province. China the vent tube clear off.
  • Page 14 Familiarize yourself with the following pictograms and read the explanatory text. Read the Owner’s manual. Always use an approved helmet and protective gear. Use from 3 years old. Operation of this motorcycle by children under the age of 3 increase the risk of severe injury or death.
  • Page 15 Use unleaded gasoline only. Measure the tire pressure when the tires are cold. No horn: avoid driving in a space that can be ac- cessed by other people Excessive noise: avoid driving in a space can be accessed by other people. Your dirtbike exceeds the noise level eligible.
  • Page 16 Displacement: (Engine:) Engine vin number Model: ***** Vehicle Mass: ***kg (Date:) Date of production **/**/** Engine ******* Date (VIN:) Frame vin number ***************** Zhejiang Apollo Motorcycle Manufacturer CO. Ltd Jinyan hill Industrial Are. Quanxi Town, Wuyi City, ZHejiang Province. China...

  • Page 17: Safety Advice

    // 2. SAFETY ADVICE 2.1 se definition - intended use Apollo are designed and built to withstand the normal stresses and strains of competitive use. The motorcycles com-ply with currently valid regulations and categories of the top international motorsport organizations.

  • Page 18: Safe Riding

    2.4 Safe Riding Perform the pre-operation checks each time you use the vehicle to make sure it is in safe operating condition. Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment damage. See page .36 for a list of pre-operation checks.

  • Page 19: Protective Apparel

    The posture of the operator is important for proper control. The operator should keep both hands on the handlebar and both feet on the operator footrests during operation to maintain control of the motorcycle. Never ride under the influence of alcohol or other drugs. 2.5 Protective Apparel The majority of fatalities from motorcycle accidents are the result of head in-juries.

  • Page 20: Loading

    Choosing accessories for your vehicle is an important decision. Genuine Apollo accessories, which are avail-able only from a Apollo dealer, have been designed, tested, and approved by Apollo for use on your vehicle. Many companies with no connection to Apollo manufacture parts and accessories or offer other modifications for Apollo vehicles.

  • Page 21: Aftermarket Tires And Rims

    Accessories fitted to the handlebar or the front fork area can create instability due to improper weight distribution. If accessories are added to the handlebar or front fork area, they must be as lightweight as possible and should be kept to a minimum. Bulky or large accessories may seriously affect the stability of the motorcycle.

  • Page 22: Work Rules

    Because motorcycles are not subject to the EU regulations governing the disposal of used vehicles, there are no legal regulations that pertain to the disposal of an end-of-life motorcycle. Your authorized Apollo dealer will be glad to advise you.

  • Page 23: View Of Vehicle

    // 3. VIEW OF VEHICLE 3.1 View of vehicle, front left (example) Handbrake lever (rear) (p. 25) Filler Cap (p. 27) Choke (p. 28) Engine Number Side stand (p. 28) Fuel tap (p. 28) Air box (p. 63) Engine Number :...
  • Page 24 3.2 View of vehicle, rear right (example) Handbrake lever (front) (p. 25) Kill switch (p. 25) Bougie Start Button (p. 26) Chassis number Numéro de chassis :...

  • Page 25: Handbrake Lever (Front)

    // 4. CONTROLS 4.1 Handbrake lever (rear) The Handbrake lever (rear) 1 is located to the left of the handlebar. 4.2 Handbrake lever (front) Handbrake lever (front) 1 is located on the right handle- bar. The front brake is operated by the handbrake handle. 4.3 Throttle grip The throttle grip 1 is fitted on the right side of the handlebar.

  • Page 26: Electric Starter Button

    4.5 Electric starter button Electric starter button 1 is fitted on the right side of the handlebar. Possible states: // Electric starter button in basic position // Electric starter button pressed In this position, the electric starter is actuated. 4.6 Service hour counter Service hour counter 1 is fitted in front of the handlebar.

  • Page 27: Opening Filler Cap

    4.8 Opening filler cap Fire hazard. Fuel is highly flammable. The fuel in the fuel tank expands when warm and can escape if overfilled. Improper handling of fuel is a danger to the environ- ment. Do not allow fuel to enter the groundwater, the soil, or the sewage system.

  • Page 28: Fuel Tap

    4.10 Fuel tap Fuel tap 1 is on the left of the fuel tank. Possible states The fuel cock supplies fuel from the tank to the carbu- retor while filtering it also. The fuel cock has two positions: // Close : Arrow mark pointing to the down With the lever in this position, fuel will not flow.
  • Page 29 When you are riding, side stand 1 must be folded up 2...

  • Page 30: Preparing For Use

    // 5. PREPARING FOR USE 5.1 First use Danger of accidents  A lack of physical and mental readiness on the part of the child poses a major risk. Children often underestimate or fail to recognize dangerous situations. • Your child must already be able to ride a bicycle. •...
  • Page 31 Danger of accidents The brake system fails in the event of overheating. If the foot brake lever is not released, the brake linings drag continuously. • Ensure that your child raises his or her foot from the foot brake lever if he or she does not want to brake. Danger of accidents The suspension components will become damaged or destroyed if overloaded.

  • Page 32: Running In The Engine

    When off road, it is recommended that you are accompanied by another person on another vehicle so that you can help each other. Initially, let your child ride to another person who can help your child stop and turn. • Erect obstacles for your child to navigate around to accustom your child to handling the vehicle.
  • Page 33 • During the first 5 operating hours < 100 % Avoid fully opening the throttle! If any engine trouble should occur during the engine break-in period, immediately have a Apollo dealer check the vehicle. During the running-in phase, do not exceed the specified engine performance.

  • Page 34: Riding Instructions

    Do not operate the vehicle if you find any problem. If a problem cannot be corrected by the procedures provided in this manual, have the vehicle inspected by a APOLLO dealer. Before using this vehicle, check the following points: Fuel •...

  • Page 35: Riding

    Do not change into a low gear at high engine speed. If you hear unusual noises while riding, stop immediately, switch off the engine and contact an authorized Apollo workshop. First gear is used for starting off and for steep inclines.

  • Page 36: Braking

    6.4 Braking Danger of accidents  Excessively forceful application of the brakes blocks the wheels. • Explain to your child that he or she must adapt the braking to the traffic situation and the road conditions. Danger of accidents   A spongy pressure point on the front or rear brake reduces braking efficiency. Check the brake system and do not allow your child to continue riding until the problem is eliminated.

  • Page 37: Transport

    6.6 Transport Note : Danger of damage The parked vehicle can roll away or fall over. • Park the vehicle on a firm and level surface. NOTE : Fire hazard   Hot vehicle components pose a fire hazard and explosion risk. •...

  • Page 38: Maintenance

    How-ever, additional tools such as a torque wrench may be necessary to perform certain maintenance work correctly. NOTE : If you do not have the tools or experience required for a particular job, have a Apollo dealer perform it for you.
  • Page 39 7.3 Periodic maintenance and adjustment ÉLÉMENTS CONTROLS OR MAINTENANCE 1 MONTH 3 MONTHS 6 MONTHS 12 MONTHS TO BE CARRIED OUT ONCE EVERY 20 EVERY 40 EVERY 80 AFTER 10 HOURS HOURS HOURS HOURS Spark plug • Check condition.  ...
  • Page 40    Final check: • Check the vehicle for safe operation and take a test ride. • Service the fork and the shock absorber Make the service entry in the Apollo dealer and in the Service and Warranty Booklet.

  • Page 41: Suspensions

    • For optimal motorcycle riding characteristics and to avoid damage to forks, shock absorbers, swingarm and frame, the basic settings of the suspension components must match the rider’s weight. • As delivered, Apollo are adjusted for an average rider’s weight (with full protective clothing). Guideline Standard rider weight >...

  • Page 42: Cleaning The Dust Sleeves Of The Telescopic Fork

    Basic suspension setup for the weight of the driver To achieve maximum handling performance and to prevent the fork, shock absorber, swing arm and frame from being damaged, the basic setup of the suspension components must be suitable for your child’s weight.

  • Page 43: How To Change The Handlebar Position

    8.4 How to change the handlebar position For this purpose, remove screws 1 of the handlebar clamps. Mount handlebar and handlebar clamps, and tighten screws 1 to 29 Nm. The gap between the handlebar support and handlebar clamps should be the same size in the front and in the rear. The screws must be secured with a thread locker (Loctite).

  • Page 44: Brake System

    Danger of accidents  Worn-out brake discs reduce the braking effect. • Make sure that worn-out brake discs are replaced immediately. (Your authorized Apollo workshop will be glad to help.) • Check the thickness of the front and rear brake discs at multiple points on each brake disc to ensure it is at least thickness A.

  • Page 45: Adding Front And Rear Brake Fluid

    Old brake fluid reduces the braking effect. • Make sure that brake fluid for the front and rear brake is changed in accordance with the service schedule. (Your authorized Apollo workshop will be glad to help.) Preparatory work Check the front and rear brake linings. ( .47)
  • Page 46 Environmental hazard  Hazardous substances cause environmental damage. • Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in com- pliance with the applicable regulations Never use DOT 5 brake fluid. It is silicone-based and purple in color. Oil seals and brake lines are not designed for DOT 5 brake fluid.

  • Page 47: Checking The Front And Rear Brake Linings

    Worn-out brake linings reduce the braking effect. • Ensure that worn-out brake linings are replaced immediately. (Your authorized Apollo workshop will be glad to help.) • Check the brake linings for minimum thickness A. Minimum thickness A ≥ 1 mm (≥ 0.04 in) If the minimum thickness is less than specified: •...
  • Page 48 • Insert the new brake linings, insert pin, and mount cotter pins. Always change the brake linings in pairs. • Operate the hand brake lever repeatedly until the brake linings are in contact with the brake disc and there is a pressure point.

  • Page 49: Wheels, Tires

    // 10. WHEELS, TIRES 10.1 Removing the front wheel Preparatory work Raise the motorcycle with a lift stand. Main work Press the brake caliper onto the brake disc by hand in order to push back the brake pistons. Make sure that you do not press the brake caliper against the spokes when pushing back the brake pistons.

  • Page 50: Removing The Rear Wheel

    10.3 Removing the rear wheel Preparatory work Surélever la moto sur un socle réglable. Raise the motorcycle with a lift stand. Main work Press the brake caliper onto the brake disc by hand in order to push back the brake piston. Make sure when pushing back the brake piston that you do not press the brake caliper against the spokes.

  • Page 51: Installing The Rear Wheel

    10.5 Checking the tire condition Only mount tires approved and/or recommended by Apollo. Other tires could have a negative effect on handling characteristics. The type, condition, and air pressure of the tires all have a major impact on the handling of the motorcy- cle.

  • Page 52: Checking The Tire Air Pressure

    DOT number. The first two digits indicate the week of manufacture and the last two digits the year of manufacture. APOLLO recommends that the tires be changed after 5 years at the latest, regardless of the actual state of wear.

  • Page 53: Service Work On The Chassis

    // 11. SERVICE WORK ON THE CHASSIS 11.1 Cleaning the dust boots of the fork legs Preparatory work Raise the motorcycle with a lift stand. Remove the fork protector. ( .54) Main work Push dust boots 1 of both fork legs downward. The dust boots remove dust and coarse dirt particles from the inside fork tubes.

  • Page 54: Installing The Fork Protector

    • Remove screws 3 on the right fork leg. • Take off the fork protector. 11.3 Installing the fork protector • Position the fork protector on the right fork leg. • Mount and tighten screws 1. Guideline Remaining screws, chassis M6 5 Nm (3,7 lbf) •...
  • Page 55 • Loosen screws 3. Take out the left fork leg. • Loosen screws 4. Take out the right fork leg. 11.5 Removing the fork legs Main Work • Position the fork legs. The second lower throat of the fork leg should conform to the upper edge of the upper triple crown.

  • Page 56: Removing The Lower Triple Clamp

    11.6 Removing the lower triple clamp Préparatifs • Raise the motorcycle with a lift stand. • Remove the front wheel. ( .49) • Remove the fork legs.( .55) • Remove the start number plate. ( .60) • Dismount the front fender. ( .60) Cover the components to protect them against damage.
  • Page 57 • Position the upper triple clamp with the handlebar. • Mount nut 1, but do not tighten it yet. • Position the fork legs. The second milled groove in the fork leg must be flush with the upper edge of the upper triple clamp. •...

  • Page 58: Checking Play Of Steering Head Bearing

    • Correct incorrect steering head bearing play immediately. (Your authorized Apollo workshop will be glad to help.) If the bike is ridden with play in the steering head bearing, the bearing and the bearing seats in the frame can become dam-aged over time.

  • Page 59: Adjusting The Steering Head Bearing Play

    11.9 Adjusting the steering head bearing play Preparatory work • Raise the motorcycle with a lift stand. Main work • Pull fuel tank breather 1 out of the steering stem. • Loosen screws 2. • Loosen nut 3. • Using a plastic mallet, tap lightly on the upper triple fork to remove any tensions.

  • Page 60: Removing The Start Number Plate

    11.11 Removing the start number plate • Remove screw 1. • Unhook the start number plate from the brake line and remove it. 11.12 Installing the start number plate •Attach the start number plate to the brake line. • Position the start number plate. •...

  • Page 61: Installing The Front Fender

    11.14 Installing the front fender • Position the fender with drill holes 1 in the holding lugs on the start number plate. • Position the front fender. • Mount and tighten screws 2. Guideline Screw, fender M6 6 Nm (4,4 lbf ft) 11.15 Removing the shock absorber Preparatory work Raise the motorcycle with a lift stand.

  • Page 62: Removing The Seat

    Guideline Screw, top shock absorber M10 45 Nm (33,2 lbf ft) • Mount nut 5 and tighten fitting. Guideline Screw, bottom shock absorber M10 45 Nm (33,2 lbf ft) • Install the rear wheel. ( .51) Finishing work • Remove the motorcycle from the lift stand. 11.17 Removing the seat •...

  • Page 63: Removing The Air Filter

    11.19 Removing the air filter Engine damages Unfiltered intake air has a negative effect on the service life of the engine. Dust and dirt will enter the engine without an air filter. • Never start to use the vehicle without an air filter. •...

  • Page 64: Checking And Cleaning The Chain For Dirt

    11.23 Checking and cleaning the chain for dirt • Check the chain for coarse dirt accumulation. • Clean If the chain is very dirty. Danger of accidents Oil or grease on the tires reduces the road grip. • Remove the lubricant from the tires using a suitable cleaning agent. Danger of accidents Oil or grease on the brake discs reduces the braking effect.

  • Page 65: Adjusting The Chain Tension

    Chain tension 15...25mm (0,6..0,9 in) If the chain tension does not meet the specification: • Adjust the chain tension. ( .65) 11.25 Adjusting the chain tension Danger of accidents Incorrect chain tension damages components and results in accidents. If the chain is tensioned too much, the chain, engine sprocket, rear sprocket, transmission and rear wheel bearings wear more quickly.

  • Page 66: Checking The Frame

    • Check the frame for cracks and deformation. If the frame exhibits cracks or deformation due to a mechanical impact: • Change the frame. Always replace a frame that has been damaged due to a mechanical impact. Repair of the frame is not authorized by Apollo.

  • Page 67: Checking The Swingarm

    If the swingarm shows signs of damage, cracking, or deformation: • Change the swingarm. Always change a damaged swingarm. Repair of the swingarm is not authorized by Apollo. 11.29 Checking the throttle cable routing Danger of accidents The throttle cable may slip out of the guide if routed incorrectly.

  • Page 68: Engine

    // 12. ENGINE 12.1 Checking the play of the throttle cable • Check the throttle grip for smooth operation. • Move the handlebar to the straight-ahead position. • Move the throttle grip back-wards and forwards to ascer- tain play in the throttle cable. Play in gas throttle cable 3…...

  • Page 69: Carburetor - Idle

    12.3 Carburetor – idle The idle setting of the carburetor has a big influence on the starting behavior, stable idling and the response to throttle opening. That means that an engine with a correctly set idle speed is easier to start than if the idle is set wrongly. The carburetor and its components are subject to increased wear caused by engine vibration.

  • Page 70: Checking The Engine Oil Level

    If the speed rise is too high, reduce the idle speed to a normal level and repeat the preceding steps. If the procedure described here does not lead to satisfactory results, the cause may be a wrongly dimensioned idling jet. If you can turn the idle adjusting screw to the end without any change of engine speed, you have to install a smaller idling jet.
  • Page 71 Preparatory work • Park the motorcycle on a level surface. Main work • Place a suitable container under the engine. • Remove oil drain plug 1 with the magnet and seal ring. • Mount and tighten oil drain plug 1 with the magnet. Guideline Oil drain plug with magnet M8 20 Nm (14,8 lbf ft) •...

  • Page 72: Adding Engine Oil

    12.7 Adding engine oil Too little engine oil or poor-quality engine oil results in premature wear of the engine. • Remove oil filler plug 1 with the O-ring from the clutch cover. • Add the same engine oil used when the last oil change was carried out.

  • Page 73: Electrical System

    // 13. ELECTRICAL SYSTEM 13.1 Removing the battery Risk of injur Batteries contain harmful substances • Keep batteries out of the reach of children. • Keep sparks and open flames away from the batteries. • Only charge batteries in well-ventilated rooms. •...

  • Page 74: Cleaning, Care

    // 14. CLEANING, CARE 14.1 Cleaning the motorcycle Material damage Components become damaged or destroyed if a pressure cleaner is used incorrectly. The high pressure forces water into the electrical components, connectors, throttle cables, and bea- rings, etc. Pressure which is too high causes malfunctions and destroys components. •...

  • Page 75: Storage

    Avoid running the engine for a short time only. Since the engine cannot warm up properly, the water va- por produced during combustion condenses and causes valves and the exhaust system to rust. Apollo recommends jacking up the motorcycle. • Raise the motorcycle with a lift stand.
  • Page 76 • Remove the battery. ( .73) • Retirer la moto du socle réglable. • Perform inspection and maintenance operations before each start-up • Perform a road test.
  • Page 77 // 16. DIAGNOSTIC Faults Possible cause Action Engine turns but does not start Spark plug oily or wet Clean and dry the spark plug, or change it if necessary. Short circuit cable in wiring harness Check the wiring harness. (visual check) frayed, kill switch defective, fault in Check the electrical system: ignition system...

  • Page 78: Technical Data

    // 17. TECHNICAL DATA 17.1 ENGINE 17.1.1 MINI 55 Type 4-stroke single cylinder gasoline engine Design 1-cylinder 4-stroke engine Displacement 56.8ml Stroke 37.4mm Bore 44mm Compression 8.5:1 Valve diameter, intake 16mm Valve diameter, exhaust 16mm Admission à : 20 °C (68 °F) Intake at: 20 °C (68 °F) 0.02-0.04mm Exhaust at: 20 °C (68 °F)

  • Page 79: Chassis

    17.5 Chassis Frame Steel central tubular frame Fork VOLT SUSPENSION V-ONE 25 Front suspension travel 110mm Shock absorber VOLT SUSPENSION V-ONE 190mm Rear suspension travel 20mm Brake system Disc brakes, floating brake calipers Diameter of brake discs Front 170 mm Rear 170 mm Brake discs - wear limit...
  • Page 80 NOTES :...
