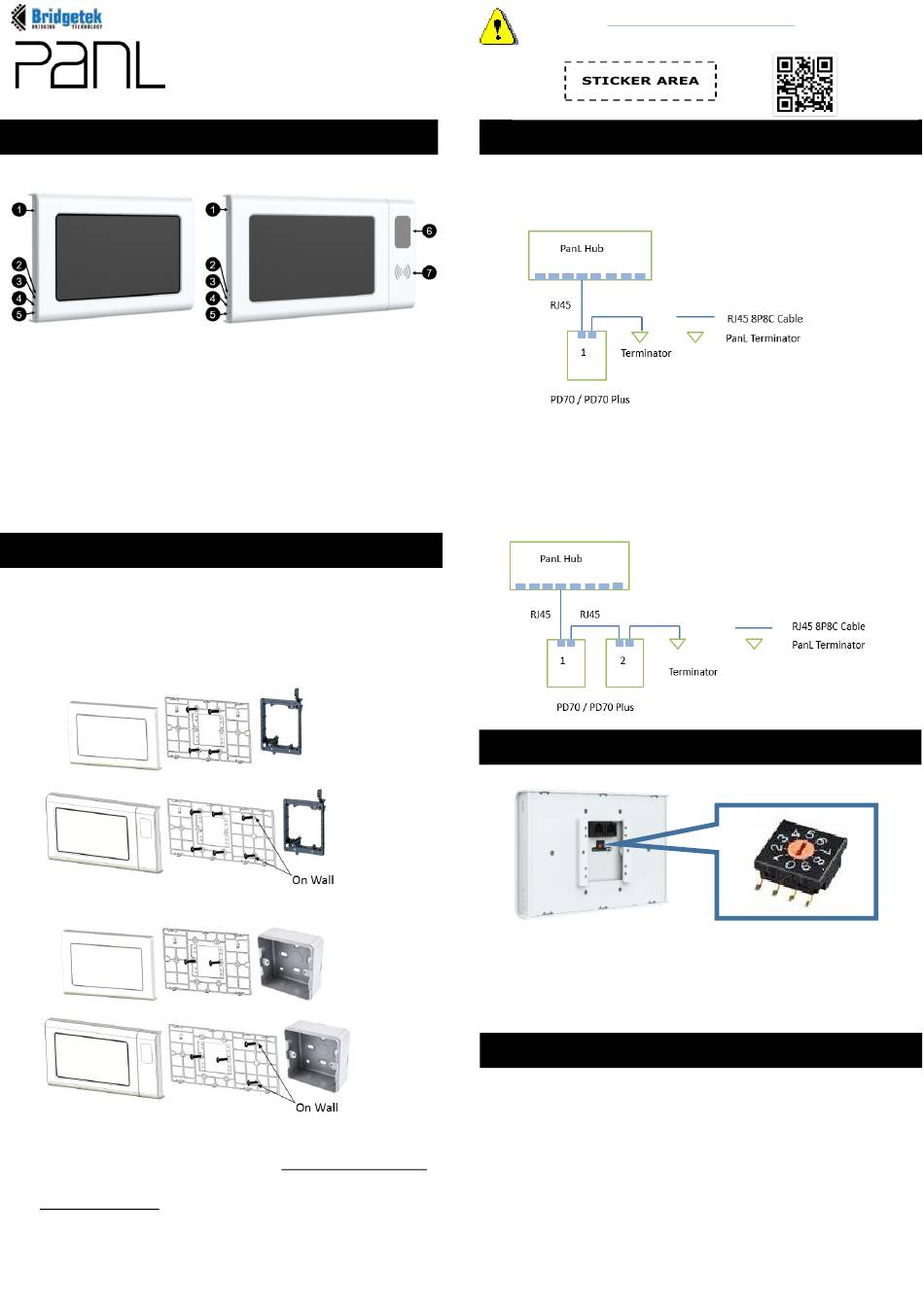

Bridgetek PANL PD70 Quick Start Manual

PD70/PD70PLUS
Quick Start Guide
Product Features
PD70
1 Buzzer
2 Ambient Light Sensor - Automatic screen brightness control
3 Reset Button
4 Reserved for factory use
5 Status indicator - Refer to the LED Status Indicator section for
more details
6 System Indicator - Refer to application user guide for more
details
7 RFID Reader - Refer to RFID Reader section for more details
Wall Mounting
1. Mount the PD70/PD70PLUS back cover either on an Arlington LV2*
bracket (Four pieces of 3.5mm x 16 mm, min. length 12mm self-
tapping screws are provided) or on a standard electrical junction box
(86mm x 86mm x 40mm screws; min length 12mm; max. length
20mm- not provided). Two additional on wall screws are provided to
secure PD70PLUS.
2. If connecting multiple PD70/PD70PLUS displays to a single PanL Hub
port, set the ID switch. Refer to the section - ID Switch Configuration
for details.
3. Connect RJ45 8P8C cable and add a terminator. Refer to the section
Display Installation for details.
4. Install the front panel on back cover and secure the panel.
*Arlington LV2 low voltage mounting bracket and
box are not part of the package.
PD70PLUS
Arlington LV2
PD70
PD70PLUS
Electrical
Junction Box
PD70
PD70PLUS
electrical junction
Please visit http://panlshop.com/warranty
code for warranty registration with the UUID and Product Key
below:
For a single PD70/70PLUS connection to a PanL Hub port, the maximum
length of the RJ45 8P8C cable is 100 meters. Connect the terminator provided
in PanL Hub box to the unconnected PD70/70PLUS port.
For multiple PD70/PD70PLUS connection to a single PanL Hub port, the 1st
connection to PanL Hub and the subsequent connections in between the
PD70/PD70PLUS displays must not exceed 50 meters in cable length. The
total combined cable lengths must not exceed 100 meters. Connect the
terminator provided in PanL
PD70/PD70PLUS port. A maximum of two PD70/PD70PLUS can be connected
to a single hub port as shown below:
For multiple PD70/PD70PLUS connections to a single PanL Hub port, the ID
switch at the back of the displays must be configured to be unique. Using a
Philip head screw driver, set a unique number for each display between 0-7
(do not use 8- 9). For example, if connecting 2 PD70 / PD70PLUS to a PanL
Hub port, you may set it as 0 and 1. Displays connected to different PanL
Hub ports can share the same unique number.
The built in 13.56MHz RFID reader supports ISO/IEC 14443 A/MIFARE and
NTAG. The internal transmitter is able to drive a reader antenna designed to
communicate with ISO/IEC 14443 A/MIFARE cards. The receiver module
provides a robust and efficient implementation for demodulating and
decoding signals from ISO/IEC 14443 A/MIFARE compatible cards and
transponders. The digital module manages the complete ISO/IEC 14443
framing and error detection (parity and CRC) functionality.
or scan the QR
Display Installation
Hub box to the last unconnected
ID Switch Configuration
RFID Reader (PD70PLUS only)
