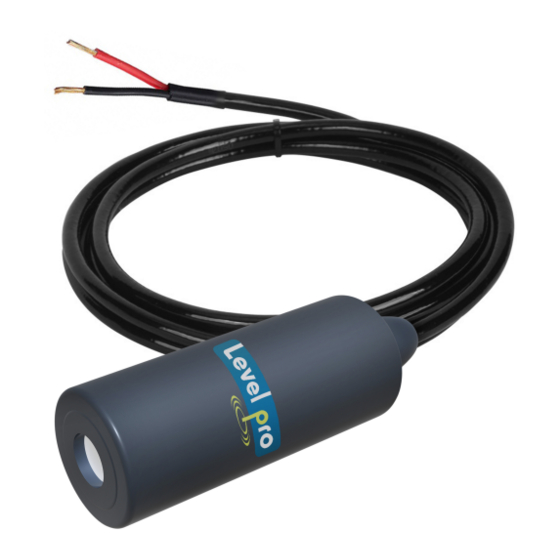

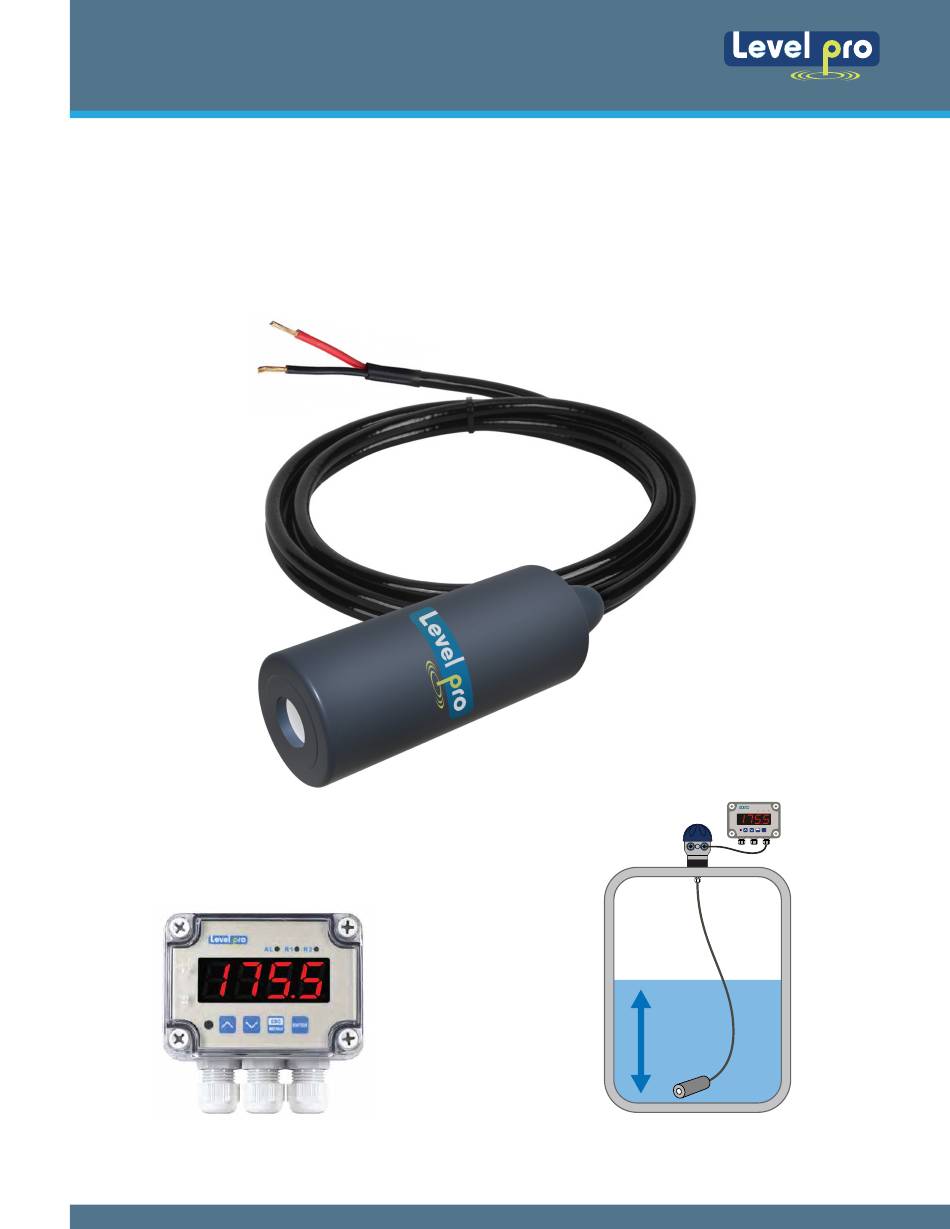

- Page 1 Levelpro-Sensors Manual Continuous Submersible Level Transmitter INSTALLATION MANUAL 100 Series Submersible Pressure Sensors ENTER MENU TVL Series Level Process Display Controller Chemical Resistant Industrial Level Sensors + Displays...
-
Page 2: General Information
The Large Diameter flush diaphragm is non-clogging and damage resistant to floating solids. The 100 Series transmitter is equipped with a high tensile strength FEP (Teflon) shielded and vented cable. and contains an internal non-wetted weight and utilizes Kalrez O-ring seals The Ventilation tube in the cable automatically compensates for changes in atmospheric pressure above the tank. -
Page 3: Product Identification
Levelpro-Sensors Manual Continuous Submersible Level Transmitter Permissible media are liquids (no solids or frozen media), specified in the data sheet. In addition it has to be ensured, that this medium is compatible with the any wetted parts of the level sensor. The technical data listed in the current data sheet are engaging and must be complied with. - Page 4 3.4 Installation Procedure - Sensors and Junction Box 100 Series Sensor Lid is Tethered 1/4 Turn Do Not Bend Capillary Reference Tube 1. Feed 100 Series Wire Black in Junction Box Take Junction Box Open Lid Open Lid 2. Tighten Cord Grip 2" NPT Connection...
-
Page 5: Wiring Diagram
MENU TVL Series Wiring LP 100 Level Process Display | Controller Junction Box 100 Series Level Sensors Wiring to the Levelpro Series Tank Level Controller The default for the Input is 4 mA and this will not change. Typically will be the tank is empty (example. 000.0 Gallons, 000.0 inches, 000.0 feet etc.). -
Page 6: Connection Diagram
Levelpro-Sensors Manual Continuous Submersible Level Transmitter 100 Series with Sentinel LT Series 4.1 Wiring Diagram 24VDC (Red) Supply + Supply - Supply + Green (White) 2-wire-system (current) 24VDC Supply - Black Supply + 2-Wire-System | 4-20mA Supply - Inferface HART... -
Page 7: Service & Repair
Levelpro-Sensors Manual Continuous Submersible Level Transmitter 5. SERVICE | REPAIR 5.1 Return Before every return of your device, whether for recalibration, decalcification, modifications or repair, it has to be cleaned carefully. You have to enclose a notice of return with detailed defect description when sending the device. If your device came in contact with harmful substances, a declaration of decontamination is additionally required. -
Page 8: Getting Started
Levelpro-Sensors Manual Continuous Submersible Level Transmitter 8. GETTING STARTED Pressure transmitters are designed to be completely submersed within the application fluid. The transmitters can either rest along the bottom of the tank or be suspended at any desired level within the tank. Please note that the physical location of the level transmitter will indicate the lowest level of measurement within the tank. -
Page 9: Installation
Levelpro-Sensors Manual Continuous Submersible Level Transmitter Levelpro sensors are provided in distance measurement ranges i.e. 0-14 ft, 0-20 ft, 0-33 ft etc. To calculate the maximum range or the liquid that a particular sensor will measure, use the following formula: Maximum Liquid Height (feet) = Maximum Liquid Height of Liquid / SG Example : 0-14 ft transmitter installed in a liquid with a maximum height of 12 feet and a SG=0.9 will have a Sensor Height with a... -
Page 10: Maintenance
Be sure to remove the sensor from the classified area when preforming this test. Multi - Meter 1000 24VDC POWER SUPPLY should read 4mA with the transmitter out of liquid. 2000 2000 24.0 2000k 200k 2000 NPN PNP 100 SERIES SENSORS... - Page 11 Levelpro-Sensors Manual Continuous Submersible Level Transmitter 11. WARRANTY, RETURNS & LIMITATIONS Icon Process Controls warrants to the original purchaser of its products that such products will be free from defects in materials and workmanship under normal use and service in accordance with instructions furnished by Icon Process Controls for a period of one years from the date of sale of such products.
- Page 12 Levelpro-Sensors Manual Continuous Submersible Level Transmitter...
