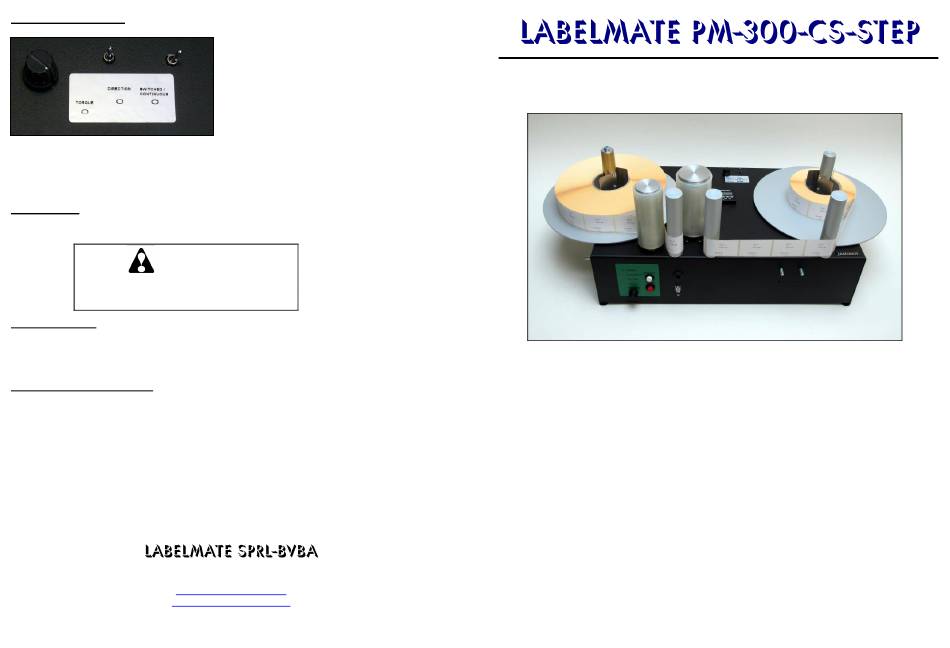

Labelmate PM-300-CS-STEP Original User Manual

REWIND CONTROLS:
APPLY EXCESSIVE TORQUE. If the rewind unit gets noisy, it is most probably due to
excessive rewind torque.
It is recommended to tension the web before pressing the START button.
WARRANTY:
See attached Warranty information.
WARNING
This Product is for indoor use only.
Not for use in wet locations.
MAINTENANCE:
Your PM-300-CS-STEP requires no preventive maintenance but the rollers and capstan
should be cleaned regularly.
IMPORTANT INFORMATION:
•
This product is a reel-to reel mechanism (with optional counter). It is only to be used to
process (rewind/unwind) labels to of the recommended dimensions and weight in an
indoor, dry environment.
•
The machine has to be unplugged before any manipulation.
•
The machine is to be used on a flat surface.
•
Do not leave the power cable in a passageway.
•
The ambient light of the working area needs to be sufficient to avoid any risk.
•
The PM-300-CS-STEP can be used in ambient temperatures of +2°C to 40°C.
•
Connection of the machine to the power source must respect local and European
legislations.
290, Chaussée de Ruisbroek, 1620 Drogenbos, BELGIUM
TEL: +32 2.375.69.60 – FAX: +32 2.375.38.96
brussels@labelmate.com
www.labelmateeurope.com
© LABELMATE – User_PM-300-CS-STEP-CE – 05/17 – Original user manual.
The torque and direction of the rewind shaft
are adjustable by the controls on top of the
machine. You can change the direction of the
rewind shaft for wind-in or wind-out functions.
The rewind tension is adjustable with the
torque potentiometer. The right switch gives
the choice between having the rewind motor
active continuously or switched. DO NOT
!
Reel-to-Reel "Constant Speed" System
PM-300-CS-STEP with optional PC-3 dual-function counter
and Encoder.
The PM-300-CS-STEP has a nominal maximum speed of 40cm/sec. The speed
is adjustable on the front panel. The "1 by 1" mode is activated by a switch on
the rear panel.
Optional counters can be fit to the system:
▪
The PC-2 is a pre-set label counter that allows stopping the machine after a
pre-set number of labels.
▪
The PC-3 has the same counter and pre-set possibilities as the PC-2 but
can also be programmed to indicate the speed at which the web is moving.
A separate sheet describes the programming details for this counter.
Optional encoder: Resolution 2048 DPI.
● KEEP MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE ●
