Summary of Contents for Bullit Bluroc 125

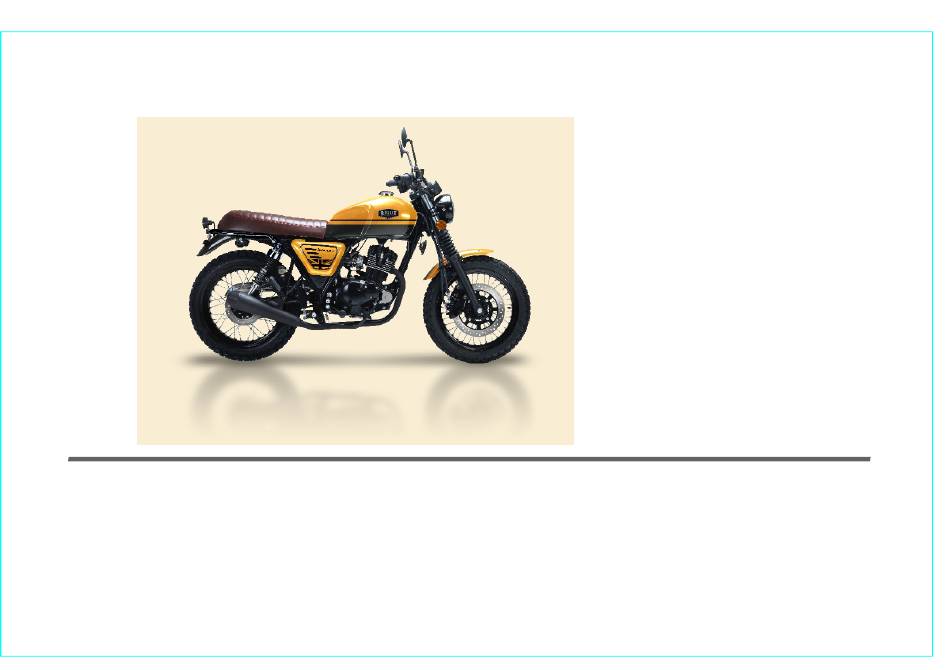

  • Page 1 Owner’s Manual...
  • Page 2 Preface We highly appreciate you for choosing our model fuel injection motorcycle, it will offer Bluroc 125 you pleasant and safe driving. Driving motorcycle is one of the most exciting sport. For safety reason, you should read this o- wner' manual carefully and following these instructions before you drive.
  • Page 3 Important Notice 1.Driver and passenger This motorcycle is designed only for one driver and one passenger. 2.Road condition for driving This motorcycle is only suitable for driving on road. Please read this manual carefully. The run-in time of engine is necessary it will make mot- orcycle more durable and stable Please take notice of following words: Warning...
  • Page 4: Special Notice

    Special Notice Warning: The motorcycle must equip the right fuse for driving, it is not allowed to use other fuse or without fuse. Otherwise it may cause damage to the vehicle or fire. Fuse position: Beside battery. Fuse specification: The main cable fuse is 15A The fuse failure is normally by vehicle circuit problem, before change fuse, should check the situation of vehicle.
  • Page 5: Table Of Contents

    Context Preface Important Notice Special Notice … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … …1 1 Information of safe Driving in slope...
  • Page 6: Safe Driving

    Safety information Safety Regulation: Clothes: 1.Before driving must check vehicle, in case of accident 1.For safety reason, driver must wear helmet, glass and or damage parts. boot,gloves and racing suit.Passenger should also wear 2.Driver must has legal driving license, and not allowed helmet.
  • Page 7: Motorcycle Series Number

    Motorcycle series number Vehicle Identifi cation Number ( VIN ) and engine number ① is for motorcycle registration.Please record your number for future use. ② ① VIN number grave on the vehicle handle bar right side ② Engine number grave on the engine crankcase left side Product information label on the vehicle handle bar right ③...
  • Page 8: Part Description

    Parts description ③ ④ ② ⑤ ⑥ ⑦ ⑧ ① ⑨ ⑩ (1)Left mirror (3)Left side switch (2)Clutch lever (4)Ignition switch (5)Speedometer (6)Right side switch (7)Right mirror (8)Front brake lever (9)Throttle grip (10)Fuel tank (11)Oil cover (12)Rear brake pedal (13)Front footrest (14)Rear footrest (15)Rear brake (16)Front brake...
  • Page 9: Speedometer

    Speedometer When the key on, the fuel inje- ction indicator on. Oil pump will work 3 seconds, then engine will start. When the engine start, the indicator will be off . If indica t or still on, it means has When the left turning light on, the indicator will be flash.When the some problem.In the same way, during normal driving, the right...
  • Page 10: Operation Of Parts

    Operation of parts “ ” position: In case of thieves, when you parking, ple- ● ase use this function. Turn the handle bar to left, press key “ ” This vehicle has two keys, it's u- down and release, then turn the key to position, it sed to start motorcycle and open will lock handlebar.
  • Page 11: Right Grip

    ④ Turning light switch Warning: “ ” Turn the switch to left the left side turning light will The engine off switch only use for emergency case. Wh- “ ” be flash Turn the switch to itch to right the right side tu- en the vehicle still slide, please don't stop engine, othe- h Dismiss the turning signal, please rning light will be flash Di...
  • Page 12: Fuel Tank

    ●Fuel tank ●Shift gear pedal When the speedometer’s low fuel lever warning light is on , This vehicle is international gear please add gasoline immediately. First open the anti-dusty engine. Neutral gear between first ① , cover as then enter the key and turn as clockwise, pull gear and second gear.
  • Page 13: Rear Brake Pedal

    ● Rear brake pedal ● Rear shock absorber Press down rear brake pedal (as This vehicle shock absorber main picture). When the brake pedal component including spring and working, the taillight will be on. liquid damp, this shock absorber ● Side stand adjustable according different Side stand is on the left side, when park motorcycle, please...
  • Page 14: Information Of Gasoline And Oil

    Engine running in Gasoline and oil information Gasoline Top speed Please use lead-free gasoline. Please use the octane ra- All the new motorcycle, during the first 1500 km driving, not to make engine run too high speed or accelerate too much. ting above 93 .
  • Page 15: Checking Before Driving

    Before driving, please let oil lubricate suff iciently Checking item Points Before driving, please keep engine in idle situation for a Stable while, in order to have enough lubrication of engine. 2)Turning flexible Handle bar 3)No loosing First maintenance The fir st 1,000 km maintenance is the most important w- Brake level and pedal has right feeling Brake...
  • Page 16: Driving Motorcycle

    Driving motorcycle Using gear shift Engine start Gear shift system will make engine driving smoothly. Dr- “ ” Please turn the key to position, and the engine iver should change gear according to the driving speed. switch on right handle bar on “...
  • Page 17: Abs Maintain Instruction

    ABS maintain instruction Caution: Turn on the bike every time, the ABS instruction light on the The new driver always want to use rear brake,it will make brake abased very fast and brake distance too speedometer is on, this is normal. When the speed reach 5 long.
  • Page 18: Checking And Maintenance

    Checking and maintenance The follow chart show the kilometers for maintenance. When reach the kilometer, it must follow the instruction to check and make maintenance. Turning system, engine, electronic system, side stand and wheels are key important parts. It is necessary to have a professional technician to handle.
  • Page 19 Maintenance Odometer ( KM ( Remark 2 period Everyday Maintenance 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 11000 12000 13000 14000 15000 check before content riding : 、 、 Every1000km I L A Driving chain( Remark 3 Friction disc 、...
  • Page 20: Oil Position And Change

    ● ② Oil level and change oil (1). Remove oil filter cap , take off the oil filter. (2). Before start engine, it need to check Clear up the oil filter cap and the engine surface. ③ the oil level.When check the oil level, (3).
  • Page 21 ● Spark plug This vehicle is steel cable for throttle. speed-up cable 0.6-0.7mm Please follow the steps to adj- ust throttle grip travel Using small metal brush or spark plug clea- distance. ner to clean carbon on the spark plug in the Move away the throttle cable first 1000 km...
  • Page 22: Throttle Valve

    ● Driving chain The life of driving chain depending on your maintenance. Not properly maintenance will cause its life shorter. Driving chain adjustment: Every drive 1000 km, please adjust If clutch cable lever adjust to maximum driving chain to make the degree of and still not correct, please adjust aga- chain droop as10-20mm.
  • Page 23: Brake

    same line. To help you doing this adjustment, there's basic ● Brake scale on the swing arm and every chain adjustment, they c- This vehicle front and rear brake are all disc brake. Correct an match and as reference from beginning to end. After m- operation for brake is very important of safe driving.
  • Page 24: Tire

    Brake oil level 3 Check brake pad condition. When the brake pad already have been abrased, the bra- Warning: ke cylinder oil will going If brake system or brake pad need to change, please go to the oil pipe automati- to professional dealer.
  • Page 25: Seat

    ⑤ ⑥ then take off Warning: air filter . Please do not try to repair any damage tire. It may aff ect Put the filter in- the wheel balance and stable. Not correct air pressure side clean gear oil ③ will damage tire surface quickly.
  • Page 26: Catalyst

    ● Catalyst Connecting fuel pipes, please In order to reach homologation standard, this vehicle muff- follow the drawing. ●Parts lubrication ler has catalyst. Proper lubrication will keep yo- Catalyst contains rare metal, it will clean the harmful exha- ur motorcycle every single part usting air which include Co, oxycarbide and oxynitride.
  • Page 27: Battery

    ● Battery First time using, please follow the steps: Battery under the seat.This vehicle battery is electrolyte Take off the seal paper on the top of battery, and add spe- cial electrolyte into battery and close the cover to wait for aintain-free type.
  • Page 28: Fuse

    ● If both side (left and right side) not bubble come out, ple- Fuse change ase pat slightly to the battery bottom 2 or 3 times, and ch- The fuse box under the seat of eck if any bubble come out again. driver, on the side of battery.
  • Page 29: Headlight

    ③ ● Front headlight adjustment take out the headlight bulb . Chan- Front headlight beam can be adjusted in ge to new bulb with same technical vertical direction. The beam adjust screw specification. ① locate in the both side of front headlight. Assemble back light.
  • Page 30: Parking Information

    are all LED light, if need to Front, rear turning light 4. Take off spark plug and fi ll in 15-20 cm oil into cylin- change, please con tact your dealer. der, then start engine several times. It make oil spray to Store information every part of cylinder, then mount spark plug again.
  • Page 31: Specification

    Specification rame Size&Weight ………… … ………… …………… … … … … … … … … … … … … Front suspension Hydraulic shock Length Upper license plate 2040mm …… ………………… … Lower license plate 2090mm Rear shock absorber Hydraulic monoshock …...
  • Page 32: Electronic Circuit

    Circuit diagram Right hand switch Gr/B alarming horn burglar alarm ignition lock Gr/B Gr/B GR/B G/Y ignition coil magneto fuel indicator switch of high/ low beam light BR W Bl/W turning switch electronic BL W tachometer Relay overtake switch у 1000r/min headlamp Pu/B main...
