Commercial Pro Land Management System

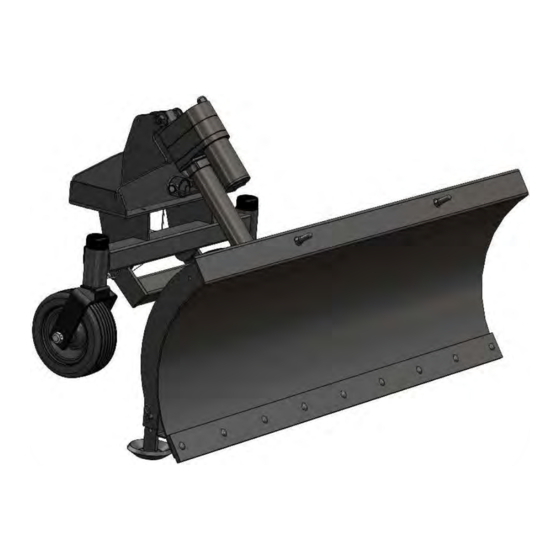

50" Snow Plow Attachment
OWNER'S MANUAL
Safety Set Up Maintenance Operation Parts Warranty
For use with model VT389H Versa Walk
Behind Tractor (sold separately).
Model #: VSP50
Plow is also compatible with these other
Swisher Universal Plow Mount Kits:
2646 (ATV)
20096 (UTV)
10260 (ATV/UTV Front Hitch Receiver)
SWISHER ACQUISITION INC.
1602 Corporate Drive, Warrensburg Missouri 64093
Phone: 660-747-8183 FAX: 660-747-8650
Toll Free: 1-800-222-8183
Manufacturing quality lawn care equipment since 1945,
Celebrating over 75 years of innovation
6/25/2020
STARTING SERIAL # L120-001001
22066 REV 20-001
Advertisement
Table of Contents
Related Manuals for Swisher Versa Commercial Pro VSP50
Summary of Contents for Swisher Versa Commercial Pro VSP50
- Page 1 Safety Set Up Maintenance Operation Parts Warranty For use with model VT389H Versa Walk Behind Tractor (sold separately). Model #: VSP50 Plow is also compatible with these other Swisher Universal Plow Mount Kits: 2646 (ATV) 20096 (UTV) 10260 (ATV/UTV Front Hitch Receiver) SWISHER ACQUISITION INC.
-
Page 2: Table Of Contents
PLOW HEIGHT CONTROLS TILT SPRING TENSIONING PLOW TILT ADJUSTMENT PLOW ANGLE ADJUSTMENT SKID SHOE ADJUSTMENT PLOW OPERATING TIPS AND INSTRUCTIONS PARTS IDENTIFICATION 14 - 15 PLOW PLOW MOUNT PRODUCT IDENTIFICATION CUSTOMER NOTES TORQUE REFERENCE GUIDE LIMITED WARRANTY ACCESSORIES SWISHER HISTORY... -
Page 3: Introduction
INTRODUCTION Congratulations! Thank you for purchasing Swisher’s Versa Snow Plow Attachment! The VSP50 Snow Plow is our Versa Land Management Systems latest addition for the VT389 Versa Tractor. This manual is a valuable document. Following the instructions for use, service, maintenance, etc. can greatly increase the performance and life of your machine. -
Page 4: Safety
SAFETY PRECAUTIONS These instructions are for your safety. Read them thoroughly & carefully. This Safety Alert Symbol indicates important messages in this manual. When you see this symbol, carefully read the message that follows and be alert to the possibility of personal injury. General Use: Read all instructions in this operator’s manual and on Always make sure long hair is not left down when... - Page 5 SAFETY PRECAUTIONS These instructions are for your safety. Read them thoroughly & carefully. Operating Safely: Children: Disengage the PTO switch, set the brake, stop the Children are often attracted to power equipment. engine, remove the ignition key and disconnect the Serious accidents may occur if you fail to be on guard spark plug wires: for children in the area of the machine.
-
Page 6: Decals
SAFETY OPERATION PRODUCT INFORMATION DECALS ҥ OD99125 Decal - Swisher Logo 19976 Decal - Made in USA OD33 Decal - 5 MPH 19988 Decal - Made in Missouri OD19-A Decal – Danger Snow Blade Info... -
Page 7: Features Location
FEATURES LOCATION Fig. 7.1 Adjustable Spring Tension Pin Lock Plow Side-Angle Locking Lever Quick Attach Pin Heavy Duty Lift Actuator Premium Flat Free Tires Replaceable Plow Edge Sealed Ball Bearing Caster Adjustable Height Skid Shoes Quick Mount Receiver Tilt Block (Plow tilt angle adjustment) Plow Height Control Switch SPECIFICATIONS SPECIFICATIONS... -
Page 8: Uncrating & Assembly
UNCRATING AND ASSEMBLY Use care GENERAL RECOMMENDATIONS when • Use at least two people to uncrate & assemble the unit. Some components are heavy. uncrating. • Refer to page 18 for recommended hardware torque values. UNCRATING • Always wear gloves and safety glasses when disassembling the crate. •... -
Page 9: Connecting And Disconnect Attachment
UNCRATING AND ASSEMBLY Connecting and Disconnecting Implements Control Switch Always make sure that the tractor and attachment are both on flat ground before attempting to connect or disconnect the units. Always check that there are no children around that can be harmed when connecting or disconnecting units. -
Page 10: Customer Responsibility
CUSTOMER RESPONSIBILITIES OPERATION Operator Presence System: DANGER Refer to you owner’s manual for the VT389H tractor and be sure to check that the operator presence and interlock systems are working properly before every use. If your Tractor does not function as described, repair the problem immediately. -
Page 11: Plow Height Controls
OPERATION Adjusting the Plow Height Adjusting the Plow Tilt The control switch for the electric actuator should be The forward tilt angle of the plow can be set to 4 placed on the front hand guard (console) of the tractor different angles. -
Page 12: Plow Angle Adjustment
OPERATION Adjusting the Plow Angle The angel of the plow can be adjusted straight ahead or If using the option Tether, it should be tied to the steel in 15° degree increments to the left or to the right. loop provided on the Locking lever. The Tether should then be routed along the Right-Hand side of the tractor (opposite of the engine exhaust and can be tied to the lower handle of the console. -
Page 13: Skid Shoe Adjustment
OPERATION Adjusting The Skid Shoes Skid shoes located on both ends of the plow are adjustable and are designed to limit how close the plow edge is to the surface you are plowing. Skid shoes may be removed to plow smooth surfaces with out large cracks or gravel but it is recommended they are used to reduce wearing the plow edge and also to prevent the plow edge from damaging the surface or... -
Page 14: Parts Identification
PARTS IDENTIFICATION Item # Part # Description Item # Part # Description AS125 Cap - Round Vinyl, Black NB121 Nut - Jam Lock, 1/2-13 2-Way NB182 Nut - Nyloc 3/8-16 2323* Pivot - Weldment NB272 Washer - SAE Flat 3/8 TR150W Washer - .531 X 1 1/2 X .062 NB212 Nut - HNC, 3/8-16 2336... -
Page 15: Plow Mount
PARTS IDENTIFICATION ITEM ITEM PART # DESCRIPTION PART # DESCRIPTION NB281 Nut - Nyloc 1/2-13 22052* Plow Mount Weldment NB555 Washer - USS Flat, 1/2 ZY 19978 Switch - DPDT, 30A, On-Off-On MOM 22130 Actuator-12VDC,20:1, 6",1000#,17.7x23.7 22062* Switch Box NB131 Bolt - 1/2-13 X 3 HCC 094618 Bearing Cap... -
Page 16: Product Identification
(refer to Symbols & Decal section for reference). performance, durability and safety of this unit All parts listed herein may be ordered directly and may void the warranty. Swisher disclaims from Swisher or your nearest Swisher dealer. liability for any claims or damages, whether... -
Page 17: Customer Notes
NOTES Ҧ... -
Page 18: Torque Reference Guide
TORQUE REFERENCE GUIDE... -
Page 19: Limited Warranty
This warranty does not apply to any product of Swisher that has been subject to alteration, misuse, abuse, improper assembly or installation, shipping damage, or to normal wear of the product. -
Page 20: Accessories
Frame is super-duty steel square tubing No ground clearance issues Durable powder coat finish Used in conjunction with Swisher Plow Blades or Swisher Dump Bucket. UTV Universal Mounting Kit 10260 Attaches to atv or UTV front 2"x2" receiver hitch Heavy duty steel tubing... -
Page 21: Swisher History
Neighbors noticed his new invention and began asking him to make more. Today, over 70 years later, Swisher is still producing innovative lawn and garden and ATV/UTV equipment designed to give us all more “relaxing in the shade” time. - Page 22 VSP50 Plow System can be found on the side of the upper mounting plate for the electric actuator . All attachments parts listed herein may be ordered directly from Swisher or your nearest Swisher dealer. WHEN ORDERING PARTS, PLEASE HAVE THE FOLLOWING INFORMATION AVAILABLE: PRODUCT –...
