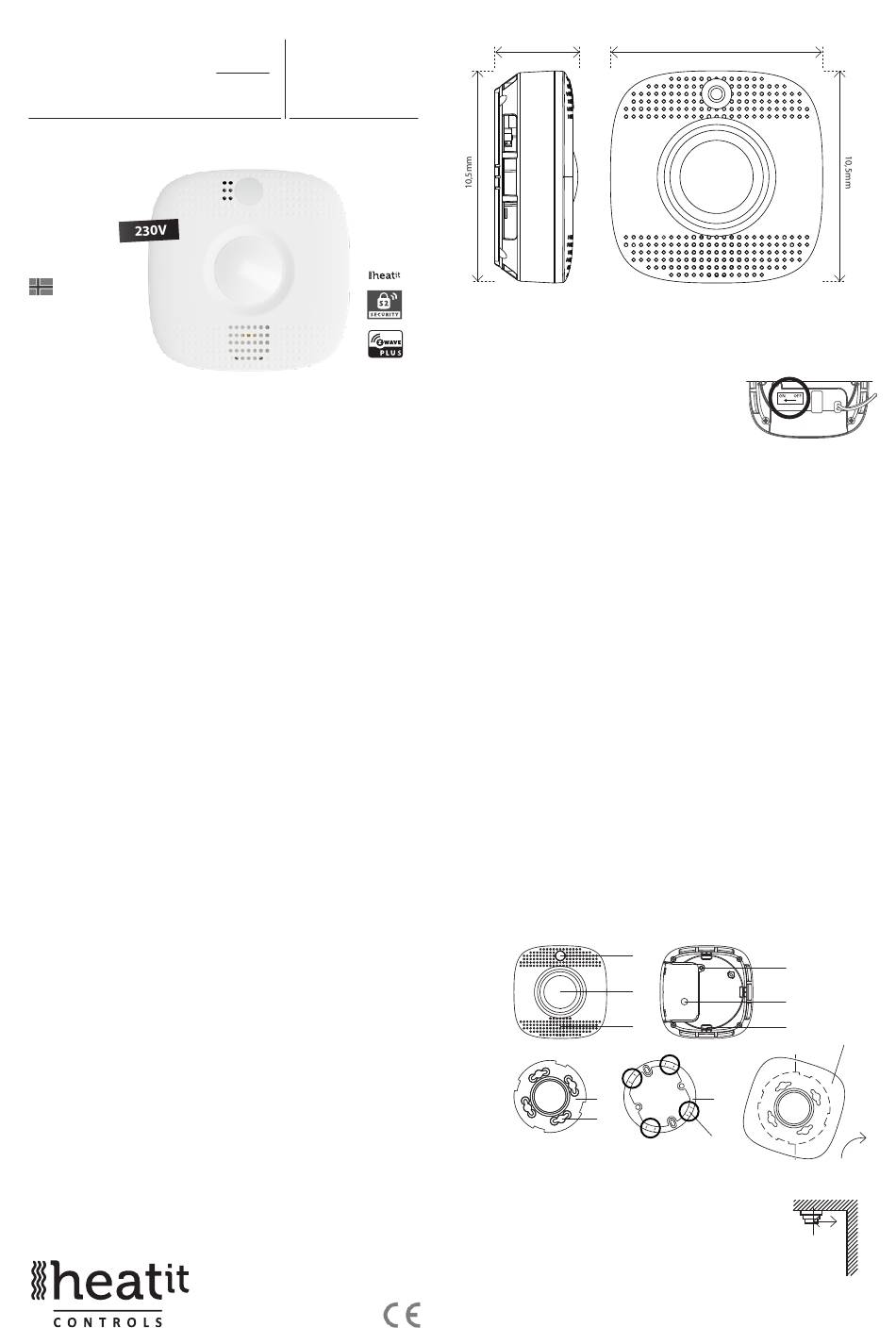

HEATIT
Z-SMOKE DETECTOR
Installers manual
Norwegian version
Download
manuals.thermo-floor.no
www.thermo-floor.no
TABLE OF CONTENTS
1.
Introduction
2.
Statement regarding products from multiple manufacturers
3.
Quick Start
4.
Installation/Mounting
5.
6.
Behavior within the Z-Wave™ network
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
1. INTRODUCTION

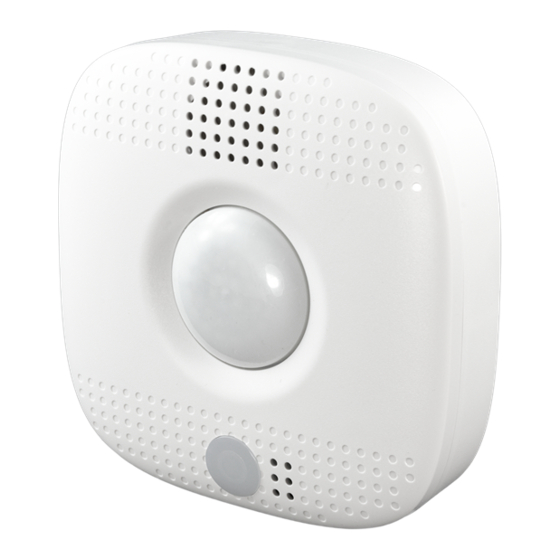

Heatit Z-Smoke Detector is a wireless smoke sensor with built-in PIR motion sensor,
temperature sensor and emergency light. Heatit Z-Smoke Detector is a wireless
operated photo-electronic smoke detector designed to interact with most Z-Wave
enabled controllers. The detector features smoke-, temperature-, and IR-detection.
When other sensors in the Z-Wave network are activated and send an alarm signal,
the smoke detector will also sound an alarm with its built-in siren to help give
warning.
2. STATEMENT REGARDING PRODUCTS FROM MULTIPLE
MANUFACTURERS
Please read this before installation
This device may be used with all devices certified with the Z-Wave Plus™ certificate
and should be compatible with such devices produced by other manufacturers.
Every primary controller is different depending on the manufacturer, their
target audience and intended use/application. Please review the functionalities
implemented by the primary controller you intend to use with our Z-Wave Plus
certified device to ensure that it provides the necessary controls to take full
advantage of our product' s capabilities.
230V
01.03.2020
Ver 2020-A
41,0mm
3. QUICK START
1.
Unscrew the connection cover.
2.
Connect the "L" phase to one of the wago connectors on the back of the
smoke detector and connect the "N" phase to the other wago connector.
3.
Switch on the switch. Illustrated to the right.
4.
The device will enter auto inclusion mode after
being powered on.
5.
Set the primary controller in add mode
(security/non-security).
6.
The Heatit Z-Smoke Detector is now included in your Z-Wave network.
4. INSTALLATION/MOUNTING
Installation must be done by a qualified electrician in accordance with the
National Building Codes. Before installation, disconnect any power to the smoke detector.
During installation of the smoke detector, power to the smoke detector must be
disconnected AT ALL TIMES!
Step 1.
Place the smoke detector at the desired mounting location and use the Range
Test function to make sure the smoke detector can be detected by the control
panel where it has been placed.
Step 2.
A mounting sheet is included in the package. The illustration size equals
the smoke detector's actual size and the perforated design allows for easy
removal after installation.
Step 3.
Position the sheet tightly against the wall/ceiling and use the four holes as a
template to drill holes and insert wall plugs in the wall/ceiling if so required.
Step 4.
Place the mounting bracket on top of the mounting sheet and screw it onto
the wall/ceiling.
NB! If used with cable channels mount the adapter with bracket mounted on
the bottom.
Step 5.
Connect Live and Neutral to the wago included in the packaging and place
the connections in grove disigned to flush mount the connections.
Step 6.
The smoke detector has four notches on its back cover. Gently align the four
notches on the smoke detector with the hooks on the mounting bracket.
Rotate clockwise to lock the hook.
Step 7.
Turn on the backup battery of device by turning the switch mounted inside
the device from OFF to ON.
Step 8.
Installation is now complete. You may now tear off the mounting sheet.
Turn on fuse to provide power for the device.
g
h
a.
LED-indicator/function button/emergency light
b. IR-lens
c.
Buzzer
d. Connection compartment fixing screw
e.
Connection compartment
f.
Hooks
g. Mounting bracket
h. Mounting holes (for the hooks on the mounting bracket)
i.
Cable channel adapter
j.
Mount by aligning notches and hooks, then rotate clockwise
10,5mm
a
d
b
e
c
f
i
Cable slots
dimensions 10x12mm
>60cm
At least 60 cm from
A
j
Lock
the wall
