ATIM Cloud Wireless ACW TH-O Series User Manual

Temperature & hygrometry
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

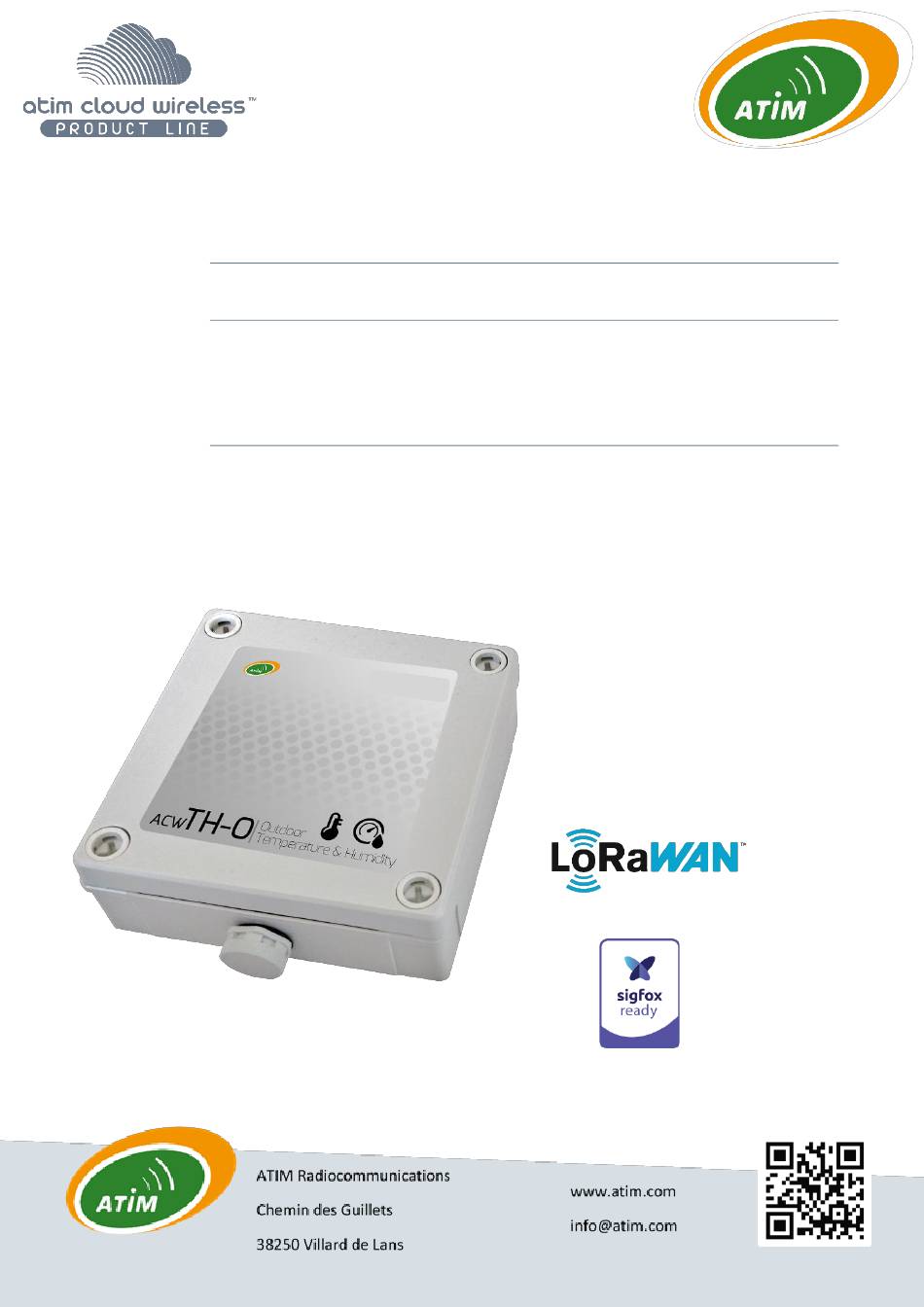

ATIM Cloud Wireless
®
Temperature & Hygrometry
TH-O
User Guide
Model concerned:
ACW/LW8-THO
ACW/SF8-THO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cloud Wireless ACW TH-O Series and is the answer not in the manual?

Questions and answers

Related Manuals for ATIM Cloud Wireless ACW TH-O Series

Summary of Contents for ATIM Cloud Wireless ACW TH-O Series

  • Page 1 ATIM Cloud Wireless ® Temperature & Hygrometry TH-O User Guide Model concerned: ACW/LW8-THO ACW/SF8-THO...

  • Page 2: Table Of Contents

    ABLE ONTENTS Document version history ......................3 Disclaimer ............................3 Trademarks and copyright ......................3 Declaration of compliance ......................5 Environmental recommendations ..................... 5 Explosive atmosphere ......................5 Environment ..........................5 Radio ............................6 Technical features ........................7 Product ..........................7 Temperature and humidity sensors ................
  • Page 3 Operating mode ......................18 Lower threshold ....................... 19 Higher threshold ......................19 Emission period outside the confort zone ..............19 Temperature and hygrometry periodic measure ............19 Temperature offset ......................20 LoRaWAN network pairing .................... 20 Codes reserved for future upgrades ................20 Access to data on the web (Sigfox and LoRa solutions) ............

  • Page 4: Document Version History

    ‘as-is’ with no warranty of any kind, express or implied, including but not limited to implied warranties of merchantability or fitness for a particular purpose. ATIM radiocommunications may make changes and/or improvements to this manual or to the product(s) or program(s) described in this manual, at any time.
  • Page 5 ATIM radiocommunications®, ACW ATIM Cloud Wireless® and ARM Advanced Radio Modem® are registered trademarks of ATIM SARL in France. The other trademarks mentioned in this document are the property of their respective owners. ATIM_ACW-TH-O_UG_EN_V1.8...

  • Page 6: Declaration Of Compliance

    Declaration of compliance All ACW Atim Cloud Wireless® products comply with the regulatory requirements of the R&TTE Directive (1999/5/EC), article 3: 1 SAFETY (Article 3.1a of the 1999/5/EC Directive) NF EN60950-1 Ed. 2006/A1:2010/A11:2009/A12:2011 (health) EN62479: 2010 (power <20mW) or EN62311:2008 (power > 20mW) 2 Electromagnetic compatibility (Article 3.1b of the 1999/5/EC Directive)

  • Page 7: Radio

    General hazard – Failure to follow the instructions presents a risk of equipment damage. Electrical hazard – Failure to follow the instructions presents a risk of electrocution and physical injury. Direct-current symbol WARNING: do not install this equipment near any source of heat or any source of humidity. WARNING: for your safety, it is essential that this equipment be switched off and disconnected from mains power before carrying out any technical operation on it.

  • Page 8: Technical Features

    Technical features a. Product Dimensions 100 x 100 x 35 mm Antenna Integrated (¼ wave) -20°C à +55°C (operating mode) Temperature -40°C à +70°C (storage) Mount Wall Power supply 1 battery-pack 3.6V / 7.2 mAh Weight 200 g Frequency 865 – 870 MHz Power 25 mW (14 dBm) Sigfox: 100 bps...

  • Page 9: Casing

    Revision number of the DevEUI LoRaWAN product (hardware and firmware) Sigfox or DevEUI Serial number LoRaWAN ID product Each product in the ATIM ACW range has a QR Code label visible either on the side or on the front of the product. ATIM_ACW-TH-O_UG_EN_V1.8...

  • Page 10: Operating Mode

    This QR code can be easily read with any 2D barcode reader application on a smartphone. Reading this code indicates the following information: ATIM|ACW/LW8-THO|C.0|190114|1|3.0|5.11|70B3D59BA0008C0A Interpretation: ACW/L 70B3D59BA0008 ATIM 190114 5.11 W8-THO Revisio Applicati Sigfox ID Product Date of Hardwa Manufactur...

  • Page 11: Eco-Energy (Called " Energy Saver " In The Configurator)

    Example of periodic mode operation: On the other hand, because of the regularity of the radio emissions with a potentially high emission frequency, this mode of operation can prove to be energy consuming and to impact the life of the batteries.
  • Page 12 Phases of operations: from 0 to 3 sec: general initialization + USB initialization. • from 3 to 4 sec: radio initialization. • from 1 min to 5 min: emission of a test frame every minute. • at 6th min: emission of a keep alive frame (battery information). •...

  • Page 13: Acw Configurator

    Sigfox: V5.03 or upper V4.0.2, or upper LoRaWAN: V5.10 or upper Download and install the configuration software '' setupACW.exe '' at: http://www.atim.com/fr/support/telecharger/ When launching the ACW Configurator, the Click "Help" at the top left of the window waiting window appears on the screen.

  • Page 14: Lorawan Network Pairing Configuration

    b. LoRaWAN network pairing configuration Only applies to the ACW-THO / LW8 version. On LORAWAN networks, there are two methods of pairing to allow a module to connect to the network. - OTAA (Over The Air Activation): In this mode, the communication keys are assigned and transmitted by the network each time the module is started or requested to connect.

  • Page 15: Eco-Energy Mode Configuration (Energy Saver)

    c. Eco-energy mode configuration (Energy saver) Keep alive frame Operation mode emission period choice Temperature and Low threshold hygrometry measure High threshold period Offset applied to each measurement, and to the displayed value. Emission period T°C gap (compared to through operated the last statement networks sent).

  • Page 16: Frames Format

    Once the configuration is complete, do not leave the module connected to USB. This mode of operation is very energy intensive. When you remove the USB link without disconnecting the battery, the module resets and automatically returns to normal operation. Frames format a.

  • Page 17: Local 868Mhz

    b. Local 868MHz In point-to-point or point-to-multipoint local communication mode, the Modbus RTU protocol is use Modbus table Modbus adress Data 0x00 (0) Digital inputs reading b0: Input 1 state b1: Input 2 state 0x24 (36) Temperature and humidity reading Supported Modbus features Function Type...
  • Page 18 ATIM_ACW-TH-O_UG_EN_V1.8...

  • Page 19: Downlink

    The USB configuration of these products requires an ACW configurator in version 4.0.2 or higher. The operation of the downlink is explained in the document ATIM_ACW-DLConfig_UG_FR_v1.1, relating to version V1.1 of the Downlink ATIM protocol. The parameters specific to ACW-THO are as follows: a.

  • Page 20: Lower Threshold

    d. Lower threshold Parameter Code (Octet 1) Parameter value (Octet 2) Parameter value (Octet 3) 0x08 0xYY 0xZZ For a threshold in ° C, with a precision in tenth of ° C, 0xYY and 0xZZ are calculated as follows: ( ���������� + 46.85 ) 0����������...

  • Page 21: Temperature Offset

    Example If 0xYY = 0x02 and 0xZZ = 0x0A, the product will take a measurement every 2h10. h. Temperature offset Parameter Code (Octet 1) Parameter value (Octet 2) 0x0E 0xYY (entier signé) For an offset in ° C, with a precision in tenth of ° C, 0xYY is calculated as follows 0������...

  • Page 22: Access To Data On The Web (Sigfox And Lora Solutions)

    Access to data on the web (Sigfox and LoRa solutions) a. ACW Cloud Wireless® platform modem visualization Log on to the web platform http://acw.beta.atim.com to access your devices and view your data. Your login details will be provided by email to the shipping of your order.
  • Page 23 In the page "My groups" you will find all your geolocated devices according to your installation. You will find your temperature and humidity readings, as well as the standby and transmit battery voltages (if you requested the display of these information channels): ATIM_ACW-TH-O_UG_EN_V1.8...

  • Page 24: Modem Registration On Sigfox Network

    Modem registration on Sigfox network If you have subscribed to a Sigfox network subscription with ATIM, we will register your modem / sensor / sensor on the Sigfox network. On the other hand, if you have subscribed to your Sigfox subscription, you will need to register your device yourself on Sigfox's online portal.
  • Page 25 Step 1: Open an Internet browser and go to https://backend.sigfox.com. Enter your login and password when creating your Sigfox customer account: Step 2: Click on "device" at the top left: Etape 3 : Sur l’écran présentant votre liste d’appareils, cliquez sur « New » : ATIM_ACW-TH-O_UG_EN_V1.8...
  • Page 26 Step 4: Fill in the information of the new device you want to register to your Sigfox account: Identifiant Sigfox Code PAC Sigfox Numéro de certificat Sigfox de votre produit (fourni par ATIM) Choix du « device type » dans lequel vous souhaitez enregistrer l’appareil Confirmez les informations en cliquant sur « Ok »...

  • Page 27: Modem Registration On Lorawan Network

    c. Modem registration on LoRaWAN network Warning By default the ACW-TH are in ABP procedure. The choice between ABP and OTAA is available through a drop-down menu on the configurator interface. It is advisable to use the OTAA mode. The product operates in OTAA (over the air activation), when powering up the product a call request (join request) to a LoRa network is issued.

  • Page 28: Help

    • Check if the power supply is properly connected to the modem • Configure the modem using the USB configurator Technical Support For any information or technical problems, you can contact our technical support by e-mail and phone: www.atim.com/fr/technical-support ATIM_ACW-TH-O_UG_EN_V1.8...

This manual is also suitable for:

Cloud wireless acw/lw8-thoCloud wireless acw/sf8-tho
