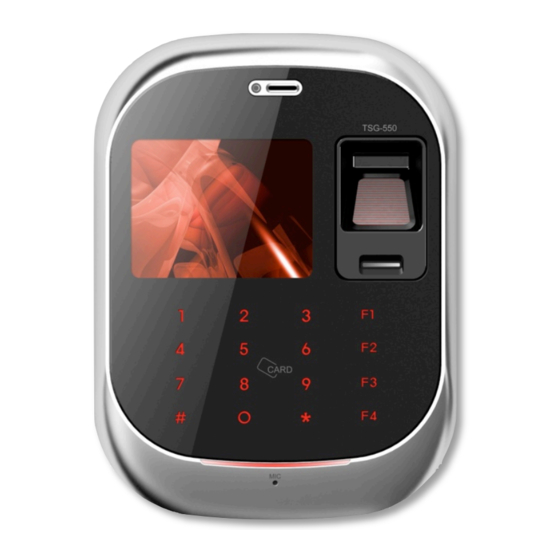

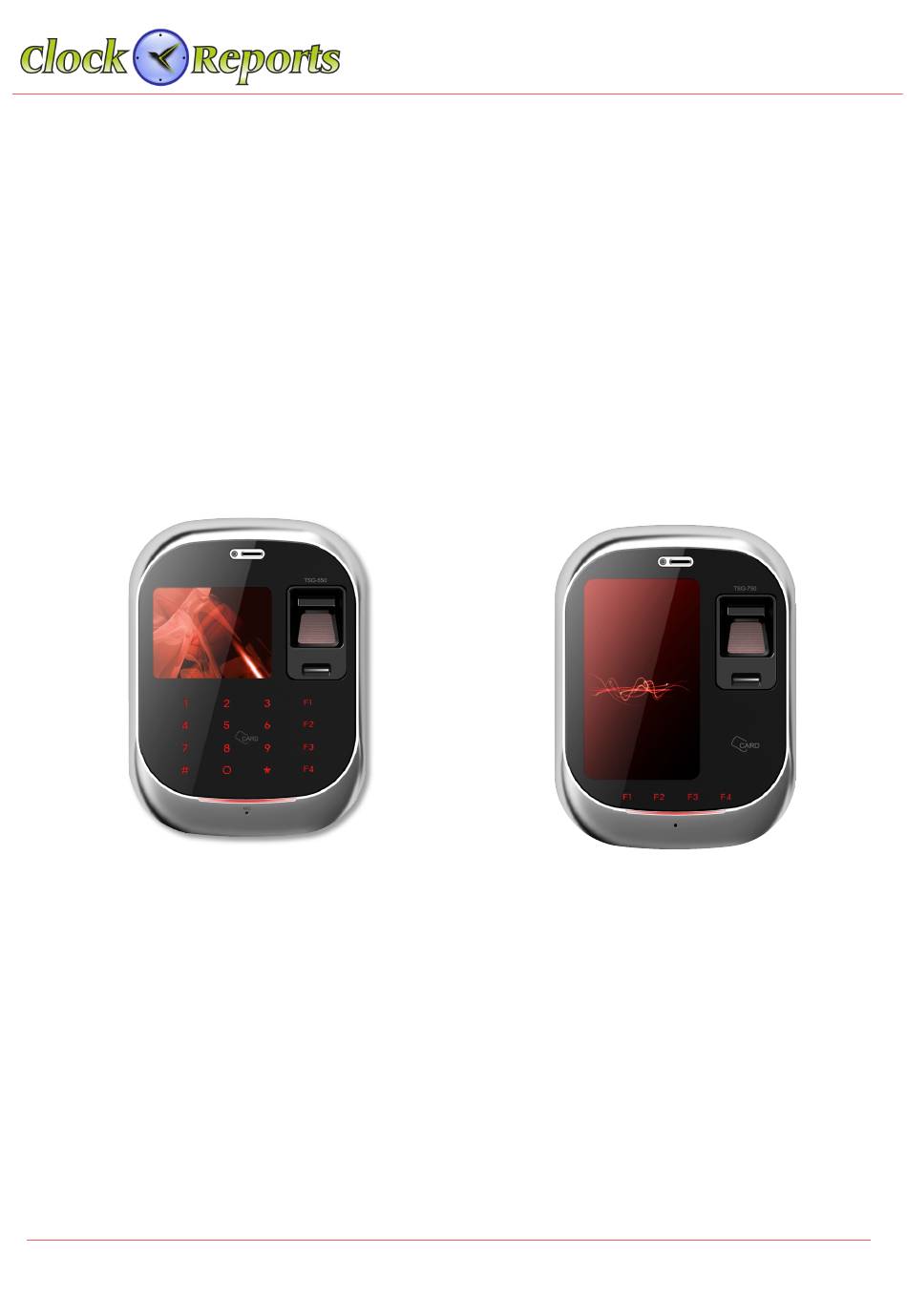

- Page 1 TSG-550/750 Operation / Installation Manual v1.3 TSG-550/750 Fingerprint Identification Reader Operation & Installation Manual v1.3 TSG-550 TSG-750 © 2015 ClockReports.com All rights reserved. Document 002-120401 Rev.A...
-
Page 2: Table Of Contents
TSG-550/750 Operation / Installation Manual v1.3 Table of Contents SECTION 1 – TSG-550/750 Installation Manual １ P ow er ------------------------------------------------------------------------------- 5 ２ RS-485 com m unication ------------------------------------------------------------5 ３ LAN communication --------------------------------------------------------------- 6 ４ Sensor connection ----------------------------------------------------------------- 6 ５ Wiegand output connection ------------------------------------------------------- 7 ６... - Page 3 TSG-550/750 Operation / Installation Manual v1.3 SECTION 3 – TSG-750 Operation Manual 27 Terminal ID & Network ------------------------------------------------------------ 19 26 User Registration ----------------------------------------------------------------- 20 27 Temporary User ID Registration ------------------------------------------------- 21 28 User Delete ------------------------------------------------------------------------ 21 29 Data Search ----------------------------------------------------------------------- 22 30 Screen Setup ---------------------------------------------------------------------- 23 31 Advanced Setup ------------------------------------------------------------------ 23 32 Camera Setup --------------------------------------------------------------------- 24...
-
Page 4: Section 1 - Tsg-550/750 Installation Manual
TSG-550/750 Operation / Installation Manual v1.3 SECTION 1 – TSG-550/750 Installation Manual 1. Power can come from a 12V DC transformer or via LAN PoE 2. RS-485 Connection for old legacy installs © 2015 ClockReports.com All rights reserved. Document 002-120401 Rev.A... -
Page 5: ３ Lan Communication
TSG-550/750 Operation / Installation Manual v1.3 3. LAN Network Communication 4. Sensor Connection for Access controller © 2015 ClockReports.com All rights reserved. Document 002-120401 Rev.A... -
Page 6: ６ External Reader Connection
TSG-550/750 Operation / Installation Manual v1.3 5. Wiegand Output Connection for Access controllers 6. External CARD Reader Connection © 2015 ClockReports.com All rights reserved. Document 002-120401 Rev.A... - Page 7 TSG-550/750 Operation / Installation Manual v1.3 7. Direct 12Volt Lock Connection 8. Access Control Anti-passback between two TSG Devices © 2015 ClockReports.com All rights reserved. Document 002-120401 Rev.A...
-
Page 8: Section 2 - Tsg-550 Operation Manual
TSG-550/750 Operation / Installation Manual v1.3 SECTION 2 – TSG-550 Operation Manual 9. Product Specification for TSG-550 Feature TSG-550 10,000 (Default) User Capacity 50,000 (Optional) 1:N 10,000 Speed < 1 Sec Event Log 500,000 2.8 Inch TFT Camera SD Memory TCP/IP, RS-485 Communication Wi-Fi (Optional) - Page 9 TSG-550/750 Operation / Installation Manual v1.3 10. Terminal ID and Network Setting Terminal should have a unique ID in order to communicate with PC. [Note] If the ID is duplicated, there should be a communication error. From the main menu, click * button. Input admin ID, “1 2 3 4”and then press # button.
-
Page 10: User Registration
TSG-550/750 Operation / Installation Manual v1.3 11. User Registration Input Admin ID number, 1 2 3 4 and press # button. Click icon to register a user. There will be a pop up window related to user’s registration information. Input user ID. Name should be registered on software Privilege can be chosen by user or administrator and click # button. -
Page 11: User Delete
TSG-550/750 Operation / Installation Manual v1.3 12. User Delete Input Admin ID number, 1 2 3 4 and press # button. Move to No 2 icon to delete a user. Fingerprint/card data can be deleted and user can also be deleted. 13. -
Page 12: Schedule
TSG-550/750 Operation / Installation Manual v1.3 15. Advance Setting - Opeation mode can be chosen by administrator. - ID index security will not show a user’s ID on the screen. - Case open alarm will make a alarm when detach from the bracket. -
Page 13: Wifi (Wireless)
TSG-550/750 Operation / Installation Manual v1.3 17. Wireless LAN Setting From the Network menu (No 9), choose Wireless LAN option and then click # button. Choose Wireless LAN and click # button. Search the wireless LAN and click the # button. Choose the appropriate WiFi. - Page 14 TSG-550/750 Operation / Installation Manual v1.3 19. Access Setting Input Admin ID number, 1 2 3 4 and press # button and from the basic setup menu, click and press # button. - Sub-sensor use: It is an innerskin sensor. It can be setup both Optical and Sub-sensor - External reader setup: It is related for a reader to send the FP templates only.
-
Page 15: Em Ory Card
TSG-550/750 Operation / Installation Manual v1.3 20. Memory Card Input Admin ID number, 1 2 3 4 and press # button and from the basic setup menu, click and press # button. By using MICRO SD Memory card, save user’s information/ events data and upload to a different device. -
Page 16: Voice Communication
TSG-550/750 Operation / Installation Manual v1.3 22. Test Input Admin ID number, 1 2 3 4 and press # button and from the basic setup menu, click and press # button. It is a self-test for the device. It can test either full details or subsection. - Page 17 TSG-550/750 Operation / Installation Manual v1.3 25. Specification of Optical and Sub-Sensor 1. Registration Both optical and sub-sensor can register the fingerprint. Suggestion) When a user registers two fingerprints, it is better the user enroll one fingerprint on optical sensor and the other finger is on sub-sensor for the dual registration.
-
Page 18: Product Specification
TSG-550/750 Operation / Installation Manual v1.3 SECTION 3 – TSG-750 Operation Manual 26. Product Specification for TSG-750 Feature TSG-750 10,000 (Default) User Capacity 50,000 (Optional) 1:N 10,000 Speed < 1Sec Event Log 500,000 4.3 Inch Full Touch Camera SD Memory TCP/IP, RS-485 Communication Wi-Fi (Optional) -
Page 19: Terminal Id & Network
TSG-550/750 Operation / Installation Manual v1.3 27. Terminal ID & Network Setup The Terminal should be input unique ID in order to communicate with PC program. [Note] If the ID is duplicated, there will be a communication error. Click this icon from the menu. -
Page 20: User Registration
TSG-550/750 Operation / Installation Manual v1.3 28. User Registration Users can be registered by ID, Fingerprint, and RF card. Input admin password and then click the icon - Input User ID If Employee ID is needed, input the Employee ID. Otherwise input the same User’s ID - Input User’s Name - Privilege can be selected as User or Adminiatrator. -
Page 21: Temporary User Id Registration
TSG-550/750 Operation / Installation Manual v1.3 29. Temporary User ID Registration The terminal provides visitors ID temporarily. Click the icon Input the User ID, Employee ID, Name, and use count. It can be used temporarily for the visitors. 30. User Delete Click the icon. - Page 22 TSG-550/750 Operation / Installation Manual v1.3 Click icon from the main menu. Check the current user information. From the search D/B, click the access event. After input the designated FP/Card, click the search button. Then you can check the access events. From the search D/B, click the search.
- Page 23 TSG-550/750 Operation / Installation Manual v1.3 32. Display Setting From the main menu, click icon. You can set Time/Time Format/Date/Language/Volume/Wallpaper. 33. Advanced Setting From the main menu, click icon. - Verification mode can be combined with ID/Card/FP - ID Mask will hide your ID on the screen due to security reason. - Tamper Alarm will be working when the bracket is detached from the wall.
- Page 24 TSG-550/750 Operation / Installation Manual v1.3 34. Camera Setting (Cont.) Save Photo Log have an option in Never Save/Save When verify fail/Save when verify success/Always Save. For the face detection, once ID/Card/FP is verified, the door will be open. If the face is not clear enough like wearing a cap or a mask, it will not be verified.
-
Page 25: Operation Mode
TSG-550/750 Operation / Installation Manual v1.3 36. Access Setting (Sub Sensor) From the main menu, click icon. * Sub-sensor has two main functions, inner-skin capture of the finger and fake fingerprint detection. It is mainly used for the user who have damaged fingerprints and want to detect the fake FP. Thus, the sub-sensor is well designed for an environment where the user are likely to be exposed to dry, heavy sunlight and harsh environment and a place where the perfect security is needed. -
Page 26: Schedule
TSG-550/750 Operation / Installation Manual v1.3 - Auto Funckey is not for the time & attendance but timezone for the function key . - Non-Relay Funckey is only used for Time & Attendance events. - CD2 Auto Funckey is related to external reader’s license for the use. -
Page 27: Memory Information
TSG-550/750 Operation / Installation Manual v1.3 40. Memory Information From the menu, click icon. Memory Info shows all the information related to the terminal. 41. Video Communication (if supported) From the main menu, click icon. When IP is connected to call line, the user can communicate with the administrator in visual and voice. - Page 28 TSG-550/750 Operation / Installation Manual v1.3 43. Specification of Optical and Sub-Sensor 1. Registration Both optical and sub-sensor can register the fingerprint. Suggestion) When a user registers two fingerprints, it is better the user enroll one fingerprint on optical sensor and the other finger is on sub-sensor for the dual registration.
- Page 29 TSG-550/750 Operation / Installation Manual v1.3 © 2015 ClockReports.com All rights reserved. Document 002-120401 Rev.A...
