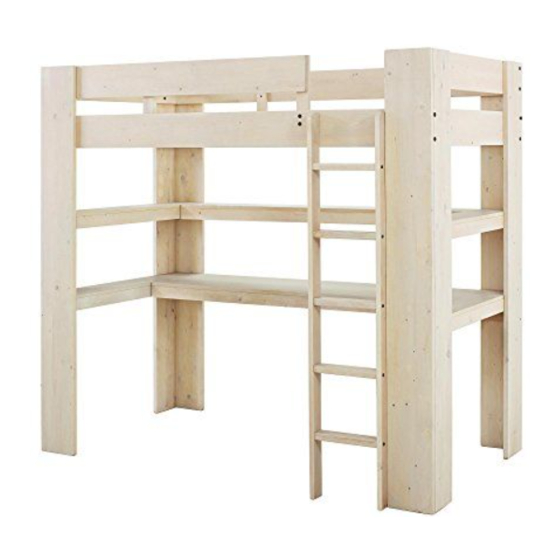

Twin loft bed, twin loft bed with desk & shelf
Hide thumbs

Advertisement

Quick Links

Download this manual
Congratulations on your latest furniture purchase! Dorel Living furniture has been developed with quality,
convenience and style in mind. We trust it will provide you with many years of exceptional comfort and service.
Before beginning assembly, we encourage you to familiarize yourself with your new furniture piece by taking a
few minutes to go through this booklet. It contains important information on our warranty and care tips to keep
your furniture looking as good as new.
Customer satisfaction is important to us at Dorel Asia. Our agents are available Monday to Friday 8am to 5pm
(EST) to answer any question you may have. For faster service, always have the model number ready when
calling our toll free number 1-800-295-1980 or emailing us at das@dorel.com .
For more great furniture ideas, check out our website at www.dorelliving.com.
You can also keep up to date on all the latest trends by liking our
Twin Loft Bed
Date of Purchase: _____ / _____ / _____
DO NOT RETURN PRODUCT TO THE STORE. If a part is missing or damaged, contact our customer
service department. We will replace the part FREE of charge.
NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ
Description
Twin Loft Bed
Twin Loft Bed
Twin Loft Bed with Desk & Shelf
AND KEEP FOR FUTURE REFERENCE.
Model Number:
DA7789
DA7789LB
DA7789SET
Facebook
page.
Twin Loft Bed with
Desk & Shelf
Lot Number:
(taken from carton)
UPC Code:
0-65857-17768-8
0-65857-17943-9
0-65857-17835-7

Advertisement

loading
Need help?

Need help?

Do you have a question about the DA7789 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dorel Living DA7789

Summary of Contents for Dorel Living DA7789

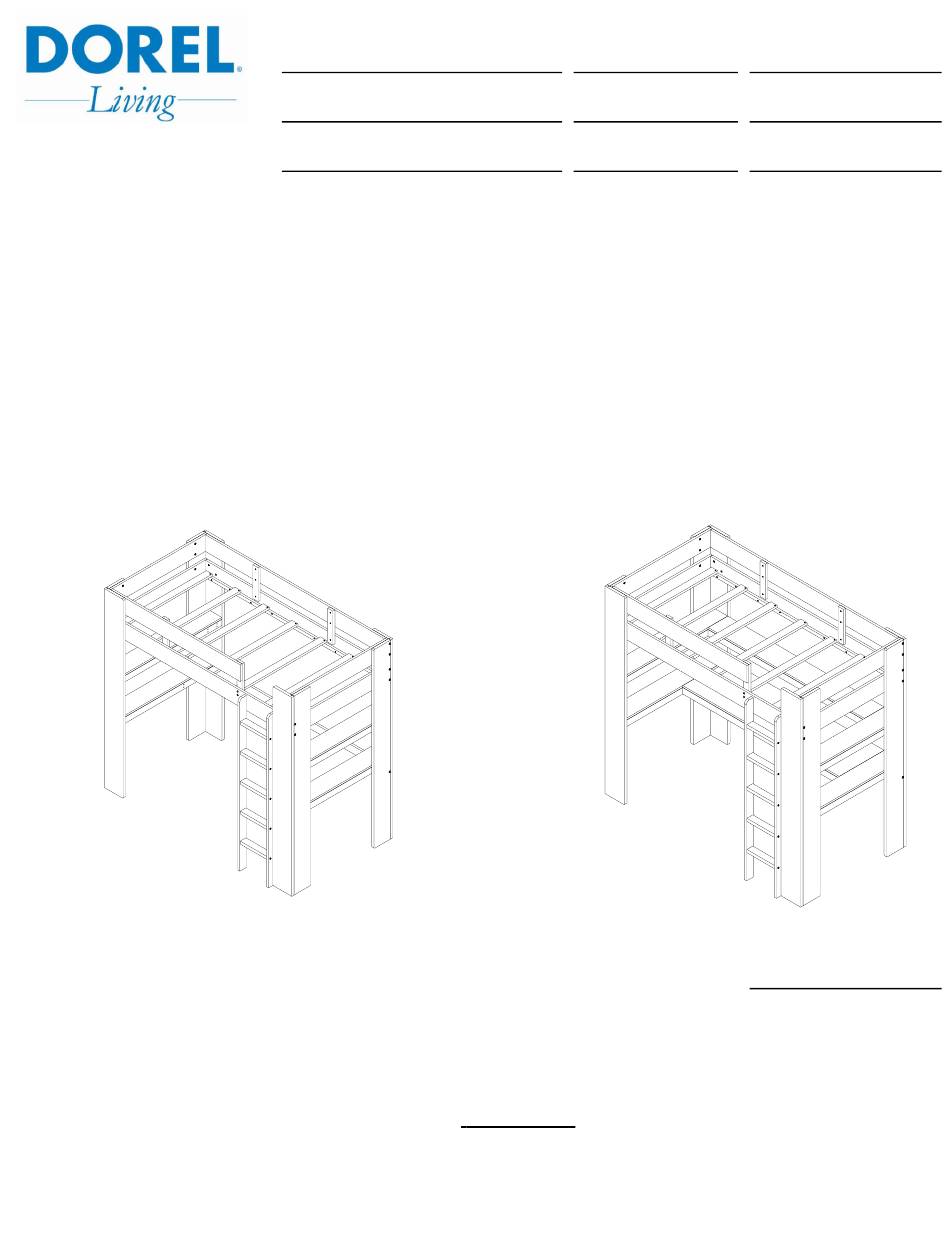

  • Page 1 DA7789SET 0-65857-17835-7 Congratulations on your latest furniture purchase! Dorel Living furniture has been developed with quality, convenience and style in mind. We trust it will provide you with many years of exceptional comfort and service. Before beginning assembly, we encourage you to familiarize yourself with your new furniture piece by taking a few minutes to go through this booklet.
  • Page 2 CUSTOMER SERVICE If you are missing parts or have any questions about this product, contact our customer service representative first! CALL 1-800-295-1980 You can also order parts by writing to the address listed below. Please include the product model number, color and a detailed description of the part. Customer Service Department No.

  • Page 3: Care And Cleaning

    NOTES READ EACH STEP CAREFULLY BEFORE STARTING. IT IS VERY IMPORTANT THAT EACH STEP OF INSTRUCTION IS PERFORMED IN THE CORRECT ORDER. IF THESE STEPS ARE NOT FOLLOWED IN SEQUENCE, ASSEMBLY DIFFICULTIES WILL OCCUR AND CAN RESULT IN INJURY. CAUTION: ADULT ASSEMBLY REQUIRED MAKE SURE ALL PARTS ARE INCLUDED.
  • Page 4 HARDWARE LIST (To Assemble the Loft Bed Only) Φ 1/4" x 85mm Φ 6.5mm x 48mm JOINT CONNECTOR (4mm HEX HEAD) WOOD JOINT CONNECTOR (4mm HEX HEAD) 8 PCS 14 PCS Φ 6.5mm x 80mm Φ 4mm x 35mm WOOD JOINT CONNECTOR (4mm HEX HEAD) FLAT HEAD SCREW 8 PCS 14 PCS...
  • Page 5 HARDWARE LIST (To Assemble the Desk and Shelf) Φ 8mm x 30mm Φ 1/4" x 32mm Φ 9mm x 17mm SMALL WOOD DOWEL JOINT CONNECTOR (4mm HEX HEAD) HEX CAP 8 PCS 8 PCS 8 PCS...
  • Page 6 PARTS LIST (Loft Bed Only) FRONT LEFT POST BACK LEFT POST BACK RIGHT POST 1 PC 1 PC 1 PC FRONT RIGHT POST HEADBOARD RAIL LEFT TOP SHELF 4 PCS 1 PC...
  • Page 7 PARTS LIST (Loft Bed Only) LEFT BOTTOM SHELF RIGHT TOP SHELF RIGHT BOTTOM SHELF 1 PC 1 PC 1 PC BACK SIDE RAIL FRONT SIDE RAIL SLAT 1 PC 7 PCS LONG GUARDRAIL SHORT GUARDRAIL LEFT LADDER END 1 PC 1 PC 1 PC RIGHT LADDER END...
  • Page 8 PARTS LIST (Desk and Shelf) SHELF DESK 1 PC 1 PC back view...
  • Page 9 STEP 1 Insert small wood dowels (9) into the ends of left top shelf (F) and left bottom shelf (G). Attach the shelves (F & G) to front left post (A) and back left post (B) with joint connectors (10) and Allen key (8) as shown. Insert small wood dowels (9) into the holes of front left post (A) and back left post (B) as shown.
  • Page 10 STEP 2 NOTE: One of the headboard rails (E) has a warning label on it. DO NOT use it in this step. Attach the headboard rails (E) to front left post (A) and back left post (B) with joint connectors (10) and Allen key (8) as shown. Secure shelves (F &...
  • Page 11 STEP 3 Insert small wood dowels (9) into the ends of right top shelf (H) and right bottom shelf (I). Attach the shelves (H & I) to back right post (C) and front right post (D) with joint connectors (10) and Allen key (8) as shown. Insert small wood dowels (9) into the holes of back right post (C) and front right post (D) as shown.
  • Page 12 STEP 4 NOTE: Use the headboard rail (E) with the warning label attached to it in this step. Attach the headboard rails (E) to right posts (C & D) with joint connectors (10) and Allen key (8) as shown. Secure the shelves (H & I) to right posts (C & D) with joint connectors (10) and Allen key (8) as shown.
  • Page 13 IMPORTANT - Skip this step if you purchased the Desk & Shelf Kit model DA7789D. - If you did not purchase the Desk and Shelf Kit, skip step 6 & 7 after completing step 5. STEP 5 Insert large wood dowels (7) into ends of the bottom guardrail (V) and attach it to back posts (B & C) with wood joint connectors (3) and Allen key (8) as shown.
  • Page 14 STEP 6 Insert large wood dowel (7) into left end of the bottom guardrail (V) and attach it to left back post(B) with wood joint connector (3) and Allen key (8) as shown. Insert barrel nuts (5) into left end of back side rail (J) and attach it to left back post(B) with joint connectors (1).
  • Page 15 STEP 7 Insert large wood dowel (7) into the other end of bottom guardrail (V) and attach it to right back post (C) with wood joint connector (3) and Allen key (8). Insert barrel nuts (5) into the other end of back side rail (J) and attach it to right back post (C) with joint connectors (1).
  • Page 16 NOTE- the illustrations in Step 8 -14 will not show the desk (U) and shelf (T) for clarity. STEP 8 With the help of another person, turn the unit up right. Insert barrel nut (5) into front side rail (K), Attach front side rail (K) to front left post (A) and front right post (D) with joint connectors (1) and Allen key (8) as shown.
  • Page 17 STEP 9 Attach short guardrail post (S) to short guardrail (N) with joint connectors (10) and Allen key (8). Attach short guardrail (N) to front left post (A) with wood joint connectors (3). Secure short guardrail post (S) to front side rail (K) with joint connectors (10), hex cap (11) and Allen key (8) as shown.
  • Page 18 STEP 10 Secure the back side rail (J) to back posts (B & C) with joint connectors (10) and Allen key (8) as shown. Attach the front side rail (K) to front posts (A & D) with joint connectors (10) and Allen key (8) as shown.
  • Page 19 STEP 11 Insert large wood dowels (7) into the ends of the ladder steps (Q). Attach left ladder end (O) and right ladder end (P) to ladder steps (Q) with wood joint connectors (2) and Allen key (8) as shown.
  • Page 20 STEP 12 Attach the ladder to the front side rail (K) with wood joint connectors (2) and Allen key (8). Attach the right ladder end (P) to the front right post (D) with wood joint connectors (2) and Allen key (8).
  • Page 21 STEP 13 Attach one slat (L) onto side rails (J & K) of the top bunk with flat head screws (4). Make sure the slat touches the corner posts (as close to the headboard as possible). Attach the other slats (L) onto the side rails (J & K) with flat head screws (4). Use space block (W) to space them out evenly as shown.
  • Page 22 STEP 14 Attach two guardrail legs (R) to the long guardrail (M) and back side rail (J) with flat head screws (6) as shown. Attach the other guardrail leg (R) (on the inside of the bed) to short guardrail (N) and front side rail (K) with flat head screws (6) as shown.
  • Page 23 CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury. DO NOT ALLOW HORSEPLAY ON OR UNDER THE BED AND PROHIBIT DO NOT ALLOW CHILDREN JUMPING ON THE BED.
  • Page 24 MODEL #: DA7789 / DA7789SET TWIN LOFT BED Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com...

This manual is also suitable for:

Da7789lbDa7789set0-65857-17768-80-65857-17943-90-65857-17835-7
