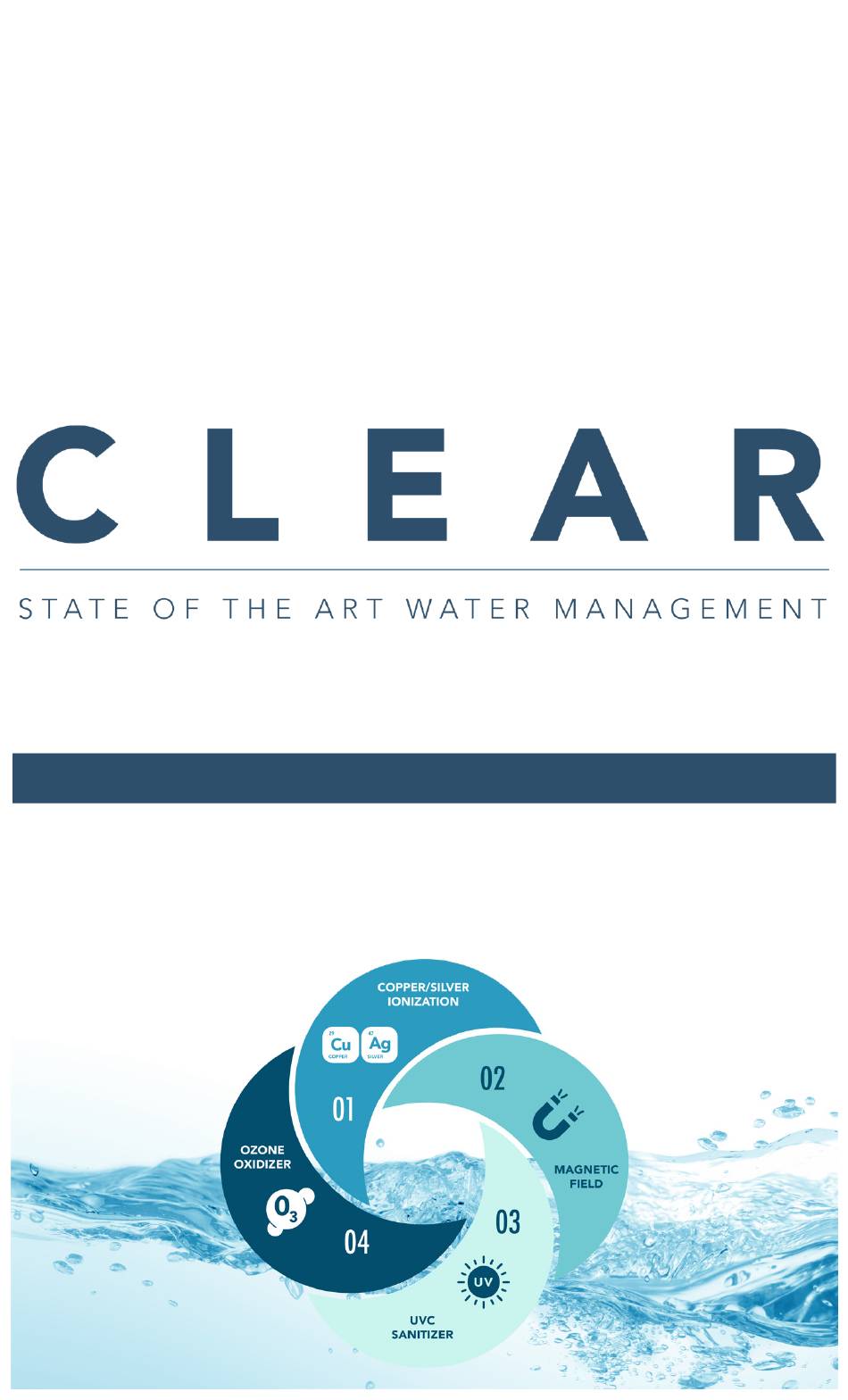

U S E R G U I D E
CLEAR | State of the Art Water Management | 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLEAR A-400 and is the answer not in the manual?

Questions and answers

Related Manuals for Clearwater Spas CLEAR A-400

Summary of Contents for Clearwater Spas CLEAR A-400

  • Page 1 U S E R G U I D E CLEAR | State of the Art Water Management | 1...
  • Page 2 MODEL A-400 MINERAL ION RELEASING DEVICE FOR SPAS COMMERCIAL WARNING: Copper levels over 1ppm and a pH reading over 7.8 may cause copper to precipitate. READ THE LABEL AND THE INSTALLATION AND OPERATION MANUAL BEFORE USING KEEP OUT OF REACH OF CHILDREN 18800 Woodinville-Snohomish Rd Woodinville, WA 98072 Tel.
  • Page 3 AT T E N T I O N 1. Ensure hardness, pH, alkalinity and TDS are within acceptable levels (see Maintenance section in operating manual for details). 2. Excessive amounts of algae or bacteria must be controlled prior to installation. 3.

  • Page 4: Table Of Contents

    INSTALLATION & OPERATION MANUAL PLEASE CAREFULLY READ AND SAVE THESE INSTRUCTIONS Thank you for purchasing Clearwater Spas CLEAR. This device will assist in controlling bacteria and algae in spas by augmenting the bactericidal and algicidal activity of primary disinfectants such as chlorine or bromine.
  • Page 5 • Follow all aspects of the local and national electrical code(s) when installing this device. • Install or locate this equipment only in accordance with the provided installation instructions. • This unit is only water resistant when the mineral cell cable is plugged into the socket on the controller.

  • Page 6: How Clear Works

    CLEAR is a state of the art water management that is a Clearwater exclusive, combines four of the best technologies available to provide you the best fresh water experience. We can’t say this is a chemical free system, BUT the only time you need sanitizer in your water is when bacteria is present.
  • Page 7 Most manufacturers use the jets pumps to do two jobs; filter the water on low speed and move water to the jets on high speed. We at Clearwater Spas believes it’s more important to dedicate a pump to 24/7 water filtration. Every Clearwater Spa includes a 24/7 circulation pump.

  • Page 8: Quick Start Guide

    QUICK START GUIDE Items included with CLEAR: • Copper testing Kit • Four-in-one Test strips (alkaline, pH, calcium and chlorine) • Bacteria test kit • Bottle of Alkaline Up, pH Up, and pH Down • Spa chlorine granulars FIRST VISIT (1st Day): 1.
  • Page 9 Your spa comes with an ozone system (an oxidizer) which burns up organic material (body oil, urine, etc.). Potassium Monopersulfate (spa shock) may also be needed as an oxidizer if bather load is unusually heavy. Two ounces of spashock for every 6-8 people or 6-8 uses is recommended.

  • Page 10: Grounding Instructions

    GROUNDING INSTRUCTIONS Caution: This system must be grounded while in use to protect the operator from electric shock. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This system is equipped with a cord having an equipment-grounding conductor and grounding plug.
  • Page 11 7. Replace this part of the pipe with the tee and fasten with standard PVC primer and glue 8. Mount the controller with the screws provided on a suitable surface. 9. Connect cable from mineral cell into the controller. 10. Use your hand to turn the cell clockwise into the tee until it is secure. To ensure even wearing of electrodes, tighten the cell so that so water flows between the two metal prongs.

  • Page 12: The Digital Display

    THE DIGITAL DISPLAY Ionizing When the “Ionizing” light is illuminating, it confirms that the system is ionizing the water. To illuminate, the electrodes must be fully submersed in water, and current must be flowing from the electrodes into the water. The more ions that are being released into the water, the faster the light will blink.
  • Page 13 TOPSIDE CONTROL Ionizing When the mode of the controller is set to “Ion/ Action” and the “Ionizing” light is illuminated on the controller, the area in the center of the topside control will illuminate in blue. Large Dose Press the center of the logo to engage the “Large Dose”...

  • Page 14: Operating Instructions

    OPERATING INSTRUCTIONS 1. Power Up Plug in the controller. The digital display will turn on. 2. Program Press the “Ion/Action” button to set the ion cycle time. Follow the guidelines below based on the gallons or liters you are ionizing. 3.

  • Page 15: Maintenance

    MAINTENANCE 1. Copper Ion Test: Using the included copper test kit, ensure ions are between 0.2 - 0.6 ppm; Test the ion level once a week until you have found the proper Ion/Action setting for your spa. Increase or decrease the Ion/Action setting as required. Carefully read and follow the instructions for your copper test kit.
  • Page 16 Perfect+PHOSfree can maintain. It is important to reduce/eliminate the source of the phosphates for Pool Perfect+PHOSfree to work properly. If possible, prevent runoff from gardens and lawns from entering the spa. Remove leaves from the spa regularly and promptly. 9. You may need to add a clarifier or flocculent if you see cloudy water or fine particles in the water which the filter cannot catch.

  • Page 17: Cleaning & Care

    CLEANING & CARE Mineral Cell Electrodes: Some deposits may form on the electrodes depending on the water conditions. Clean the flat face of the electrodes using a smooth metal file and some water. The surface does not have to be polished; simply remove any traces of oxidization and other sediments.

  • Page 18: Warranty

    WARRANTY CLEAR carries a five (5) year limited warranty to be free from all manufacturing defects. This warranty does not include replacement mineral cells, which are subject to normal wear and must be replaced periodically. You must obtain a Return Materials Authorization (RMA) number from Customer Service before returning a product.

  • Page 19: Specifications

    SPECIFICATIONS Input Voltage: 120 or 240 Volts AC Input Frequency: 50 to 60 Hertz Output Voltage: 12 VDC Output Current: 2 AMP Max Outside Dimensions: 5” x 3” x 2.5” Controller: 0-99 variable settings Tee: 2” Slip x 2” Slip x 1 ½” Fipt S40 PVC Tee Mineral Cell Size: 3”...
