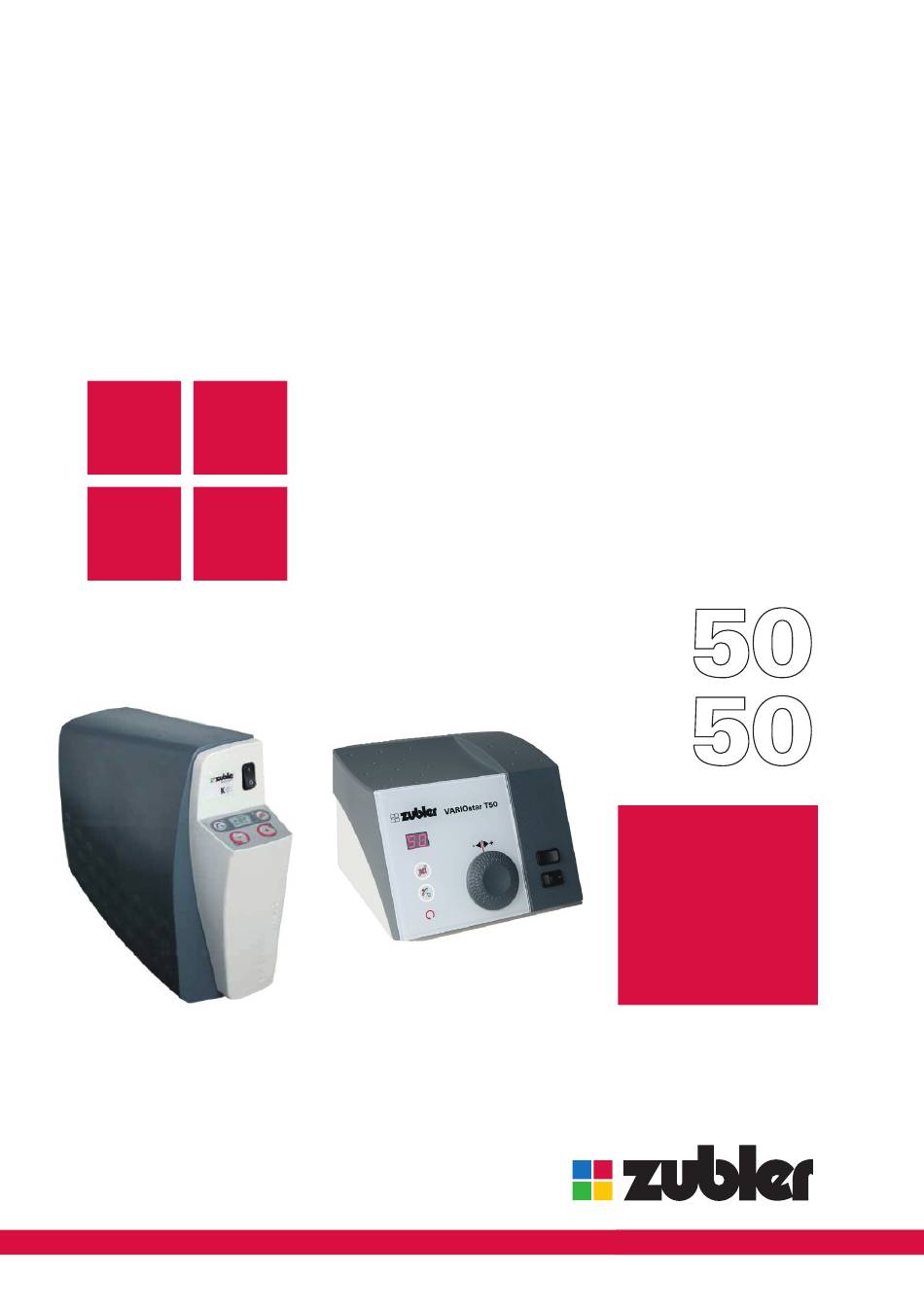

- Page 1 VARIOstar brushless Handpiece ® dental & technik Operation Manual 01-2018 www.zubler.de...
- Page 2 Page...
- Page 3 Important instructions and warnings 1. For your safety, please read all operating instructions before putting the device into operation. 2. Observe the occupational health and safety regulations of the employer’s liability insurance. 3. Before starting, ensure the supply voltage corresponds to the data on the type plate. 4.
- Page 4 Contents 0. Introduction Page Declaration of conformity General notes Scope of delivery K50 Commissioning K50 Scope of delivery T50 Commissioning T50 1. Operation Page Handling K50 kneecontroller Handling D50 tabletop controller Handling the handpiece 2. Maintenance Page Changing the fuse in the controller Malfunction Cleaning and replacing the chuck Replacing the motor cable...
- Page 5 Introduction Thank you! We are delighted that you have chosen the Zubler VARIOstar D50 and we hope that you will enjoy working with it. The constant further development of our technology is based on cooperation with experienced dental technicians. Our primary...
- Page 6 0.2 General notes Functional principle: Thanks to its special brushless design, the VARIOstar K50/T50 handpiece enables smooth, fatigue-free and thus economical working in continuous operation. The device is constantly moni- tored for overload through microprocessor control. An additional thermal fuse provides the handpiece with increased safety.
- Page 7 Connecting the SL-AP data cable (Zubler suction only!) Connect socket 14 with the data socket of your Zubler suction unit (align to notch and secure by turning). The data connec- tion enables a disturbance free working. If using the data cable SL-AP the power cord 20 must not be plugged into the power socket of the suction unit.
- Page 8 0.5 Scope of delivery: Tabletop controller VARIOstar T50 Fig . 5 2 Handpiece 4 Handpiece stand 5 Tabletop controller T50 6 VARIO foot pedal 11 On/Off switch 12 Digital speed display 13 Socket for handpiece 14 Socket for data cable 16 Power cord connector 26 Socket for VARIO foot pedal 20 Power cord...
- Page 9 Fig . 6 Connecting the SL-AP data cable (Zubler suction only!) Connect socket 14 control unit with the data socket of your Zubler suction unit (align to notch and secure by turning). The data connection enables a distur- bance free working.
- Page 10 25-03-2015 MOD. 4 customer ZUBLER description Overlay Operation product line Polyplate 1.1 Operating the VARIOstar K50 knee controller Leonardo Seno eni drawing by Turn the controller ON (I) using the mains switch 11. The speed display 12 indicates the pre- selected speed.
- Page 11 Speed limit The VARIOstar K50 is equipped with an adjustable speed limiter to limit the maxi- mum speed (e.g. 10k rpm for cutting disc). Press pushbutton T2 to deactivate the speed limiter, LED L2 lights up. Press pushbutton T2 again to activate the speed limiter, LED L2 is no longer lit.
- Page 12 1.2 Operating the VARIOstar T50 tabletop controller Turn the controller ON (I) using the mains switch 11. The speed display 12 indicates the pre- selected speed. Use the speed knob 24, to set the desired maximum speed. Manual Start/Stop (without Foot-/ Knee-pedal only!) Press the speed knob 24 to start/stop the handpiece manually.
- Page 13 Speed limit The VARIOstar T50 is equipped with an adjustable speed limiter to limit the maximum speed (e.g. 10k rpm for cutting disc). Press pushbutton T2 to deactivate the speed limiter, LED L2 lights up. Press pushbutton T2 again to activate the speed limiter, LED L2 is no longer lit.
- Page 14 1.3 Operating the handpiece Tool change: The chuck on the handpiece is opened or closed by turning the grip 27. Fig . 12 The chuck 30 is opened and the tool can be removed. After inserting the tools the chuck 30 is closed again by turning the grip 27 in the 27 Grip opposite direction.
- Page 15 Switch the device off and on again. The device is ready for use again immediately. Zubler accepts no warranty claims if the Micromotor VARIOstar K50/T50 is not operated in accordance with the operation manual.
- Page 16 2.3 Cleaning or replacement of the chuck 2.3.1 Removing the chuck Open the chuck 30 and remove the tool. ¶ ¸ Ø2,35 Push the chuck tool 18 onto the chuck 30. · Ø3,00 Fix the chuck 30. ¸ ¶ · Fig .
- Page 17 2.3.2 Cleaning the chuck Remove accumulated dirt if possible using a suitable twist drill (max. 2 mm). Then clean in an ultrasonic bath, repeating if necessary. Dry the chuck well with com- pressed air! Also clean the cone before inserting. To do this, dip one end of a Q-Tip in cleaning agent (Vaseline).
- Page 18 2.4 Replacing the Motor Cable Unscrew the cap 52 from the motor and release the cable by pulling off the hand- piece connector 50. Plug in a new motor cable 45 and secure it with the cap 52. Use only an original motor cable with a new cap 52.
- Page 19 2.6 Troubleshooting Malfunction Cause Remedial action Unplug the mains cable 20 Handpiece does not Check whether the controller and plug it in again; switch start. is switched on and the motor on the mains switch 110, speed display is lit. see 1.2.
- Page 20 Data 3.1 Technical Data: VARIOstar K50 VARIOstar T50 Dimensions: Control unit Width 95mm 180mm Height 250mm 140mm Depth 310mm 200mm Weight 5,6kg 7,1kg Rated voltage AC 230V/115V AC 230V/115V Rated frequency 50/60 Hz 50/60 Hz Power consumption (max.) 270W 270W VARIOstar Handpiece VARIOstar Speed range...
- Page 21 3.3 Scope of delivery VARIOstar T50: Tabletop control unit VARIOstar 230V 804-3052 Tabletop control unit VARIOstar 115V 804-3051 VARIO Foot Pedal, standard 804-1016 VARIO Rotary Foot Lever 804-1015 VARIO Knee Pedal (can be mounted left or right) 804-1017 Power cord 896-1020 Operation Manual 804-1016...
- Page 22 An optimization of the intake systems and the use of modern dust collectors can decrease the dust concentration many times over. Zubler offers a dust collection solution to suit laboratories of all sizes. Page 22 22...
- Page 23 Warranty claims can only be asserted if they are notified without delay to Zubler in writing. A copy of the invoice or delivery note is to be attached to the notification.
- Page 24 ® dental & technik www.zubler.de Zubler Gerätebau GmbH Buchbrunnenweg 26 D-89081 Ulm-Jungingen...
