Summary of Contents for Dedrone Multi Sensor 2.5

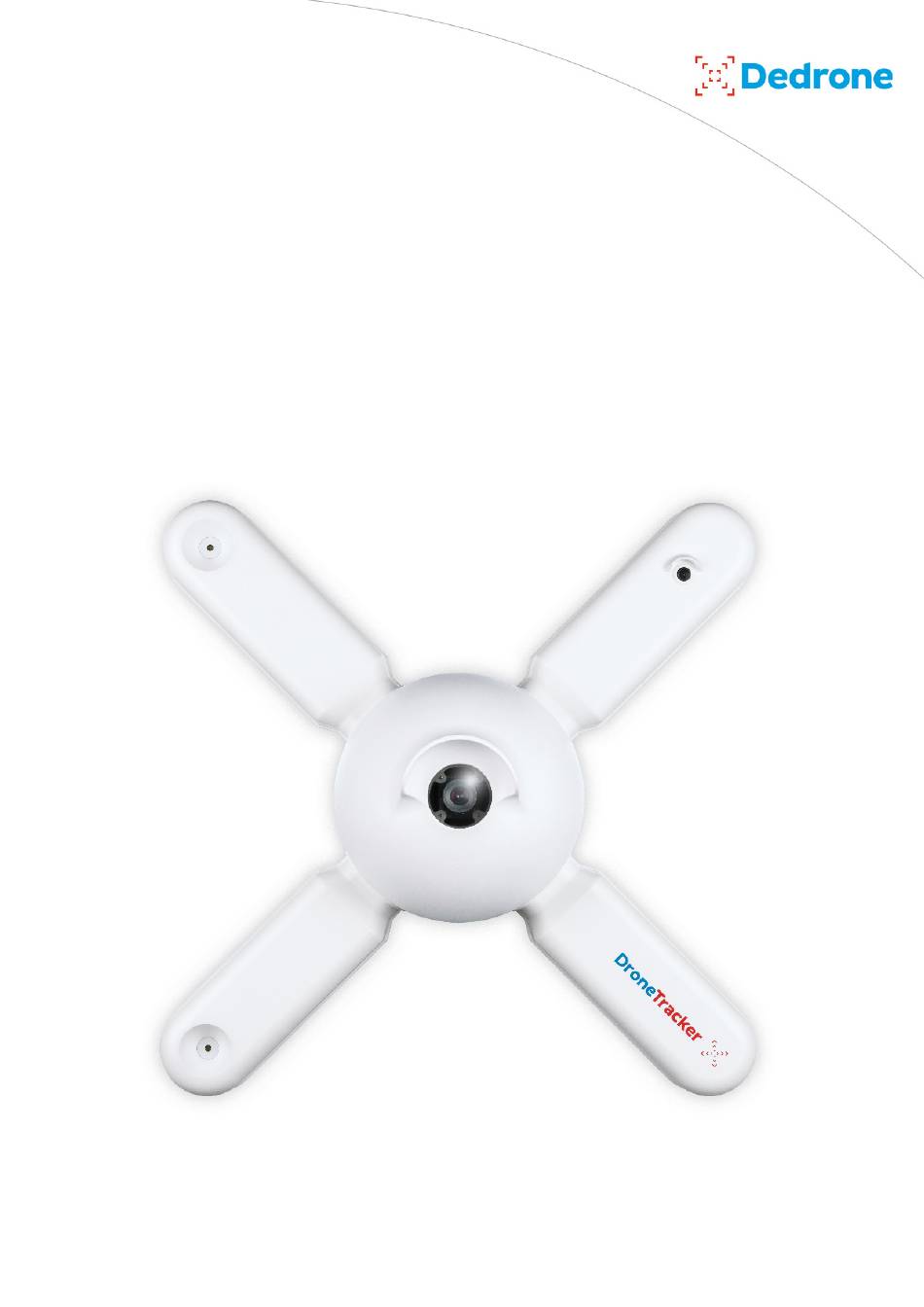

- Page 1 INSTALLATION Manual Multi Sensor 2.5 Version 2.6 | IM-Inst-DT2536en ENGLISH...
- Page 2 Internal reproduction used solely for the purpose of product evaluation or other proper use is allowed and does not require prior approval. Copyright This manual is the intellectual property of Dedrone GmbH and is protected by copyright. All rights reserved. Dedrone GmbH Miramstraße 87...
-
Page 3: Table Of Contents
Dedrone Content Safety............................4 1.1 Symbols.............................. 4 1.2 Intended Use ............................. 4 1.3 Safety Information .......................... 5 The Multi Sensor ........................6 Unpacking ..........................7 4 Scope of Delivery ........................7 Installation..........................8 5.1 Select the Mounting Place ......................8 5.1.1 Mounting Location....................... -
Page 4: Safety
1 Safety Dedrone 1 Safety Symbols Symbols Explanation Indicates a situation which, if not avoided, can result in property damage Information that is important for a specific goal, but is not safety-relevant Indicates a requirement for meeting a specific goal ... -
Page 5: Safety Information
Dedrone 1 Safety 1.3 Safety Information Read, follow and retain all of the following safety instructions. Heed all warnings on the unit and in the operating instructions before operation. Warning! Setup should be carried out by trained personal only, in accordance with ... -
Page 6: The Multi Sensor

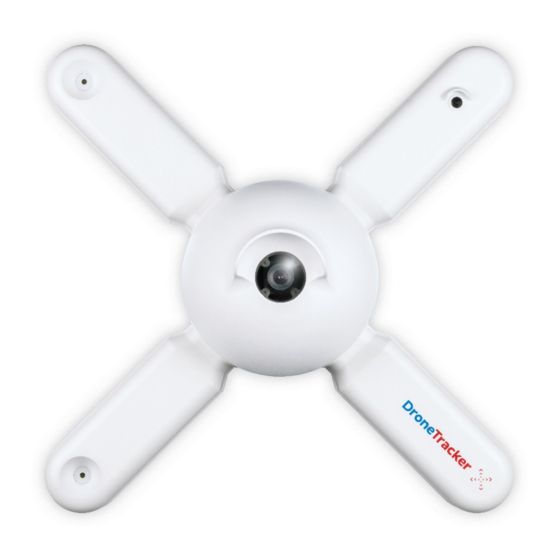

2 The Multi Sensor Dedrone 2 The Multi Sensor The Multi Sensor is a network-attached multi-sensor system, which detects civil drones and triggers an alarm. An alarm can be send to the network and is shown in the user-interface, known as the DT Control Center. -
Page 7: Unpacking
Verify that all the parts listed in the scope of delivery are included. If any items are missing, notify your Dedrone Partner. Do not use this product if any component appears to be damaged. Please contact Dedrone in the event of damaged goods. -
Page 8: Installation
5 Installation Dedrone 5 Installation 5.1 Select the Mounting Place 5.1.1 Mounting Location Select a secure installation location and mounting position for the device. Ideally, this is a location where the device cannot be interfered with, either intentionally or accidentally. -
Page 9: Mounting Surface
Dedrone 5 Installation 5.1.2 Mounting Surface Make sure the selected mounting surface is capable of supporting the combined weight of the Multi Sensor and mounting hardware (sold separately) under all expected conditions of load, vibration, and temperature. 5.1.3 Mounting Orientation The Multi Sensor is designed for installation like the picture below, facing away from a vertical surface. -
Page 10: Power Supply, Cable Requirements And Required Tools
5 Installation Dedrone 5.1.4 Power Supply, Cable Requirements and Required Tools Power Supply The Multi Sensor does not need any additional power supply connection. The power supply is provided by the patch cable over active PoE+ (802.3at). • Make sure, that your network has activated active PoE+ (802.3at). -
Page 11: Mounting Device
Dedrone 5 Installation 5.1.5 Mounting Device The Multi Sensor is delivered with the DT Wall Mount or the DT Pole Mount. To mount the Multi Sensor with another mounting equipment, note the following requirements for the mounting equipment: • licensed for outdoor use •... -
Page 12: Cable Preparation (Crimp)
5 Installation Dedrone 5.2 Cable Preparation (Crimp) For a weather resistant connection to the Multi Sensor, it is necessary to crimp the supplied environmentally sealed Ethernet connector to the patch cable. The used patch cable must comply the defined cable requirements (see 5.1.4 Power Supply, Cable Requirements and Required Tools, page 10). -
Page 13: Installation With Dt Wall Mount
Dedrone 5 Installation 5.3 Installation with DT Wall Mount Install the Multi Sensor together with another person. To handle the Multi Sensor, mounting equipment and precise alignment and without dropping, it is recommend that more than one person is used for installing each Multi Sensor. -
Page 14: Installation With Dt Pole Mount
Multi Sensor. The DT Pole mount, delivered by Dedrone, can be used for poles or masts with a diameter between 3,94 in to 8,66 in (100 mm to 220 mm). -
Page 15: Configuration
Dedrone 6 Configuration 6 Configuration 6.1 Overview Ports Multi Sensor Incoming Protocol Service Function Port Dedrone Service Access HTTP Web interface SNMP Notifications Outgoing Protocol Service Function Address Port HTTP Download of updates, api.dedrone.com 80, 8000 communication with and 31852... - Page 16 Dedrone Outgoing Protocol Service Function Address Port HTTP Download of updates, api.dedrone.com 80, 8000 and 31852 communication with Cloud configurable Notifications configurable configurable TCP+UDP via DHCP Time sync pool.ntp.org SNMP (traps) Notifications configurable OpenVPN Dedrone Service access.dedrone.com 1194 Access IM-Inst-DT2536en...
-
Page 17: Integrate Multi Sensor In Your Network And Login To Dt Control Center
IP address of the Multi Sensor is known Procedure: Start your web-browser. For an optimal use, Dedrone recommends Chrome or Firefox. Enter the IP address of the DroneTracker Server in the address field of your browser. Log in the DT Control Center. The default login credentials are: User: admin Password: dedrone The web interface DT Control Center appears. - Page 18 6 Configuration Dedrone For further information consult chapter “First Steps” of the integrated online help in the DT Control Center. IM-Inst-DT2536en...
-
Page 19: Update
7.2 Update the DroneTracker Server with Internet Connection Requirements: □ Existing access to DedroneCloud □ Configured Dedrone Account □ Login credentials for the user interface DT Control Center Update DroneTracker Server: Login to the DT Control Center. Choose menu OPTIONS > Software Version. -
Page 20: Update A Dronetracker System Offline
-R apt-cacher-ng:apt-cacher-ng /var/cache/apt-cacher-ng/ Start the service apt-cacher-ng: root$> service apt-cacher-ng start On the server, unpack the file as dedrone user with the command: tar xzf dedrone_server-v[version].tgz Run update.sh from the tgz-file as dedrone user (adjust directory as required) dedrone$>... -
Page 21: Update Sensors
Dedrone 7 Update 7.4 Update Sensors Login to the DT Control Center. Choose menu OPTIONS > Software Version. Choose [Update x Sensor(s)]. The button is getting grey and the sensors are getting updated in the background. During the update, the sensors are getting disconnected and reconnected. -
Page 22: Shut Down The Multi Sensor
Dispose the Multi Sensor at the end of its service life in accordance with the disposal regulations for electronic waste which apply at the installation location at that time. Alternatively, send it back to Dedrone GmbH with shipping paid by sender, and labeled "ZUR ENTSORGUNG" ("FOR DISPOSAL"). -
Page 23: Technical Data
Dedrone 11 Technical Data 11 Technical Data Hardware L x W x H 440 mm x 440 mm x 164 mm (17.3“ x 17.3“ x 6.46“) Operating Temperature -4 °F to +104 °F (-20 °C to +40 °C) Weight 8.4 lb (3.8 kg) - Page 24 11 Technical Data Dedrone Software Chrome Version 46 or later, Firefox Version 40 or Configuration and Use later, Safari Version 8 or later Encryption AES, SRP Protocols TCP, UDP via user-interface, SMS, email, Network Message Alarm Notifications (TCP/IP), SNMP, Pushover.net...
-
Page 25: Overview Sensor Installations
Dedrone 12 Overview Sensor Installations 12 Overview Sensor Installations IM-Inst-DT2536en... - Page 26 DRONE DETECTION TECHNOLOGY Dedrone GmbH +49 561 861799-0 Miramstraße 87 info@dedrone.com 34123 Kassel www.dedrone.com...
