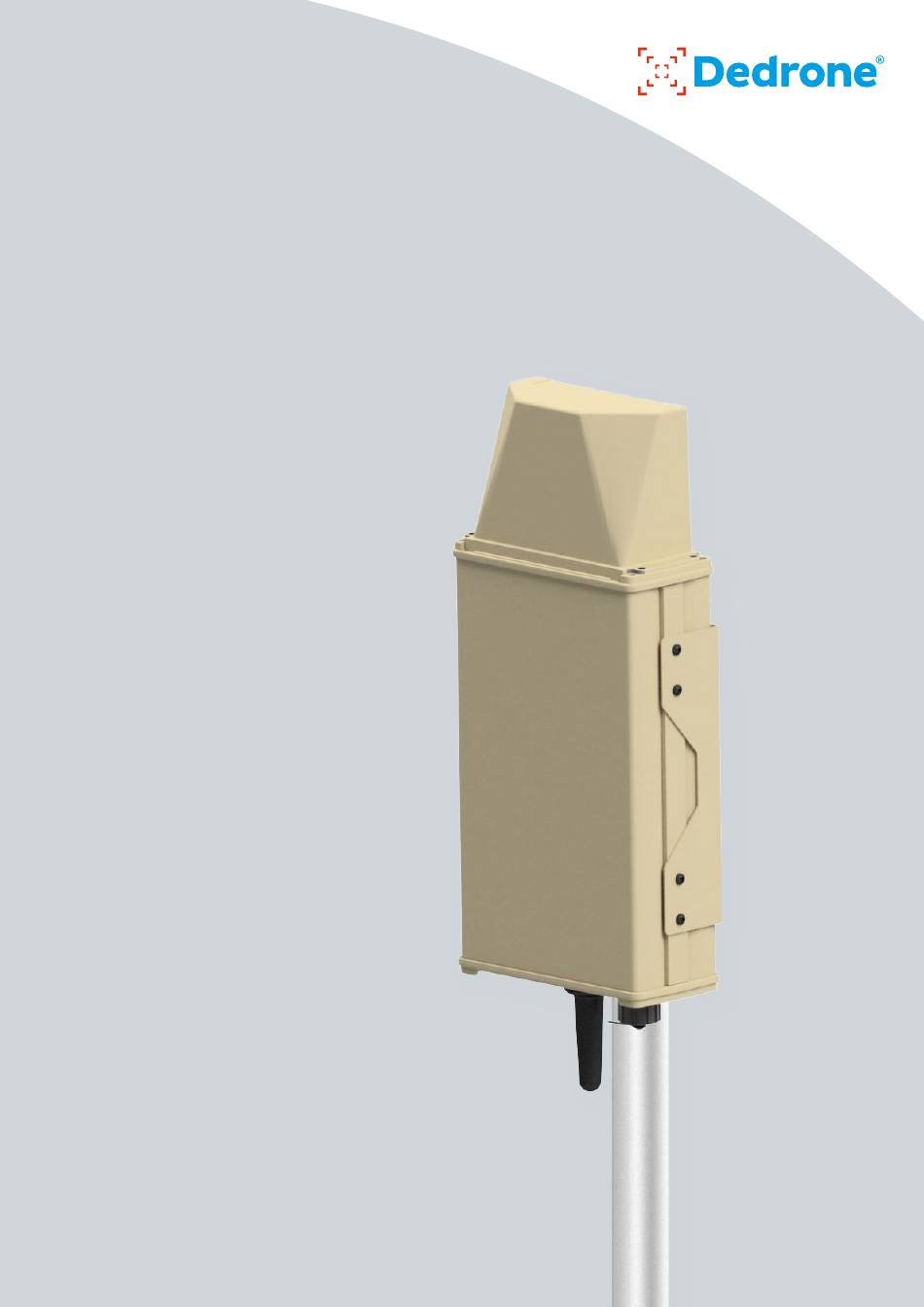

- Page 1 I NS TA L L AT I ON MANUAL RF-310 Detects, classifies, and locates drones and their remote controls and communicates directly to the cloud or local network. ENGLISH IM-Inst-RF310en v1.0...
- Page 2 The declaration of conformity is available on request at support@dedrone.com. Copyright This manual is the intellectual property of Dedrone Holdings, Inc. and is protected by copyright. All rights reserved. Dedrone Holdings, Inc. 45662 Terminal Dr.
-
Page 3: Table Of Contents
6.5.3 Mount sensor on a wall ..........................15 Integrate the RF-310 in your DedroneTracker ............... 16 Integrate the RF-310 in your on prem DedroneTracker Server ..............17 7.2 Connect and Configure the RF-310 to your Dedrone Cloud ..............18 Cleaning ............................19 Decommissioning ........................19 Shut down the RF-310 ............................ -
Page 4: Safety
(RF) and Wi-Fi signals. The RF-310 detects targeted radio signals, classifies them, and identifies their direction. Combined with two or more Dedrone RF sensors, it can determine the position of a drone and remote controls by the RF signals. The RF-310 sends the data and an alert via LAN connection to the DedroneTracker System. -
Page 5: Safety Information
Modifications: Any modifications made to this device that are not approved by Dedrone Holdings Inc. may void the authority granted to the user by the FCC to operate this equipment. -
Page 6: The Rf-310
In combination with two or more Dedrone RF sensors it is able to determine the position of a drone and remote controls by the RF signals. the RF-310 sends the data, along with an alert via LAN connection to the DedroneTracker System. -
Page 7: Select The Mounting Place
5 Select the Mounting Place 5.1 Mounting Location The position of the RF-310 has strong impact to the detection range. The RF-310 is intended for an installation on top of a pole. Make sure that a suitable pole is available (diameter from 1.5" (38 mm)). -
Page 8: Direction Finding And Localization Conditions
For accurate localization results, follow the guidance below in addition to the Detection Conditions (see chapter 5.1.1 Detection Conditions, page 7). The position is determined by the intersection of at least two bearings. Therefore minimum two RF-310 sensors are required for localization, but we recommend at least three RF-310 sensors as this significantly reduces localization errors. -
Page 9: Mounting Location
(200 m - 1,000 m) Distance between the RF-310s For the best result, Dedrone strongly recommends a distance of 1,650 ft to 2,600 ft (500 m to 800 m). Choose the position depending on your monitoring focus. Increase the distance between the sensors to increase the accuracy at further distances. -
Page 10: Installation
6 Installation 6.1 Power Supply The RF-310 does not need any additional power supply connection. The power supply is provided by the connected switch with activated active PoE IEEE 802.3bt (60 W). Make sure, that your network has activated active PoE IEEE 802.3bt (60 W). -
Page 11: Cable Requirements
External Diameter 3.5 mm – 7.5 mm 6.4 Cable Preparation For a weather resistant connection to the RF-310, it is necessary to crimp the supplied environmentally sealed Ethernet connector to the patch cable. Procedure: Cut the RJ45 plug off the laid cable. Keep the cut off plug, to check the wiring standard later. -
Page 12: Mount Sensor
Dedrone 6.5 Mount sensor The RF-310 can be mounted on all poles from 1.5" (38 mm) thick or on walls. Mounting differs depending on the thickness of the mast and wall mounting. 6.5.1 Mount sensor on a thin pole (1.5" to 3") Requirements: Desired mounting place fulfills the requirements (see chapter 5 Select the Mounting Place, page 7). - Page 13 Make sure that the pole is grounded (see chapter 5.3 Overvoltage Protection, page 10). Connect the patch cable to the RF-310 and turn the connector gland until it is locked (for a correct cable preparation see 6.4 Cable Preparation, page 11).
-
Page 14: Mount Sensor On A Thick Pole (From 3")
An accurate alignment of the sensor is a prerequisite for a good direction finding result. Most critical is the configuration of the GPS position and the horizontal angle of each RF-310. If the installation and configuration are not accurate, the direction finding could be strongly divergent. -
Page 15: Mount Sensor On A Wall
Make sure that the pole is grounded (see chapter 5.3 Overvoltage Protection, page 10). Connect the patch cable to the RF-310 and turn the connector gland until it is locked (for a correct cable preparation see 6.4 Cable Preparation, page 11). -
Page 16: Integrate The Rf-310 In Your Dedronetracker
Note the values in the table (see chapter 11 Appendix, page 21). Connect the patch cable to the RF-310 and turn the connector gland until it is locked (for a correct cable preparation see 6.4 Cable Preparation, page 11). If the patch cable is connected to the network, the RF-310 boots automatically and after ... -
Page 17: Integrate The Rf-310 In Your On Prem Dedronetracker Server
7.1 Integrate the RF-310 in your on prem DedroneTracker Server To connect to the RF-310 DHCP services are required that automatically assign an IP address to the RF-310. If the RF-310 and the DedroneTracker Server are in the same Layer2 network they can be connected directly. If the RF-310 and the DedroneTracker Server are in different networks refer to the Dedrone Planning Manual or consult your network administrator. -
Page 18: Connect And Configure The Rf-310 To Your Dedrone Cloud
Enter the registration key of your sensor and choose [OK]. The RF-310 appears in the Site Explorer. The RF-310 is getting placed automatically on the map via GPS, but needs to be aligned (see following steps). To sort the RF-310 in the Site Explorer, drag and drop the element to the desired position. -
Page 19: Cleaning
Dedrone Cleaning 9 Cleaning Wrong cleaner damages the housing The wrong cleaner can damage the housing or antenna of the RF-310. Never use glass cleaner or other solvent cleaners to clean the RF-310. • Use solvent-free cleaner to clean the RF-310. -
Page 20: Technical Data
Technical Data Dedrone 10 Technical Data Under normal conditions 1.25 mi (2.0 km) for most drones Range (line of sight) Under ideal conditions up to 3.1 mi (5 km) for specific drones Device Type Sensor Omnidirectional, passive detection, classification, and direction... -
Page 21: Appendix
Dedrone Appendix 11 Appendix Serial number GPS position Horizontal angle (azimuth) (see prouct plate) (in degree, e.g. 52.516295, 13.377653) in degrees: 0 = north, 90 = east, 180 = south, 270 = west longitude: latitude: longitude: latitude: longitude: latitude: longitude:... - Page 22 Phoenix 4010 S 21st Street, Suite 3 Phoenix, AZ 85040 United Kingdom 2530, The Quadrant, Aztec W Bristol BS32 4AQ +44 7393 553783 Germany Miramstraße 87 34123 Kassel +49 561 8617990 info@dedrone.com For more information, visit www.dedrone.com ©2023 Dedrone, v1.0...
