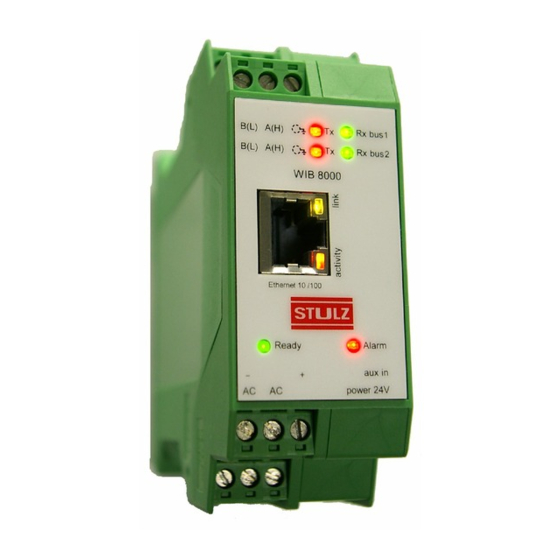

  • Page 1 WIB8000 Original instructions Web Interface Board Index G67C Issue 11.2018...
  • Page 2 8 000 o r i g i n a l i n s t r u c t i o n s a b o u t S t u l z Since it was founded in 1947, the STULZ company has evolved into one of the world’s leading system suppliers of air-conditioning technology.

  • Page 3: Table Of Contents

    4. Connection / Wiring ..................10 4.1 The Stulz bus......................... 10 4.2 Commissioning of the WIB module ................11 4.3 Adjustments to build up the STULZ bus ..............11 5. Configuration ....................12 5.1 Settings for the service technician ................14 5.2 Settings for the customer ....................

  • Page 4: Safety

    1. Safety Connection to the internet The WIB8000 (Web Interface Board) may not be connected directly to the internet, but must be protected by a firewall or a VPN tunnel. So choose an IP address for the WIB from the private address ranges according to RFC 1918.

  • Page 5: Operation Modes

    It is also possible to assign a sequencing function via the Stulz bus; i.e. the controller receives on/-off com- mands via the Stulz bus. The sequencing function includes an alarm monitoring and an A/C unit start when limit values are exceeded.

  • Page 6: The Hardware

    The voltage-free input can be used to send an e-mail with up to 255 characters when the voltage at this input rises from 0 to at least 9V or drops from at least 9V to 0V. EN/11.2018/G67C  © STULZ GmbH – all rights reserved...
  • Page 7 • Datamanagementofupto2x32Stulzcontrollers(A/Cunits) • standaloneunit • nodisplayorkeyboard,configurationandserviceexclusivelywithaPCvianetwork • independentrealtimeclock.  •   T hesoftwareissavedinaFlashROM.NewsoftwarecanbedownloadedfromanotebookorPCwithoutthe need of changing hardware.  •  LED’sshowcurrentbusactivityandoperatingstateoftheboard.  •  TheterminationresistorsfortheRS485bussesareactivatedbyinternalswitches. © STULZ GmbH – all rights reserved EN/11.2018/G67C...

  • Page 8: Ethernet Patch Cable

    In chillers with a C6000, no sequencing at the chiller itself may be activated when a WIB8000 connection exists or is planned. Otherwise a communication with the WIB8000 is not possible, as the BMS bus is already used for the chiller sequencing.

  • Page 9: Wib8000 In Separate Box (Option)

    8000 o r i g i n a l i n s t r u c t i o n s 3.3 WIB8000 in separate box (option) Technical data: Supply voltage: 200/220/230/400/ 415/460 V CA ±10% Frequency: 50/60Hz ±1%...

  • Page 10: Connection / Wiring

    S1 - S4, when the WIB is at the beginning or end of the Stulz bus. The Stulz bus is a two wire connection with a screen which must be twisted in pairs. The screen must only be EN/11.2018/G67C  © STULZ GmbH – all rights reserved...

  • Page 11: Commissioning Of The Wib Module

    The WIB8000 board has an automatic Stulz bus unit recognition system. With this function all connected Stulz units are automatically recognized and the configuration is registered. The function is called up by the HTTP interface (browser) in the menu "Web interface/bus", paragraph "scan", menu item "start"...

  • Page 12: Configuration

    Important: If the settings which are desired by the customer differ from the settings above, you can not reach the WIB8000 anymore by your PC/laptop after a reboot. It has now been set up for the customer network. Now you can switch on the PC, which also provides a network connection, start the internet browser and call the html pages stored in the WIB module by typing the address http:/ /192.168.50.52 into the command line.
  • Page 13 If you click on this icon, the bus view of the two busses is displayed. This represents a possibility to get to the top menu "Web Interface". © STULZ GmbH – all rights reserved EN/11.2018/G67C...

  • Page 14: Settings For The Service Technician

    The internal clocks of all units, which are connected to the WIB8000 by the Stulz bus can be synchronized. In case of an indirect connection (e.g. connection of a C7000AT to a C7000IOC by the IO bus) the C7000AT system clock is not synchronized.
  • Page 15 (mail, NTP, SNMP Trap) shall be entered instead of their IP addresses. The http port can be individually set. At the delivery the standard http port 80 is used. DNS: Domain name server, network address data base © STULZ GmbH – all rights reserved EN/11.2018/G67C...
  • Page 16 For this reason this function should only be enabled, if you can ensure that the internal clock of the WIB8000 is correctly set and the WIB8000 battery is sufficiently charged to bridge over a power failure.
  • Page 17 There are the following settings for specifying the unit name in the SNMP message: Standard: the designation is automatically generated following the pattern "bus x, unit y". x = bus number of the WIB8000 y = global address of the unit, which caused the alarm (trap). extended: The unit name which was adjusted by the customer in the menu "Config/web interface"...
  • Page 18 8 000 o r i g i n a l i n s t r u c t i o n s non-ASCII characters, make sure that, enabling the trap unit name option "extended", all trap receivers, which receive messages from the WIB8000, support UTF-8 encoded trap value fields. Otherwise, there will be dis- play problems at the SNMP client.
  • Page 19 With a properly tuned pre-fetch period the (up to 20) data points per unit will be provided faster at the http and SNMP interface. For this purpose the pre-fetch period must be set so that all data points can be read before the maximum © STULZ GmbH – all rights reserved EN/11.2018/G67C...
  • Page 20 Such could be the case if you want to operate the A/C unit temporarily as an individual A/C unit e.g. for test purposes. EN/11.2018/G67C  © STULZ GmbH – all rights reserved...
  • Page 21 Manual removal of a unit from the bus configuration (Menu: Web Interface/bus/delete unit) In the same way you can manually remove a unit from the bus configuration. For this you only need to specify the bus and the global address. © STULZ GmbH – all rights reserved EN/11.2018/G67C...
  • Page 22 After the setting of the sequencing interval, a commutation among the units is carried out at the end of each cycle. The remaining period to the next commutation is displayed in minutes. EN/11.2018/G67C  © STULZ GmbH – all rights reserved...
  • Page 23 The setting "--:--" means that no commutation will be done. For this it is sufficient to enter "--". If the WIB8000 ist not switched on at the time of commutation, the concerned commutation will not be carried out.
  • Page 24 For C7000IOC controllers you can set a data point, which the WIB also uses (besides the commutation point or elapsed interval or valid alarm) in the course of the sequencing to switch off a C7000IOC. Two settings are available "BMS stop 1" and "BMS stop 2". EN/11.2018/G67C  © STULZ GmbH – all rights reserved...
  • Page 25 (setting "YES") or not (setting "NO", default). After having done the settings click the "Reboot" button to put the settings into effect. The WIB8000 can now be connected to the internal network by means of the Ethernet connection.

  • Page 26: Settings For The Customer

    The same way you can have e-mails of the record of all events (eventlog) sent to yourself in the cycle of an adjustable interval. In case of lack of memory in the WIB these e-mails are sent automatically to the adjusted address. EN/11.2018/G67C  © STULZ GmbH – all rights reserved...
  • Page 27 Password 2 allows except the modifications of setpoints only the display of all parameters of the menu levels "Info" and "Operate". Password 3 includes the authorization to read all parame- ters of the menu levels "Info" and "Operate". © STULZ GmbH – all rights reserved EN/11.2018/G67C...
  • Page 28 If there is only one unit in the bus 5000 intervals are logged. With 2 units 2500 intervals (2 lines are written per interval, one for unit1 and one for unit2), with 5 units 1000 intervals. EN/11.2018/G67C  © STULZ GmbH – all rights reserved...
  • Page 29 Section: Bus The protocol displayed here is automatically determined when the WIB scans the bus for units. Only change it in exceptional cases according to the control- ler type and upon consultation of the Stulz support: C7000: SCP BMS C6000: SDC...
  • Page 30 When the datalog is sent via email (automatically or manually by the download dialogue) all data in the datalog is deleted. When the web page is saved the data in the datalog is maintained. EN/11.2018/G67C  © STULZ GmbH – all rights reserved...
  • Page 31 8000 o r i g i n a l i n s t r u c t i o n s Info/data/datalog - Example Note: For a better presentation a record from a non-air-conditioned room has been used here. © STULZ GmbH – all rights reserved EN/11.2018/G67C...
  • Page 32 When alarm messages shall be sent to an e-mail/SMS service, set the receiver and the subject according to the specifications of the provider. By the "Test" button you can send a test email to all registered alarm-email receivers. EN/11.2018/G67C  © STULZ GmbH – all rights reserved...
  • Page 33 "9-30V" if 9V are exceeded. The text can be individually modified and may consist of up to 255 characters. © STULZ GmbH – all rights reserved EN/11.2018/G67C...

  • Page 34: Operation

    Simultaneously the alarm icon in the menu line blinks. Browser tabs (dependant on browser) For the naming of browser tabs the WIB8000 provides texts depending on the chosen view according to the following principle: 1. system name followed by unit name 2.

  • Page 35: Start Window

    All parameters which are not displayed on a grey background, can be modified by marking the value and typing the new value. The modification will be effective when you confirm it by clicking on the "Send" button. © STULZ GmbH – all rights reserved EN/11.2018/G67C...

  • Page 36: Menu Structure

    The menu structure of the C7000 redesign is however reduced by some menu items for the controllers C1002, C4000, C5000 and C6000. 6.2.1 Menu structure for dX/CW units Info menu Operate menu EN/11.2018/G67C  © STULZ GmbH – all rights reserved...
  • Page 37 8000 o r i g i n a l i n s t r u c t i o n s Config menu © STULZ GmbH – all rights reserved EN/11.2018/G67C...

  • Page 38: Menu Structure For Chillers With C7000

    8 000 o r i g i n a l i n s t r u c t i o n s 6.2.2 Menu structure for chillers with C7000 Info menu Operate menu Config menu EN/11.2018/G67C  © STULZ GmbH – all rights reserved...

  • Page 39: Menu Structure For Chillers With C6000

    8000 o r i g i n a l i n s t r u c t i o n s 6.2.3 Menu structure for chillers with C6000 Info menu Operate menu Config menu © STULZ GmbH – all rights reserved EN/11.2018/G67C...

  • Page 40: Troubleshooting

    "enabled". (see page 17) • T esttheconnectionusingthefreelyavailableHilisoftMIB-Browser.ThefollowingsOIDsaresuitableforthe function test of the connection. OID:1.3.6.1.2.1.1.1.0 --> Stulz GmbH Klimatechnik WIB 8000 / / sysDescr OID:1.3.6.1.2.1.1.2.0 --> 1.3.6.1.4.1.29492.10 / / sysObjectID OID:1.3.6.1.2.1.1.5.0 --> WIB 8000 SNMP Interface / / sysName OID:1.3.6.1.2.1.1.6.0 -->...

  • Page 41: Appendix

    Using the „Browse“ button, choose the new firmware image file which you downloaded before from the e-Stulz area of the Stulz website on the hard disk of your PC. Use the "Send" button to transfer this file from the PC to the WIB8000.
  • Page 42 When the uploaded firmware image is damaged, the WIB8000 may not be restarted again ! The following message is displayed in the state section "Firmware image damaged. Please upload new image.". In this case the image must be uploaded again (onto the WIB8000). The WIB8000 restart by the web page is blocked during this time.

  • Page 43: A2. Rtc Battery Change

    A2. RTC battery change In the WIB8000 module a CR2032 type battery serves to provide power for the real time clock, when the WIB is de-energized. You can activate this battery by the jumper J1. When the jumper is removed the battery is not connected.

  • Page 44: A3. Factory Reset

    In case you forgot the password of the Config level or if network settings have been changed, so that the WIB8000 can not be reached via the LAN anymore, you can reset the WIB to the factory setting by a jumper on the board.

  • Page 45: A4. Support

    Both items appear in the menu "Web Interface". The contents of both menu items can be downloaded as csv-files. Send these files on request to the technical support. (Menu: Web Interface/overview) © STULZ GmbH – all rights reserved EN/11.2018/G67C...
  • Page 46 Special functions (Menu: Web Interface/Service/Special functions) With the menu "Web Interface/Service/Special functions" you can solve problems by typing in a four-digit code. The code can be obtained from the technical support after the problem has been described. EN/11.2018/G67C  © STULZ GmbH – all rights reserved...

  • Page 47: A5. Wib8000 Connection By Telephone Network

    Consider the security notes of the MoRoS router manual in chapter 1 "Security" at the commissioning. A5.1 Start-up Set the parameters of the IP network at the WIB8000 and in the MoRoS router and link both units by a patch cable.
  • Page 48 8 000 o r i g i n a l i n s t r u c t i o n s IP addresses WIB8000 and MoRoS router must have IP addresses from the same subnet. In this example the pre-set rou- ter net is selected: WIB8000: 192.168.1.5...

  • Page 49: A5.2 Router Settings

    (here: http:/ /192.168.1.5). dial-Out If the WIB8000 shall be enabled to send emails, an automatic connection buildup must be configured in the router under "Dial-Out“. For the authentication at the remote station enter the following data: • telephonenumber...

  • Page 50: A6. Network Check List

    * Setting "Auto" may result in authentication error if it is insufficiently implemented at the e-mail server. In case of authentication errors with your e-mail account, ask your e-mail host provider which is the proper method and select this method deliberately. EN/11.2018/G67C  © STULZ GmbH – all rights reserved...
  • Page 51 (IP address / Server name) _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ (max. 30 characters) Local time offset: _ _ _ : _ _ (±hh:mm) Synchronize: hourly daily weekly © STULZ GmbH – all rights reserved EN/11.2018/G67C...
  • Page 52 Fax +39 (045) 633 16 35 BELGIUM info@stulz.it STULZ AIR TECHNOLOGy STULZ Belgium BVBA SySTEMS (SATS) , INC. INdIA Tel. +32(470)292020 Tel. +1(301)6202033 STULZ-CHSPL (India) Pvt. Ltd. info@stulz.be Fax +1(301)6625487 Tel. +91(22)56669446 info@stulz-ats.com Fax +91(22)56669448 info@stulz.in www.stulz.com EN/11.2018/G67C  © STULZ GmbH – all rights reserved...
