TOOLS REQUIRED
Phillips screwdriver
Flat Head Screwdriver
Drill

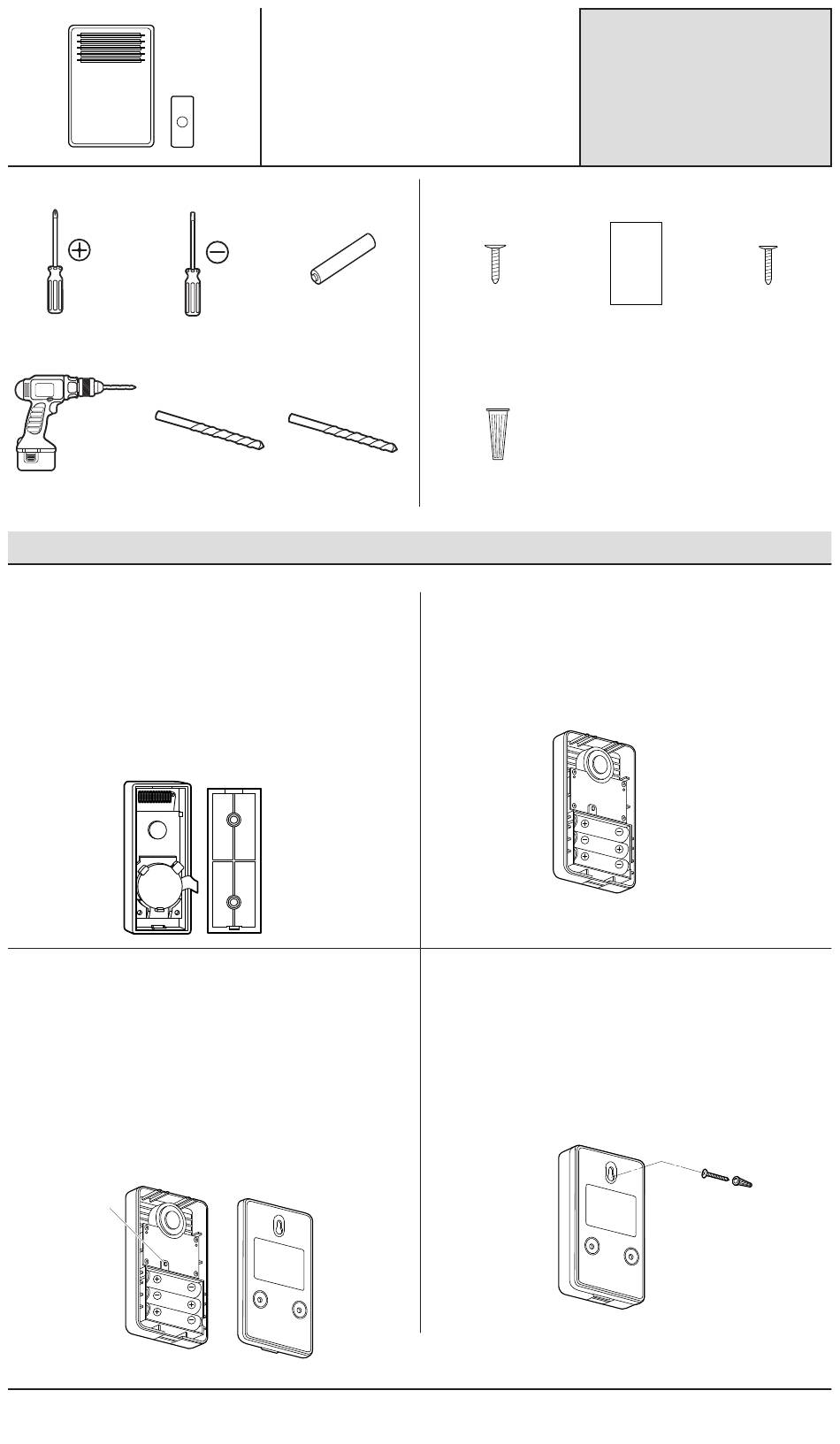

Installation
1
ACTIVATING THE PUSH BUTTON BATTERY
□ Remove the front cover of the push button by inserting a flat
head screwdriver in the slot on the bottom of the button and
pulling up slightly.
□ Remove the plastic tab from the battery compartment to
allow connection to the terminal.
□ Snap the front cover onto the base by first hooking the tops
together, then snapping the base on.
3
SYNCING CHIME AND PUSH BUTTON
The chime and included push button already come synced.
Follow the steps below if you need to resync, or sync
additional push buttons.
□ Press and release the learning button on the inside of the chime.
□ Immediately following, press and release the push button to
hear a 2-note tune. Press and release the push button again
within five seconds to hear another tune. Continue pressing
and releasing the push button until you reach the desired tune.
To set that tune, do not push the push button for five seconds.
Learning
mode
button
Wireless Battery-Powered
Learning
mode
button
(3) AA Batteries
3/16" Drill Bit
5/64" Drill Bit
216600Inst.ai

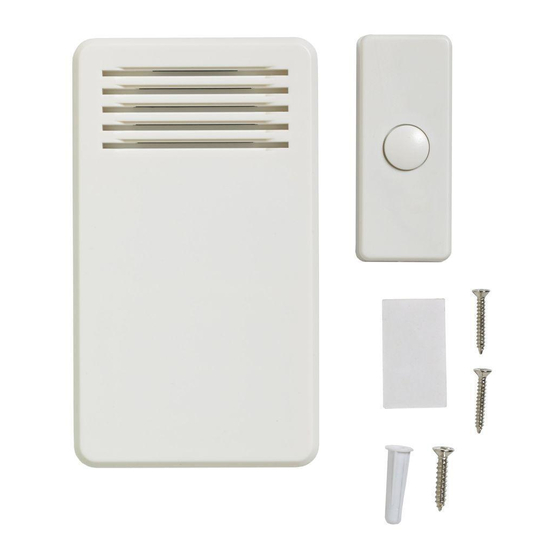

Doorbell Kit
ITEM #1001 406 908
MODEL #216600
#4x3/4
HARDWARE INCLUDED
#6x3/4
#4x3/4
(2) #4 x 3/4 in. Screws
#4x3/4
#6x3/4
#4x1 White Zinc
#6x3/4
(1) Wall Anchor
#4x1 White Zinc
2
#4x1 White Zinc
INSERTING THE CHIME BATTERIES
□ Push the tab on the bottom of the chime and pull the back
cover off of the chime.
□ Insert (3) AA batteries as shown in the diagram on the chime.
ScrewHardware.ai
Learning
mode
button
4
MOUNTING THE CHIME
□ Snap the back cover onto the chime.
□ Mark the desired screw location on a clean wall.
□ Drill a pilot hole on the mark using a 3/16 in. drill bit and
insert the wall anchor.
□ Screw in the included #6 screw and mount the door chime to
the screw.
Use and Care
(1) Adhesive Sticker
#6x1 Self Tapping
ScrewHardware.ai
#6x1 Self Tapping
#6x1 Self Tapping
ScrewHardware.ai
Learning
mode
button
Please contact 1-855-556-1852 for further assistance.
216600Inst.ai
Guide
#4x3/4
#6x3/4
(1) #6 x 3/4 in. Screw
#4x1 White Zinc
ScrewHardware.a
Learning
mode
button
216600Inst.ai
HOMEDEPOT.COM
