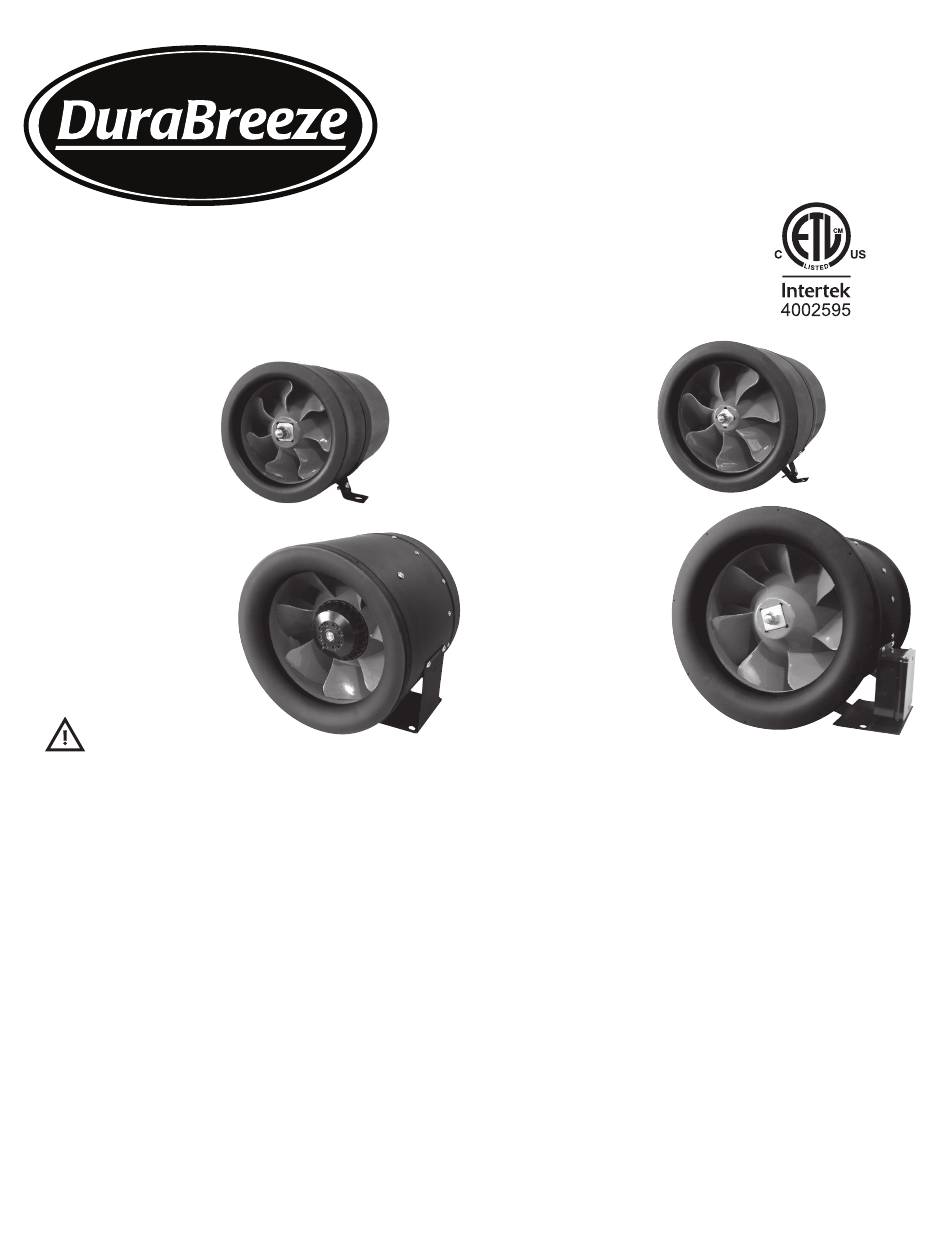

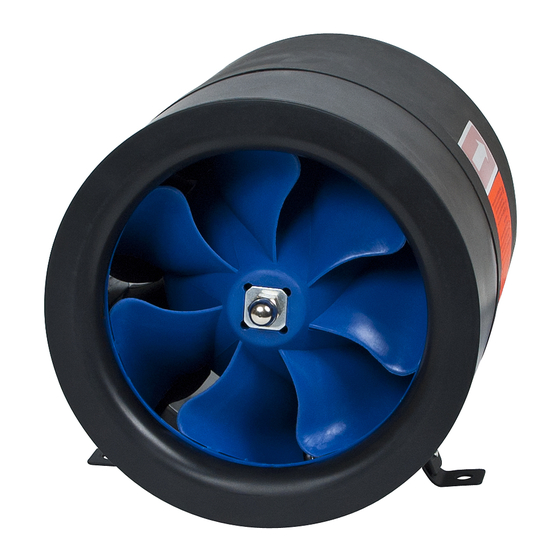

About Your DuraBreeze Inline PRO Fan
• Durable housing
• Mixed flow fan design
• Highly efficient performance
• Thermally protected motor
DFP606
Air Flow: 390 CFM
Wattage: 55
Amperage: 0.5
Voltage: 120
Weight: 6.6 lbs
DFP610
Air Flow: 1096 CFM
Wattage: 228
Amperage: 1.9
Voltage: 120
Weight: 14.3 lbs
Warning
To prevent serious personal injury and damage to equipment or other property, please observe
the following:
• DuraBreeze Inline PRO Fans are to be used only in accordance with manufacturer specifications.
• Never expose your DuraBreeze Inline PRO Fan to temperatures above 131ºF (55ºC) or relative
humidity greater than 70%
• Always disconnect unit from power source prior to service and cleaning.
• DuraBreeze Inline PRO Fans are for general ventilation purposes only. Do not use to exhaust
hazardous or flammable gases.
• If you are unfamiliar with this type of application, please consult a licensed professional for
technical assistance.
Installation and Use
1. Prior to power source connection, spin the blade to ensure it is free of obstruction and
does not catch on or scrape against the fan housing.
2. Identify an easily accessible location for installation of the Dura-Fan Pro. You may need to
remove a portion of the existing ducting to position the Dura-Fan Pro in place.
3. The Dura-Fan Pro may be securely mounted using screws (available separately) inserted
through the holes in the mounting brackets.
4. Secure the open duct ends to the Dura-Fan Pro using duct clamps (sold separately).
5. Ensure the power source is the correct voltage to avoid damaging the fan motor. Plug the
Dura-Fan Pro into a properly grounded 120V outlet only.
Note: To keep the unit operating at optimal performance levels, regularly disconnect it from the
power source and inspect the impeller for obstructions. Wipe away any dirt or debris using a damp
cloth.
Thank you for choosing to grow with DuraBreeze!
Your satisfaction and success are important to
us. For best results, carefully read the following
instructions before using your
DuraBreeze Inline PRO Fan.
• Mounting bracket included
• Pre-wired 120V power cord
• Five-year warranty
DFP608
Air Flow: 667 CFM
Wattage: 179
Amperage: 1.5
Voltage: 120
Weight: 9.3 lbs
DFP612
Air Flow: 1708 CFM
Wattage: 489
Amperage: 4.1
Voltage: 120
Weight: 25.4 lbs
Rev: 102013
Advertisement
Table of Contents
Related Manuals for DuraBreeze Inline Pro Fan
Summary of Contents for DuraBreeze Inline Pro Fan
- Page 1 • DuraBreeze Inline PRO Fans are to be used only in accordance with manufacturer specifications. • Never expose your DuraBreeze Inline PRO Fan to temperatures above 131ºF (55ºC) or relative humidity greater than 70% • Always disconnect unit from power source prior to service and cleaning.
- Page 2 DuraBreeze 1-Year Limited Warranty Sunleaves Garden Products warrants this DuraBreeze Inline Pro Fan to the original purchaser to be free of defective materials and workmanship under normal use and service for 1 year from the original date of purchase. Sunleaves Garden Products, at its option, will repair or replace components of this product if they are found to be defective in material or workmanship within the warranty period.
