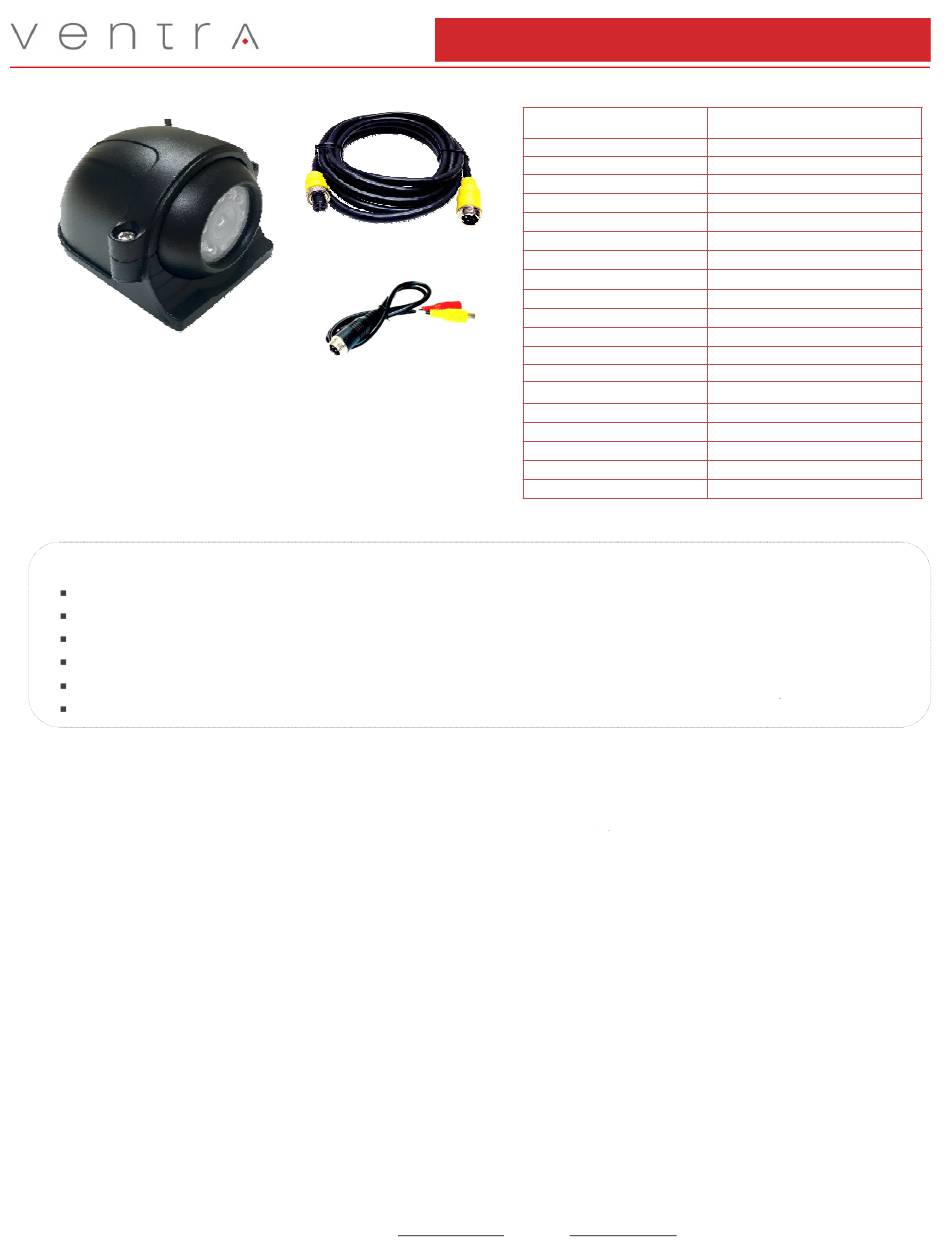

VENTRA RVC -1XC433 Quick Start Manual

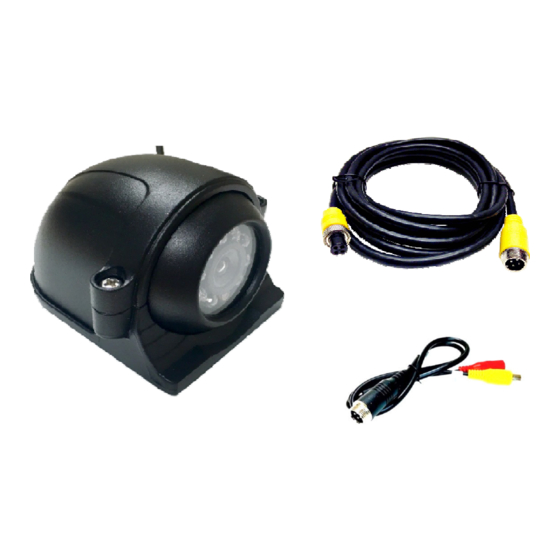

Parts included:

• EX4-XC4 Outdoor Color Camera w/ IR x 1
• EX4-CBL33 60ft 4 pin DIN cable x 1
• RVC-PIG DIN to RCA / Power Cable x 1

Warning:

Install equipment only when vehicle is safely parked, leveled and power Off
View and access the monitor only when safe to do so
Review surrounding before operating / moving vehicle
Observe all electrical safety guideline and polarity to avoid injury
Please consult with Vehicle Manufacturer for warranty and settings prior to installation
Ventra is not responsible for any warranty pertaining to the vehicle
InstallationGuide
1. Determine the location and mounting position of the camera prior to installation
2. Test the viewing angle by powering both the camera and monitor before permanently securing the camera
3. Once location is determined, securely affix mounting bracket of the camera to the vehicle
4. Connect the EX4-XC camera to EX4-CBL 4 pin DIN cable. Ensure the cable is securely connected (see diagram below)
5. Connect the EX4-CBL cable to RVC-PIG DIN to RCA / Power cable
6. RVC-PIG:
- 2 power pigtail wire (
or vehicle fuse)
- DC power plug to EX4-XC camera
- RCA connection to monitor via RCA cable
7. Secure RCA cable connection by applying heat shrink tube or electrical tape
8. Connect the RCA cable into the LCD screen
Ventra Technology Inc.
Red Black
= 12V Positive,
Covina, CA.USA www.ventrainc.com
RVC -1XC433 Rear View Camera Kit

Specification

Camera
Chipset
Camera Lens
Resolution
Camera Angle
Camera Rating
IR LED
Illumination
S/N ration
Electronic Shutter
Auto Gain Control
Back Light Compensation
White Balance
TV System
Camera Power
Humidity
Temperature Range – Operating
Cable
Environment
Pin
= Ground) to a power source (i.e. tail light, reverse light, turn signal
info@ventrainc.com
:
1/3" CMOS
2.8mm
650 TVL
120 degrees (D) / 90 degrees (H)
IP66 Outdoor Rated
9 LED
0 Lux – IR on
>45db
1/60 ~ 100,000
Auto
Auto
Auto
NTSC
DC 12V ~ 24V 125mA
<90%
-4F ~ 150F ( -20C ~ +65C)
Indoor
4 Pins (Video, Audio and Power)
Tel: 888 4183833
V. 07 18
