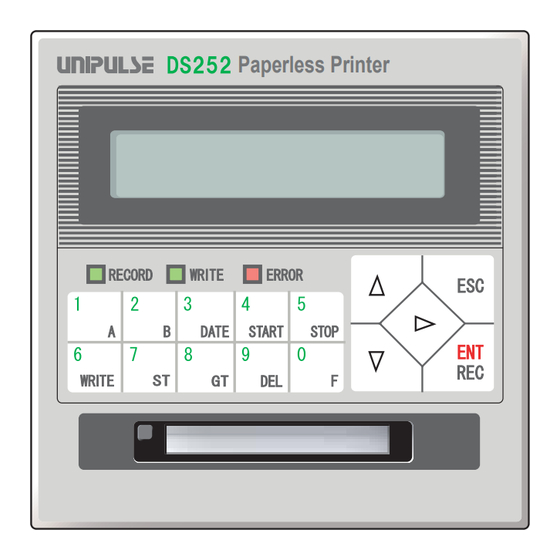

Page 1 DS252 PAPERLESS PRINTER Paperless Printer OPERATION MANUAL Rev. 1.03...
Page 2 BE SURE TO READ BEFORE USE Introduction Thank you very much for purchasing our paperless printer DS252. This product, as is connected to our loadcell indicators or digital indicators through the SI/F (two-wire serial interface), records indicated values etc. on a CF card. External equipment data other than our indicators can also be recorded with optional BCD input or RS-232C interface.
Page 3 Safety Precautions Be sure to read for safety. In order to have an DS252 Paperless Printer used safely, notes I would like you to surely follow the documents indicated separately on WARNING CAUTION Notes indicated here are the serious contents related safety. Please use after understanding the contents well.
Page 4 WARNING Warning on design ● For the entire system to function safely when the DS252 becomes faulty or malfunctions, provide a safety circuit outside the DS252. Warning on installation ● Do not modify the DS252. Doing so may cause fire or electric shocks.
Page 5 CAUTION Caution on installation ● Do not install in the following environments. - Places exposed to direct sunlight - Where the temperature/humidity exceeds the range of the specifications. - Places containing large quantities of salt or iron powder. - Where the main body is directly affected by vibrations or shocks. ●...
Page 6 Features of the DS252 ■ Recording of weighing data as electronic data Since weighing data is recorded on a CF card in CSV format, the data can be retrieved by commercially available spreadsheet software, so that it can be easily processed by a PC.
Page 7 Appendix ..Specifications and after-sales service of the DS252 are explained. Explanatory marks in this manual Attention or limitation for proper functioning of the DS252. Be sure to read this Note to prevent incorrect operation. Useful or referential information using the DS252. Recommendable in to read.
Page 8: Table Of Contents
2-5-3. What is recorded when there is no valid data at record-every time ... 16 3. Basic operation of the DS252 ....... 17 3-1.
Page 9 CONTENTS 3-4. Various settings ..........27 3-4-1.
Page 10 CONTENTS 4-2-2. Explanation of each process ........59 60：CF Card Remaining Check .
Page 11 Product specifications of the DS252 ........
Page 12: Before Turning On The Power
Before turning on the power Explanation of the appearance of the DS252 ■ Part names and functions ■ Front panel keys ■ Rear panel input terminal block ■ Power cord attachment ■ Insertion and ejection of a CF card...
Page 13: Part Names And Functions
Lights under abnormal conditions such that no CF card is inserted at the time of writing on a CF card. ③ Front panel keys Press them for operating and setting the DS252. ④ CF card slot Slot to insert a CF card for recording.
Page 14 (13) (14) SI/F Bch Input terminal for SI/F (Bch). (No polarity.) ③ Option space Install an option for functional extension of the DS252. Either BCD input or RS-232C can be installed. ④ Frame ground (F.G.) Grounding terminal. Be sure to ground to prevent electrostatic hazards etc.
Page 15: Front Panel Keys
1 Before turning on the power 1-2.Front panel keys Although the key functions differ according to conditions, their basic functions, meanings and designations are briefly explained here. ① ② ③ ④ ⑤ ⑪ ⑬ ⑭ ⑥ ⑦ ⑧ ⑨ ⑩ ⑫ ⑮...
Page 16 1 Before turning on the power Designations and functions of keys Key (designation) Description ⑩ To go into setting mode and to input characters. (Function) ⑪ (Up arrow) To select setting items backward. ⑫ (Down arrow) To select setting items forward. To select setting items and to move the cursor.
Page 17: Rear Panel Input Terminal Block
The signal is input in the circuit by short-circuiting and opening between each input terminal and COM terminal. Short-circuiting is performed by a contact (relay, switch, etc.) or non-contact (transistor, open collector output, etc.) DS252 ← Inside Outside → Opening...
Page 18: Power Cord Attachment
Connect + (plus) and - (minus) of the power supply to the red screw side and black screw side of the terminal block on the rear of the DS252 respectively. The input voltage is 24V DC ± 15%. DC IN F.G.
Page 19: Insertion And Ejection Of A Cf Card
1 Before turning on the power 1-5.Insertion and ejection of a CF card [Insertion] Insert a CF card as far as it will go paying attention to its orientation. The lug side should face downward. Pull out the eject button and fold it to the left side. [Ejection] Put back the folded eject button, push the eject button and eject the CF card.
Page 20: Connection With Indicators
Connection with indicators ■ SI/F two-wire serial interface ■ SI/F connection ■ Recording ■ About input channels ■ Recorded data input channels and beep sound...
Page 21: F Two-Wire Serial Interface
* In this manual, the automatic print command of the SI/F is expressed as the automatic recording command. 2-1-2. About the SI/F of the DS252 Two channels of SI/F (Ach and Bch) are equipped on the DS252. Pins 6-7 and 13-14 on the rear terminal block correspond to Ach and Bch respectively.
Page 22: F Connection
2 Connection with an indicator 2-2.SI/F connection Two channels of SI/F are equipped on the DS252. For connection, use parallel two-core or cabtyre cables. The SI/F is nonpolar. 1. Strip the covering of the wire to be connected 5 to 6mm.
Page 23 2 Connection with an indicator 2-3.Recording The DS252 performs recording when any of the following conditions are satisfied. 1. When the key is pressed (*) 2. When No. 2 [RECORD] and No. 1 [COM] on the terminal block are short-circuited (Ach) (*) When No.
Page 24 2 Connection with an indicator 3. Press the key. (Recorded in the internal memory) The recorded count is increased. S I A 0 0 0 0 1 The RECORD lamp is lighted. 2 0 . 5 k g The RECORD lamp is lighted and the recorded count is increased each time the key is pressed.
Page 25: Recording
2 Connection with an indicator 2-4.About input channels The DS252 has two data input channels. To use both channels at the same time, select [06: BOTH (both record), [07: BOTH+DATE (both record with date/time)], or [08: BOTH FULL (both record with date/ time and code)] under "07: Record Every Format"...
Page 26 2 Connection with an indicator Without × × ① × SI/F Ach SI/F Bch × ② × ② SI/F Ach + Bch × ② ① ② With OP SI/F Ach × × ① × × ② × ② SI/F Bch × ②...
Page 27: Recorded Data Input Channels And Beep Sound
2 Connection with an indicator 2-5.Recorded data input channels and beep sound 2-5-1. In case of individual record In case that the setting of input channels is individual record (the setting of "07: Record Every Format" is other than [both record]), if recording is performed with no recorded data input from Ach, Bch and the optional interface, the beep (buzzer) sounds and an error is recorded.
Page 28: Basic Operation Of The Ds252
Basic operation of the DS252 Explanation of each setting ■ Screen configuration ■ Input value display ■ Records ■ Various settings...
Page 29: Screen Configuration
3 Basic operation of the DS252 3-1.Screen configuration The DS252 includes screens on which input (indicated values) from the SI/F or option is displayed and screens on which setting values can be confirmed and changed. [Input value display] I A S U G A R 0 0 0 0 0 1 0 0 .
Page 30 3 Basic operation of the DS252 (1) SI/F Ach data display The data received on SI/F Ach is displayed on the S I A S U G A R 0 0 0 0 0 second line. 1 0 0 . 0 0 k g The code (if registered) is displayed on the first line.
Page 31: Contents Of Display
3 Basic operation of the DS252 3-2-2. Contents of display (1), (2) Each channel data display ① Input ch ② Code ③ Recorded count S I A S U GA R 0 0 0 00 10 0 .0 0 k g ④...
Page 32 3 Basic operation of the DS252 (4) Simultaneous display of Ach and Bch ① Input ch A ② Code Ach ③ Input data A SU G AR 10 0 . 00 B SA L T 7 5 . 03 ④...
Page 33: Confirmation Of Recorded Data
3 Basic operation of the DS252 (7) Backup battery error display L O W B A TT E R Y E R R OR It is necessary to replace the built-in battery for data backup. Contact our sales department. 3-2-3. Confirmation of recorded data Up to 1000 pieces of recently recorded data can be confirmed.
Page 34: Records
CF card by GT and file write operation. 3-3-1. Recording of input values The DS252 saves the values input from the SI/F and optional interface once in the internal memory. Therefore, it is not necessary to insert a CF card in the main body.
Page 35: Recording Of Sub Totals
For the setting of recording format, see "07: Record Every Format" (page 35). 3-3-3. Recording of sub totals The DS252 can record the sub totals of data saved in "3-3-1.Recording of input values" (page23) as middle sub totals and section sub totals.
Page 36: Batch Total
3 Basic operation of the DS252 3-3-4. Batch total The DS252 can count measurements of two or more codes as one batch and record the data by each batch. To record batch totals, set "20 : Batch Total ON/OFF" (page 44) to ON and input a signal to the Bch [WRITE] terminal on the rear panel.
Page 37: Writing On A Cf Card
3 Basic operation of the DS252 3-3-5. Writing on a CF card Writing on a CF card is performed by any of the following operations. The file is named as operation day/hour/minute/second.CSV. ・ Pressing the → key on the front panel of the main body ・...
Page 38: Various Settings
3 Basic operation of the DS252 3-4.Various settings For the DS252, select each setting item, in which you can input or select a desired value. Set necessary setting items from the following list of setting items. List of setting items Setting item...
Page 39 3 Basic operation of the DS252 Setting item Details of setting Page ± 0 to 99999 (initial value : +00000.) Target Value for Statistical Data Bch (TARGET VALUE) Target Range for Statistical Data Bch 5 to 99999 (initial value : 99999.) (TARGET RANGE) 00 : σ...
Page 40 3 Basic operation of the DS252 List of option setting items Setting item Details of setting Page BCD Input Monitor (BCD INPUT) BCD Decimal Point Position 00 : *.**** (DECIMAL POINT) 01 : **.*** 02 : ***.** 03 : ****.* 04 : ***** (initial value)
Page 41 3 Basic operation of the DS252 List of CF card setting items Setting item Details of setting Page CF Card Remaining Check (CARD LIST) Loading of Code Table Ach (CODE A LOAD) Loading of Code Table Bch (CODE B LOAD) Saving of Code Table Ach (CODE A SAVE)
Page 42: Basic Setting Operation
3 Basic operation of the DS252 3-4-1. Basic setting operation The following shows basic operational procedures for actual setting the DS252. ① Input value display I A S U G A R 0 0 0 0 0 1 0 0 . 0 0 k g ②...
Page 43 3 Basic operation of the DS252 By inputting a setting No. on ② Setting value display, you can go directly to ④ Detailed setting display. → → key on the screen of ② . In this example, press the Setting Nos. correspond to the leftmost numbers on the "List of setting items" (page 27).
Page 44: Explanation Of Each Setting
The details of each setting are explained below. To go to each setting screen, see "3-4-1.Basic setting operation" (page31). 01 : Date/Time Change the date and time. The date and time of the DS252 are factory-adjusted. Setting name 01 : Date/Time (DATE/TIME) Display 0 1 : D A T E / T I M E ...
Page 45: 04, 05: Unit Selection Ach, Bch
Loadcell indicator ..From the loadcell indicator connected through the SI/F, indicated value/ net weight/gross weight/tare weight data, etc. are sent at intervals of approx. 0.3 sec regardless of the value displayed each time. On the DS252 side, recorded data can be selected out of them so that recording can be performed even if the data is not displayed on the indicator.
Page 46: Record Every On/Off
3 Basic operation of the DS252 06 : Record Every ON/OFF Set whether or not to recorded data individually by recording operation. Setting name 06: Record Every ON/OFF (DATA RECORD) Selectable items 00 : OFF (invalid) 01 : ON (valid) (initial value) Display 0 6 : D A T A ...
Page 47 3 Basic operation of the DS252 About through recording To start through recording, set Record Every Format to THROUGH and then perform start operation. Through recording start operation 1. Set "07: Record Every Format" (page 35) to "09: THROUGH (through recording)".
Page 48 3 Basic operation of the DS252 5. To interrupt the through recording and refuse the data from the RS-232C, press the key on the input value display screen in Step 2 to enter the through recording stop confirmation screen. S I A S U G A R 0 0 0 0 0 T ...
Page 49: Automatic Record On/Off
3 Basic operation of the DS252 08 : Automatic Record ON/OFF An automatic recording command can be sent from the SI/F or RS-232C to the DS252 to perform automatic recording. Select whether this automatic recording is on or off. Setting name...
Page 50: 10: Interval Seconds
3 Basic operation of the DS252 Timing of interval record At the setting of START KEY Setting of Interval Seconds: 5 sec Start Stop 5 sec 5 sec 5 sec 5 sec nth time 1st time 2nd time 3rd time 4th time...
Page 51: Type Of Sub Totals
3 Basic operation of the DS252 12 : Type of Sub Totals Select the type of sub totals. There are two types of sub totals: middle sub totals and section sub totals. Setting name 12 : Type of Sub Totals (ST MODE)
Page 52: Target Value For Statistical Data Ach, Bch
3 Basic operation of the DS252 13, 15 : Target Value for Statistical Data Ach, Bch 14, 16 : Target Range for Statistical Data Ach, Bch Set the target value and range, a width from the target value, required for calculating statistical data.
Page 53: Standard Deviation
3 Basic operation of the DS252 17 : Standard Deviation Select a calculating formula the standard deviation. There are two types of calculating formula. Setting name 17 : Standard Deviation (STD MODE) Selectable items 00 : σ (initial value) 01 : σ...
Page 54: Data Adding On/Off
3 Basic operation of the DS252 18 : Data Adding ON/OFF Select whether or not the recorded data is targeted at grand totals/sub totals. Setting name 18 : Data Adding ON/OFF (DATA ADDING) Selectable items 00 : OFF (data not added)
Page 55: Batch Total On/Off
3 Basic operation of the DS252 20 : Batch Total ON/OFF Set whether or not to record batch totals. Setting name 20 : Batch Total ON/OFF (BATCH TOTAL) Selectable items 00 : OFF (invalid) (initial value) 01 : ON (valid) Display 2 0 : B A T C H ...
Page 56: Code Selection
3 Basic operation of the DS252 22 : Code Selection Select the method of code selection. Setting name 22 : Code Selection (CODE SOURCE) Selectable items 00 : KEY (initial value) (Ach: Keyboard, Bch: Keyboard) 01 : OPTION (Ach: Option, Bch: Keyboard)
Page 57: Registration Of Code Table Ach, Bch
3 Basic operation of the DS252 Example) Setting of the number of code digits: 2 digits ０００００１ ① ０００１０１ ① ０００１０２ ② Sorting for calculations ０００２０１ ① １００１０２ ② This part is recorded but is not...
Page 58: Code Sorting Type
3 Basic operation of the DS252 26 : Code Sorting Type Select the method of sorting codes. Setting name 26 : Code Sorting Type (SORT TYPE) Selectable items 00 : NAME (code name) (initial value) 01 : TABLE No. (code table number) Display 2 6 : S O R T ...
Page 59: File Overwriting Mode Setting
3 Basic operation of the DS252 28 : File Overwriting Mode Setting Set the operation to be performed when a CF card is full of data. Setting name 28 : File Overwriting Mode Setting (OVERWRITE) Selectable items 00 : OFF (not overwritten) (initial value)
Page 60: Option Table Ch
3 Basic operation of the DS252 30 : Option Table Ch Select the operation of setting codes by option. Setting name 30 : Option Table Ch (OPTION TABLE) Selectable items 00 : ChA (initial value) 01 : ChA+ChB Display 3 0 : O P T I O N T A B L E ...
Page 61: Both Recording Mode Setting
3 Basic operation of the DS252 33 : Both Recording Mode Setting Select the channel accepting a recording command in both recording mode. Setting name 33 : Both Recording Mode Setting (BOTH MODE) Selectable items 00 : ChA (initial value) 01 : ChB Display 3 3 : B O T H ...
Page 62: Advanced Use
Advanced use Various functions of the DS252 ■ Sorting by code and code table ■ CF card ■ Maintenance mode ■ Over records ■ Deletion records ■ Date/time records ■ Initialization...
Page 63: Sorting By Code And Code Table
4 Advanced use 4-1.Sorting by code and code table The DS252 can calculate sub totals and grand totals etc. on each code that can be assigned to each piece of recorded data. Up to 32 codes can be registered on each channel.
Page 64: Code Registration With The Front Panel Keys
・In case of deleting one character, press the key. The following shows basic operational procedures for actually setting the DS252. Then, "BUTTER" will be registered as a code on Ach for example. 1. Press the key and the following is displayed to start code input.
Page 65: Code Tables- Difference From Codes
4 Advanced use 3. Upon completion of registration, the input value display screen is restored. S I A B U T T E 0 0 0 0 0 1 0 0 . 0 0 k g 4-1-2. Code tables- difference from codes- If you have registered code names corresponding to two-digit numbers (code table numbers) between 00 and 99 (ditto for Bch) in advance, you can call the registered codes by specifying each code table number for recording without the need to input a code name each time you change the weighing target.
Page 66: Code Table Registration
The following shows basic operational procedures for actually setting the DS252. Then, "01" and "SUGAR" will be registered as a code table number and code respectively on Ach for example.
Page 67: How To Call A Code/Code Table
4 Advanced use 4-1-4. How to call a code/code table To call a code, input the code name and to call a code table, input the code table number. Depending on the interface, there are some restrictions in calling such a code/code table. Under "22 : Code Selection"...
Page 68: Cf Card
4 Advanced use 4-2.CF card For the DS252, a CF card is adopted as a recording medium. It not only can record the data but also can save and call the setting values and codes. 4-2-1. How to operate a CF card Operate the CF card by selecting CARD on the setting value display.
Page 69 4 Advanced use ⑥ Executing 6 7 : C A R D F O R M A T F O R M A T T I N G . . . ⑦ Execution completed 6 7 : C A R D F O R M A T D O N E ⑧...
Page 70: Explanation Of Each Process
4 Advanced use 4-2-2. Explanation of each process 60：CF Card Remaining Check Check the remaining volume of a CF card. Setting name 60：CF Card Remaining Check (CARD LIST) Display 6 0 : C A R D L I S T ...
Page 71: Loading Of Code Table (Ach, Bch)
・For the file contents, see the "Code table files" (page 66). Precautions By performing this operation, the code tables currently set to the DS252 are overwritten. Perform the processing after confirming the setting files.
Page 72: Saving Of Code Table (Ach, Bch)
・For the file contents, see the "Setting file" (page 64). Precautions By performing this operation, the values currently set to the DS252 are overwritten. Perform the processing after confirming the setting file.
Page 73: 66：Saving Of Setting Value
4 Advanced use 66：Saving of Setting Value Save the currently setting values on a CF card. Setting name 66：Saving of Setting Value (SETTING SAVE) Display 6 6 : S E T T I N G S A V E ...
Page 74: About The Error Display
4 Advanced use 4-2-3. About the error display If any error that no CF card is set in the main body occurs, the error is displayed on the lower line of the display. Since the error is numerically described, check the following together. No CF card is set in the main body.
Page 75: Setting File
4-2-4. Setting file With the DS252, each setting can be saved on a CF card or loaded out of it to the main body. Since the file contents are saved in text format, they can be confirmed on a PC etc.
Page 76 4 Advanced use Setting Setting Reference comment Description item value RECORD KEY Record Key ON/OFF 19， 1， BATCH TOTAL MODE Batch Total ON/OFF 20， 0， CODE SOURCE 22， 0， Code Selection CODE DIGIT Number of Code Digits 23， 0， SORT TYPE Code Sorting Type 26，...
Page 77: Code Table Files
4-2-5. Code table files With the DS252, code tables (Ach, Bch) can be saved on a CF card or loaded out of it to the main body. Since the file contents are saved in text format, they can be confirmed on a PC etc.
Page 78: Maintenance Mode
4 Advanced use 4-3.Maintenance mode In the maintenance mode, check the functioning etc. of the DS252. 4-3-1. How to operate the maintenance mode Operate the maintenance mode by selecting MAINTENANCE on the setting value display. ① Input value display I A S U G A R 0 0 0 0 0 1 0 0 .
Page 79: Explanation Of Each Setting/Operation
・By the self tests, the internal memory is checked. If the self test result is [ × ] or the tests do not end normally, the DS252 is considered to be faulty. Ask your distributor or our company for repair.
Page 80: 72：Beep Sound On/Off
4 Advanced use 72：Beep Sound ON/OFF Set whether or not to allow the beep to sound during key operation and when an error occurs etc. Setting name 72：Beep Sound ON/OFF (BEEP SOUND) Display 00：OFF (sound inaudible) 01：ON (sound audible) (initial value) Reference 7 2 : B E E P ...
Page 81: 75：Key Input Timeout Setting
4 Advanced use 75：Key Input Timeout Setting Set the key input waiting time. Setting name 75：Key Input Timeout Setting (KEY TIMEOUT) Setting range 0000 to 9999 sec (The initial value is 0030.) Display 7 5 : K E Y T I M E O U T 0 0 0 5 ...
Page 82: 78：Test Mode
The test mode is an item prepared for shipping checks. Do not use this mode. (It is locked by a password.) 4-4.Over records By this function, recorded data outside the range set by the indicator in connection or the DS252 is identified as over status (R) and range over (U/L). Over status (R) If LOAD (A/D converter input over), OFL1 (net weight >...
Page 83: Range Over (U/L)
4 Advanced use 4-4-1. Range over (U/L) If the limits set by Target Value Ach (Bch) and Target Range Ach (Bch) are exceeded, the following are additionally recorded in the STATE column: "U" for upper limit over and "L" for lower limit over. (Example) When Target Value is set at 100,and Range at 20 Lower Target...
Page 84: Date/Time Records
1 0 / 1 8 1 2 : 0 0 : 0 0 4-7.Initialization All the internal memory of the DS252 is cleared and the setting values are rewritten and return to factory defaults. 1. Turn on the power while pressing the key and key at the same time.
Page 85 4 Advanced use MEMO...
Page 86: Options
Options BCD input and RS-232C interface ■ BCD input ■ BCD input settings ■ RS-232C interface ■ RS-232C settings...
Page 87: Bcd Input
5 Options 5-1.BCD input The BCD input is the interface to integrate BCD data and codes in the DS252. Adaptable connector DDK-manufactured 57-30500 or equivalent Data that can be Recorded data, codes (numerical characters, space, hyphen) input Input equipment Digital switch, DIP switch, BCD output equipment etc.
Page 88 5 Options BCD data input coding Binary Hexadecimal Record Character 0000 1001 1010 Space 1011 Space 1100 Space ‐ (hyphen) 1101 1110 Space 1111 Space Note ■ For inputting codes from the BCD input, select 1 or 3 under the setting item "22 : Code Selection" (page45).
Page 89 The signal input circuit inputs a signal by short-circuiting and opening between each input terminal and COM terminal. Short-circuiting is performed by a contact (relay, switch, etc.) or non-contact (transistor, open collector output, etc.) DS252 ← Inside Outside → Logic...
Page 90 5 Options Strobe input Valid data Valid data Data MAX． 5ms MAX． 5ms MIN． 15ms MIN． 15ms MIN． 10ms MIN． 10ms MAX． 900ms Less than Less than Approx. Approx. 100ms 100ms 1 sec 1 sec or more or more Strobe input (Here, positive logic Sampling Sampling...
Page 91: Bcd Input Settings
5-2.BCD input settings Set the BCD input by selecting BCD on the setting value display. The BCD input cannot be set if no BCD option is connected to the DS252. 5-2-1. Basic operation of the BCD input The following shows basic operational procedures for actually setting the BCD input.
Page 92 5 Options ⑥ Detailed setting selection 4 1 : B C D 0 4 : * * * * * ? The setting value is changed by the key. Select a setting value. If numerical input is required, set with the ⑦...
Page 93: Explanation Of Each Setting
5 Options 5-2-2. Explanation of each setting 40：BCD Input Monitor Display the BCD input in hexadecimals. Setting name 40：BCD Input Monitor (BCD INPUT) Display 4 0 : B C D I N P U T 0 - 1 2 3 4 5 6 - A B C D E Reference The first digit of the second line displays over input and minus input.
Page 94: 42：Bcd Data Logic
5 Options 42：BCD Data Logic 43：BCD Minus Sign Logic 44：BCD Over Logic 45：BCD Strobe Logic Select the BCD input logic. Setting name 42：BCD Data Logic (DATA LOGIC) 43：BCD Minus Sign Logic (SIGN LOGIC) 44：BCD Over Logic (OVER LOGIC) 45：BCD Strobe Logic (STROBE LOGIC) Selectable items 00：NEGATIVE (negative logic) (initial value (all of the above items)) 01：POSITIVE (positive logic)
Page 95: Rs-232C Interface
5 Options 5-3.RS-232C interface The RS-232C interface is the interface to integrate RS-232C-spec data, codes and command signals in the DS252. Signal level RS-232C-compliant Transmission distance Approx. 15m Transmission mode Start-stop, full-duplex communication Transmission speed Selectable from 1200, 2400, 4800, 9600, 19200 and 38400bps...
Page 96: Rs-232C Settings
5 Options 5-4.RS-232C settings Set the RS-232C interface by selecting RS-232C on the setting value display. 5-4-1. Basic operation of the RS-232C interface The following shows basic operational procedures for actually setting the RS-232C. ① Input value display I A S U G A R 0 0 0 0 0 1 0 0 .
Page 97 5 Options ⑥ Detailed setting selection 4 7 : R S 2 3 2 C P A R I T Y The setting value is changed by the 0 1 : O D D ? / ...
Page 98: Explanation Of Each Setting
0 2 : 8 B I T 1 S T O P Precautions ・Make the setting identical to that of the target equipment. ・When recording codes in katakana, set the RS-232C data bit of the DS252 and PC to 8 bits. Katakana cannot be sent if the setting is 7 bits.
Page 99: 49：Rs-232C Terminator
Make the setting identical to that of the target equipment. 50：RS-232C Answer Mode Upon receipt of data and commands from the RS-232C interface, the DS252 answers return to the host computer about the received data and commands. Select this answer format.
Page 100: Communication Format
5 Options 5-4-3. Communication format The DS252 receives all data from the RS-232C interface as ASCII character strings. For the data and command formats, see below. Data (automatic record off) F A 0 ± 9 9 9 . 9 9 CR LF...
Page 101 5 Options Previous data deletion F B 0 CR LF Grand total recording F B 1 CR LF Sub total recording F B 2 CR LF Data recording F B 3 CR LF (Latest data recording) Batch total recording F B 4 CR LF Note ■...
Page 102: Recorded Data
Recorded data ■ Recorded data amount ■ Data format ■ CF card ■ Recorded data examples...
Page 103: Recorded Data Amount
6 Record data The DS252 saves the data from the SI/F (Ach, Bch), BCD (option) or RS-232C (option) once in the internal memory by REC operation. After that, it is to be written on the CF card by WRITE or GT operation.
Page 104: Data Format
6 Record data 6-2.Data format Data is recorded in CSV text format. Data is recorded as set under Record Every Format. 6-2-1. Data labels On the first line of data, the following recorded data labels are recorded. DATE,TIME,CODE,COUNT,CH-A DATA,UNIT,STATE,CODE,COUNT,CH-B DATA,UNIT,STATE, CH,CODE,COUNT,TOTAL,UNIT,STD,AVE,MIN,MAX,MAX-MIN,ERROR,OVER,LOWER,UPPER Meaning of each label DATE Date of record...
Page 105: Recording Of Input Data
6 Record data 6-2-2. Recording of input data Input data is recorded in the internal memory by any of the following operations. ・ Pressing the key on the front panel of the main body ・ Short-circuiting the [REC] terminal and [COM] terminal on the rear panel of the main body ・...
Page 106: Recording Of St (Sub Total) / Gt (Grand Total)
6 Record data 6-2-3. Recording of ST (sub total) / GT (grand total) The sum of data having been recorded by ST/GT operation and statistical data are recorded by code (*). (*) Sorting depends on "26 : Code Sorting Type"(page47), "23 : Number of Code Digits"(page45) and "22 : Code Selection"(page45).
Page 107 When GT (grand total) operation is performed, it is attempt to write the data on a CF card. Perform GT operation with a CF card inserted in the DS252. By performing GT operation, the previous data is cleared.
Page 108: Cf Card
6 Record data 6-3.CF card The data having been recorded in the internal memory is written on a CF card. There are two ways of writing: WRITE operation and GT operation By WRITE operation, the data in the internal memory is written as it is. By GT operation, the data in the internal memory and statistical data are written on a CF card and the previous data is cleared.
Page 109: File Name
6 Record data 6-3-3. File name A file recorded on a CF card is named as WRITE operation day (D)/hour (h)/minute (m)/second (s).extension (CSV). Example) If WRITE operation is performed at 14:30:45 on the second day, Recorded file is named: 02143045.CSV When a file is created, if the same file name already exists on the CF card, the extension will be changed as "001,"...
Page 110 6 Record data Sub total (ST) data by each channel code and of all Grand total (GT) data by each channel code and of all Recording example 2 When the setting of Both Recording Mode is BOTH FULL File name (DDhhmmss.CSV) Data labels Simultaneous recording on Ach and Bch...
Page 111 6 Record data Recording example 3 Recording of data conditions Upper limit over Lower limit over Over status + upper limit over Deleted Input data error Data not added Error input ON Conditions are expressed in the STATE column. Nothing is described under normal conditions. Recording example 4 Batch total recording Batch totals are recorded by short-circuiting terminal No.
Page 112: Troubleshooting
Troubleshooting ■ Classification of trouble ■ The DS252 does not operate normally. ■ The DS252 does not function normally. ■ Others...
Page 113: Classification Of Trouble
7-1.Classification of trouble Find your trouble out of the following and take the remedy(ies) given on the reference page. After that, if the recording is still incorrect, check the ROM version of the DS252 body ("70：Version Display"(page68) and then contact our company.
Page 114: The Ds252 Does Not Operate Normally
Check that the equipment sending data to the DS252 (indicator sending SI/F signals, Remedy 2 PC sending RS-232C signals, etc.) is in normal operation. In case of connection by the BCD input, check that the logics of the DS252 and target Remedy 3 equipment are in agreement.
Page 115: Recording Is Not Performed By Pressing The Key
The SI/F signals from the loadcell indicator include indicated values and various kinds Cause 1 of weight data regardless of the value displayed on the indicator each time. Select the data to be recorded by the DS252. Set it referring to "02, 03: Recorded Data Remedy 1 Selection Ach, Bch"(page33).
Page 116: The Ds252 Does Not Function Normally
8 years. The time may become out of sync as the backup battery is exhausted. Trouble 2 Values of sub totals/grand totals are abnormal. The decimal point recorded by the DS252 depends on the decimal point on the Cause 1 indicator side. If the decimal point on the indicator side is changed during recording, sub totals/grand totals will not be calculated correctly.
Page 117: Others
7 Troubleshooting 7-4.Others Trouble 1 If you have recorded by mistake The previously recorded one piece of data can be deleted. For more details, see "4- Remedy 1 5.Deletion records" (page72).
Page 118: Appendix
Appendix ■ List of unit settings ■ Character input table ■ Introduction of options ■ Product specifications of the DS252 111 ■ External views...
Page 119: List Of Unit Settings
Appendix List of unit settings Unit Type Unit Type None Pressure Mass ㎏ mmHg Length kg/cm μm kN/m kN/cm Volume Mass flow kg/s kg/h Speed Flow rate km/h Acceleration Ｋ Temperature ℃ Frequency ％ Percentage Speed of Number of count revolution times Density...
Page 120: Character Input Table
Appendix Character input table ア * イ * ウ * エ * オ * カ * キ * ク * ケ * コ * サ * シ * ス * セ * ソ * タ * チ * ツ * ッ...
Page 121: Introduction Of Options
Appendix Introduction of options BCD input interface (option) Included connector (57-30500 (DDK-manufactured) or equivalent) RS-232C interface (option)
Page 122: Product Specifications Of The Ds252
BCD input interface Connector: DDK-manufactured 57-30500 or equivalent Option RS-232C interface Connector: D-Sub9pin General performance DC24V( ± 15％) (voltage between the terminals of the DS252) Power requirements Current consumption 150mA or less Inrush current 10A (800μsec) (reference) Temperature:Operating temperature range: 0 to 40 ℃...
Page 123: External Views
Appendix External views Unit: mm (Front view) (Side view) Panel-cut dimensions Panel thickness: 1.6 to 3.2mm (Rear view)

Unipulse DS252 Operation Manual

Before Turning on the Power

Connection with Indicators

Basic Operation of the DS252

Advanced Use

Options

Recorded Data

Troubleshooting

Appendix

Quick Links

Need help?

Questions and answers

Related Manuals for Unipulse DS252

Summary of Contents for Unipulse DS252

Table of Contents
