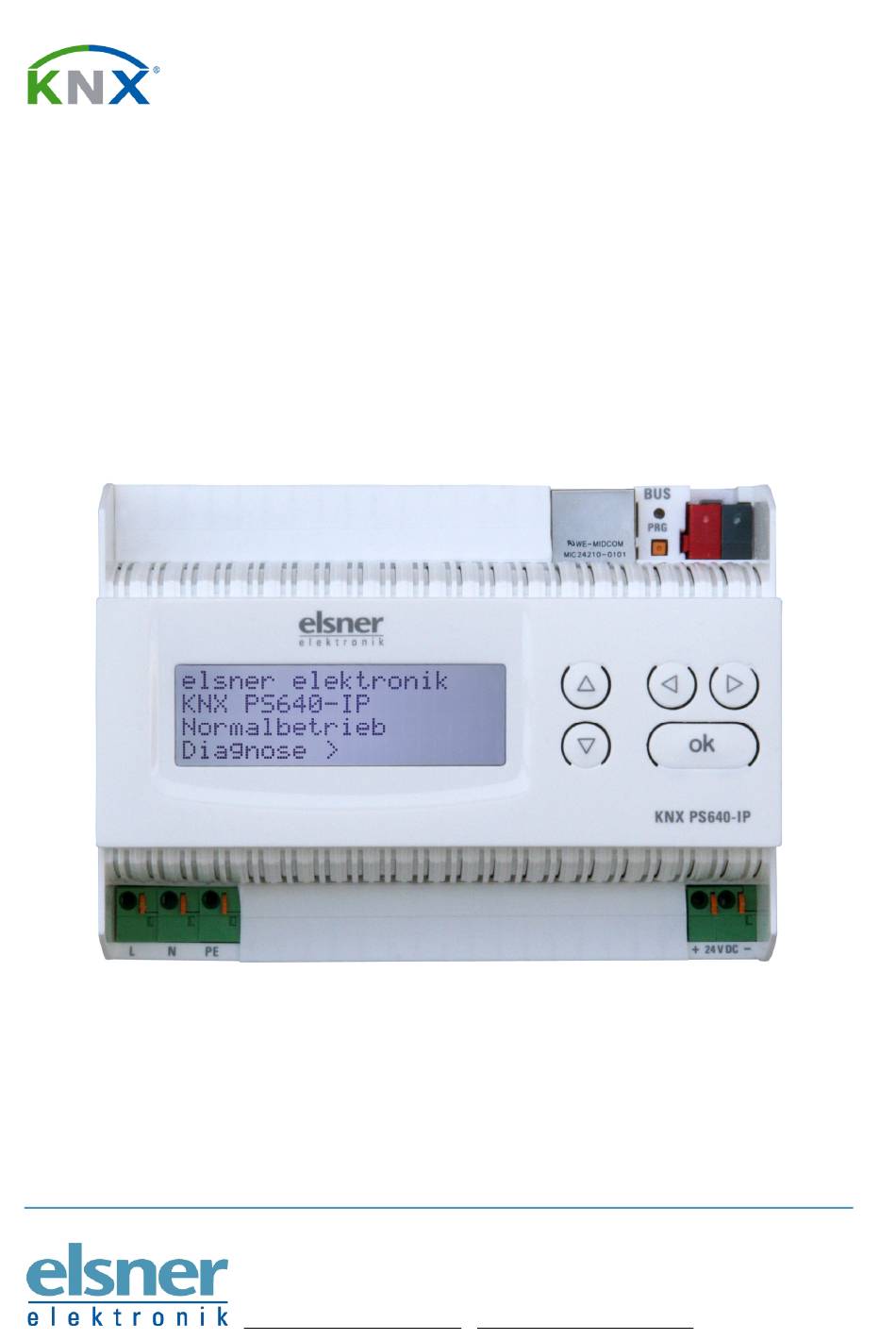

- Page 1 Power Supply System KNX PS640-IP with Ethernet Interface Installation and Adjustment Elsner Elektronik GmbH Steuerungs- und Automatisierungstechnik Herdweg 7 D-75391 Gechingen Germany Phone: +49 (0) 70 56/93 97-0 Fax: +49 (0) 70 56/93 97-20 info@elsner-elektronik.de www.elsner-elektronik.de...
-
Page 2: Table Of Contents
IP configuration ..........................14 Routing (KNX -> IP) ..........................16 Routing (IP -> KNX) ..........................17 ETS Connection Manager ................... 19 KNX PS640-IP from software version display 1.0, IP chip 1.1, ETS programme version 1.0 Version: 15.05.2013. Errors excepted. Subject to technical changes. -
Page 3: Product Description
Power supply with throttle, IP router and IP interface: The power supply unit of the KNX PS640-IP delivers a 29 V bus voltage for the KNX system and 24 V DC supply voltage for 24 V devices. Special operating conditions such as short circuit, electrical surge, overcharge or excess temperature are recorded and may be read off on the display. -
Page 4: Application
Application Coupler function (KNXnet/IP Routing) The Power Supply System KNX PS640-IP can operate as a line and/or backbone coupler. In both cases, the LAN (IP) acts as a backbone. KNX PS640-IP as a line coupler KNX PS640-IP as a backbone... - Page 5 1.0.0, there must be no KNX IP Router with the address 1.1.0. If the KNX PS640-IP is used as a line coupler (x.y.0), there must be no KNX IP Router in the topology above it. For example, if a KNX PS640-IP has the physical address of 1.1.0, there must be no KNX IP Router with the address 1.0.0.
-
Page 6: Technical Data
Technical data Housing: Plastic material Colour: White Mounting: Snap-on fitting on mounting rails Protection category: IP 20 Dimensions: approx. 123 x 89 x 61 (W x H x D, mm), 7 width units Weight: approx. 395 g Ambient temperature: Operation -5…+45 °C, Storage -25…+70°C Ambient air humidity: max. -
Page 7: Installation And Commissioning
The power supply system must only be operated as stationary system, i.e. only in a fitted state and after completion of all installation and start-up works, and only in the environment intended for this purpose. Elsner Elektronik does not assume any liability for changes in standards after publication of this instruction manual. Installation Observe the correct installation. - Page 8 Housing LAN connection (RJ45, for Ethernet patch cabel) Programming LED and programming button Bus connection (KNX terminal + / -) Input operating voltage 230 V AC, L / N / PE Output direct current voltage 24 V DC, + / - Connections 4 and 5 are suitable for solid conductors up to 1.5 mm²...
-
Page 9: Operation (Settings At The Device)
Operation (Settings at the Device) Starting position elsner elektronik KNX PS640-IP Normal Operation Diagnostics > The following may be read off and set on the display of the Power Supply System KNX PS640-IP: · Reset of a line · Recall of the data memory with operating hours, overcharge, external electrical surge, internal electrical surge, short circuit and excess temperature ·... -
Page 10: Data Memory
Data memory In starting position, press key once. elsner elektronik KNX PS640-IP Normal Operation Diagnostics > Move the cursor (flashing rectangle at right edge) to Line Reset > the “Data memory” menu with the keys Data Memory > ™ Operating Data >... -
Page 11: Operating Data
0 times! Operating data In starting position, press key once. elsner elektronik KNX PS640-IP Normal Operation Diagnostics > Move the cursor (flashing rectangle at right edge) to Line Reset > the “Operating Data” menu with the keys Data Memory >... - Page 12 Move the cursor (flashing rectangle at right edge) to Line Reset > the “Language” menu with the keys Data Memory > Operating Data > confirm with the key Language > ™ Move the cursor to the desired language with the up Sprache :Deutsch ™...
-
Page 13: Setting Of Parameters (Software Ets)
General Device name [free entry] The KNX PS640-IP can be assigned a name of your choice. The device name should be descriptive (e. g. Line TF). It is used to search for and recognize a device. Monitoring bus voltage failure disable •... -
Page 14: Ip Configuration
If a different multicast IP address is required, it must lie within the range of 239.0.0.0 to 239.255.255.255. IP address Byte 1 / 2 / 3 / 4 0 … 255 This is the IP address of the KNX PS640-IP. - Page 15 Byte 1 / 2 / 3 / 4 0 … 255 Enter the IP address of the gateway here. Note: If the KNX PS640-IP will only be used in the local LAN, the entry of 0.0.0.0 can remain unchanged. Example of assigning IP addresses A PC is to be used to access the KNX PS640-IP.
-
Page 16: Routing (Knx -> Ip)
Routing (KNX -> IP) Group telegrams (main group 0 to 13) block • route • filter Block: No group telegrams of this main group are routed to IP. Route: All group telegrams of this main group are routed to IP independent of the filter table. -
Page 17: Routing (Ip -> Knx)
Acknowledge (ACK) of group telegrams always • only if routed Always: An acknowledge is generated for every received group telegram (from KNX). Only if routed: An acknowledge is only generated for received group telegrams (from KNX) if they are routed to IP. Acknowledge (ACK) of physically always •... - Page 18 Group telegrams (main groups 14 and 15) block • route Block: No group telegrams of main groups 14 and 15 are routed to KNX. Route: All group telegrams of the main groups 14 and 15 are routed to KNX. Group telegrams (main groups 16 to 31) block •...
-
Page 19: Ets Connection Manager
ETS Connection Manager If the IP configuration of the KNX PS640-IP is valid, the router can be used as an interface to KNX. To use this function, select the “Communication” tab under Extras -> Options in the ETS (version 3.0c and higher): Click Configure interfaces…... - Page 20 To be able to access KNX, the KNX PS640-IP requires an additional physical address. This second physical address is only used for bus access and must be set up separately: Select the “Communication” tab under Extras -> Options in the ETS. The communications interface is the connection that is currently configured.
