  • Page 1 Operating Instructions...

  • Page 2: Cautions And Warnings

    This product is an accessory or part of a system. Always read and follow the manufacturer’s instructions for the equipment before connecting this product. Comply with all applicable codes and safety regulations. Failure to do so may result in damage, injury or death. CERTIFICATIONS: CE, CSA, UL Brite-X 100 Operating Instructions Document no. 10040204...

  • Page 3: Product Overview

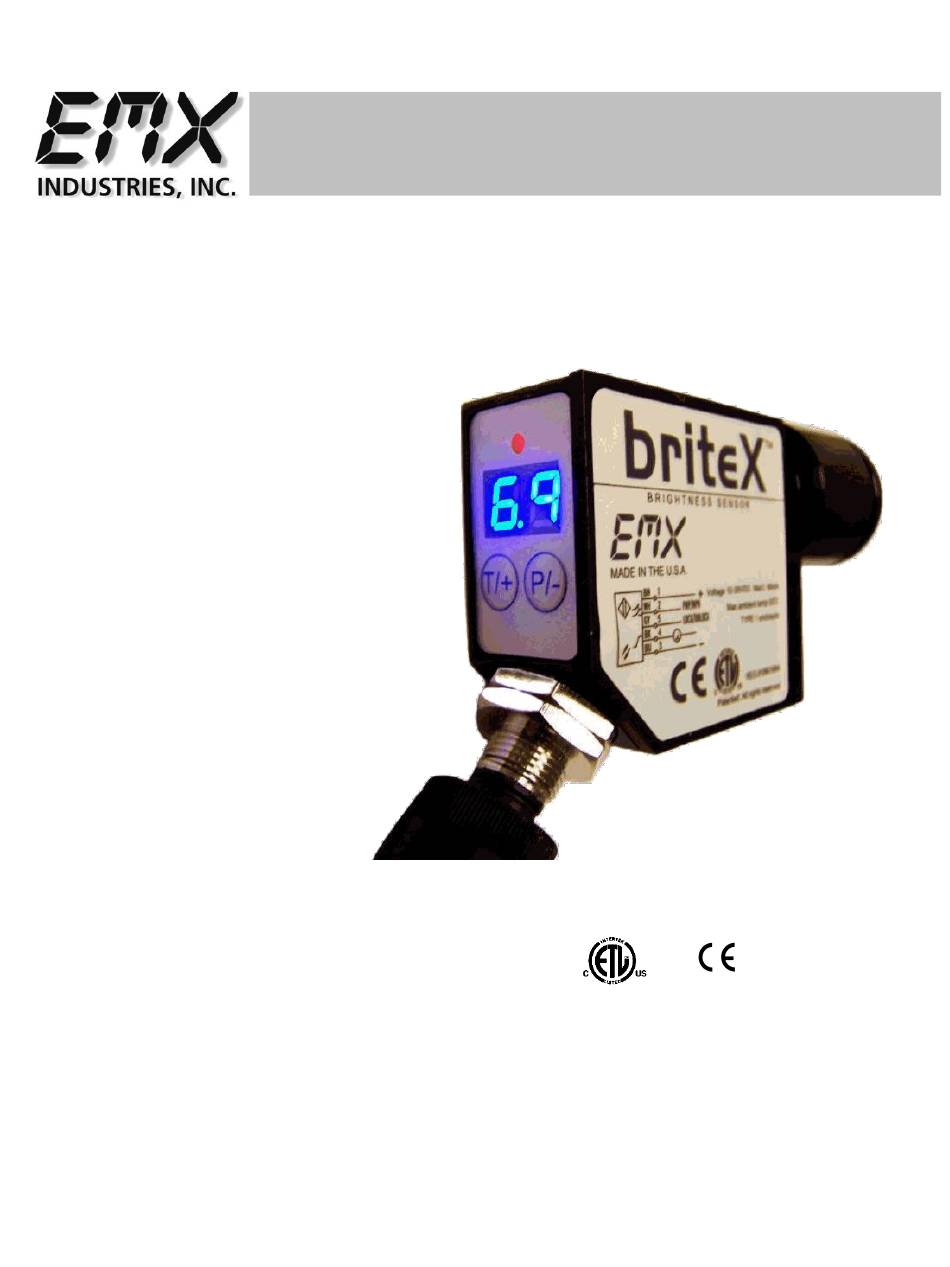

    Brite-X 100 to trigger a discrete output. The Brite-X 100 is a compact sensor with a range of operation of up to 6 inches. Two seven segment displays provide visual representation of the relative brightness from 00 to 99. Easy, five step sensitivity, and 3 LED intensity settings provide for flexible operation over wide range of distances and materials.

  • Page 4: Operation

    + or – key to increase or decrease the setting, then wait for the sensor to return to the normal intensity display mode. The selected gain is stored in memory and is retained when power is removed. Brite-X 100 Operating Instructions Document no. 10040204...

  • Page 5: Programmable Parameters

    The discrete output pulse can be extended from 0 to 90mS (milliseconds) in 10 mS increments as indicated by P0 though P9 on the display. Press and release the T/+ key to toggle through the selections. Brite-X 100 Operating Instructions Document no. 10040204...

  • Page 6: Analog Output

    In applications where minor differences in color are to be detected, variations in brightness producing discernable level changes in the analog output can be used to differentiate between similar colors. Brite-X 100 Operating Instructions Document no. 10040204...

  • Page 7: Display Indicators

    Description Pin 1 Brown Power 10 to 24VDC Pin 2 White Discrete output, PNP/NPN, NO/NC Pin 3 Blue Ground Pin 4 Black Analog output 0 to 5V DC Pin 5 Yellow Not used Brite-X 100 Operating Instructions Document no. 10040204...

  • Page 8: Ordering Information

    Brite-X 100 Brightness sensor Accessories UVX300-BRKT UVX 300-C Bracket 5-meter cable with M12 5 pin connector Dimensional Details 0.800 3.70 (20.3 mm) (94.0 mm) 2.45 8-32 UNC (62.3 mm) 0.919 0.625 0.219 0.000 Ø0.175 Brite-X 100 Operating Instructions Document no. 10040204...

  • Page 9: Warranty

    Warranty Brite-X 100 Operating Instructions Document no. 10040204...
  • Page 10 BLANK PAGE Brite-X 100 Operating Instructions Document no. 10040204...
  • Page 11 BLANK PAGE Brite-X 100 Operating Instructions Document no. 10040204...
  • Page 12 4564 Johnston Parkway Cleveland, Ohio 44128 United States of America http://www.emxinc.com Technical Support: (216) 834-0761 E-mail: technical@emxinc.com Sales: (216) 518-9888 Fax (216) 518-9884 E-mail salessupport@emxinc.com Revision 1.4 7.29.13 Brite-X 100 Operating Instructions Document no. 10040204...
