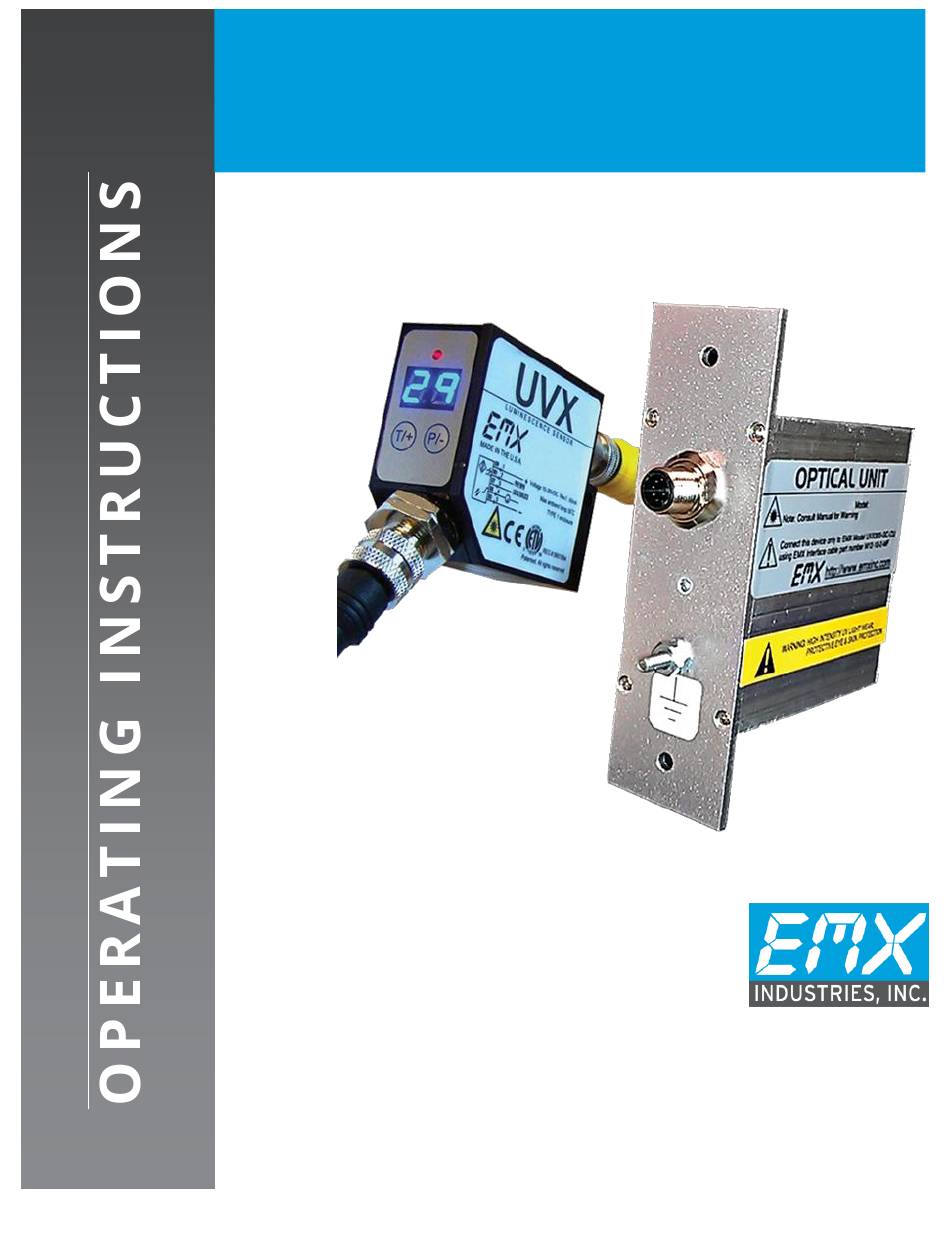

- Page 1 UVX-TIN-SIDE T i n - S i d e D e t e c t i o n S y s t e m 4564 Johnston Parkway, Cleveland, Ohio 44128 P. 800 426 9912 F. 216 518 9884 Sales Inquiries: salessupport@emxinc.com Technical Support: technical@emxinc.com...
-
Page 2: Cautions And Warnings
Cautions and Warnings CAUTION: The discrete output must not be connected to outputs from other sensors (i.e. outputs from multiple sensors must not be connected in parallel). Parallel connections may damage sensor output circuitry. BEFORE APPLYING POWER: The UV LED “on” time is controlled by the user and should be minimized as described in this Instruction to achieve maximum life. -
Page 3: Product Overview
20mV resolution. A PLC or a computer can be used to process the analog output and monitor the status of the discrete output signal during the short sample period previously described. UVX-Tin-side Detection System Operating Instructions Document no. 10010604... -
Page 4: Specifications
51mm (2.0”) x 61mm (2.4”) x 25mm (1.0”) Weight 95 g (0.21 lbs.) OU-TS2 (optical unit tin-side mini) Dimensions 41mm (1.6”) x 86mm (3.38”) x 91mm (3.55”) Weight 500 g (1.1 lbs.) UVX-Tin-side Detection System Operating Instructions Document no. 10010604... -
Page 5: Operation
To un-lock the sensor, press the T/+ and P/- for 3 seconds until LL is not displayed. While the sensor is locked, pressing either P/- or T/+ will result in LL (Local Lock) indication on the display. UVX-Tin-side Detection System Operating Instructions Document no. 10010604... -
Page 6: Programmable Parameters
The normally closed configuration activates the output during normal un-detect operation, and de-activates the output upon detect. Press and release the T/+ key to toggle through the selections. Default is normally open UVX-Tin-side Detection System Operating Instructions Document no. 10010604... -
Page 7: System Operation
3. The PLC waits 5-10mS, and then reads the UVX discrete output to determine if the tin- side is present. The PLC deactivates the UVX LED Enable line by disconnecting this line from sensor ground. UVX-Tin-side Detection System Operating Instructions Document no. 10010604... -
Page 8: Installation
11. Remove the glass and place the air-side toward the Optical Unit. The reading should be much lower than that of the tin-side. Adjust the threshold to the value between these two readings. 12. Remove the jumper and test the system. UVX-Tin-side Detection System Operating Instructions Document no. 10010604... -
Page 9: Output Signals
This line is to be left open to disable the light source; the light source should be disabled at all times other than the short cycle required to make a measurement. It is recommended that the typical measurement cycle be limited to 5-10mS (milliseconds). UVX-Tin-side Detection System Operating Instructions Document no. 10010604... -
Page 10: Display Indicators
Power 10 to 24VDC Pin 2 White Discrete output, PNP/NPN, NO/NC Pin 3 Blue Ground Pin 4 Black Analog output 0 to 5V DC Pin 5 Yellow LED enable (ground to enable) UVX-Tin-side Detection System Operating Instructions Document no. 10010604... -
Page 11: Ordering Information
UVX -300G-C-CU Control Unit OU-TS2 Optical Unit M12-10-2-MF Cable, 10P, 5M, M12, M/F 240-240025 Power supply, 24VDC regulated Accessories UVX300-BRKT UVX 300-C Bracket 5 meter cable with M12 5-pin connector Mounting Dimensions UVX-Tin-side Detection System Operating Instructions Document no. 10010604... -
Page 12: Warranty
EMX Industries option of a part or parts found not conforming to the warranty. In no event shall EMX Industries Inc. be liable for damages, including but not limited to damages resulting from non-conformity, defect in material or workmanship. - Page 13 4564 Johnston Parkway Cleveland, Ohio 44128 United States www.emxinc.com Technical Support: (216) 834-0761 E-mail: technical@emxinc.com Sales: (216) 518-9888 Fax (216) 518-9884 E-mail: salessupport@emxinc.com Revision 2.0 4-6-2020 UVX-Tin-side Detection System Operating Instructions Document no. 10010604...
