Operating Instructions

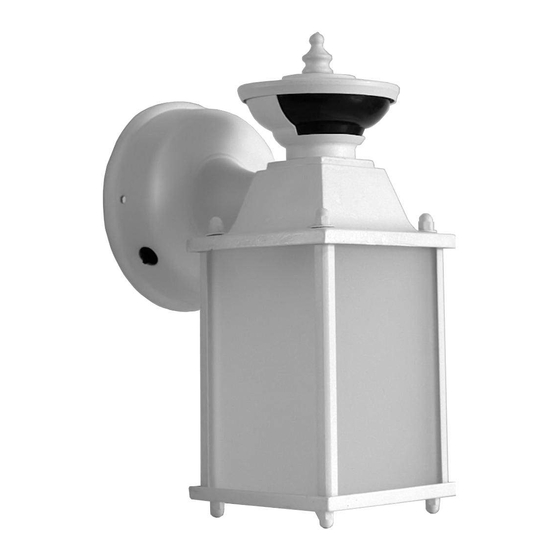

MaxLite LED Small Outdoor Lantern
®
General Safety Information
• To reduce the risk of death, personal injury or property damage from fire,
electric shock, falling parts, cuts/abrasions, and other hazards read all warnings
and instructions included with and on the fixture box and all fixture labels.
• Before installing, servicing, or performing routine maintenance upon this
equipment, follow these general precautions.
• Commercial installation, service and maintenance of luminaires should be
performed by a qualified licensed electrician.
• For Residential installation: If you are unsure about the installation or
maintenance of the luminaires, consult a qualified licensed electrician and
check your local electrical code.
• DO NOT INSTALL DAMAGED PRODUCT!
• This fixture is intended to be connected to a properly installed and grounded
UL listed junction box.
WARNING:
RISK OF ELECTRICALSHOCK
• Turn off the power when you perform any maintenance.
• Verify that supply voltage is correct by comparing it with the luminaire label
information.
• Make all electrical and grounded connections in accordance with the National
Electrical Code and any applicable local code requirements.
• All wiring connections should be capped with UL approved wire connectors.
CAUTION:
RISK OF INJURY
• Wear gloves and safety glasses at all times when removing luminaire from
carton, installing, servicing or performing maintenance.
• Avoid direct eye exposure to the light source while it is on.
• Account for small parts and destroy packing material, as these may be
hazardous to children.
• Don't touch the lamp when in use.
• Always switch off the mains supply. 5-10 minutes later to replace the lamp after the
used lamp has cooled down.
Model Numbers:
ML4LE171RLBK27MSC-V2 (Black)
ML4LE171RLWH27MSC-V2 (White)
© Copyright 2017. MaxLite, Inc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: 973-244-7300 Fax: 973-244-7333 Email: info@maxlite.com
ML4LE171RLWH27MSC-V2 / ML4LE171RLBK27MSC-V2
Page: 1
REV: 11/07/17
