Talk-a-Phone ETP-MT/R OP SOLAR Installation Instructions

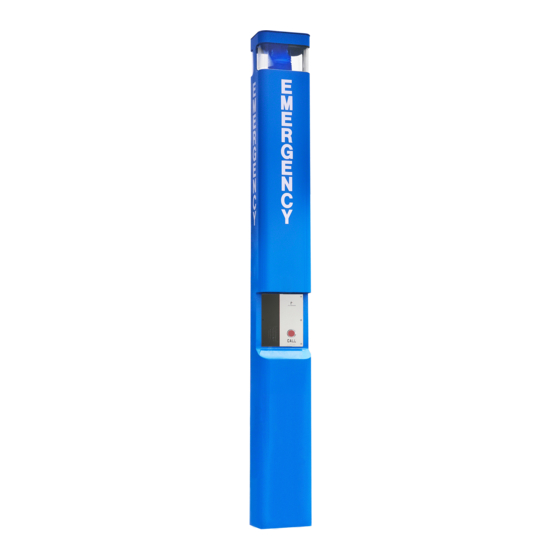

ETP-MT/R OP SOLAR Tower Installation Instructions
I. Introduction
Note: This manual is for tower and solar kit installation only. For instructions on installing the anchor bolts into the
foundation, see the ETP-MT/R Anchor Bolt Installation Instructions.
II. Contents
Before beginning installation, make sure you have all the included components. Each Tower consists of three
packages. Package #1 contains the tower itself. Package #2 labeled MT/R BOLT KIT contains the anchor bolts
and template for foundation prep work. Package #3 labeled TOWER PTS SOLAR contains the lighting and
hardware for final tower assembly. The solar panels and accessories are shipped separately because they vary
by installation location. The bill of materials is summarized below:
MT/R BOLT KIT (Foundation Installation Kit)
QTY Part Number
4 42838
1 26312
TOWER PTS SOLAR (keep for use when installing the tower)
QTY Part Number
8 42839
8 42840
3 42841
2 42843
1 67478
1 68590
1 ETP-EL12/24
Solar Equipment (e.g. Model SOLAR-C) is shipped separately and includes the following:
QTY Part Number
1-2 Varies
1 68507PM
1 PCS-DCDC
2 68594
1 68507CC
1 86507OC
2 67492
2 42855
2 42847
Emergency phone and wireless communication equipment (e.g. cellular or RF) are sold separately.
Phone 773.539.1100 • Fax 773.539.1241 • info@talkaphone.com • www.talkaphone.com
Talk-A-Phone, Talk-A-Lert, Scream Alert and WEBS are registered trademarks of Talk-A-Phone Co.
Description
J-Bolts
Cardboard Template
Description
3/4"-10 Hex Nut
3/4" Washer
10-24 x 3/4" pan head tamperproof screw
6-32 hex nut
Polycarbonate light cover
LED light board (12-24V AC/DC - 120VAC)
12/24V AC/DC Strobe Light
Description
Solar array (may be more than 1 panel depending on location)
Solar panel mounting bracket with instructions
DC-DC Converter with in-line fuse and battery terminals
42 AmpHour batteries
Solar Controller
Solar cable with 2 fittings attached
Battery terminal crimp-on connectors
10-24 Screws for mounting Solar Controller
10-24 Nuts for mounting Solar Controller
Copyright 2009 Talk-A-Phone Co. All rights reserved.
Talk-A-Phone Co. • 7530 North Natchez Avenue • Niles, Illinois 60714-3804
All prices and specifications are subject to change without notice.
Rev. 8/31/09
