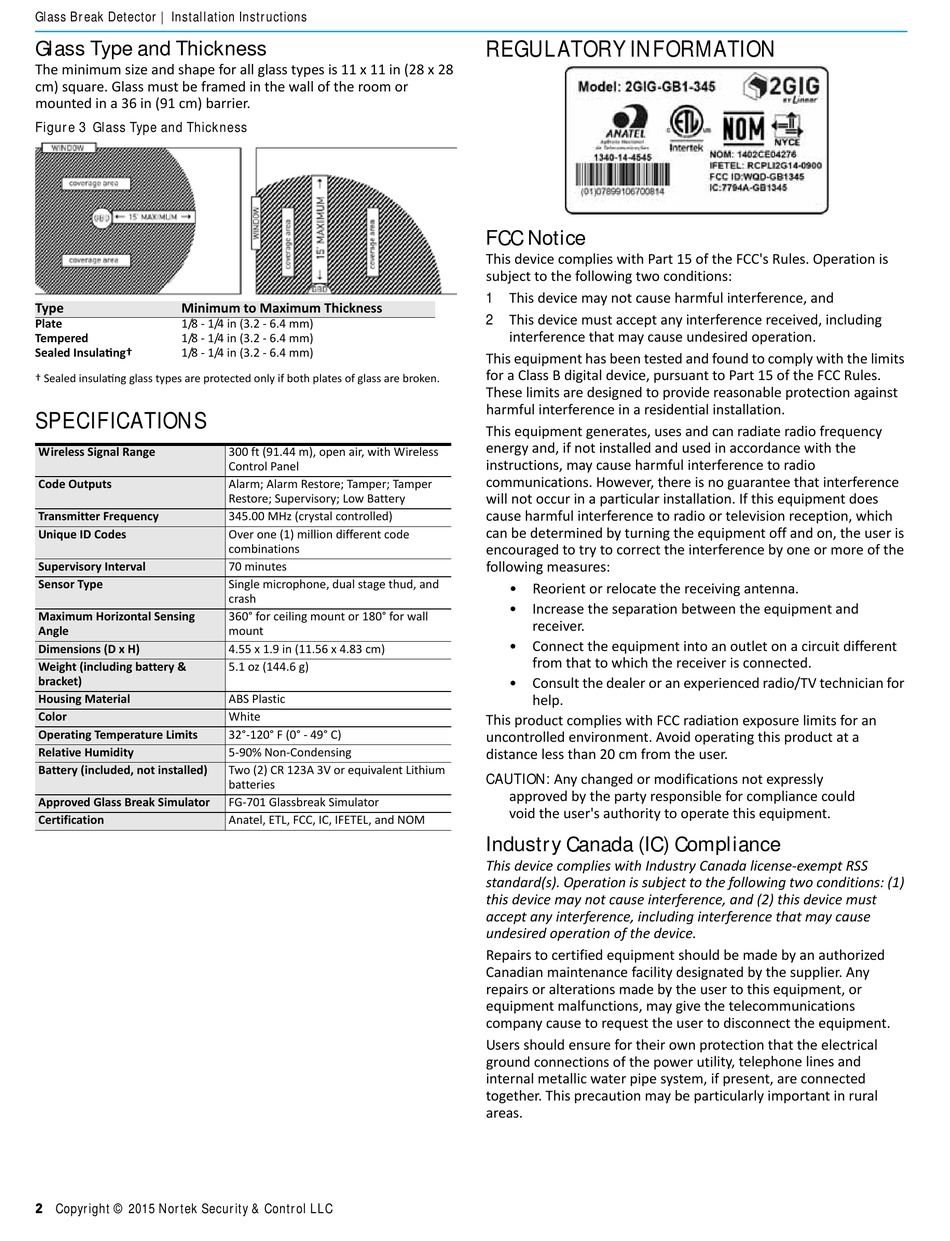

Nortek Security & Control 2GIG 2GIG-GB1-345 Manual page 2

Glass Break Detector | Installation Instructions
Glass Type and Thickness
The minimum size and shape for all glass types is 11 x 11 in (28 x 28
cm) square. Glass must be framed in the wall of the room or
mounted in a 36 in (91 cm) barrier.
Figure 3 Glass Type and Thickness
Type Minimum to Maximum Thickness
Plate 1/8 ‐ 1/4 in (3.2 ‐ 6.4 mm)
Tempered 1/8 ‐ 1/4 in (3.2 ‐ 6.4 mm)
Sealed Insula ng† 1/8 ‐ 1/4 in (3.2 ‐ 6.4 mm)
† Sealed insula ng glass types are protected only if both plates of glass are broken.
SPECIFICATIONS
Wireless Signal Range
Code Outputs
Transmitter Frequency
Unique ID Codes
Supervisory Interval
Sensor Type
Maximum Horizontal Sensing
Angle
Dimensions (D x H)
Weight (including battery &
bracket)
Housing Material
Color
Operating Temperature Limits
Relative Humidity
Battery (included, not installed)
Approved Glass Break Simulator
Certification
2 Copyright © 2015 Nortek Security & Control LLC
300 ft (91.44 m), open air, with Wireless
Control Panel
Alarm; Alarm Restore; Tamper; Tamper
Restore; Supervisory; Low Battery
345.00 MHz (crystal controlled)
Over one (1) million different code
combinations
70 minutes
Single microphone, dual stage thud, and
crash
360° for ceiling mount or 180° for wall
mount
4.55 x 1.9 in (11.56 x 4.83 cm)
5.1 oz (144.6 g)
ABS Plastic
White
32°‐120° F (0° ‐ 49° C)
5‐90% Non‐Condensing
Two (2) CR 123A 3V or equivalent Lithium
batteries
FG‐701 Glassbreak Simulator
Anatel, ETL, FCC, IC, IFETEL, and NOM
REGULATORY INFORMATION
FCC Notice
This device complies with Part 15 of the FCC's Rules. Operation is
subject to the following two conditions:
This device may not cause harmful interference, and
1
This device must accept any interference received, including
2
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
This product complies with FCC radiation exposure limits for an
uncontrolled environment. Avoid operating this product at a
distance less than 20 cm from the user.
Any changed or modifications not expressly
CAUTION:
approved by the party responsible for compliance could
void the user's authority to operate this equipment.
Industry Canada (IC) Compliance
This device complies with Industry Canada license‐exempt RSS
standard(s). Operation is subject to the following two conditions: (1)
this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause
undesired operation of the device.
Repairs to certified equipment should be made by an authorized
Canadian maintenance facility designated by the supplier. Any
repairs or alterations made by the user to this equipment, or
equipment malfunctions, may give the telecommunications
company cause to request the user to disconnect the equipment.
Users should ensure for their own protection that the electrical
ground connections of the power utility, telephone lines and
internal metallic water pipe system, if present, are connected
together. This precaution may be particularly important in rural
areas.
