Compound Security Systems Mosquito MK4 Additional Setup Instructions page 3

Compound Security Systems Ltd.
ADDITIONAL SETUP
INSTRUCTIONS
mosquito-mk4-setup-instructions.indd 4-5
www.compoundsecurity.co.uk
Compound Security Systems Ltd.
POWER CONNECTION
Most people purchase a 15v AC power supply with their Mosquito MK4. If you have not
ordered a power supply with your Mosquito, you can either obtain one from our website or
purchase one from your local electrical wholesaler. If purchasing from a wholesaler, you
must specify either a 15v AC or 24v DC power supply rated at 800mA.
Once you are ready to connect the power supply to the Mosquito MK4, locate the power
input terminals (top left of above image). There is no polarity issue to worry about, so it
does not matter which wire goes in which side. Just ensure you tighten the connections fully.
FUNCTION SELECTION
First of all, you must decide which functions you wish to use. Choose these from the
Function list above.
The fuction selection switches (DIP switches) can be located on the red block at the middle
right hand side of the above picture.

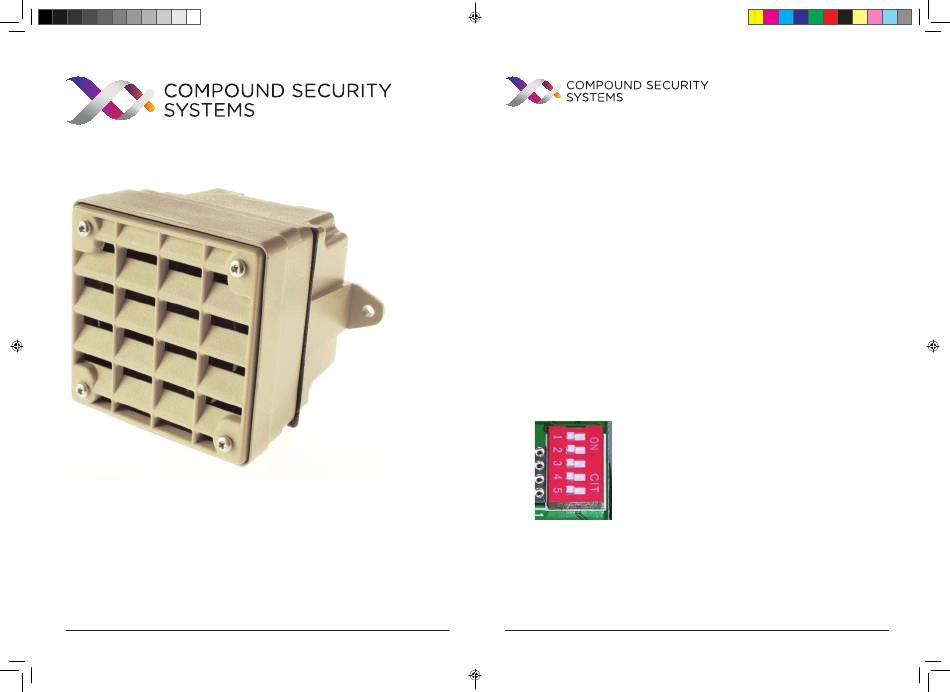

The following picture shows ALL DIP switches set to the OFF position. If your DIP switches
are in a different position, please set ALL to the OFF position before proceeding.
DIP switch
function selection
block
