Hitchgate Offset
THE HITCHGATE MUST ONLY BE INSTALLED IN A CLASS III or CLASS V 2" HITCH ASSEMBLY.
Tow vehicles maximum trailer rating may be less then the HitchGates rating, see vehicles owner's guide for
maximum towing and tongue weight.
By installing this product you will reduce your vehicles available tongue weight by the weight of the UHG2060
and added weight for example: If the weight of the UHG2060 and your tire weights 250lbs you would reduce
your available tongue weight by 250lbs. Refer to your vehicles owners guide and tow hitch for maximum tongue
weight and reduce by 250lbs (example: Max Tongue wt 600 lbs – 250 lbs = 350 lbs maximum tongue weight
available after installing this product)
WILCO OFFROAD 877‐945‐2684 www.wilcooffroad.com Email: info@WilcoOffroad.com

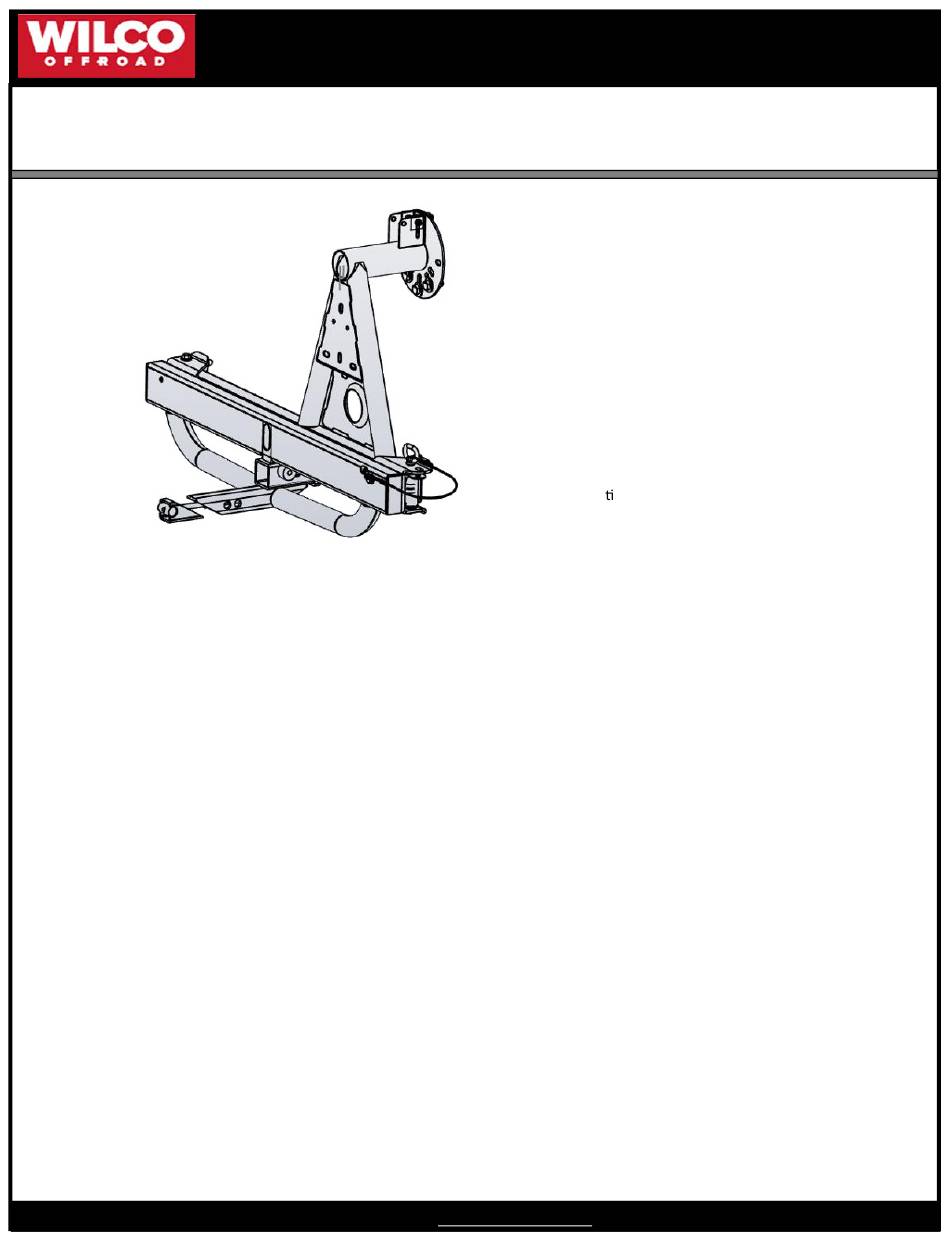

UHG2060/AU
Hitchgate™
Installation Instructions
P/N UHG2060/AU
HITCHGATE TIRE CARRIER
INSTALLATION GUIDE
Parts List
1. 1/2‐13 x 5 1/2" Bolt 1
2. 1/2‐13 Ny‐Lock nut 1
3. 1/4 x 3/4 Screw
4. 1/4 Flat washer
5. Latch Pin w cable
6. 12mm x 40mm Bolt 3
7. 12mm Lug‐Nut
Parts assembled with product
1. TireGate S cker
2. 3" Cap Plug
3. 1/2 x 4" Full Thread 1
4. 1/2 Flat washer
1
Tool List
• Box wrench set
• Socket set
8. Delrin Washer
9. Poly‐Bushing
1
10. 1/2‐sm Flat washer 3
2
11. 1/2‐md Flat washer 2
1
12. M12 Bracket
13. 1/4 x 7/8 bolt
4
14. 1/4 Ny‐loc nut
2
5. 1/2 Loc‐washer
1
6. Rubber Bumper
7. Wedge Lock
1
2
2
1
2
2
1
2
1
Advertisement
Table of Contents
Related Manuals for Wilco Offroad UHG2060/AU
Summary of Contents for Wilco Offroad UHG2060/AU
- Page 1 1 Hitchgate™ Installation Instructions P/N UHG2060/AU WARNING THE HITCHGATE MUST ONLY BE INSTALLED IN A CLASS III or CLASS V 2” HITCH ASSEMBLY. Tow vehicles maximum trailer rating may be less then the HitchGates rating, see vehicles owner’s guide for maximum towing and tongue weight.
- Page 2 HITCHGATE TIRE CARRIER UHG2060/AU INSTALLATION GUIDE 1. Make sure vehicle is turned off and the emergency brake is set before installing this product. 2. Remove hitch pin and ball mount. 3. Liberally grease the bolt and anti-rocking wedge-lock on the end of the receiver insert. See Figure 1.
- Page 3 HITCHGATE TIRE CARRIER UHG2060/AU INSTALLATION GUIDE Figure 1. Grease wedge‐lock before inser ng into receiver. Figure 2. Tighten the wedge‐lock bolt to 75 /lbs. 3 WILCO OFFROAD 877‐945‐2684 www.wilcooffroad.com Email: info@WilcoOffroad.com ...
- Page 4 HITCHGATE TIRE CARRIER UHG2060/AU INSTALLATION GUIDE Insert Latch Pin Delrin Washers Figure 3. Moun ng HitchGate Swing Arm to Receiver Arm 12M Bracket Spare Tire Moun ng Plate Pin and Cable 1/2 Bolt 1/2 Flat washer A ach cable to 1/2 Flat washer back of Gate 1/2 Ny‐Loc nut Figure 4. Moun ng HitchGate 4 WILCO OFFROAD 877‐945‐2684 www.wilcooffroad.com Email: info@WilcoOffroad.com ...
