Summary of Contents for HDanywhere uControl Zone Processor 1

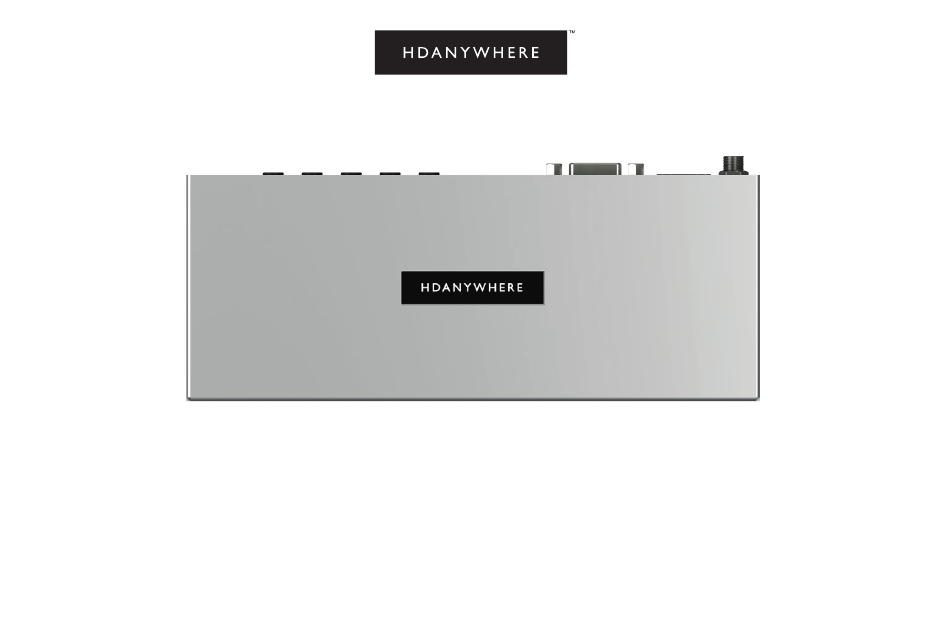

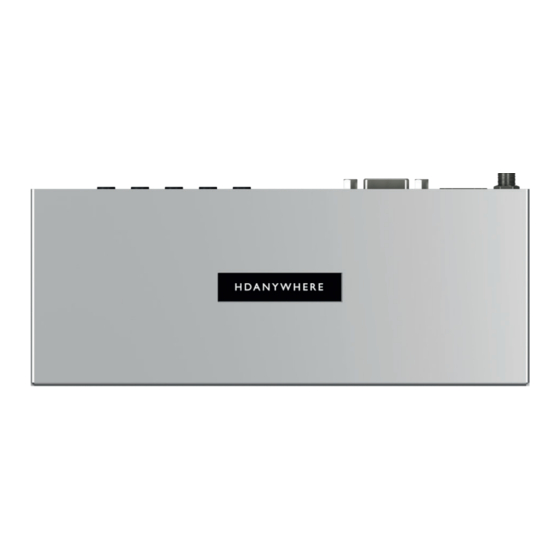

- Page 1 Zone Processor 1 CODE: ZP1 uControl Zone Processor 5 CODE: ZP5 Product Guide (English UK) Revision 1: 02/01/20...
-
Page 2: Table Of Contents
IR (Infrared) control CEC control Power up & setup in uControl app 14-15 Zone Processor control methods Integration with a control system Example usage diagram 18-19 Legals: Compliance, Conformity, Product Guarantee 20-21 Help is only an email away: support@hdanywhere.com or online http://support.hdanywhere.com... - Page 3 (+ much more) within a property. The Zone Processor can be integrated in to a control system by using an integration driver. See page 17. This cable connects to the “IR (OUT)” port on HDANYWHERE devices and is designed to emit Infrared Transmitter (IR TX) infrared (IR) signals from its opposite, transmitter, end.
-
Page 4: Features
UK designed. China assembled. Amazon Alexa compatible Patented GB 2548668 Remotely managable For patents in other countries please visit: https://hdanywhere.com/patents Includes HDA API 2.1 Compatible with 3rd party control systems WiFi range extension Help is only an email away: support@hdanywhere.com or online http://support.hdanywhere.com... -
Page 5: In The Box
In the box Name: uControl Zone Processor 1 Name: uControl Zone Processor 5 Product code: Product code: uControl Zone Processor 1 uControl Zone Processor 5 Detachable WiFi aerial Detachable WiFi aerial Infrared Transmitter cable (1.5m) (IR TX) Infrared Transmitter cable (1.5m) (IR TX) -
Page 6: Specification
20Khz - 60Khz Aerial connector Aerial frequency 2400 - 2500Mhz ±8kV (Air-gap discharge) ESD protection ±4kV (Contact discharge) ZP1: 0.8W (Maximum) Power consumption ZP5: 1.15W (Maximum) Power supply 5V 1A Help is only an email away: support@hdanywhere.com or online http://support.hdanywhere.com... - Page 7 Operating temperature 0°C - 40°C / 32°F - 104°F Storage temperature -20°C - 60°C / -4°F - 140°F Relative humidity 20 - 90% (Non-condensing) Housing Aluminium Colour Grey (Carbonite) ZP1: 108 x 68.5 x 20 mm / 4.25 x 2.69 x 0.78 inches Dimensions (W/D/H) ZP5: 176 x 68.5 x 20 / 7.01 x 2.69 x 0.78 inches ZP1: 120g / 4.2 ounces...
-
Page 8: Zp1 Panel Illustration + Description
ZP1 panel illustration DC5V RS232 IR (OUT) WiFi uControl Help is only an email away: support@hdanywhere.com or online http://support.hdanywhere.com... - Page 9 Description 1. Power: Indicator light. If this light is on and solid then the Zone Processor has power. If this light is flashing then the Zone Processor is in Discovery Mode. 2. DC5V: Connect the supplied power supply to this port to provide power to the Zone Processor. 3.
-
Page 10: Zp5 Panel Illustration + Description
ZP5 panel illustration DC5V IR (OUT) HDMI (CEC) RS232 WiFi uControl Help is only an email away: support@hdanywhere.com or online http://support.hdanywhere.com... - Page 11 Description 1. Power: Indicator light. If this light is on and solid then the Zone Processor has power. If this light is flashing then the Zone Processor is in Discovery Mode. 2. DC5V: Connect the supplied power supply to this port to provide power to the Zone Processor. 3.
-
Page 12: Ir (Infrared) Control
The Zone Processor must be set up first. See “Power up & setup in uControl” on page 16. 4. uControl will walk you through a short command test. If your device responds to the test command you’re set up correctly. Help is only an email away: support@hdanywhere.com or online http://support.hdanywhere.com... -
Page 13: Cec Control
Within the Zone Processor is our uControl CEC library. Unlike the uControl IR packs you can not add, edit or remove the CEC library. The CEC library contains a record of all standardised CEC commands. It is important to note that whilst HDANYWHERE has tried to inlclude all standard codes, and as many custom codes as possible, not all manufacturers support CEC universally. -
Page 14: Power Up & Setup In Ucontrol App
During this period, follow instructions in step #8. Install uControl on your iOS or Android phone or tablet. Open uControl. You will be presented with an intro screen which will automatically disappear or can be swiped away. Help is only an email away: support@hdanywhere.com or online http://support.hdanywhere.com... - Page 15 You will be at the home screen. This screen is only visible when no Zone Processor is connected to uControl. Your following choice is dependent on the way you wish to connect it to your network. If are using Ethernet to connect to your Zone Processor then select “Connect to System” If you plan to connect to your Zone Processor using WiFi then select “Advanced”...
-
Page 16: Zone Processor Control Methods
Available for free on iOS and Android, uControl is the Zone Processor’ s native method of control. By downloading uControl IR packs or using the uContol CEC library comprehensive control is possible. In the absence of a third-party control system, HDANYWHERE recommends uControl as the method to control your Zone Processor on a daily basis. -
Page 17: Integration With A Control System
Integration with a control system The uControl Zone Processor works with many control system providers. Find the latest drivers to download from http://support. hdanywhere.com. Building your own control solution Download the API here: https://cloud.hdanywhere.com/docs/api/hda_api.pdf... -
Page 18: Example Usage Diagram
If you are unsure how you might install this device into your property then contact support@hdanywhere.com or contact an HDA Pro (https://hdanywhere.com/dealers-and-installers/) for further assistance. Diagram 1. Help is only an email away: support@hdanywhere.com or online http://support.hdanywhere.com... - Page 19 Using a ZP5 with a control system to hide AV devices in a cupboard and trigger a TV lift using RS232 Zone: Living Room HDMI Cable TV lift motion A ZP5 is being used with Control4 (a control system) to control the RS232 TV lift using RS232 via the Zone Processor’...
-
Page 20: Legals: Compliance, Conformity, Product Guarantee
Pro or other authorised or suitably qualified installer, and that they have[MG3] confirmed 2. We, HDANYWHERE warrant to you, the end user of the HDA hardware (the “Products”) in writing that the suspected defect in the Products stems solely from a fault in the HDA that on the date of delivery of the Products to you, and for a period of 2 years from that hardware;... - Page 21 13. These Conditions shall apply to any repaired or replacement Product supplied by us. GUARANTEE CONTACT INFORMATION To contact (support@hdanywhere.com) or call HDANYWHERE Technical Support (call charges will depend on your telephone provider. Please check with your operator for exact charges).The team is available 9am - 5pm weekdays. To help us handle your query...
- Page 22 Registered in England & Wales 06046737 VAT 913222367 HDANYWHERE assumes no responsibility for any inaccuracies that may be contained in this document. In no event will HDANYWHERE be liable for direct, indirect, special, incidental, or consequential damages resulting from any...
