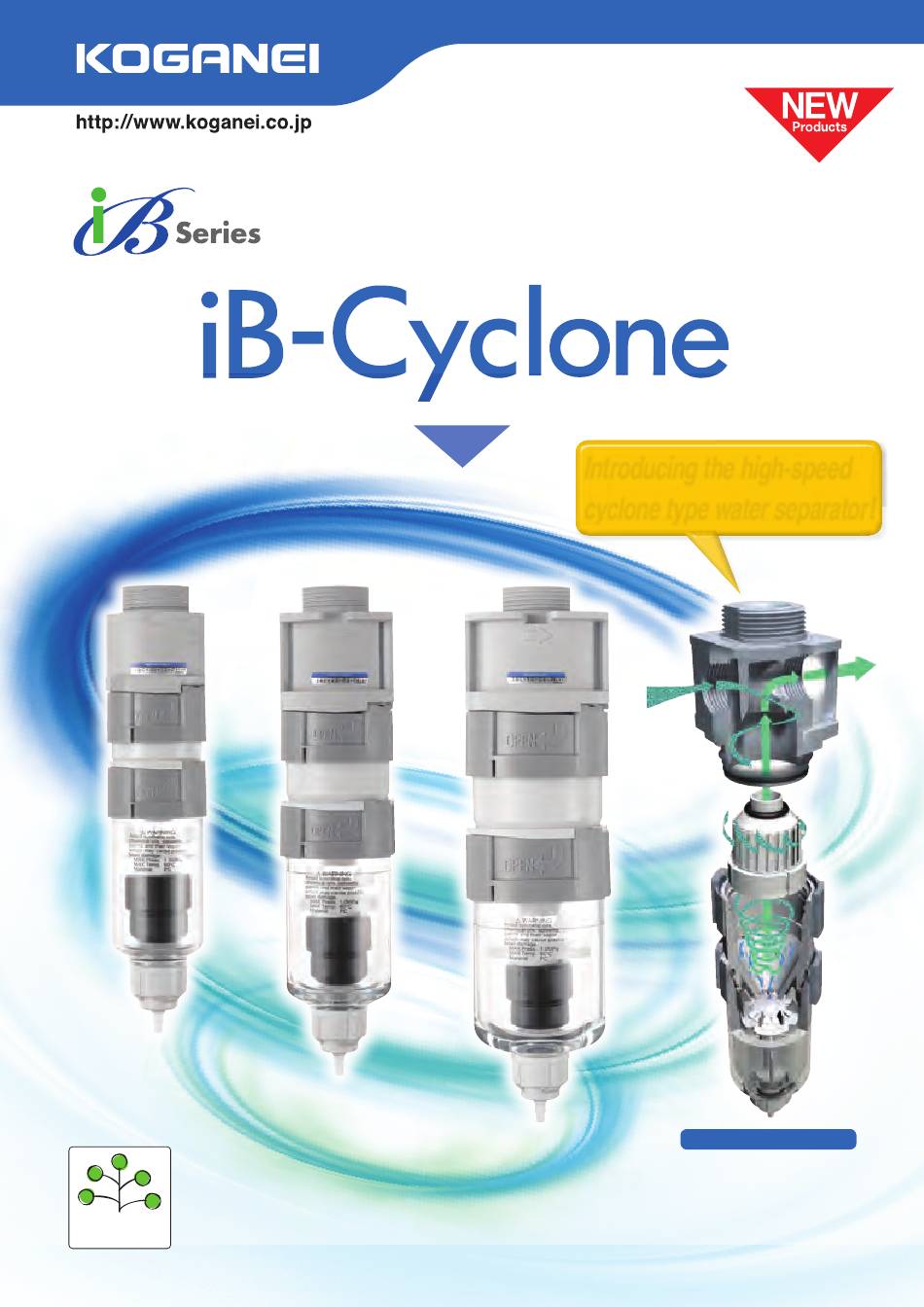

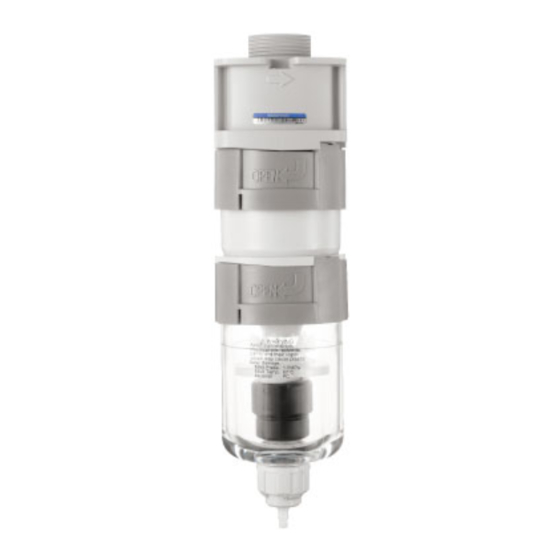

- Page 1 Catalog No. BK-E0007 ISO 9001 / ISO 14001 PAT. PEND. Introducing the high-speed cyclone type water separator! Conceptual image of water separation Products are RoHS compliant...
- Page 2 Note Half the size and over 99% water separation ratio compared to Superior water separation performance other devices. Note: According to Koganei measurement standards. High-speed cyclone water separator uses the power of Cyclone system centrifugal separation (patent pending) Maintenance free because element is not used.
-
Page 3: Variations And Options
2000 Flow rate ℓ/min (ANR) 1ℓ/min = 0.0353 ft /min *Water separation compared with Koganei drain filter (reference). iB-Cyclone application example ● Removing water in sub-lines and from various equipment ● Removing primary-side water from filters and regulators ● Pre-processing air supply going to membrane dryer Filter regulator ●... - Page 4 WARNING components to deteriorate resulting in reduced performance, or a ●Because KOGANEI products are designed for use under a wide variety limitation or stop of functions. ●Do not use any type of medium that is not specifically stipulated in the of conditions, decisions concerning conformance with a particular system specifications.
- Page 5 CAUTION KOGANEI shall not be held responsible for any problems that occur as a result of these items not being properly observed. ●When mounting the product, leave room for adequate working space around it.
-
Page 6: General Precautions
2. Install vertically so the piping connection portion is up and the drain outlet Koganei sales office or overseas department. is down. 2. Air that is mixed with oil or solids cannot be used. -
Page 7: Drain Cock
● Periodic maintenance Bowl Whirling air components 1. Do periodic inspections to look for cracks, scratches, or other 1. Dust collecting in the whirling air components reduces the separation deterioration in the bowl (clear plastic part). function. If this happens, disassemble and wash the product to remove 2. - Page 8 Handling Instructions and Precautions ● Explanation of operation of auto drain system Type NO type NC type State When unpressurized, the water outlet When unpressurized, the water outlet opens and the water drains naturally. closes and the water cannot drain. Note: Water does not drain when unpressurized, if there is a lot of water even in an unpressurized...
-
Page 9: Reference Material
Reference material ●About the chemical resistance of polycarbonate The chemicals in the following table degrade polycarbonate. They may damage the bowl and cause an accident. Do not allow the following chemicals into the compressed air or the environment around the product, do not allow them to contact the product. This does not mean that polycarbonate is chemically resistant to all chemicals not listed below. -
Page 10: Specifications
Bracket Note 1: According to Koganei measurement conditions. 2: Maximum flow rate in an environment with 0.5 MPa [73 psi] and 0.1 MPa [14.5 psi] pressure drop (maximum port size piping). Check the graphs of characteristics on each page when making a decision. - Page 11 Separation characteristics ●0.1 MPa [15 psi] ●0.3 MPa [44 psi] IBCY50 mℓ /min mℓ /min IBCY40 IBCY40 IBCY30 IBCY30 IBCY50 1000 1500 1000 1500 2000 2500 ℓ /min (ANR) ℓ /min (ANR) Flow rate Flow rate ●0.5 MPa [73 psi] ●0.7 MPa [102 psi] IBCY50 IBCY50...
- Page 12 Dimensions mm [in] ●IBCY30 50 [1.97] 19 [0.75] 35 [1.38] 35 [1.38] 38 [1.50] 32 [1.26] IBCY30-01 ： Rc1/8 Ｉ Ｎ IBCY30-02 : Rc1/4 φ4.5 [0.177] Maintenance space 30 [1.18] or over Ｄ Ｒ Ａ Ｉ Ｎ ●IBCY40 50 [1.97] 22.5 [0.886] 35 [1.38] 40 [1.57]...
-
Page 13: Mounting Ring
Dimensions mm [in] ●IBCY50 50 [1.97] 27 [1.06] 35 [1.38] 32 [1.26] 54 [2.13] IBCY50-02 ： Rc1/4 IBCY50-03 : Rc3/8 Ｉ Ｎ IBCY50-04 : Rc1/2 φ4.5 [0.177] Maintenance space 50 [1.97] or over Ｄ Ｒ Ａ Ｉ Ｎ ●8Z-CBK Bracket Mounting ring 6.5 [0.256] 2 [0.08]... - Page 14 Memo...
- Page 15 Limited Warranty • KOGANEI CORP. shall in no way be liable or responsible for KOGANEI CORP. warrants its products to be free from defects injuries or damage to persons or property arising out of the use in material and workmanship subject to the following provisions.
- Page 16 URL http://www.koganei.co.jp E-mail: overseas@koganei.co.jp OVERSEAS DEPARTMENT 3-11-28, Midori-cho, Koganei City, Tokyo 184-8533, Japan Tel: 81-42-383-7271 Fax: 81-42-383-7276 KOGANEI INTERNATIONAL AMERICA, INC. 39300 Civic Center Dr., Suite 280, Fremont, CA 94538, U.S.A. Tel : 1-510-744-1626 Fax : 1-510-744-1676 SHANGHAI KOGANEI INTERNATIONAL TRADING CORPORATION Room 2606-2607, Tongda Venture Building No.1, Lane 600, Tianshan Road,...
