- Page 1 CONTROLLER HTR-10 USER MANUAL 24-09-2018 version 4...

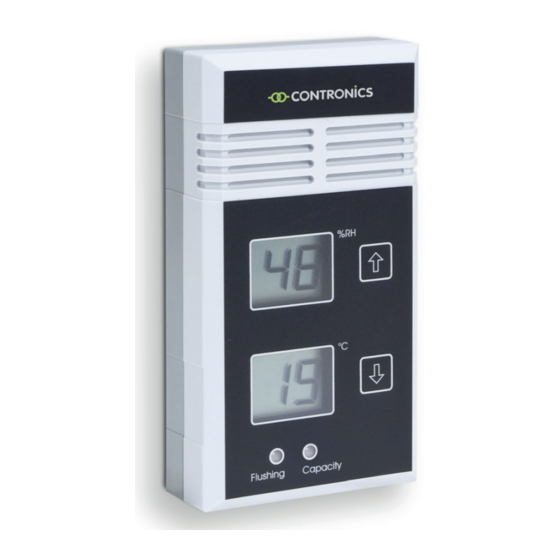

- Page 2 2. INTRODUCTION The HTR-10 is a room hygrostat and remote control for the HU-xxx series of humidifiers. It features a very accurate in-built humidity sensor and temperature sensor. The humidity sensor is also very accurate in the higher regions of relative humidity. An built-in heating element within the sensor element ensures that the sensor remains dry when the dew point is reached.
- Page 3 HTR-10 The HTR-10 can be mounted in a number of ways using the accompanying wall-mounting bracket: 1. Mounted directly on to a wall. Cable is at the bottom. 2. In a wall-mounted box. Cable must be in the centre, at the back.
- Page 4 HTR-10 6. FEATURES 1. LCD with current relative humidity. 2. LCD with current temperature. 3. Operating buttons. 4. Blue LED indicates the current capacity of the humidifier (identical to the blue LED on the front panel of the humidifier). 5. Green LED flashing: Waterreservoir being filled.
- Page 5 HTR-10 Change the configuration of the parameters: Press simultaneously for 3 seconds. The screen will now flash. Press to change the setting. Press simultaneously for 3 seconds to confirm. Press multiple times to return to the start screen. Installation menu 1...
- Page 6 HTR-10 9. MENU OVERVIEW 3 seconds Basic screen Required capacity (mode 0) Required humidity (mode 1) 5 seconds Service 1 Humidity offset Required setting Temperature offset Required setting Minimum capacity Required setting Maximum capacity Required setting Bandwidth *) Required setting...
- Page 7 - 40 ºC min. +70 ºC max. DISCLAIMER Contronics works continuously on the further development of its products. We therefore reserve the right to modify the design, construction and technology of the product at any time. For this reason, no claims can be made based on the data, illustrations and description in this user manual.
- Page 8 HTR-10 P.O. Box 144 5490 AC Sint-Oedenrode The Netherlands Telephone: +31(0)413-487000 Website: www.contronics.nl E-mail: info@contronics.nl...
